Produkteinführung

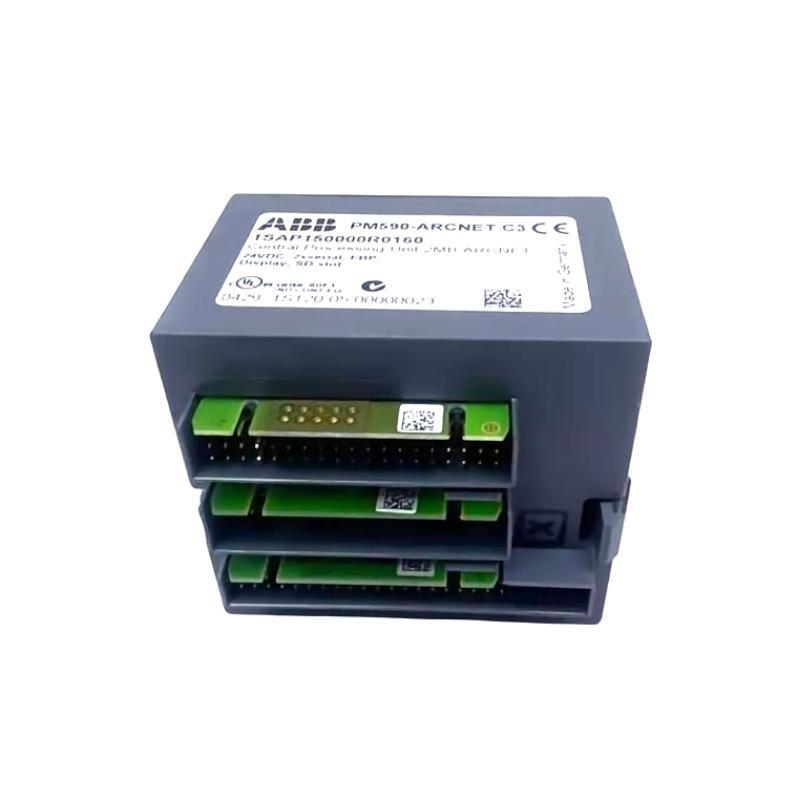

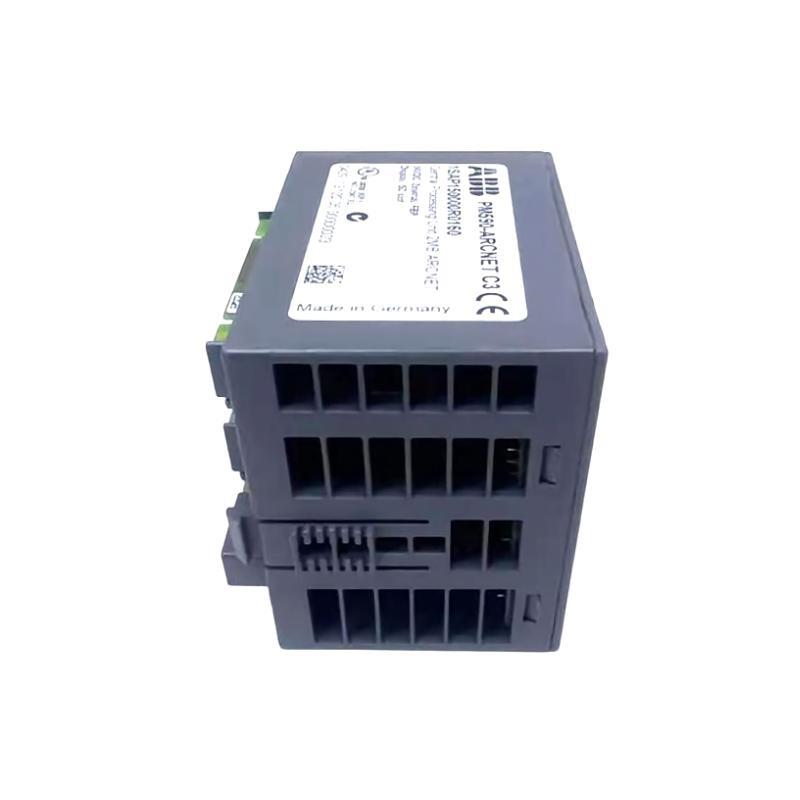

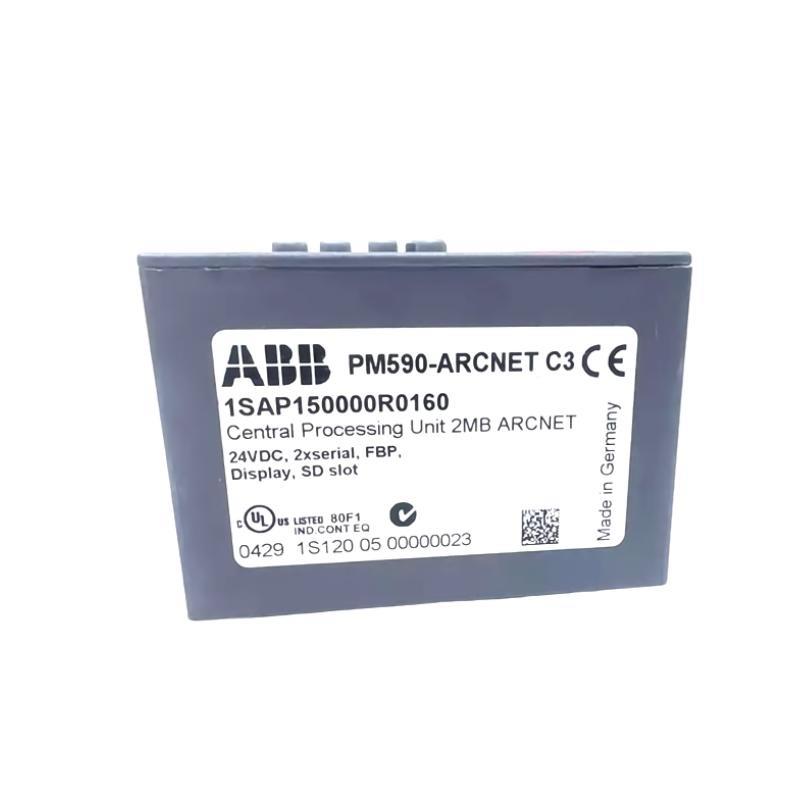

The ABB PM590-ARCNET (1SAP150000R0160) is a powerful processor module designed for high-end industrial automation applications where reliability and high-speed communication are essential. As part von ABB’s renowned PM500 series, the PM590-ARCNET integrates advanced processing capabilities with ARCNET communication technology, enabling fast and deterministic network communication in complex automation systems.
This processor module supports extensive programming and flexible control strategies, making it suitable for critical manufacturing processes, infrastructure management, and energy sector applications. Its robust construction ensures stable operation in harsh industrial environments, while the modular design allows seamless integration with a wide range von ABB I/O and communication modules.
The PM590-ARCNET is engineered to deliver high throughput and real-time control, positioning it as a dependable choice for automation engineers seeking scalable and efficient control solutions.
Produktspezifikationen
| Parameter | Beschreibung |
|---|---|
| Modell Number | PM590-ARCNET 1SAP150000R0160 |
| Processor Type | High-performance 32-bit processor |
| Program Memory | 8 MB |
| Data Memory | 2 MB |
| Communication Interfaces | ARCNET (Controller Area Network) |
| Power Supply | 24 V DC nominal |
| Digital Inputs | Expandable via I/O modules |
| Digital Outputs | Expandable via I/O modules |
| Analog Inputs | Supported through optional modules |
| Operating Temperature Range | -20°C to +60°C |
| Dimensions (HxWxD) | 62 × 76 × 67.5 mm |
| Gewicht | 0.16 kg |
| Protection Class | IP20 |
| Programming Svontware | ABB Automation Builder, IEC 61131-3 compatible |
| Standards Compliance | CE, UL, cUL, RoHS |
Product Applications
The ABB PM590-ARCNET processor module excels in a variety von industrial automation applications, including:
-
Advanced Manufacturing: Control von complex production lines and machinery requiring fast, reliable communication.
-
Process Industry: Automation von continuous and batch processing plants in chemical, pharmaceutical, and food & beverage sectors.
-
Power Generation and Distribution: Control and monitoring von power plants and electrical substations.
-
Infrastructure Automation: Management von large-scale HVAC, water treatment, and building automation systems.
-
Material Handling Systems: Coordination von automated conveyors, packaging, and sorting equipment.
-
Critical Machine Control: Integration with CNC machines, presses, and robotics for precise control and synchronization.
Product Advantages
-
High-Speed ARCNET Communication: Ensures deterministic and robust data transfer in real-time automation networks.
-
Large Memory Capacity: 8 MB program memory and 2 MB data memory support complex automation programs and extensive data logging.
-
Scalable and Modular: Easily expandable with ABB’s wide range von I/O and communication modules for custom system configuration.
-
Robust Industrial Design: Engineered to operate reliably under tough environmental conditions and wide temperature ranges.
-
User-Friendly Programming: Compatible with ABB Automation Builder svontware and supports IEC 61131-3 programming languages.
-
Advanced Diagnostics: Built-in diagnostic tools simplify troubleshooting and reduce system downtime.
-
Reliable Power Supply Design: Operates on standard 24 V DC, compatible with typical industrial power systems.
-
Compact Size: Allows integration into space-constrained control panels without compromising performance.
-
International Standards Compliance: Meets essential safety and electromagnetic compatibility regulations for global deployment.
Häufig gestellte Fragen (FAQ)
-
Q: What communication protocol does the PM590-ARCNET use?
A: It uses ARCNET protocol, which provides reliable and deterministic communication for industrial networks. -
Q: What programming tools are compatible with the PM590-ARCNET?
A: The module is programmed using ABB Automation Builder and supports IEC 61131-3 standard languages. -
Q: Can the PM590-ARCNET module be expanded with additional I/O modules?
A: Yes, it supports a wide range von digital and analog I/O modules for flexible system expansion. -
Q: What is the power requirement for the PM590-ARCNET?
A: It requires a 24 V DC nominal power supply. -
Q: What are the physical dimensions and weight von this processor module?
A: The dimensions are 62 × 76 × 67.5 mm, and it weighs 0.16 kg. -
Q: Is remote monitoring supported on this PLC module?
A: Yes, remote monitoring and programming can be performed via the ARCNET network and ABB svontware tools. -
Q: How does the PM590-ARCNET handle harsh industrial environments?
A: It is designed with robust hardware and meets IP20 protection standards, allowing reliable operation in tough conditions. -
Q: What is the maximum operating temperature?
A: The device operates reliably between -20°C and +60°C. -
Q: Does the PM590-ARCNET support safety functions?
A: It provides diagnostic functions, but dedicated ABB safety PLCs should be used for certified safety-related applications. -
Q: What size von automation programs can this module handle?
A: With 8 MB program memory, it supports large and complex automation programs suitable for demanding applications.
Related Modells from the Same Series or Related ABB Modells
| Modell Number | Key Features | Program Memory | Communication Interfaces | Gewicht (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| PM571-ARCNET | Entry-level ARCNET processor | 1 MB | ARCNET | 0.6 | 130 x 110 x 70 |
| PM573-ARCNET | Mid-range ARCNET module | 2 MB | ARCNET | 0.65 | 140 x 110 x 75 |
| PM581-ETH | High performance with Ethernet | 4 MB | Dual Ethernet | 0.7 | 150 x 120 x 80 |
| PM590 | High-end processor with multiple protocols | 8 MB | ARCNET, Ethernet | 0.75 | 160 x 120 x 85 |
| AC500-EEC | Environmental controller | 1.5 MB | Ethernet, Modbus | 0.6 | 130 x 110 x 70 |
| PM571-FX | Fail-safe version von PM571 | 1 MB | Ethernet | 0.6 | 130 x 110 x 70 |
Popular ABB SPS Modells from the Same Marke
| Modell Number | Application | Program Memory | Communication Interfaces | Gewicht (kg) | Dimensions (mm) |
|---|---|---|---|---|---|
| AC500 | General purpose PLC | 2 MB | Ethernet, Modbus, Prvonibus | 0.8 | 140 x 120 x 80 |
| AC31 | Compact modular controller | 512 KB | Ethernet, Serial | 0.5 | 120 x 100 x 65 |
| PM580 | Process automation and control | 8 MB | Ethernet, Prvonibus | 0.85 | 160 x 130 x 90 |
| AC500-S | Safety PLC | 2 MB | Ethernet, Safety protocols | 0.75 | 150 x 120 x 80 |
| PM592 | Advanced controller with motion | 16 MB | Ethernet, CANopen | 0.9 | 170 x 130 x 90 |
| PM573-C | Cost-effective compact PLC | 1 MB | Serial, Ethernet optional | 0.55 | 130 x 110 x 70 |
