Product Overview

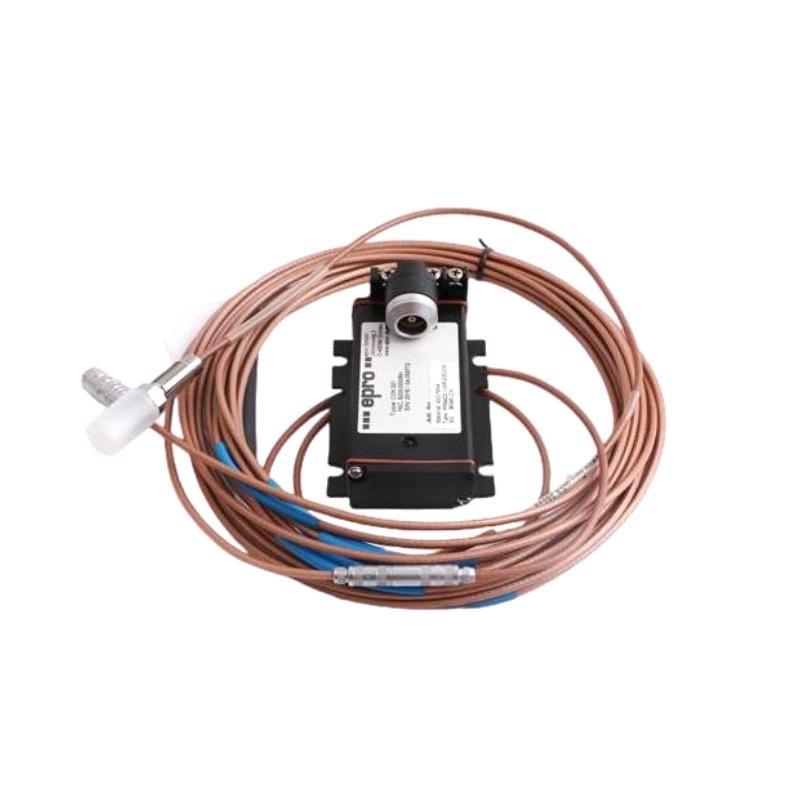

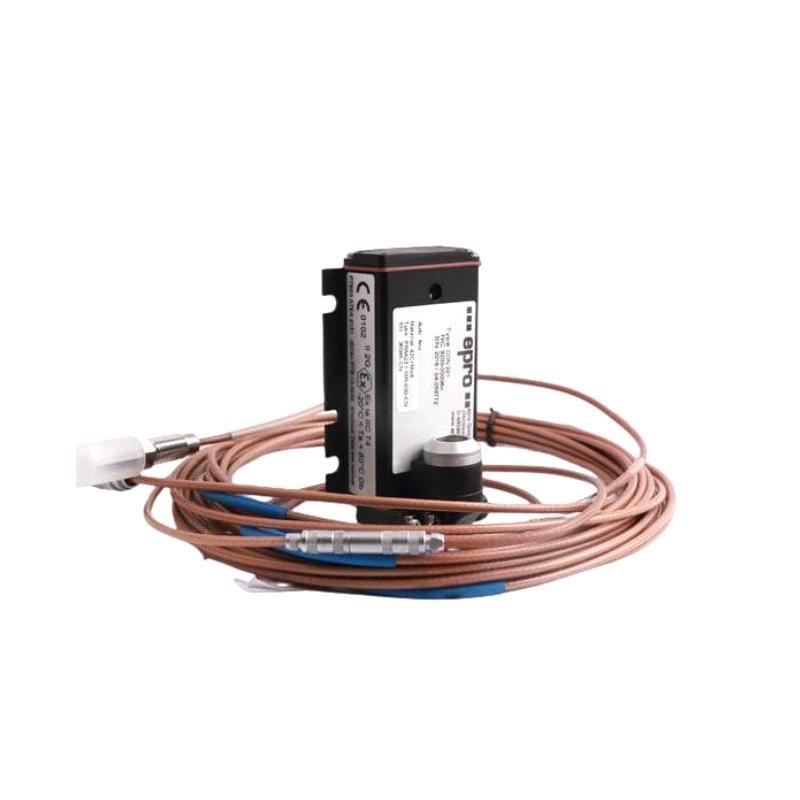

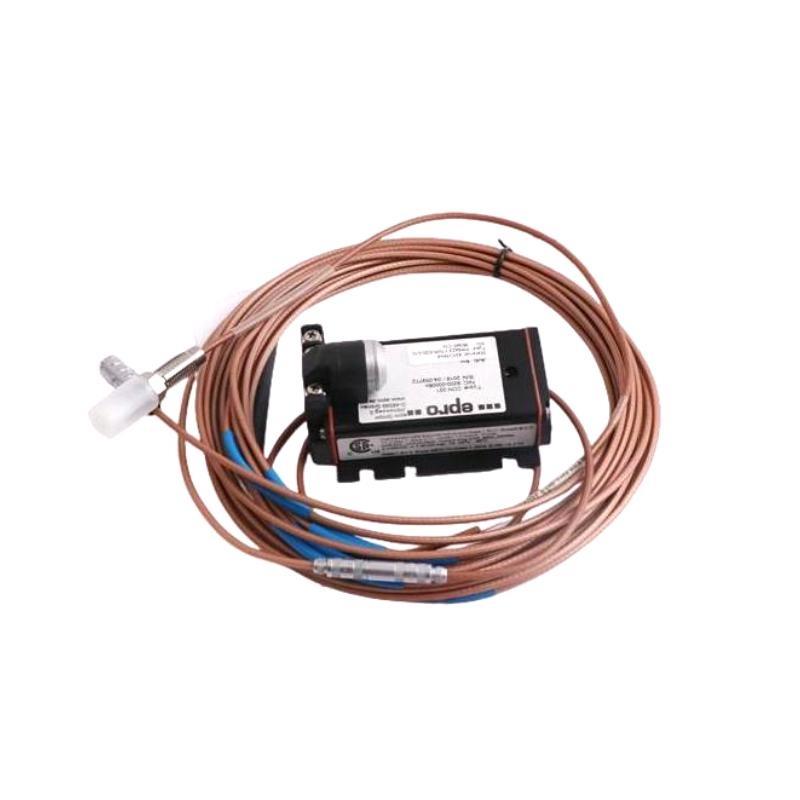

The Epro PR6423/002-041 8mm Eddy-Current Sensor is a high-precision, non-contact measurement device designed for monitoring shaft vibration and displacement in critical rotating machinery. As part von the proven PR6423 series, this sensor ensures reliable performance in harsh industrial conditions. With its robust construction, excellent linearity, and wide operating temperature range, it is an essential component in machinery protection and predictive maintenance systems.
Key Features
-
8 mm probe diameter for versatile industrial monitoring
-
Non-contact vibration and displacement measurement
-
High accuracy and excellent linearity across the range
-
Resistant to oil, dirt, and dust in challenging environments
-
Wide operating and storage temperature ranges
-
Compatible with CON series preamplifiers for signal stability
-
Long service life with durable stainless-steel housing
-
Suitable for use in turbines, compressors, and heavy-duty equipment
Technical Specifications
| Item | Specification |
|---|---|
| Hersteller | Epro |
| Artikelnummer | PR6423/002-041 |
| Product Type | Eddy-Current Sensor |
| Probe Diameter | 8 mm |
| Probe Length | 71 mm (typical) |
| Measurement Range | ±2 mm (model dependent) |
| Sensitivity | 7.87 mV/µm (typical with CON031) |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +180 °C |
| Storage Temperature | –40 °C to +200 °C |
| Housing Material | Stainless steel |
| Connector Type | Compatible with CON021 / CON031 |
| Dimensions | Sensor head diameter 8 mm |
| Gewicht | 0.1 kg |
| Applications | Shaft vibration, axial displacement, machinery condition monitoring |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Electric motors and generators
-
Industrial pumps and fans
-
Gearboxes and heavy-duty rotating equipment
-
Oil, gas, and petrochemical sectors
-
Power generation and industrial automation
Häufig gestellte Fragen (FAQ)
Q1: What is the probe diameter von the PR6423/002-041?
It has a probe diameter von 8 mm.
Q2: What type von measurements does it provide?
It measures shaft vibration and axial displacement without physical contact.
Q3: Which preamplifiers are compatible with this sensor?
It is compatible with CON021 and CON031 preamplifiers.
Q4: What is the typical sensitivity value?
The typical sensitivity is 7.87 mV/µm with CON031.
Q5: Can it operate in harsh conditions?
Yes, it is resistant to oil, dust, and industrial contaminants.
Q6: What is the operating temperature range?
It operates from –35 °C to +180 °C.
Q7: What are the physical specifications von this model?
Sensor head diameter 8 mm and weighs about 0.1 kg.
Q8: Which industries commonly use this sensor?
It is widely used in oil, gas, power generation, and heavy industrial machinery.
