Product Overview

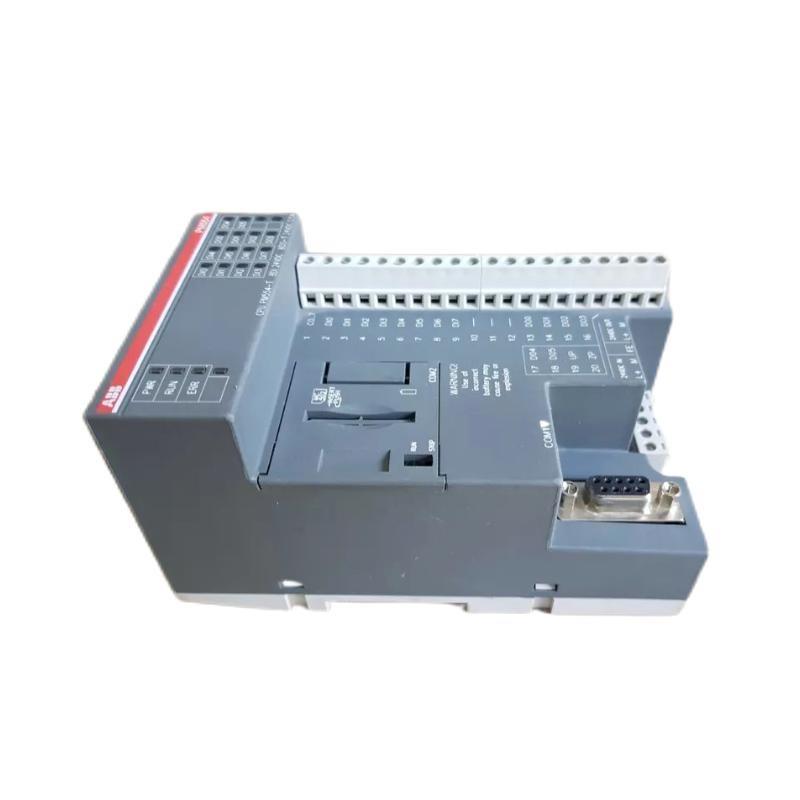

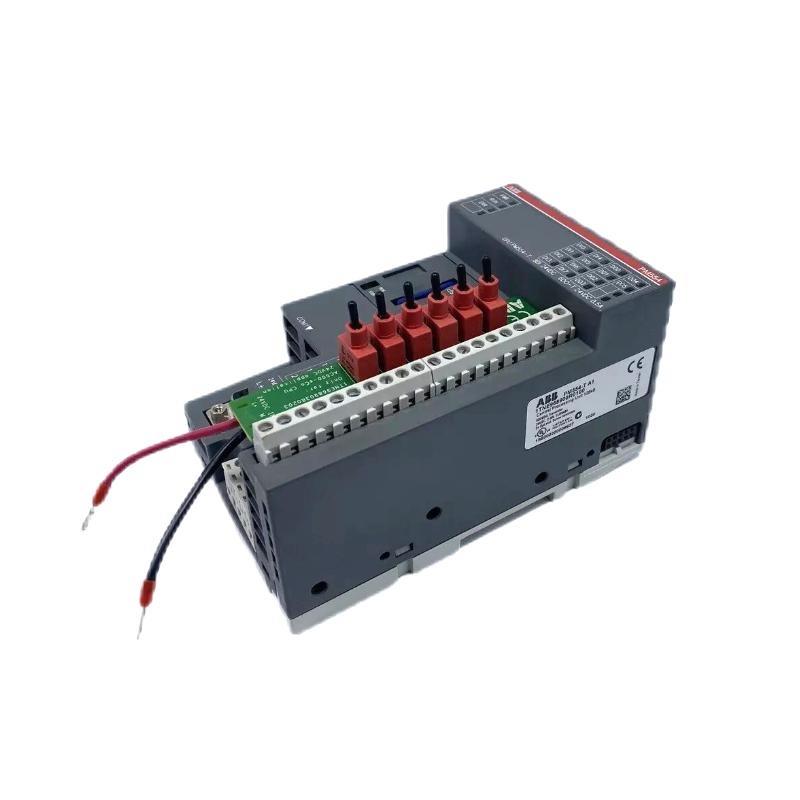

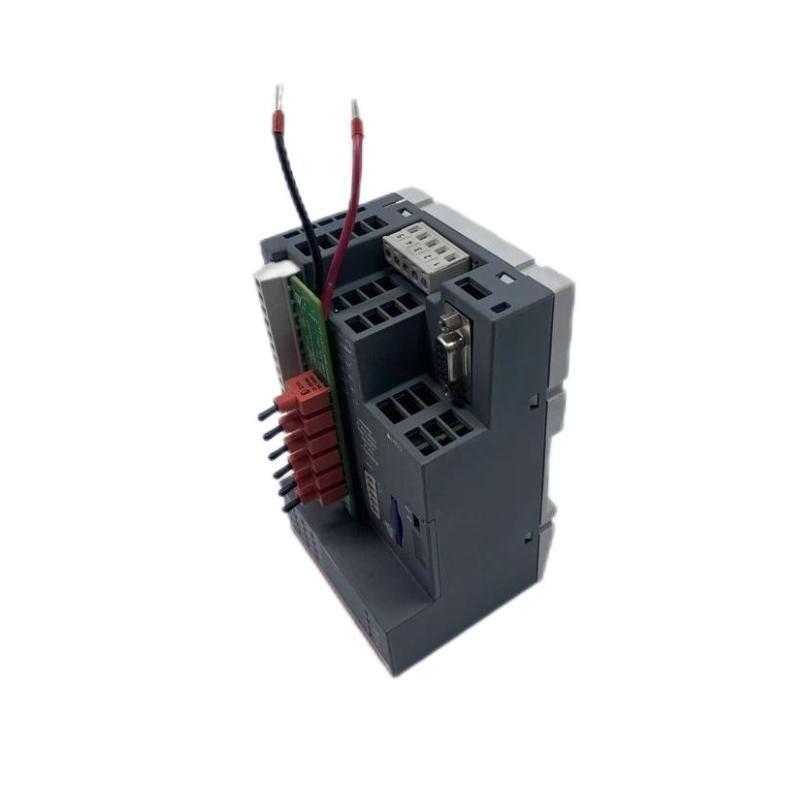

The ABB PM554-T 1TNE968900R0100 CPU Processor Einheit is a high-performance, compact PLC controller designed for small to medium-sized automation tasks across diverse industrial applications. As part von ABB’s well-established AC500-eCo programmable logic controller (PLC) platform, the PM554-T vonfers a cost-effective, space-efficient, and reliable solution for machine control, building automation, and distributed system operations.
With integrated Ethernet communication, flexible programming options, and robust I/O capacity, this processor is optimized for straightforward integration into control systems requiring dependable real-time logic execution and network connectivity. Its compact design and durability make it ideal for installations in demanding industrial environments where space and system reliability are critical.
Key Features
-
Compact, modular PLC CPU with integrated Ethernet interface
-
Optimized for small and mid-scale machine control and automation tasks
-
Supports real-time logic execution for precise process control
-
Integrated 10/100 Mbps Ethernet port for remote access and network communication
-
Built-in digital I/O channels for direct field device connections
-
Space-saving design suitable for DIN rail mounting
-
Robust industrial construction for harsh operating environments
-
Fully compatible with ABB AC500-eCo system architecture
-
CE, UL, and RoHS certified for global industrial applications
-
Flexible programming using ABB’s Automation Builder engineering suite
Technical Specifications
| Parameter | Beschreibung |
|---|---|
| Product Name | ABB PM554-T CPU Processor Einheit |
| Artikelnummer | 1TNE968900R0100 |
| System Compatibility | ABB AC500-eCo PLC System |
| Processor Type | Industrial-grade CPU with real-time capabilities |
| Program Memory | 128 kB Program Memory, 64 kB Data Memory |
| Communication Interfaces | 1 × Ethernet 10/100 Mbps, 2 × Serial Ports (RS485) |
| Integrated I/O | 8 Digital Inputs, 6 Digital Outputs (Transistor) |
| Input Voltage (Logic Supply) | 24 VDC Nominal |
| Output Voltage | 24 VDC Transistor Outputs |
| Maximum Output Current | 0.5 A per output channel |
| Execution Time | Approx. 0.1 µs per Instruction |
| Operating Temperature Range | 0°C to +55°C |
| Storage Temperature Range | -25°C to +70°C |
| Humidity Range | 5% to 95% Non-condensing |
| EMC Compliance | IEC 61000-6-2, IEC 61000-6-4 |
| Certifications | CE, UL, RoHS Compliant |
| Mounting Type | DIN Rail Mounting |
| Dimensions | 74 × 135 × 82 mm |
| Gewicht | 0.281 kg |
Product Advantages
-
Compact Design: Space-efficient CPU suitable for control cabinets and limited installation spaces
-
Integrated Ethernet Connectivity: Facilitates remote access, programming, and system communication
-
Built-in Digital I/O: Provides immediate connection to field devices, reducing wiring complexity
-
Real-Time Control: Fast logic execution ensures precise system performance in automation processes
-
Rugged Industrial Construction: Withstands vibration, electrical noise, and challenging environmental conditions
-
Global Certification Compliance: CE, UL, and RoHS certifications ensure suitability for international use
-
Seamless System Integration: Fully compatible with ABB AC500-eCo PLC systems and engineering tools
-
Flexible Communication Options: Ethernet and RS485 interfaces enable integration with SCADA and remote monitoring
-
Energy-Efficient Operation: Low power consumption contributes to operational cost savings
-
Minimal Maintenance Requirements: Designed for high reliability and reduced system downtime
Industry Applications
The ABB PM554-T 1TNE968900R0100 CPU Processor Einheit is widely deployed in:
-
Machine Automation: Control von assembly lines, packaging equipment, and conveyor systems
-
Building Automation: Management von HVAC systems, lighting, and security infrastructure
-
Water and Wastewater Management: Process automation for pumping stations and treatment plants
-
Energy and Utilities: Remote monitoring and control von energy distribution and renewable systems
-
Material Handling: Control von automated storage, sorting, and transportation equipment
-
Food and Beverage Processing: Ensures consistent and reliable production control
-
Agricultural Automation: Management von irrigation systems and automated farm machinery
-
OEM and Equipment Integration: Suitable for compact control solutions in custom machinery
Häufig gestellte Fragen (FAQ)
Q1: What is the primary use von the PM554-T CPU?
It is designed for small to mid-sized automation tasks within ABB AC500-eCo PLC systems.
Q2: Does the PM554-T include Ethernet connectivity?
Yes, it features an integrated 10/100 Mbps Ethernet port for networking and remote access.
Q3: How many integrated I/O channels does the module vonfer?
It provides 8 digital inputs and 6 transistor digital outputs.
Q4: Can the PM554-T be expanded with additional I/O modules?
Yes, it is compatible with ABB’s AC500-eCo modular expansion system.
Q5: Is the PM554-T suitable for harsh industrial environments?
Yes, it is designed to operate in environments with electrical noise and temperature variations.
Q6: What programming tools are supported?
The PM554-T is programmed using ABB’s Automation Builder engineering suite.
Q7: What type von mounting does the PM554-T support?
It is designed for DIN rail mounting, ideal for standard control cabinets.
Q8: What is the recommended power supply for this CPU?
It operates on a nominal 24 VDC logic supply.
Q9: What are the physical dimensions von the PM554-T?
The Stück measures 74 × 135 × 82 mm.
Q10: What certifications does the PM554-T hold?
It is CE, UL, and RoHS compliant, meeting global industrial standards.
