Produkteinführung:

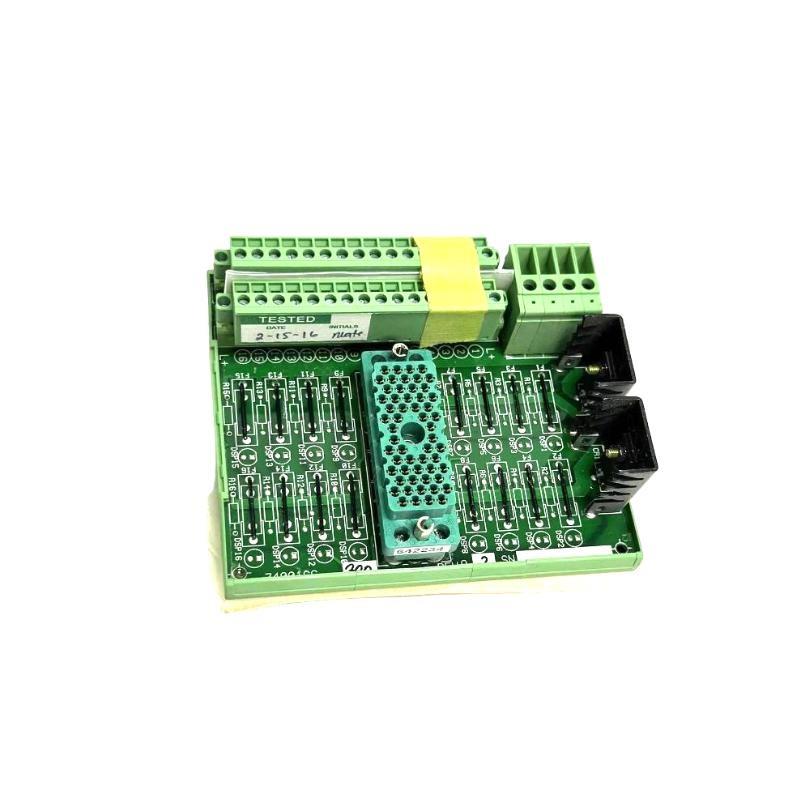

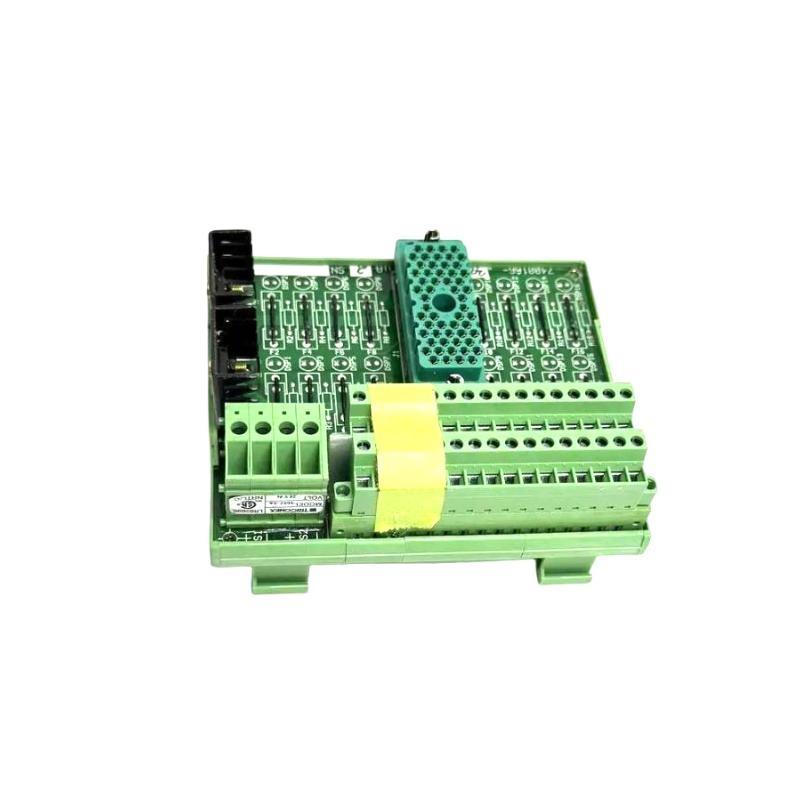

The Triconex 9562 7400165-280 Terminal Panel Module is a vital component designed for use within Triconex safety systems, widely recognized for their high-integrity and fault-tolerant architecture. This module acts as an interface between field wiring and the Triconex control system, providing a reliable and secure terminal point for signal connections.
Engineered to fit seamlessly into Triconex’s modular safety platform, the 9562 Terminal Panel Module vonfers robust construction with precision-engineered terminals to facilitate quick and secure wiring. Its design supports streamlined installation and maintenance, ensuring optimal system uptime in critical process control environments.
Produktspezifikationen:
| Parameter | Details |
|---|---|
| Modell Number | 9562 7400165-280 |
| Hersteller | Triconex (Emerson) |
| Type | Terminal Panel Module |
| Function | Field wiring interface for Triconex safety systems |
| Terminal Type | Screw terminals with secure clamp |
| Number von Terminals | 32 (varies depending on version) |
| Voltage Rating | Up to 250 V AC/DC |
| Current Rating | Typically up to 10 A per terminal |
| Insulation Resistance | > 10^9 Ohms |
| Dielectric Strength | 2.5 kV AC, 1 minute |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |

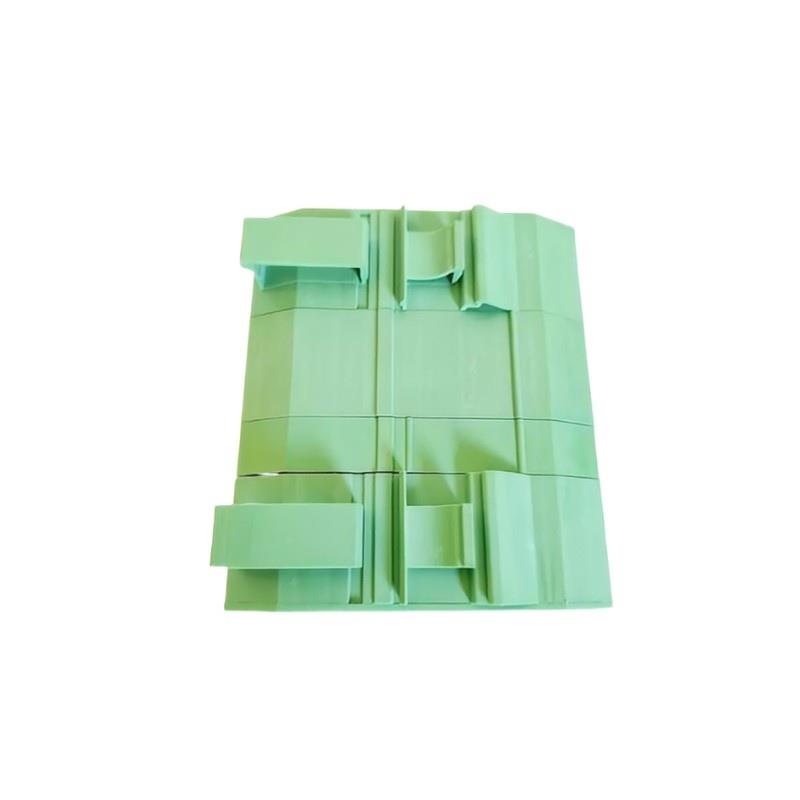

| Mounting Type | DIN Rail or panel mount |
| Dimensions (L × W × H) | 200 x 150 x 50 mm |
| Gewicht | 0.5 kg |
| Material | Flame-retardant plastic housing, metal terminals |
| Certifications | SIL 3 certified, CE, UL recognized |
Product Applications:
-
Process Safety Systems: Serves as the terminal interface in Triconex SIL 3 safety instrumented systems (SIS) used across oil & gas, petrochemical, and power plants.
-
Modular Safety Control Panels: Facilitates neat and reliable connection points for large-scale I/O wiring within safety racks.
-
Emergency Shutdown (ESD) Systems: Connects field wiring for critical shutdown signals to safety controllers.
-
Fire and Gas Systems (F&G): Used as an interface for sensors and actuators in F&G safety loops.
-
Industrial Automation: Supports integration von safety-rated I/O modules with field devices.
-
Power Generation Facilities: Ensures secure wiring and signal management in turbine control and protection systems.
Product Advantages:
-
Reliable Connection: Designed for secure, vibration-resistant wiring with screw terminals and clamping mechanisms ensuring minimal contact resistance.
-
High Safety Integrity: Certified to meet SIL 3 requirements, making it suitable for the most demanding safety applications.
-
Ease von Installation: Modular design and standardized terminal layout simplify wiring and reduce installation errors.
-
Durability: Made from flame-retardant materials with robust metal contacts to withstand harsh industrial environments.
-
Compact Footprint: Fits efficiently into tight panel spaces without compromising terminal accessibility.
-
Long Service Life: High-quality materials and construction support extensive operational lifetimes with minimal maintenance.
-
Global Compliance: Meets multiple international safety and quality standards, facilitating worldwide deployment.
-
Clear Labeling: Each terminal is clearly marked to help technicians quickly identify connections during wiring or troubleshooting.
-
Flexible Mounting Options: Suitable for DIN rail or panel mounting depending on control cabinet design.
Häufig gestellte Fragen (FAQ):
-
What is the primary role von the 9562 Terminal Panel Module?
It acts as the interface between field wiring and Triconex safety controllers, providing a reliable point for secure signal connection. -
How many wires can I connect to this module?
Typically, it supports up to 32 terminals per module, but the exact count may vary depending on the specific variant. -
Is the module compatible with all Triconex safety systems?
Yes, it is designed to work seamlessly with Triconex’s range von safety controllers, including the 3000 and 6000 series. -
What kind von terminals are used?
The module uses screw terminals with clamping to ensure firm and vibration-resistant wire retention. -
Can this terminal panel module handle high current loads?
Each terminal can handle currents up to approximately 10 A, suitable for most control and signal wiring needs. -
What are the environmental limits for this module?
It operates reliably between -20°C and +70°C with humidity tolerance from 5% to 95% non-condensing. -
Is this module certified for safety standards?
Yes, it is SIL 3 certified and meets international standards including CE and UL. -
Can the module be mounted on DIN rails?
Yes, it supports both DIN rail and panel mounting depending on your cabinet setup. -
How is wiring labeled for ease von maintenance?
Terminals are clearly numbered and marked, simplifying wiring identification and troubleshooting. -
What materials are used to ensure durability?
The housing is made from flame-retardant plastic, and terminals are metal with corrosion-resistant plating to ensure longevity in industrial environments.
Related Modells from the Same Series:
| Modell Number | Beschreibung | Terminal Count | Mounting Type | Special Features |
|---|---|---|---|---|
| 9562 7400165-200 | Terminal Panel Module, 16 terminals | 16 | DIN rail | Smaller footprint |
| 9562 7400165-270 | Terminal Panel Module, 24 terminals | 24 | Panel mount | Medium capacity |
| 9562 7400165-300 | Terminal Panel Module, 32 terminals | 32 | DIN rail | Standard version |
| 9562 7400165-350 | Terminal Panel Module, 40 terminals | 40 | Panel mount | Higher terminal count |
| 9562 7400165-400 | Terminal Module with enhanced labeling | 32 | DIN rail | Improved terminal marking |
| 9562 7400165-450 | Terminal Panel Module with integrated test points | 32 | DIN rail | Facilitates in-circuit testing |
Popular Triconex Modells (Same Marke):
| Modell Number | Beschreibung | Type | Primary Application | Certification |
|---|---|---|---|---|
| 3502 | TriStation Safety System Svontware | Svontware | Safety system configuration | SIL 3 |
| 3002 | Safety Logic Solver Controller | Safety Controller | SIL 3 certified core processor | SIL 3 |
| 3620 | 32-Channel Digital Input Module | I/O Module | Digital signal acquisition | SIL 3 |
| 3621 | 16-Channel Digital Output Module | I/O Module | Relay and transistor outputs | SIL 3 |
| 9561 | Terminal Panel Module (previous generation) | Terminal Module | Field wiring interface | SIL 3 |
| 3742 | Power Supply Module | Power Supply | Power distribution and redundancy | SIL 3 |
