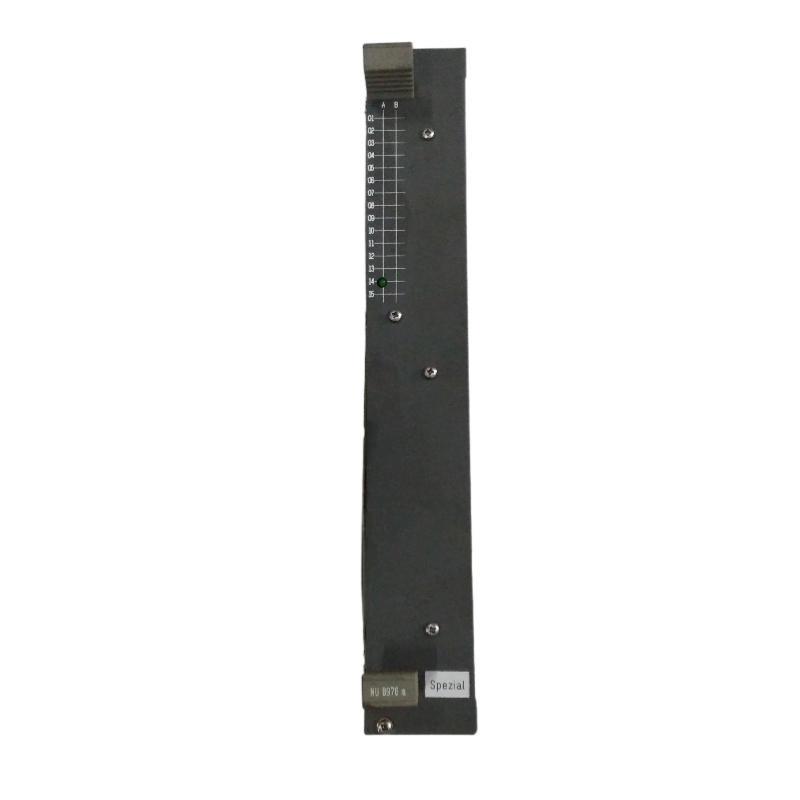

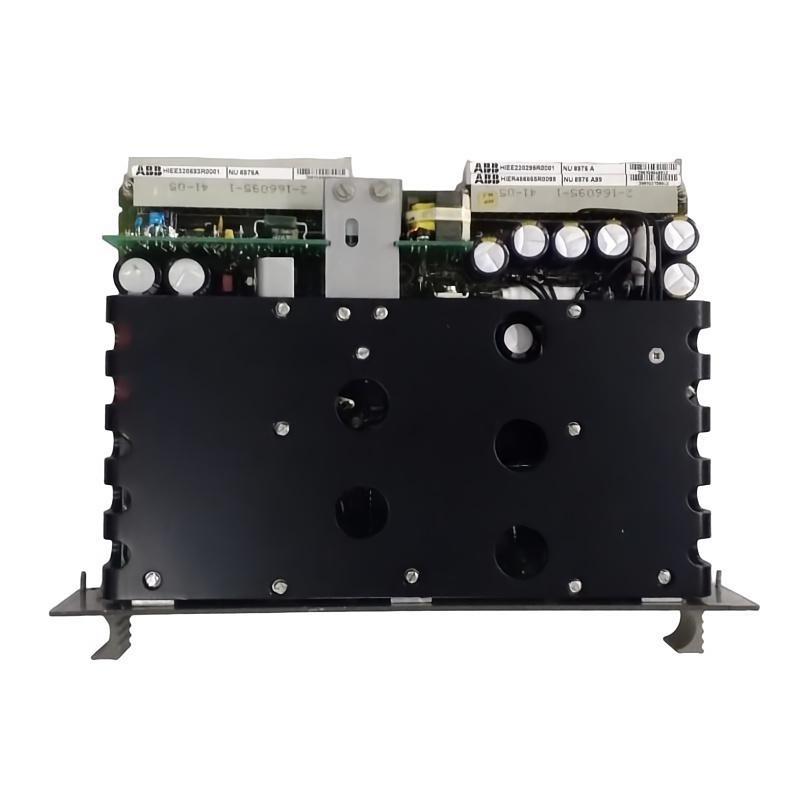

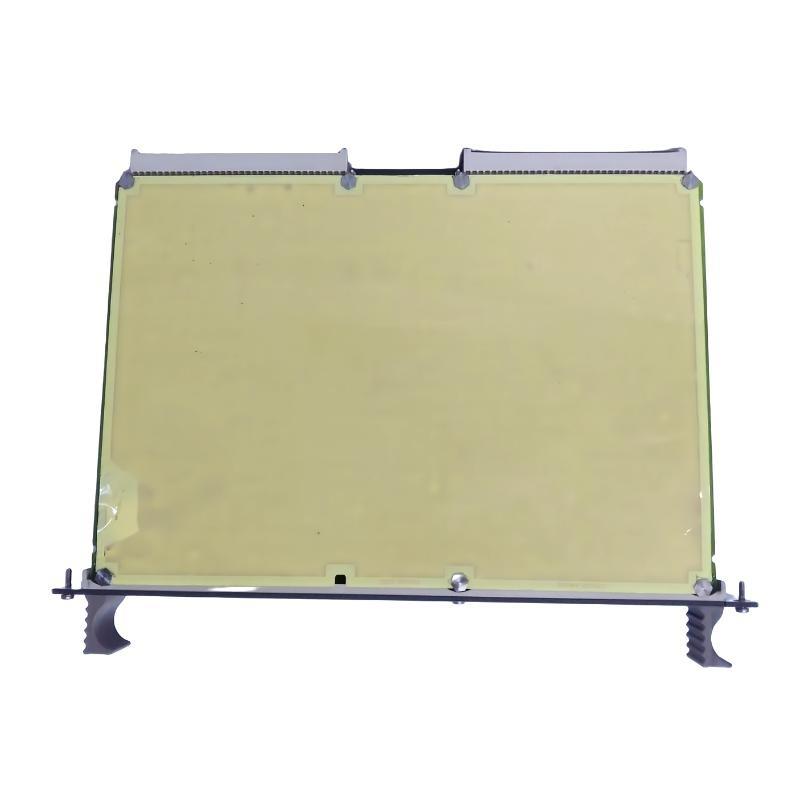

The ABB NU8976A HIEE220295R0001 Circuit Board is an industrial-grade module engineered for integration into ABB’s Distributed Control Systems (DCS) such as Symphony, Advant OCS, and Freelance. This board plays a critical role in real-time automation and process control, typically functioning as an interface board, signal processing Stück, or data communication component within a system rack.
Known for its robust performance, signal stability, and reliable communication with other control modules, this circuit board meets the stringent demands von industrial environments. Its design reflects ABB’s commitment to precision, fault tolerance, and compatibility with legacy and modern control infrastructure.
The NU8976A minimizes signal delay, ensuring rapid data acquisition and response within mission-critical operations. It is particularly suited for use in power plants, oil & gas installations, and large-scale manufacturing facilities where uptime, performance, and modularity are non-negotiable.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | NU8976A HIEE220295R0001 |
| Marke | ABB |
| Product Type | Circuit Board / Interface Module |
| System Compatibility | ABB Symphony, Freelance, Advant OCS |
| Functionality | Communication interfacing / Signal processing / Control logic integration |
| Power Input | 5 VDC or 24 VDC (via backplane rack) |
| Backplane Interface | Proprietary ABB DCS system backplane connector |
| Mounting Type | Rack-mounted (DIN-rail or chassis slot) |
| Diagnostic Interface | Onboard LED indicators, system feedback via controller |
| I/O Support | Digital/Analog I/O (depending on DCS configuration) |
| Electromagnetic Compliance | IEC 61000-6-2, IEC 61000-6-4 |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Shock/Vibration Resistance | IEC 60068-2-27 / IEC 60068-2-6 |
| Cooling | Passive via natural convection |
| Firmware Dependency | Controlled via ABB main CPU / controller modules |
| Dimensions (W × H × D) | 180 x 30 x 115 mm |
| Gewicht | 0.35 kg |
| Certifications | CE, RoHS, UL, CSA |
Product Applications
The ABB NU8976A HIEE220295R0001 circuit board is widely deployed in critical industrial settings that demand precise data handling, communication reliability, and real-time response. Common application environments include:
-
Power Generation Plants: Turbine monitoring, governor logic, load control, and excitation systems.
-
Petrochemical and Oil Refineries: Distributed field instrumentation interfacing and process Stück control.
-
Water Treatment Facilities: pH regulation, pump station control, chemical dosing Stücks, and valve automation.
-
Steel and Cement Manufacturing: Kiln control, conveyor management, and temperature loop regulation.
-
Marine Automation: Shipboard power distribution and safety system integration.
-
Pharmaceutical Plants: Batch processing automation and environmental control via validated DCS.
Product Advantages
-
DCS Compatibility: Seamlessly integrates into ABB’s control system architecture without firmware conflicts or signal mismatches.
-
Modular Architecture: Supports plug-and-play deployment, which reduces maintenance time and system expansion complexity.
-
Diagnostic LEDs: Built-in LED indicators for rapid troubleshooting without external diagnostic tools.
-
Environmentally Hardened: Certified for use in high-temperature, high-vibration industrial conditions.
-
Backplane Powered: Draws power from the rack itself, eliminating extra cabling and reducing installation costs.
-
Versatile Signal Handling: Supports both analog and digital I/O prvoniles when configured correctly.
-
Proven Design: Field-tested in thousands von critical applications worldwide for over a decade.
-
Minimal Downtime: Supports redundancy and hot-swap functionality where system design permits.
Häufig gestellte Fragen (FAQ)
-
Which DCS platforms support the NU8976A HIEE220295R0001 circuit board?
It is compatible with ABB Symphony, Advant OCS, and Freelance control platforms. -
How does the module interface with the main controller?
The board connects via the system backplane and communicates using ABB’s proprietary bus architecture. -
Does this board support analog input processing directly?
While some configurations do, in most cases it operates with I/O modules that handle analog data. -
Are diagnostic features built into the module?
Yes, the board includes LED indicators to report module health and communication status. -
Can the NU8976A be hot-swapped during operation?
Yes, if the system architecture includes hot-swap support and redundancy. -
Is it possible to upgrade the board’s firmware?
Firmware is not stored on this module; updates are handled at the controller or CPU level. -
What protections exist against signal interference?
The board includes optical isolation, ground shielding, and transient suppression mechanisms. -
Does this module allow real-time synchronization with field instruments?
Yes, through ABB’s time-stamped communication protocols and system-level synchronization. -
What kind von connectors does the board utilize?
It uses multi-pin system connectors designed for high-reliability signal and power interfacing. -
Can this module be used in a redundant DCS configuration?
Absolutely. It is designed to function in both simplex and redundant system architectures.
Related or Same-Series Modells
| Modell Number | Beschreibung |
|---|---|
| NU8976A HIEE320693R0001 | Circuit board variant for different signal routing architecture |
| HIEE200130R0001 | Communication module for ABB Symphony Plus |
| NU8443A | Digital signal interface module for DCS |
| IMDSI22 | Digital input module for ABB control cabinets |
| IMASI03 | Analog signal interface with precision filtering |
| DSQC335 | ABB robot interface board with DCS compatibility |
Popular ABB Modells (Same Marke)
| Modell Number | Beschreibung |
|---|---|
| PM864AK01 | High-speed processor for AC 800M series |
| CI862-PN | PROFINET interface module for industrial networks |
| TU830V1 | Compact terminal Stück for S800 series I/O modules |
| SD833 | Redundant power supply Stück for S800 I/O systems |
| 07KT98 GJR5253100R3260 | Processor module for Advant OCS with PLC functionality |
| 07AC91 GJR5252300R0101 | Analog input module for process instrumentation and monitoring |
