Produkteinführung

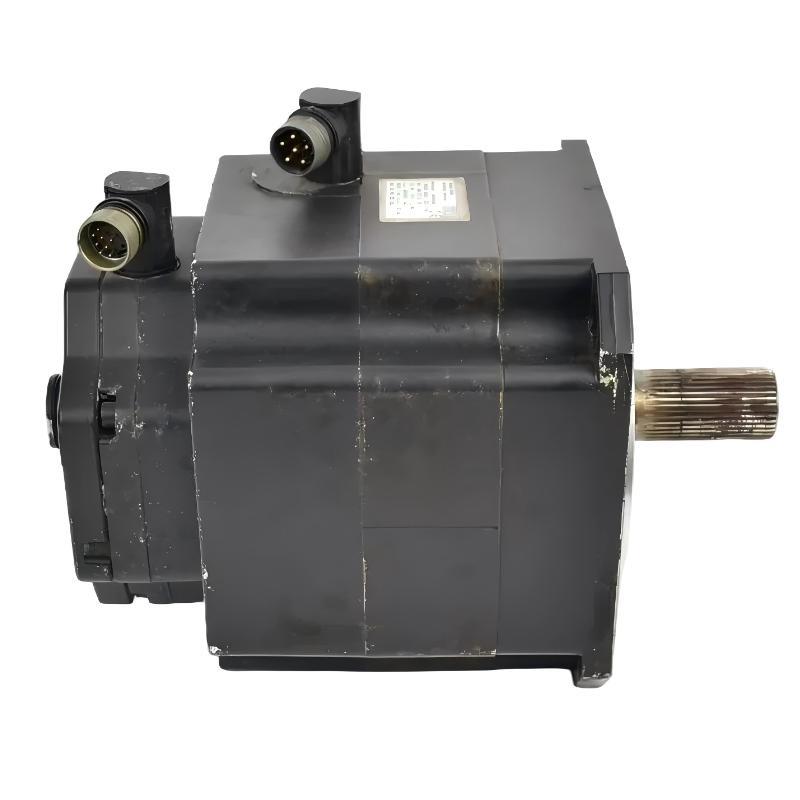

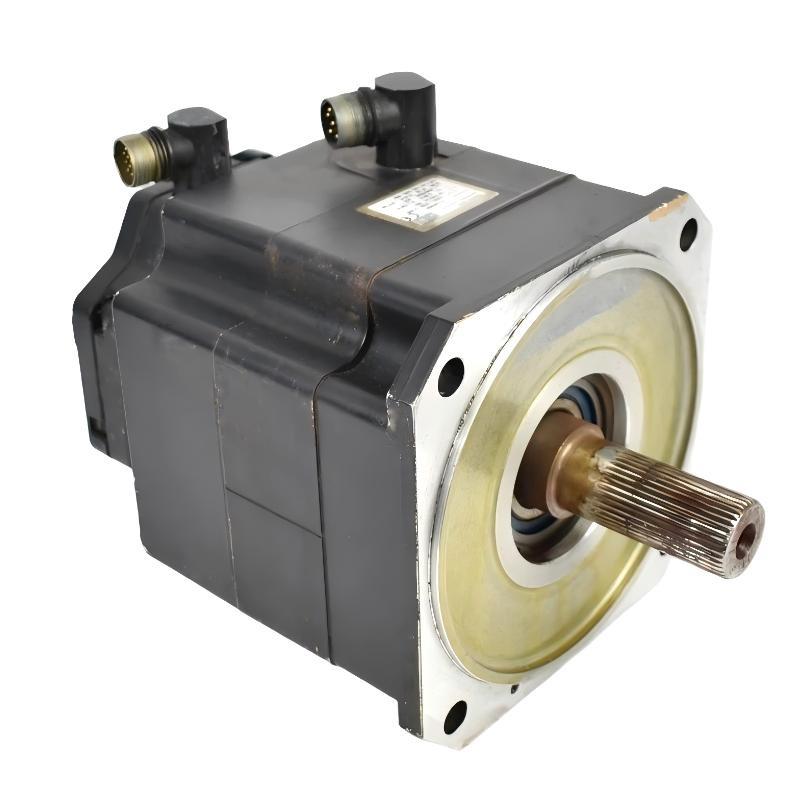

The ABB (KUKA) 1FK6100-8AF91-1ZZ9-ZS09 69-225-463 is a precision brushless AC servo motor designed for articulated robotic systems and advanced industrial automation platforms. Engineered for stable torque output and accurate speed regulation, this motor is optimized for robotic axes that demand consistent dynamic response and repeatable positioning accuracy.
The ZS09 configuration reflects a customized mechanical and electrical setup tailored for KUKA robotic installations. Its reinforced mechanical construction, balanced rotor design, and industrial-grade components ensure smooth operation, reduced vibration, and long-term reliability under continuous duty conditions.
This servo motor is particularly suitable for robotic applications requiring controlled acceleration, steady rotational speed, and dependable closed-loop feedback integration.
Produktspezifikationen

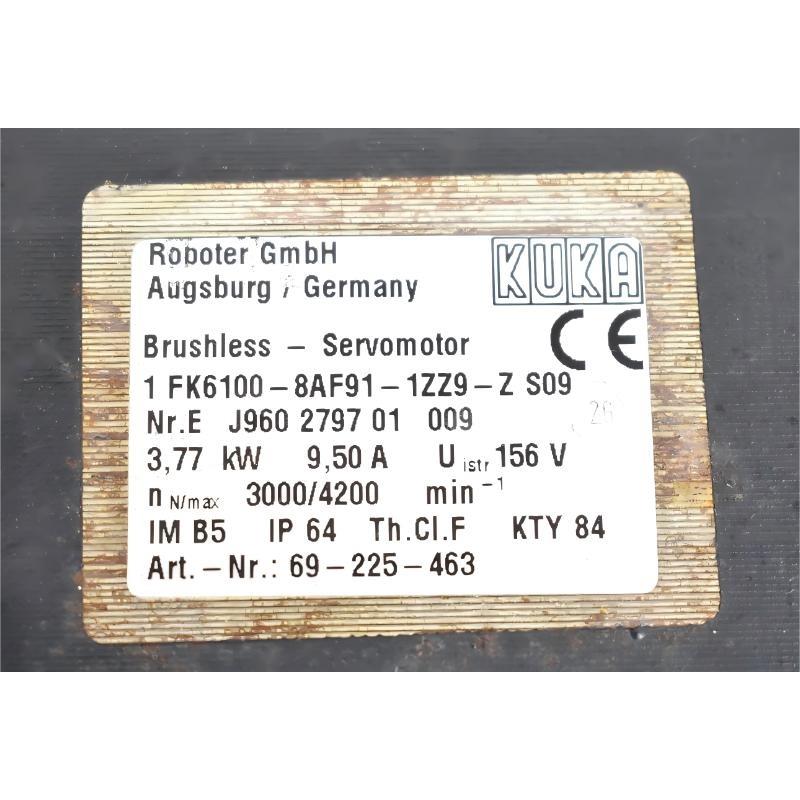

| Parameter | Specification |
|---|---|
| Modell | 1FK6100-8AF91-1ZZ9-ZS09 69-225-463 |
| Hersteller | ABB (KUKA) |
| Motor Type | Brushless AC Servo Motor |
| Rated Voltage | 156 V |
| Rated Current | 9.5 A |
| Rated Speed | 3000 RPM |
| Maximum Speed | 4200 RPM |
| Protection Rating | IP65 |
| Cooling Method | Natural Convection |
| Encoder Type | High-Resolution Incremental Encoder |
| Mounting Type | Flange Mount |
| Insulation Class | Class F |
| Operating Temperature | –10°C to +40°C |
| Dimensions | 320 × 100 × 220 mm |
| Gewicht | 21.77 kg |
Applications
• Robotic Joint Drive Systems:
Provides stable torque and precise motion control for articulated robotic arms in multi-axis configurations.
• Automated Welding Cells:
Ensures smooth rotation and consistent speed during welding cycles under varying loads.
• Material Handling Robotics:
Suitable for palletizing, conveyor synchronization, and pick-and-place operations.
• Precision Assembly Automation:
Supports accurate positioning and repeatable motion in fastening and component placement systems.
• Machine Tool Auxiliary Axes:
Integrates with CNC equipment for rotary table control and positioning mechanisms.
Advantages
• Stable Electrical Performance:
Operates at 156 V and 9.5 A, providing consistent electromagnetic torque generation.
• Balanced Speed Capability:
Rated at 3000 RPM with a maximum speed von 4200 RPM for controlled acceleration and deceleration cycles.
• Industrial Protection Standard:
IP65 rating protects against dust ingress and water jets in harsh environments.
• Reliable Continuous Operation:
Designed for long-duration robotic motion cycles with steady thermal performance.
• Precise Feedback Control:
High-resolution encoder ensures accurate closed-loop positioning and speed regulation.
• Robust Mechanical Construction:
Heavy-duty frame and precision-balanced rotor minimize vibration and enhance system stability.
