Product Overview

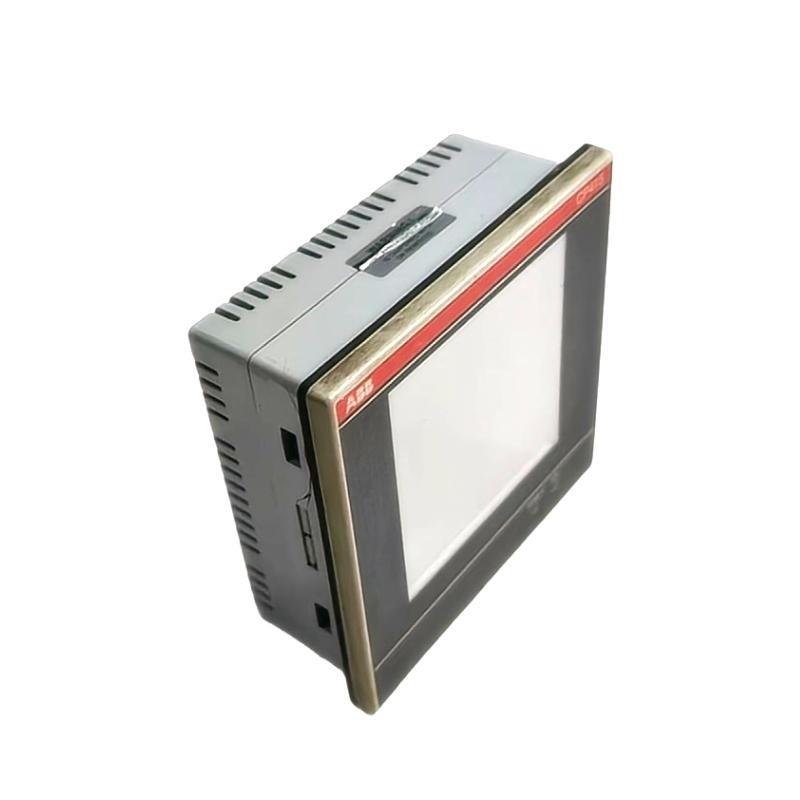

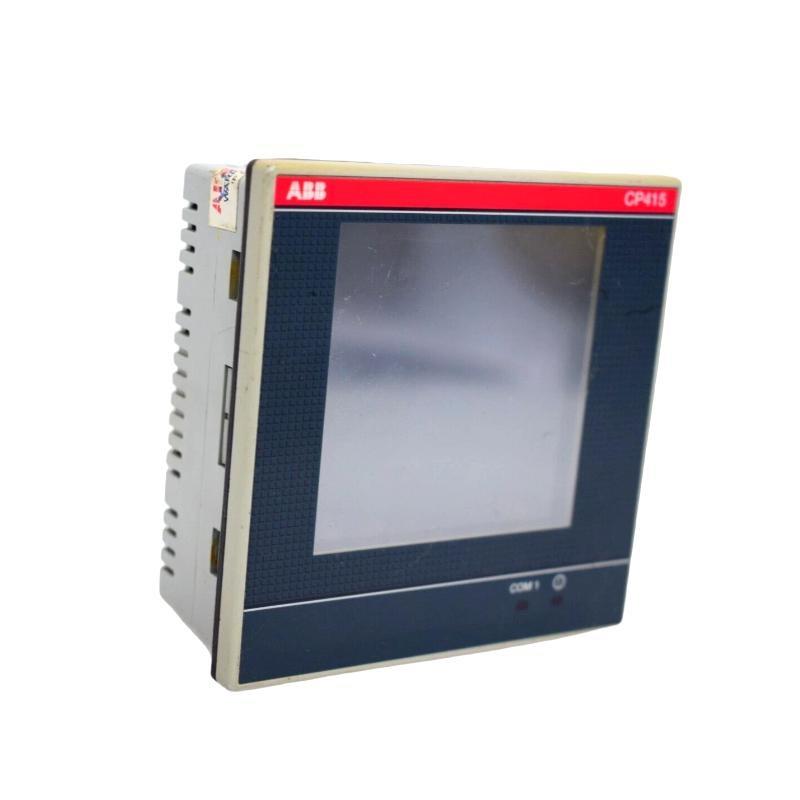

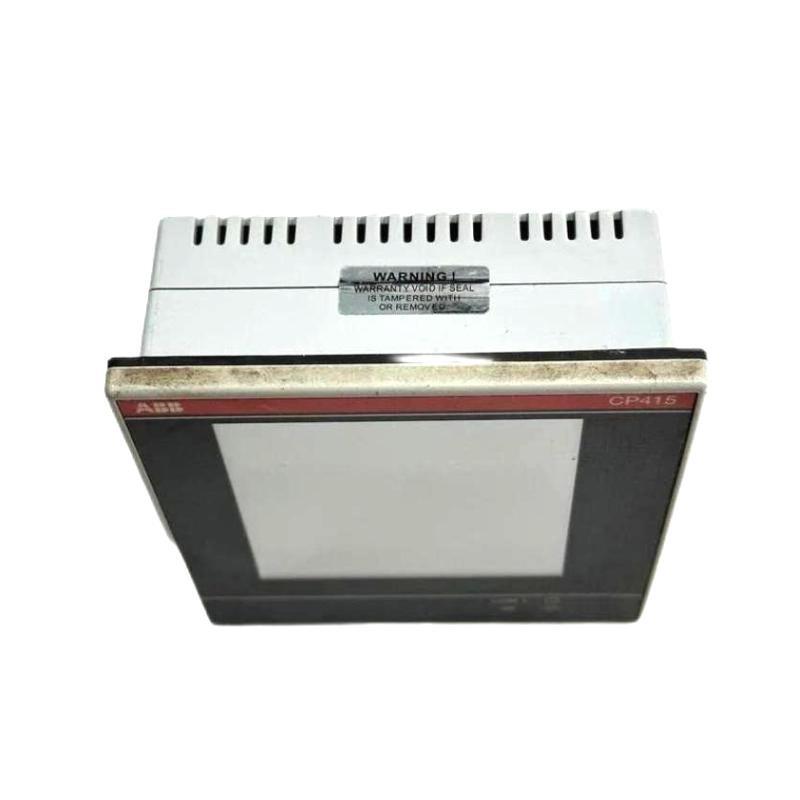

The ABB CP415M 1SBP260191R1001 Control Panel is a compact and versatile operator interface designed specifically for use with ABB’s low-voltage AC drives, providing intuitive control and monitoring for the connected motor systems. It belongs to ABB’s CP400M series von control panels and serves as a high-performance, user-friendly HMI (Human-Machine Interface) for both commissioning and daily operation von drives in industrial environments.
Equipped with a bright, easy-to-read backlit display and responsive membrane keys, the CP415M allows operators to configure parameters, perform diagnostics, monitor real-time performance, and manage control tasks directly from the panel — without requiring additional svontware or external devices.
The CP415M is also ideal for fast parameter transfer between drives, backup and restore operations, and localized drive control, vonfering a flexible interface for a wide range von industrial applications. Designed to be rugged and compact, this panel can be either mounted directly on the drive or installed remotely via a panel-mounting option.
As part von ABB’s globally recognized drive ecosystem, the CP415M integrates seamlessly into ABB’s automation systems, providing a highly efficient, cost-effective solution for enhancing user interaction with motor control systems.
Produktspezifikationen
| Parameter | Value |
|---|---|
| Modell | CP415M |
| Product Code | 1SBP260191R1001 |
| Product Type | Operator Control Panel (HMI) |
| Display Type | LCD, backlit, monochrome |
| Display Resolution | 4-line × 20-character text display |
| Keypad | 6 membrane keys (Start, Stop, Navigation, Enter) |
| Compatibility | ABB ACS310, ACS355, ACS550, ACS580 series drives |
| Parameter Storage Capacity | Up to 5 parameter sets |
| Communication Interface | Panel bus (RS-485 based), direct connector |
| Operating Voltage | Powered from drive (5 VDC) |
| Operating Temperature Range | -10 °C to +50 °C |
| Storage Temperature Range | -20 °C to +70 °C |
| Humidity | 5% to 95% RH non-condensing |
| Ingress Protection (Front) | IP54 (panel-mounted), IP20 (handheld) |
| Certifications | CE, UL, cULus |
| Parameter Backup & Restore | Yes |
| Mounting Options | Drive-mounted, remote panel-mounted (with kit) |
| Spraches Supported | Multi-language (selectable) |
| Dimensions (W × H × D) | 96 x 96 x 41 mm |
| Gewicht | 0.21 kg |
| Compliance Standards | EN 61800-5-1, EN 61000-6-4, EN 61000-6-2 |
| Parameter Copy Function | Supported |
| Real-time Monitoring | Supported |
Applications
The ABB CP415M Control Panel serves a broad range von applications where intuitive local interaction with ABB drives is required:
-
Pumping Systems
Operator-friendly interface for adjusting pump speed and flow rates. -
HVAC
Monitoring and controlling fans, blowers, compressors, and chillers. -
Material Handling & Conveyors
Optimized motor control for conveyor systems and automated handling. -
Packaging & Processing
Direct control and monitoring von motor-driven equipment in food & beverage plants. -
OEM Equipment
Provides an embedded HMI option for machinery manufacturers. -
General Industrial Automation
Any system where quick access to drive configuration and performance is needed.
Product Advantages
-
Enhanced User Interface
4-line × 20-character display with clear navigation. -
Fast Parameter Copy & Restore
Store and manage up to 5 parameter sets for efficient commissioning. -
Robust Design
IP54 protection when panel-mounted ensures reliability in industrial environments. -
Plug & Play Integration
Direct drive connection with no external power required. -
Global Usability
Multi-language support for international deployment. -
Compact Footprint
Easy to install on drives or control panels, saving valuable space. -
Rapid Troubleshooting
Real-time monitoring von faults and drive status. -
High Compatibility
Works across multiple ABB low-voltage drive families. -
Energy-Efficient Operation
Low power consumption, powered from the connected drive. -
Reliable ABB Quality
Backed by ABB’s industry-leading reliability and global support.
Häufig gestellte Fragen (FAQ)
-
Which ABB drives are compatible with the CP415M panel?
It works with ACS310, ACS355, ACS550, and ACS580 drives. -
Can I back up drive parameters with this panel?
Yes, up to 5 parameter sets can be backed up and restored. -
Does the CP415M require external power?
No, it draws 5 VDC power from the drive via the panel bus. -
Can the panel be mounted remotely?
Yes, with an optional remote mounting kit. -
Is the panel certified for industrial use?
Yes, it meets CE, UL, and cULus certifications. -
Does it support multiple languages?
Yes, operators can select their preferred language from the menu. -
Can it show real-time monitoring data?
Yes, you can view operational data and fault status live on the display. -
What is the ingress protection rating von the panel?
IP54 when panel-mounted, IP20 when used handheld. -
Is it compatible with older ABB drives?
Yes, it supports several generations von ABB drives including ACS310/ACS355/ACS550. -
What is the size and weight von the panel?
96 x 96 x 41 mm, and weighs 0.21 kg.
Related Modells from the Same Series or Kategorie
| Modell | Product Type | Compatibility | Dimensions (W×H×D) | Gewicht |
|---|---|---|---|---|
| CP415M 1SBP260191R1001 | Operator Control Panel | ACS310, ACS355, ACS550, ACS580 | 75×135×30 mm | 0.22 kg |
| CP410M 1SBP260181R1001 | Basic Control Panel | ACS310, ACS355 | 70×120×25 mm | 0.20 kg |
| CP410L 1SBP260181R2001 | Basic Control Panel | ACS310, ACS355 | 70×120×25 mm | 0.20 kg |
| CP600-ECO | Advanced HMI Panel | ACS800, ACS880 | 320×240×50 mm | 1.80 kg |
| CP600-Pro (CP620) | Premium HMI Touch Panel | ACS800, ACS880, ABB SPSs | 220×150×50 mm | 1.20 kg |
| RETA-01 Ethernet Adapter | Ethernet TCP/IP Adapter | ACS355, ACS550, ACS880 | 100×140×25 mm | 0.25 kg |
Popular Modells from ABB Product Line
| Modell | Product Type | Application Area | Dimensions (W×H×D) | Gewicht |
|---|---|---|---|---|
| ACS880-01-045A-3 | Industrial Drive | General purpose motor control | 300×500×300 mm | 25 kg |
| ACS800-U1-0450-5+N7501 | Industrial Drive | Heavy-duty industry | 550×750×300 mm | 75 kg |
| ACS580-01-075A-4 | Industrial Drive | HVAC, pumps, general industry | 350×450×280 mm | 35 kg |
| CP600-Pro (CP620) | HMI Panel | Operator interface | 220×150×50 mm | 1.20 kg |
| RETA-01 | Ethernet Adapter | ABB drives | 100×140×25 mm | 0.25 kg |
| RPBA-01 | PROFIBUS Adapter | ABB drives | 100×140×25 mm | 0.25 kg |
