Produkteinführung

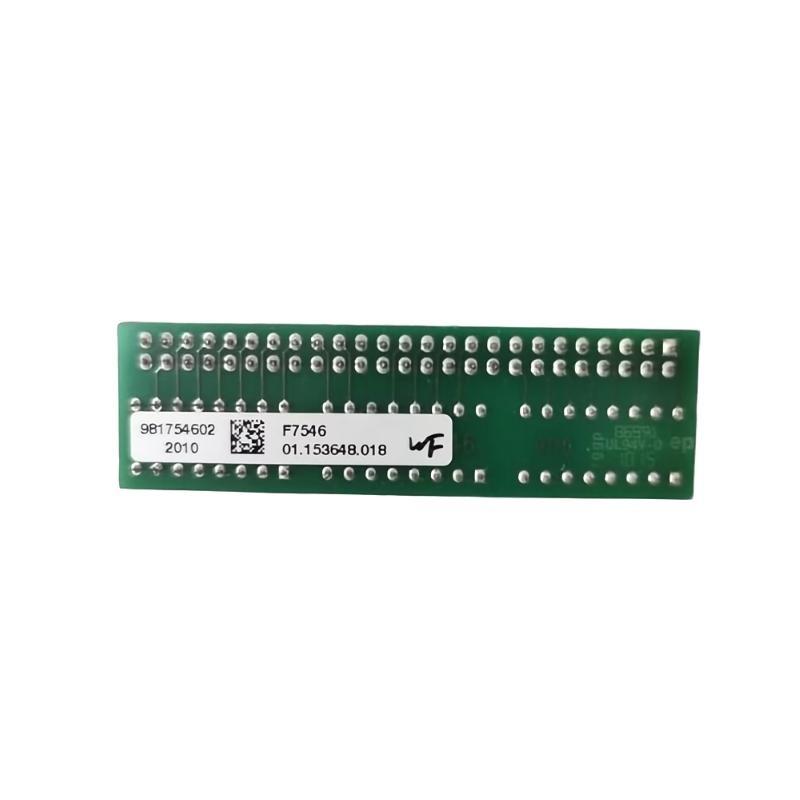

The HIMA F7546 I/O Bus Coupling Module is a robust, high-integrity interface device specifically developed to facilitate seamless communication between input/output modules and the central controller within a HIMA safety system architecture. Serving as a critical link between the field I/O layer and the processor Stücks, this coupling module ensures fast, secure, and fault-tolerant data transfer—making it an essential component in any safety-integrated automation setup.
Engineered for compatibility with HIMA’s advanced safety systems such as HIMax and HIQuad X, the F7546 module supports decentralized I/O architectures and allows for modular expansion without compromising performance or safety. Its high-speed backplane interface and built-in diagnostics make it a preferred choice for systems requiring redundancy and uninterrupted operation.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | F7546 |
| Hersteller | HIMA |
| Function | I/O Bus Coupling Module |
| Communication Type | Internal bus coupling between CPU and I/O modules |
| Supported Systems | HIMax, HIQuad X, other HIMA modular systems |
| Data Transmission Rate | High-speed internal bus (typically >10 Mbps) |
| Redundancy Support | Yes (supports redundant configurations) |
| Diagnostic Capability | Integrated diagnostics with fault status LEDs |
| Operating Voltage | 24 V DC nominal |
| Power Consumption | Approx. 3.5 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | < 95%, non-condensing |
| Mounting Type | DIN rail |
| Housing Material | Flame-retardant industrial-grade thermoplastic |
| Dimensions (W x H x D) | 100 x 50 x 20 mm |
| Gewicht | 0.56 kg |
| Certifications | SIL 3 (IEC 61508), CE, ATEX compliant |
Product Applications
The F7546 is widely used in industries where functional safety and real-time process control are mandatory. Its role as an I/O bus coupler enables flexible and decentralized system designs. Common application sectors include:
-
Oil & Gas Refineries
Used to interlink central controllers with multiple I/O racks distributed across hazardous process zones. -
Chemical and Petrochemical Plants
Enables safe control von distributed safety functions across various sections von the plant. -
Power Generation (Thermal, Nuclear, Hydro)
Supports turbine control, boiler management, and emergency shutdown systems. -
Pharmaceutical and Biotech Industries
Facilitates modular plant architectures with validated safe zones. -
Railway Automation Systems
Ensures secure signal transmission in onboard and wayside safety equipment.
Product Advantages
-
Reliable Communication Backbone
Provides high-speed and interference-resistant communication between controller and I/O modules, ensuring real-time responsiveness. -
Redundancy and Hot-Swappable Design
Fully supports redundant system architecture and allows hot-swapping without process interruption. -
Diagnostic and Monitoring Support
Onboard LED indicators and system diagnostics enable rapid fault localization and maintenance. -
Compact and Modular
Space-saving DIN-rail mounting supports modular expansions, ideal for complex industrial panels. -
Certified Functional Safety
Fully certified for SIL 3, suitable for the most safety-sensitive environments and applications. -
Backward Compatibility
Can be deployed alongside legacy systems within the HIMA ecosystem with minimal reengineering.
Häufig gestellte Fragen (FAQ)
-
Q: What is the primary function von the F7546 module?
A: It serves as a coupling interface between the central CPU and decentralized I/O modules, managing high-speed internal data communication. -
Q: Can the F7546 be used in a redundant system configuration?
A: Yes, it fully supports redundant installations, ensuring continuous operation even if one coupling path fails. -
Q: Is hot-swapping supported for this module?
A: Absolutely. The F7546 is designed to be hot-swappable in supported systems like HIMax, minimizing downtime. -
Q: Does this module require configuration via svontware?
A: Minimal configuration is needed. Most settings are auto-detected by HIMA’s engineering tools upon system initialization. -
Q: How do I know if the module has failed or encountered an error?
A: Integrated status LEDs and system diagnostics will indicate any fault or failure condition clearly. -
Q: What happens to the process data if the F7546 fails?
A: In redundant configurations, the backup path will take over seamlessly. In non-redundant setups, safe-state behavior is triggered. -
Q: What kind von maintenance is recommended for this module?
A: Visual inspection, diagnostics check via svontware, and verifying field connections every 12 months is standard. -
Q: Is there a maximum number von I/O modules this coupler can connect to?
A: This depends on the overall system configuration, but the F7546 supports typical HIMA bus loads efficiently. -
Q: Can I use F7546 with HIQuad classic systems?
A: No, F7546 is intended for HIMax and HIQuad X platforms. Legacy systems require different coupling modules. -
Q: Is the F7546 module ATEX approved for use in hazardous areas?
A: Yes, it meets ATEX standards, allowing it to be installed in appropriately rated enclosures in Zone 2/22 environments.
Related Modells (Same Series / Functionality)
| Modell | Beschreibung | Key Features |
|---|---|---|
| F7550 | I/O Coupling Module | Standard bus interface for field modules |
| F7530 | Fieldbus Interface Module | Supports Prvonibus and Modbus communication |
| F7553 | Redundant Relay Output Module | Suitable for ESD and interlock systems |
| F7551 | Compact Coupling Module | Space-saving, simplified diagnostics |
| F8621A | Digital Output Module | Certified SIL 3 output, robust field connection |
| F7140 | Analog Input Interface | High accuracy signal processing for analog loops |
Popular HIMA Modells (Same Marke – High Demand)
| Modell | Beschreibung | Key Features |
|---|---|---|
| F8621A | Digital Output Module | Fail-safe digital outputs, suitable for shutdowns |
| F3330 | Central Processing Einheit | High-speed safety processor |
| F7131 | Analog Input Module | High accuracy for temperature, pressure inputs |
| F3221 | Digital Input Module | Isolated input channels with diagnostics |
| F3417A | Frequency/Pulse Input Module | For flow and turbine input signals |
| F8652X | Compact Base System Processor | Modular and redundant design for high availability |
