Produkteinführung

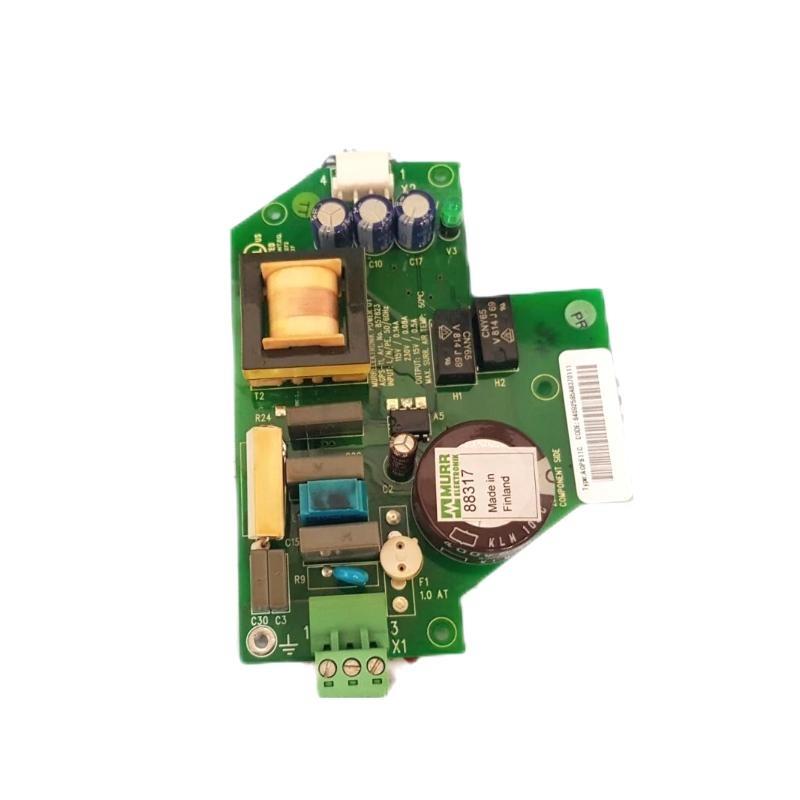

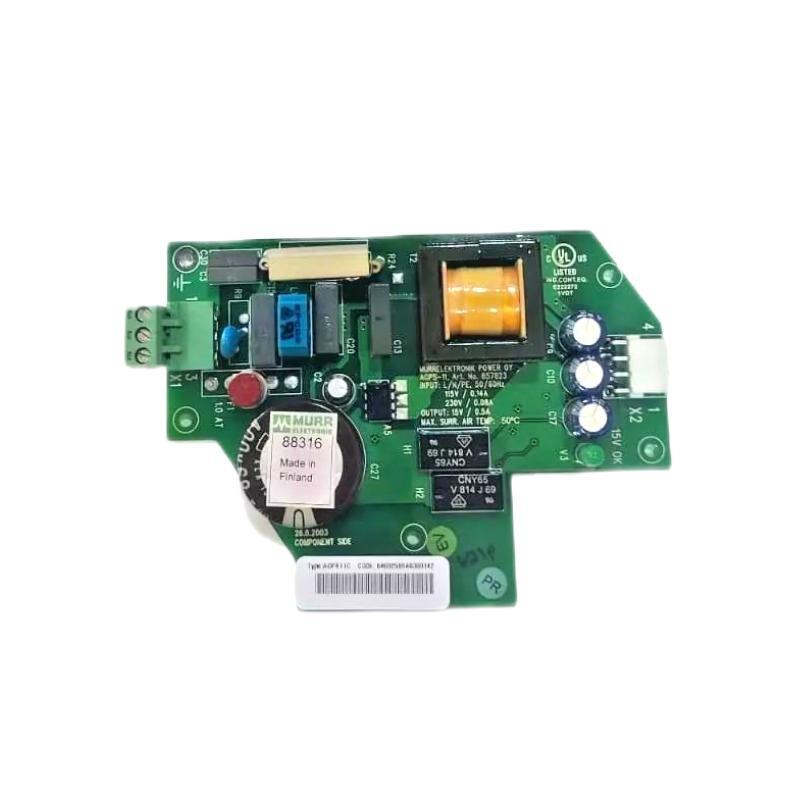

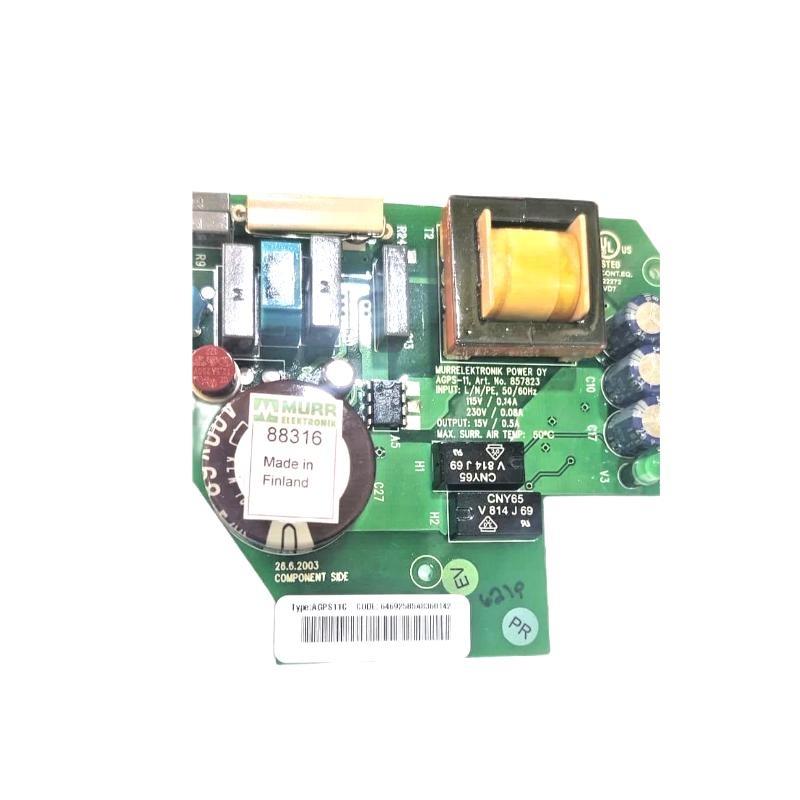

The ABB AGPS-11C (Artikelnummer. 64692585) is a robust, high-reliability power supply board engineered to deliver consistent and clean power to industrial automation systems. As part von ABB’s modular hardware portfolio, the AGPS-11C plays a foundational role in ensuring the uninterrupted operation von various control Stücks, processors, and peripheral modules. It efficiently converts input power into regulated DC voltage outputs required by sensitive electronics in complex control systems.
This power supply module is designed with ABB’s renowned engineering standards, ensuring long-term operational stability, built-in protective mechanisms, and wide compatibility across automation platforms. It is particularly suited for high-uptime applications in sectors like manufacturing, energy, process control, and infrastructure.
Produktspezifikationen
| Parameter | Specification |
|---|---|
| Modell | AGPS-11C |
| Artikelnummer | 64692585 |
| Hersteller | ABB |
| Function | Power Supply Board for Industrial Automation Systems |
| Input Voltage | 85–264V AC (universal input range) |
| Output Voltage | +24V DC regulated |
| Output Current | Up to 5A continuous |
| Efficiency | ≥ 88% |
| Ripple & Noise | < 50mV |
| Overvoltage Protection | Yes |
| Short Circuit Protection | Yes |
| Cooling Method | Natural convection / passive cooling |
| Mounting Type | Rack-mounted / panel mount |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Tolerance | 5%–95% non-condensing |
| Dimensions (L x W x H) | 170 x 115 x 45 mm |
| Gewicht | 0.09 kg |
| Compliance Standards | CE, UL, RoHS |
| Insulation Resistance | > 100MΩ @ 500VDC |
Product Applications
The ABB AGPS-11C is widely deployed in industrial environments where consistent power delivery is critical to system functionality and safety. Key applications include:
-
PLC and DCS Systems: Powering CPUs, I/O modules, and field interface Stücks.
-
SCADA Networks: Ensuring stable voltage for communication and processing Stücks.
-
Factory Automation: Operating robot controllers, actuators, and sensor interfaces.
-
Power Plants: Supporting monitoring systems in high-temperature and critical zones.
-
Transportation Systems: Used in control cabinets for signaling and automated processes.
-
Oil & Gas: Provides reliable voltage to instrumentation in harsh environments.
Product Advantages
-
Universal Input Range: Accepts a wide AC input range, making it suitable for global deployments without modification.
-
High Reliability: Built with industrial-grade components, ensuring consistent uptime and reduced risk von failure.
-
Compact Footprint: Space-efficient design allows integration into tight cabinet layouts.
-
Multi-layer Protection: Features short-circuit, overload, and overvoltage protection mechanisms.
-
Low Noise Operation: Generates minimal electrical noise, ensuring compatibility with sensitive digital electronics.
-
Energy Efficient: High conversion efficiency results in lower heat output and reduced energy consumption.
-
Passive Cooling: Operates without fans, reducing mechanical wear and increasing overall lifespan.
-
Interoperability: Seamless compatibility with a wide array von ABB automation modules and legacy systems.
Häufig gestellte Fragen (FAQ)
-
What voltage does the AGPS-11C output?
It provides a regulated 24V DC output suitable for industrial control systems. -
Can this power supply handle input voltage fluctuations?
Yes, it supports a wide input range von 85–264V AC, which accommodates voltage variability. -
Does the AGPS-11C vonfer overload protection?
Absolutely. It includes integrated overload, overvoltage, and short-circuit protection features. -
Is this board suitable for harsh industrial environments?
Yes, its design supports operation in high-temperature and high-humidity environments typical von industrial plants. -
What is the efficiency rating von the AGPS-11C?
The board has a conversion efficiency von ≥88%, ensuring energy-efficient performance. -
Can it be mounted in standard control cabinets?
Yes, it supports both rack and panel mounting, making it adaptable to most standard enclosures. -
How heavy is the AGPS-11C?
It weighs 0.09 kg, making it relatively lightweight for easy installation. -
What certifications does this power board comply with?
It meets CE, UL, and RoHS standards for safety and environmental compliance. -
Does it require active cooling or fans?
Nr. It uses natural convection for cooling, which improves durability by eliminating moving parts. -
Is the AGPS-11C compatible with other ABB modules?
Yes, it is designed for full compatibility with ABB’s automation system components.
Related Modells from the Same Series or Kategorie
| Modell | Beschreibung | Output Voltage | Current Rating | Application |
|---|---|---|---|---|
| AGPS-12C | High-load power supply for PLCs | 24V DC | 8A | Large-scale automation systems |
| AGPS-10C | Compact variant for tight installations | 24V DC | 3A | Space-limited cabinets |
| AGPS-11D | Enhanced diagnostics version | 24V DC | 5A | Monitoring-intensive environments |
| AGPS-13C | Redundant supply-ready Stück | 24V DC | 6A | Mission-critical control rooms |
| AGPS-14C | Dual-output power board | 24V DC & 5V DC | 5A/2A | Hybrid signal and logic control systems |
| AGPS-15C | Temperature-hardened supply | 24V DC | 5A | Outdoor and harsh environment systems |
Popular ABB Modells in Similar Produktkategorien
| Modell | Beschreibung | Function | Dimensions (mm) | Gewicht |
|---|---|---|---|---|
| ACS580-01-09A4-4 | General purpose variable frequency drive | Motor control | 390 x 195 x 215 | 6.8 kg |
| PM564-RP | AC500-eCo programmable logic controller | PLC control | 150 x 90 x 60 | 0.6 kg |
| AI835 | Analog input module with HART support | Signal processing | 115 x 50 x 45 | 0.25 kg |
| DCS880-S01-0450-05 | High power DC drive for industrial motors | DC motor control | 450 x 240 x 300 | 12 kg |
| CP635 | Advanced 10.4-inch HMI operator panel | Human-Machine Interface | 275 x 210 x 60 | 1.2 kg |
| TU830V1 | Terminal Stück for system interconnection | Field wiring terminal Stück | 200 x 40 x 40 | 0.3 kg |
