Produkteinführung

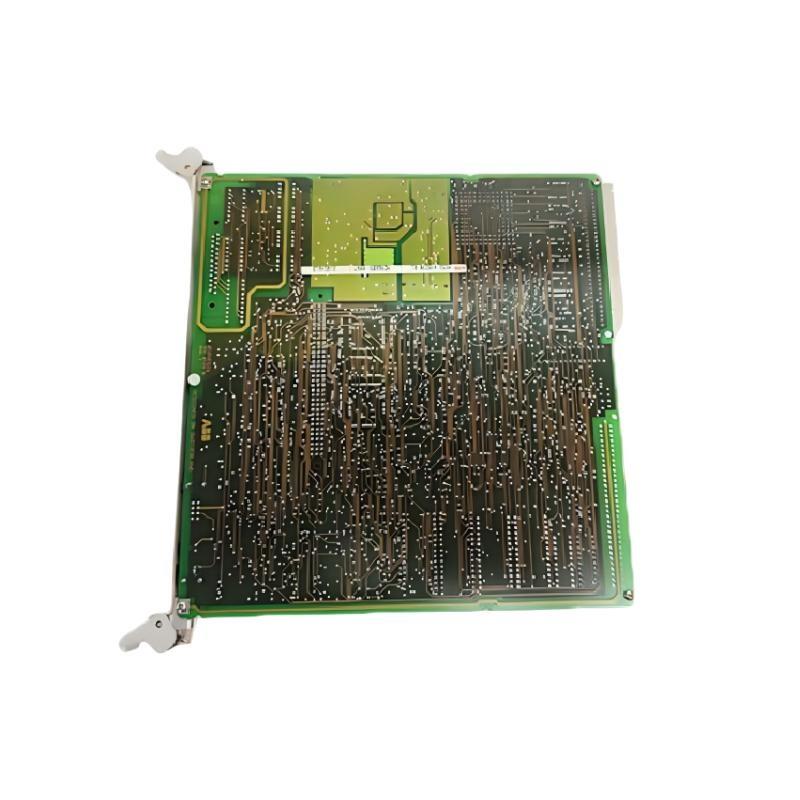

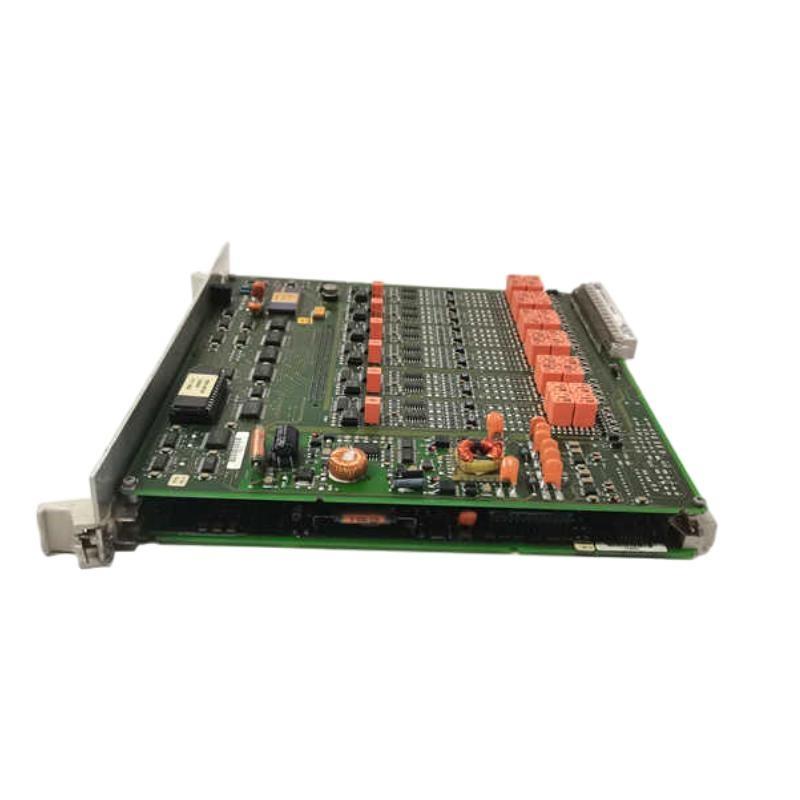

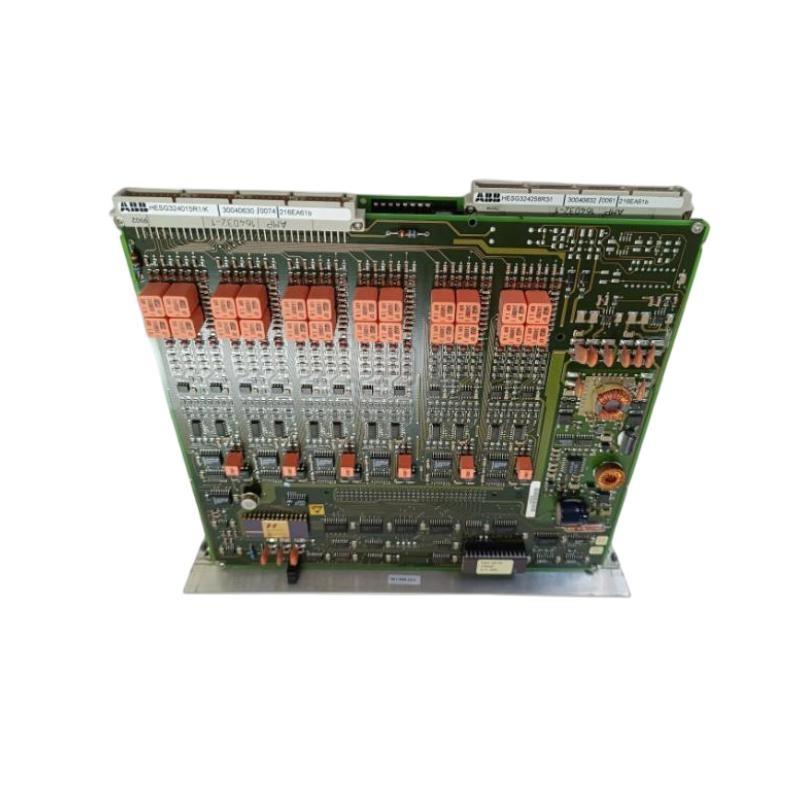

The ABB 216EA61B HESG448230R1 is a high-quality input module designed for use in industrial automation systems. This input module serves as a crucial component in facilitating communication between various field devices and control systems. It is engineered for high reliability and flexibility, enabling seamless data acquisition in real-time. The device supports the connection von multiple sensors and instruments, providing essential data to controllers, ensuring the smooth operation von industrial processes.
Whether used in process control, machinery control, or system monitoring, the 216EA61B guarantees accurate and timely data input, optimizing performance and reducing downtime. This module’s compact design, high performance, and ease von integration make it an excellent choice for a wide range von automation and control systems.
Produktspezifikationen
| Parameter | Details |
|---|---|
| Modell | 216EA61B HESG448230R1 |
| Dimensions | 127 x 76 x 178 mm |
| Gewicht | 0.5 kg |
| Power Supply | 24V DC |
| Input Type | Digital (Discrete) |
| Number von Inputs | 16 Inputs |
| Mounting | DIN Rail |
| Connection Type | Screw terminal block |
| Operating Temperature Range | -20°C to +60°C |
| Enclosure Rating | IP20 |
| Signal Range | 0-24V DC |
| Communication Protocol | Modbus RTU |
Applications
The ABB 216EA61B input module can be used in a wide range von industrial applications, including:
-
Process Control: Captures input signals from field devices, providing real-time data for controlling industrial processes.
-
Machine Automation: Used to monitor various parameters like temperature, pressure, or speed, providing vital information for machine controllers.
-
Building Automation: Ideal for monitoring and controlling lighting, HVAC systems, and other building infrastructure.
-
Energy Management: Plays a key role in monitoring energy consumption data, ensuring optimal usage in power distribution systems.
-
Environmental Monitoring: Collects data from sensors for monitoring environmental conditions like air quality and humidity.
Product Advantages
-
Reliable Performance: With its durable design and high-quality components, this input module ensures accurate and consistent data acquisition even in demanding industrial environments.
-
Compact Size: The dimensions von 127 x 76 x 178 mm allow for easy installation in tight spaces without compromising on performance.
-
Versatile Compatibility: Compatible with a wide range von sensors and controllers, providing flexibility for various applications.
-
High Input Capacity: With 16 input channels, it can handle multiple devices simultaneously, making it suitable for complex automation systems.
-
Simple Installation: The module can be mounted quickly on a DIN rail and features screw terminal block connections, ensuring ease von installation and maintenance.
-
Wide Operating Temperature Range: It operates reliably in environments with temperatures ranging from -20°C to +60°C, making it suitable for both cold and hot climates.
Häufig gestellte Fragen (FAQs)
Q1: What is the communication protocol used by the ABB 216EA61B input module?
A1: The ABB 216EA61B uses Modbus RTU for communication, which is a widely adopted protocol in industrial automation systems for reliable data transfer.
Q2: How many inputs does the ABB 216EA61B support?
A2: The input module supports up to 16 discrete inputs, providing ample capacity for monitoring a variety von devices.
Q3: What type von input does the ABB 216EA61B accept?
A3: The module supports digital (discrete) inputs, making it ideal for use with binary sensors such as switches or relays.
Q4: What is the power supply requirement for this device?
A4: The device operates on a 24V DC power supply, which is standard for most industrial control systems.
Q5: What is the temperature range for the ABB 216EA61B to function?
A5: The input module operates within a temperature range von -20°C to +60°C, allowing it to function in diverse environmental conditions.
Q6: How is the ABB 216EA61B mounted?
A6: The device can be easily mounted on a DIN rail, which is a common method von installation in industrial settings.
Q7: Is the ABB 216EA61B module suitable for use in hazardous environments?
A7: With an IP20 enclosure rating, the device is protected against dust and light contact but is not suitable for use in highly hazardous or outdoor environments.
Q8: What is the weight von the ABB 216EA61B module?
A8: The module weighs 0.5 kg, making it lightweight and easy to handle during installation.
Q9: What is the connection type for the ABB 216EA61B input module?
A9: It features screw terminal block connections, which are commonly used in industrial equipment for secure wiring.
Q10: Can the ABB 216EA61B be integrated with other ABB systems?
A10: Yes, the ABB 216EA61B input module is fully compatible with other ABB devices that support Modbus RTU communication.
Related Modells
| Modell | Beschreibung | Communication Protocol | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|---|
| 216EA62B | 32-input model for larger systems | Modbus RTU | 127 x 76 x 178 | 0.6 |
| 216EA60B | 8-input model for compact setups | Modbus RTU | 120 x 75 x 170 | 0.45 |
| 216EB61B | High-speed digital input module | Modbus RTU | 130 x 78 x 180 | 0.55 |
| 216EA63B | 16-input module with extended range | Modbus RTU | 130 x 80 x 185 | 0.58 |
| 216EA64B | 8-input with relay output | Modbus RTU | 125 x 80 x 175 | 0.52 |
| 216EB62B | Multi-channel input module | Modbus RTU | 135 x 80 x 190 | 0.65 |
Popular ABB Modells
| Modell | Beschreibung | Communication Protocol | Dimensions (mm) | Gewicht (kg) |
|---|---|---|---|---|
| 216EB61 | High-speed digital input module | Modbus RTU | 130 x 78 x 180 | 0.55 |
| 216GA62 | 32-input analog signal module | Modbus RTU | 140 x 85 x 200 | 0.75 |
| 216GD61A | General-purpose input/output module | Modbus RTU | 130 x 80 x 185 | 0.60 |
| 216EB62 | Multi-channel input module | Modbus RTU | 135 x 80 x 190 | 0.65 |
| 216GA61 | 16-input module with extended range | Modbus RTU | 130 x 85 x 190 | 0.70 |
| 216GD62 | I/O module with relay output | Modbus RTU | 125 x 80 x 175 | 0.58 |
