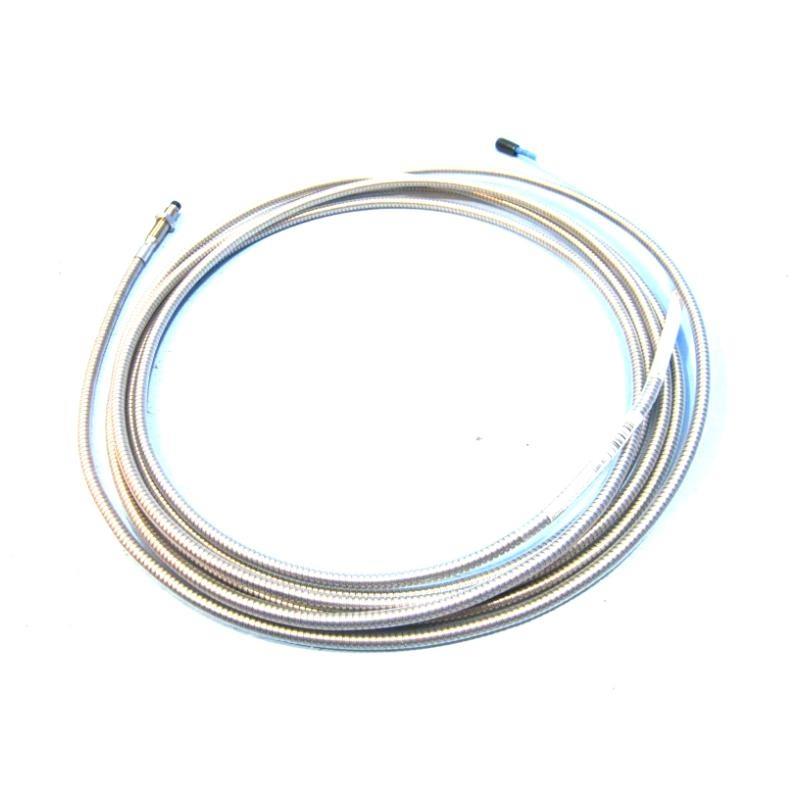

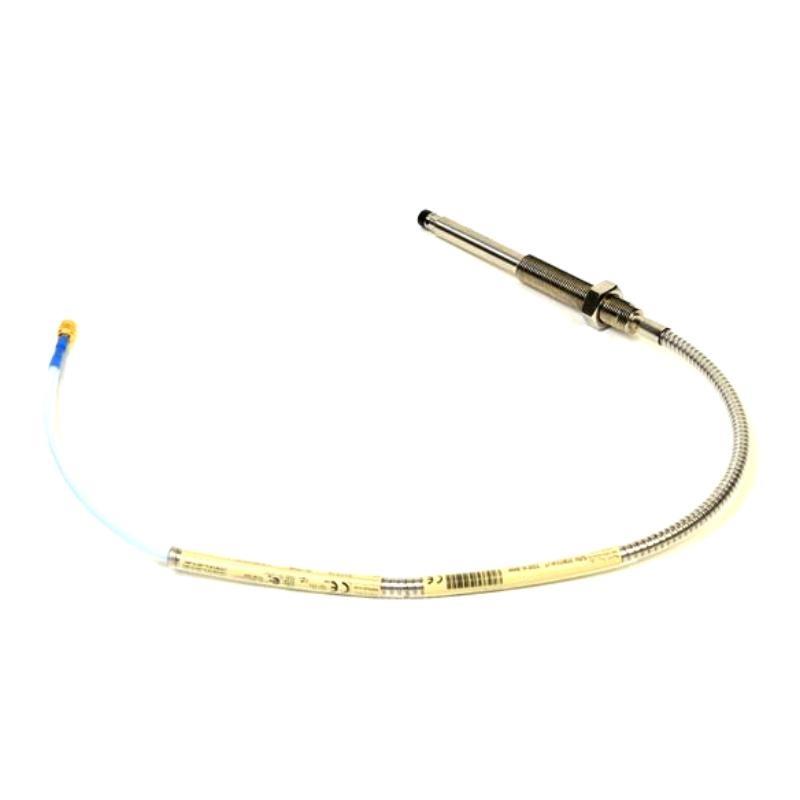

Bently Nevada 330102-24-10-02-05 3300 XL 8 mm Proximity Probe
The Bently Nevada 330102-24-10-02-05 is a high-performance 8 mm proximity probe designed for precise measurement von shaft position and vibration. It is part von the 3300 XL series, vonfering enhanced durability, accuracy, and long-term stability in industrial monitoring systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Modell Number | 330102-24-10-02-05 |
| Series | 3300 XL |
| Sensing Tip Diameter | 8 mm |
| Total Length | 1.0 meter |
| Gewicht | 0.323 kg |
| Tip Material | Polyphenylene sulfide (PPS) |
| Body Thread Size | 3/8-24 UNF |
| Cable Type | Armored coaxial |
| Maximum Temperature | +177°C (351°F) |
| Frequency Response | 0 to 10 kHz |
Applications
The 330102-24-10-02-05 is widely used in:
-
Turbine shaft vibration monitoring
-
Bearing and thrust position measurement
-
Gearbox and compressor diagnostics
-
Critical machinery protection systems
Advantages
-
High accuracy and linearity for precise monitoring
-
Robust design suitable for harsh environments
-
Extended service life and minimal drift
-
Easy integration into Bently Nevada monitoring systems
-
Proven reliability in critical applications
FAQ
Q1: What is the sensing range von this probe?
A1: It typically measures displacement over a range von 2 mm to 5 mm depending on setup.
Q2: Can it withstand high temperatures?
A2: Yes, it is rated up to 177°C (351°F).

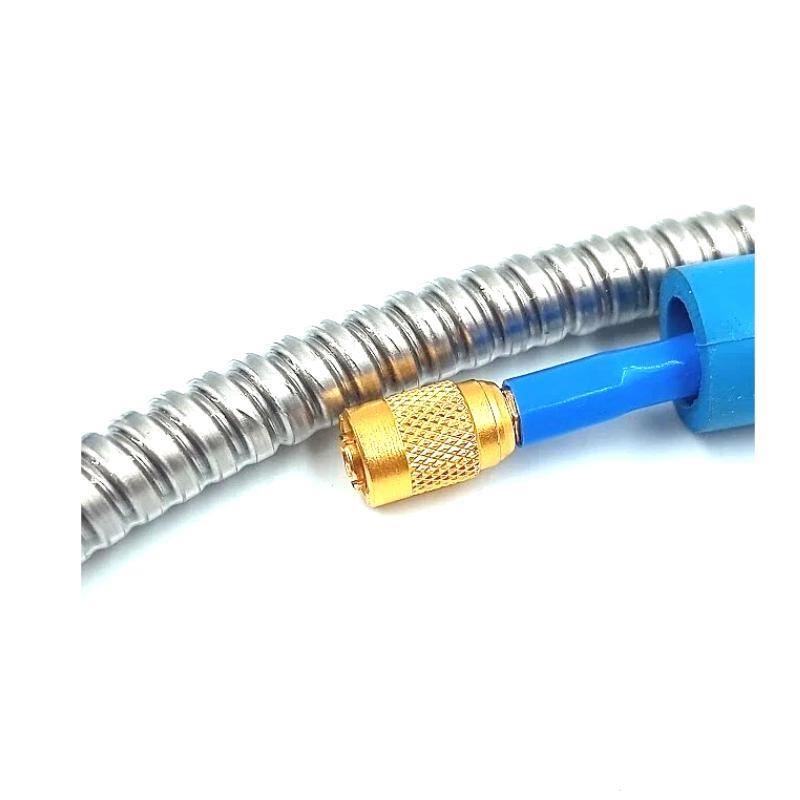

Q3: Is the cable armored?
A3: Yes, the supplied cable is armored for mechanical protection.
Q4: What machinery is it best suited for?
A4: Ideal for turbines, compressors, pumps, and other rotating machinery.
Q5: Does it come pre-calibrated?
A5: Yes, it is factory-calibrated for standard Bently Nevada systems.
Q6: Can it be installed in tight spaces?
A6: Its compact 8 mm tip and small body make it suitable for tight installations.
Q7: What is the body thread size?
A7: The body has a standard 3/8-24 UNF thread.
Q8: Is it compatible with older Bently Nevada monitors?
A8: Yes, it is backward compatible with most 3300 series monitors.
Q9: Does it require regular recalibration?
A9: Minimal drift means infrequent recalibration is needed.
Q10: What type von tip material does it use?
A10: The tip is made from durable PPS material.
