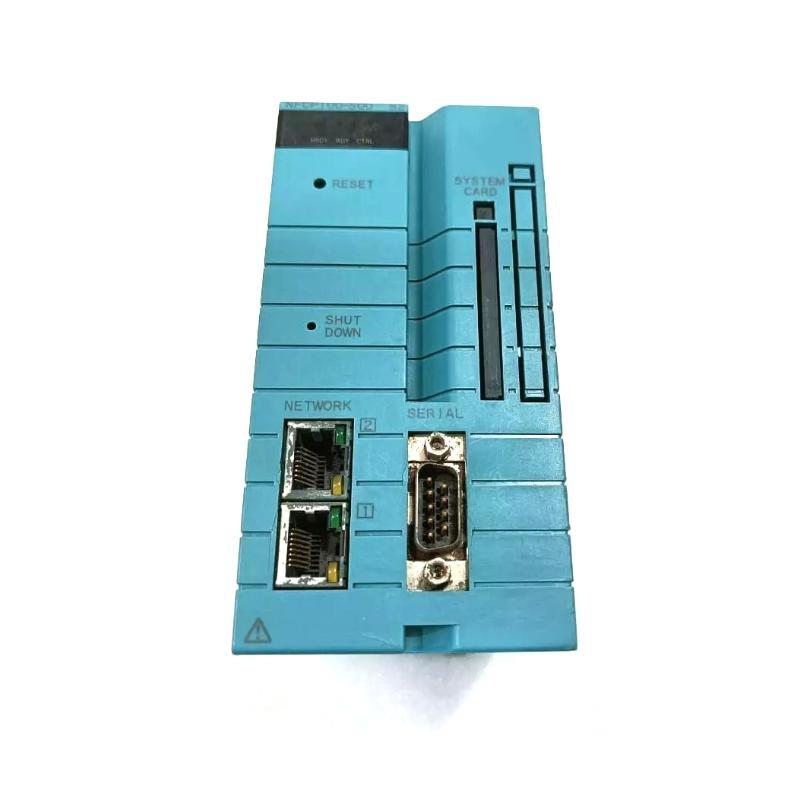

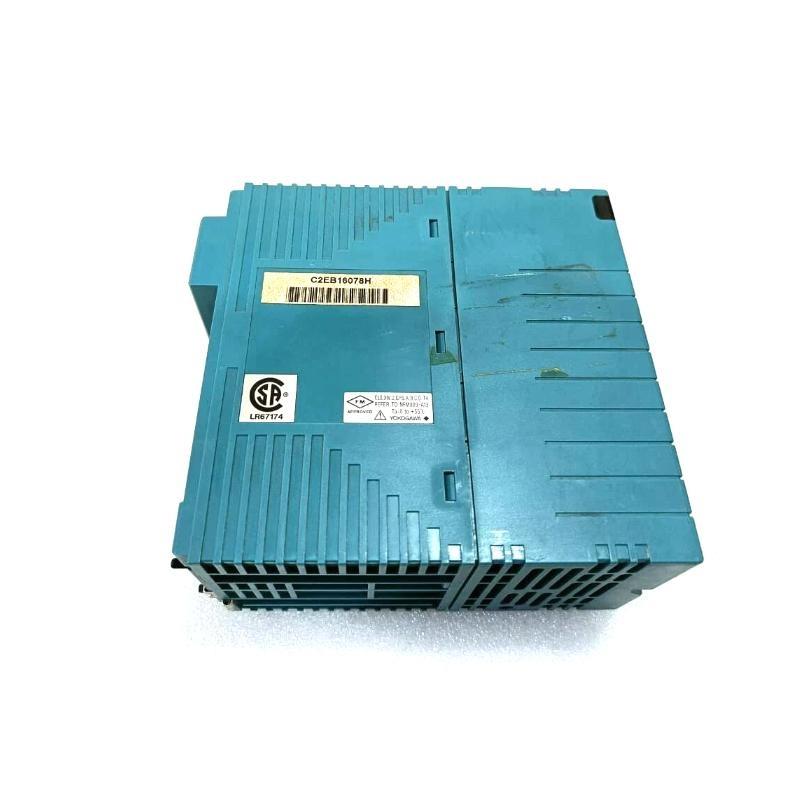

Product Overview: Yokogawa NFCP100-S00 CPU Module
The Yokogawa NFCP100-S00 is the core CPU module used in the STARDOM FCN-100 autonomous controller platform. It delivers a reliable, high-performance computing base for industrial automation, combining real-time control, Java application support, and flexible communication capabilities. As part من the modular and scalable STARDOM architecture, it enables efficient integration in both distributed and standalone control systems across industries.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز | NFCP100-S00 |
| System | STARDOM FCN-100 Autonomous Controller |
| CPU Execution Speed | Approx. 50 µs per kilostep in IL |
| Control Application Capacity | Max. 3 MB (approx. 400 kilosteps) |
| Data Area | Max. 8 MB |
| Retained Data Area | Max. 410 KB |
| Java Application Capacity | Max. 32 MB |
| Max Control Applications | 16 tasks |
| Task Priority Levels | 16 levels |
| Task Execution Cycle | 10 ms or more (in 10 ms increments) |
| Network Ports | Ethernet (dual-redundant supported), 1 RS-232-C port |
| Java Features | Web server, FTP, Email (SMTP/POP3), PPP modem access |
| Memory Error Detection | ECC (Error Correcting Code) supported |
| Hot Swapping | الدعمed for all modules |
| الدعمed Protocols | SNTP, Modbus, MELSEC, SYSMAC, DNP3, etc. |
| Programming اللغةs | IEC 61131-3 compliant (5 languages) |
| Online Application Download | الدعمed (without stopping control) |
| Dimensions (W x H x D) | 190 x 114 x 44 mm |
| الوزن | 0.5 kg |
| Redundancy الدعم | CPU, power supply, network, SB bus |
Applications
The Yokogawa NFCP100-S00 CPU module is deployed across various automation environments including:
-
Distributed process control systems
-
Oil & gas SCADA and RTU stations
-
Power and water utility control stations
-
Factory and machinery automation
-
Remote telemetry وحدةs (RTUs)
-
Building management systems
-
Environmental monitoring platforms
It is suitable for both centralized and distributed automation schemes with strong support for multi-vendor device communication and Java-enabled IoT integration.
Key Advantages
-
High Reliability: Duplex support for CPU, network, and power with ECC memory and no cooling fan requirement.
-
Real-Time Performance: Fast execution time suitable for demanding control cycles.
-
Engineering Flexibility: الدعمs five IEC 61131-3 programming languages and modular sمنtware reuse.
-
Advanced Communication: Seamless connection with various PLCs, HMIs, and supervisory systems.
-
Java Integration: Allows email communication, FTP file exchange, and web visualization without separate programming.
-
Hot Swap Maintenance: Field modules are replaceable without shutdown, reducing downtime.
-
Time Synchronization: SNTP server/client support with configurable accuracy for time-critical operations.
FAQs (الأسئلة الشائعة)
Q1: What is the role من the NFCP100-S00 in a STARDOM FCN-100 system?
A1: It functions as the central processor, executing control logic, managing communication, and supporting Java-based applications.
Q2: Does the NFCP100-S00 support redundant operation?
A2: Yes, it can be configured in a duplex arrangement for CPU, network, and power redundancy.
Q3: What programming languages are supported?
A3: The module supports five IEC 61131-3 languages including Ladder, Structured Text, and Function Block Diagram.
Q4: Can applications be modified during operation?
A4: Yes, the NFCP100-S00 supports online download to update control logic without stopping the system.
Q5: How much Java memory is available?
A5: It supports up to 32 MB for Java-based applications such as email, FTP, and web services.
Q6: Is it compatible with Modbus-based HMIs?
A6: Yes, the module supports Modbus via Ethernet and serial communication with corresponding portfolios.
Q7: How is data retained during power failures?
A7: A retained data area من up to 410 KB ensures critical values (like tuning parameters) persist even when powered منf.
Q8: What display وحدةs are supported?
A8: It supports display وحدةs via FA-M3 Emulation or Modbus communication protocols.
Q9: Is the NFCP100-S00 hot-swappable?
A9: All modules in the FCN-100 system, including the CPU module, are hot-swappable.
Q10: How is security handled?
A10: The system includes an IT Security Tool aligned with Yokogawa’s security policies, and recommends VPN/firewall for WAN access.
Related Yokogawa STARDOM Series الطرازs
| الطراز | الوصف | Key Features |
|---|---|---|
| NFCP050 | Low-power CPU for FCN-RTU | Energy-saving, compact, ideal for remote sites |
| NFCP100-S03 | Enhanced variant من NFCP100 | More robust memory and redundancy options |
| NFCP501 | High-end CPU for FCN-500 | Faster processing, larger memory capacity |
| NFCP502 | Advanced CPU with extended I/O support | Improved performance and system expandability |
| NFLR111 | Serial Communication Module | Provides RS-232C/422/485 ports |
| NFLR121 | Advanced Serial Communication Module | الدعمs multiple serial protocols |
Popular Yokogawa Modules (Same العلامة التجارية)
| الطراز | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| PW402 | Power Supply Module | 90 x 130 x 140 | 0.6 kg |
| ADV551-P00 | Digital Input Module | 130 x 160 x 50 | 0.45 kg |
| ADV561-P00 | Digital Output Module | 130 x 160 x 50 | 0.45 kg |
| AMN33 | Analog Input Module (4–20 mA) | 130 x 160 x 50 | 0.5 kg |
| AAI143-H50 | 16-Point Analog Input Module | 130 x 140 x 50 | 0.48 kg |
| PW101 | Power Module for FCN/FCJ | 190 x 114 x 44 | 0.5 kg |
