Product Overview

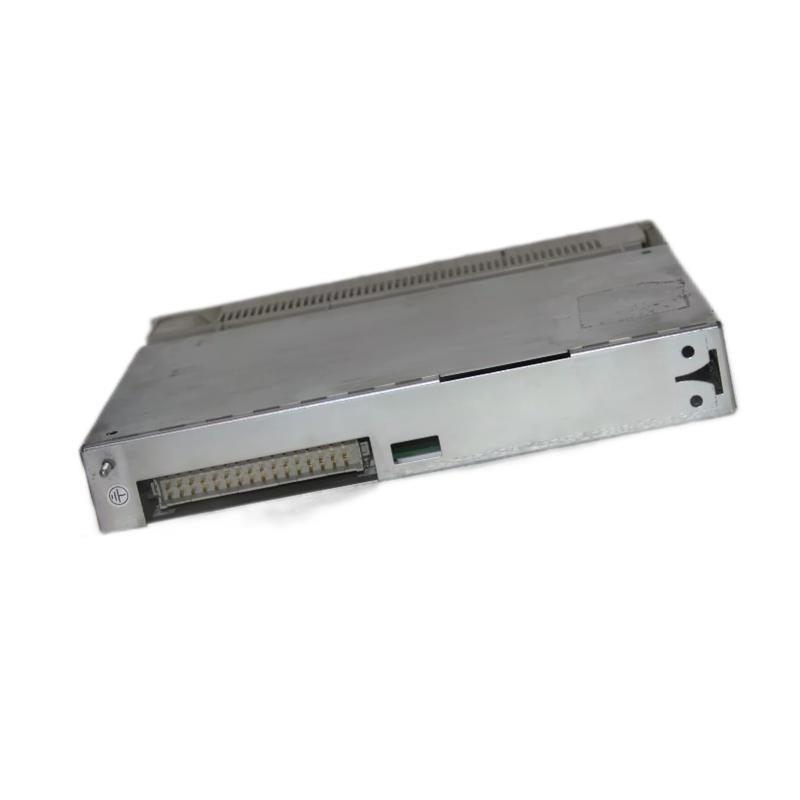

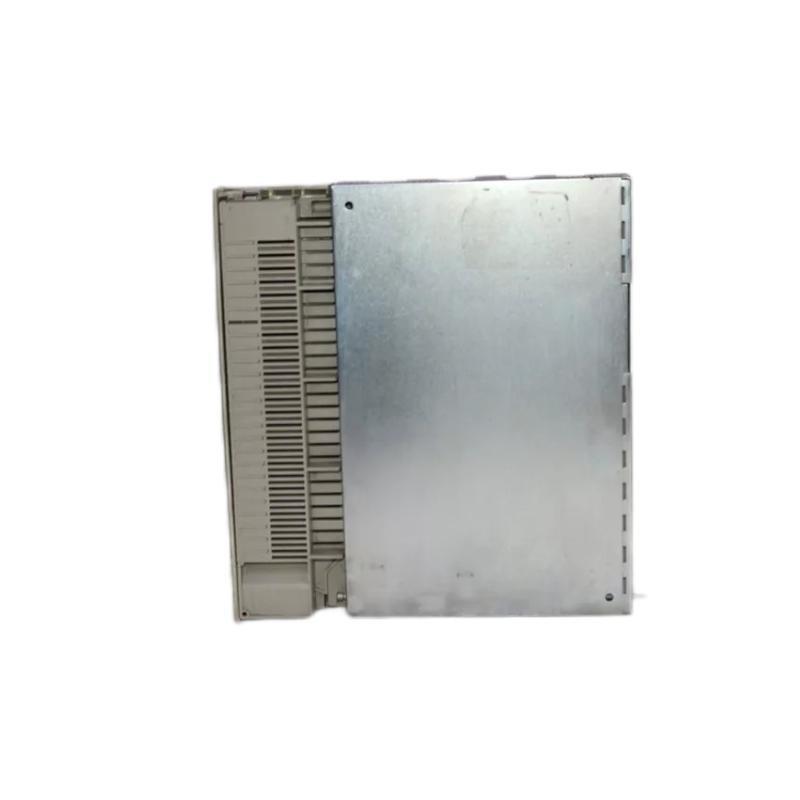

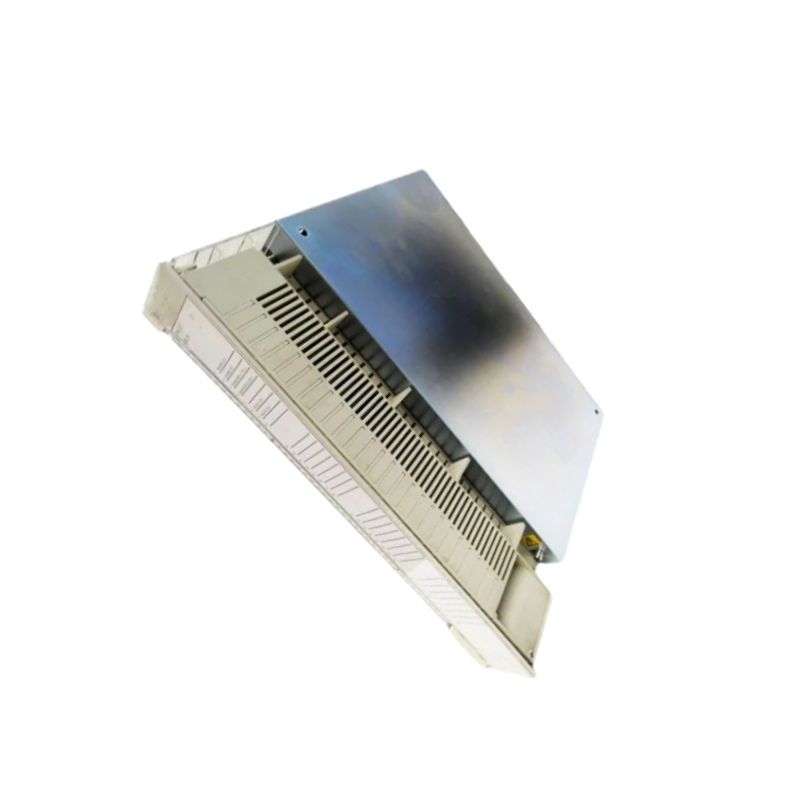

The ABB DO630 (part number 3BHT300007R1) is a digital output module designed for ABB’s S800 modular I/O system, providing 32 transistor digital output channels. It is intended for industrial automation applications requiring large channel counts with high switching speeds and extensive diagnostic capabilities. The module is well-suited for controlling actuators, valves, relays, alarms, and other field devices requiring discrete on/منf signals.
The DO630 ensures high reliability through galvanic isolation, robust diagnostics, and compact construction, making it ideal for harsh industrial environments. It integrates seamlessly into the ABB S800 I/O architecture and is compatible with AC 800M controllers.
Key Features
-
32 digital output channels per module
-
Transistor (PNP) output type for fast and reliable switching
-
Individual channel diagnostics: short-circuit, overload, and open load detection
-
Galvanic isolation between outputs and system bus for noise immوحدةy
-
LED indicators for each channel and module status
-
High switching frequency and fast response time
-
Compact size to maximize panel space efficiency
-
Compatible with ABB S800 I/O and AC 800M control systems
Technical Specifications
| Parameter | Specification |
|---|---|
| Number من Channels | 32 digital output channels |
| Output Type | Transistor (PNP) outputs |
| Output Voltage | 24 V DC nominal |
| Maximum Output Current | 0.5 A per channel |
| Switching Frequency | Up to 10 kHz |
| Load Type | Resistive, inductive, and capacitive loads supported |
| Diagnostics | Short-circuit, overload, and open load detection |
| Isolation | Galvanic isolation between outputs and system bus |
| Operating Voltage | Powered via S800 I/O backplane |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 252 x 273 x 40 mm |
| الوزن | 1.32 kg |
| Mounting | DIN rail or rack-mounted within S800 I/O chassis |
| Certifications | CE, UL, cUL, RoHS |
Product Advantages
-
High Channel Count: Provides 32 digital outputs in one module, reducing the need for multiple modules.
-
Fast and Reliable Switching: Transistor outputs allow rapid and consistent switching performance.
-
Extensive Diagnostics: Ensures system integrity by detecting faults such as short circuits and open loads.
-
Galvanic Isolation: Protects control electronics from noise and interference.
-
Compact Design: حفظs panel space while delivering high functionality.
-
Wide Environmental Tolerance: Suitable for demanding industrial environments.
-
Full Compatibility: Seamlessly integrates with ABB S800 I/O and AC 800M systems.
Industry Applications
-
Control من actuators, valves, and relays in industrial automation
-
Discrete control in manufacturing and processing plants
-
Alarm and signaling systems in power plants and utilities
-
Packaging and material handling equipment
-
Water and wastewater treatment plant automation
-
Oil and gas process control
-
Building automation and HVAC control systems
الأسئلة الشائعة (FAQ)
-
Q: How many output channels does the DO630 provide?
A: The DO630 provides 32 digital output channels. -
Q: What type من output transistors does the module use?
A: It uses PNP transistor outputs. -
Q: What is the maximum current per output channel?
A: Each channel supports up to 0.5 A output current. -
Q: Are diagnostics available on this module?
A: Yes, it detects short-circuit, overload, and open load conditions. -
Q: What is the operating temperature range?
A: -25°C to +60°C. -
Q: What are the physical dimensions من the module?
A: 252mm x 273mm x 40 mm. -
Q: How is the module mounted?
A: It can be mounted on DIN rails or within the S800 I/O chassis rack. -
Q: Is the module compatible with ABB AC 800M controllers?
A: Yes, it is fully compatible. -
Q: What types من loads can the module switch?
A: Resistive, inductive, and capacitive loads. -
Q: How is the module powered?
A: Via the S800 I/O backplane power supply.
