Product Overview

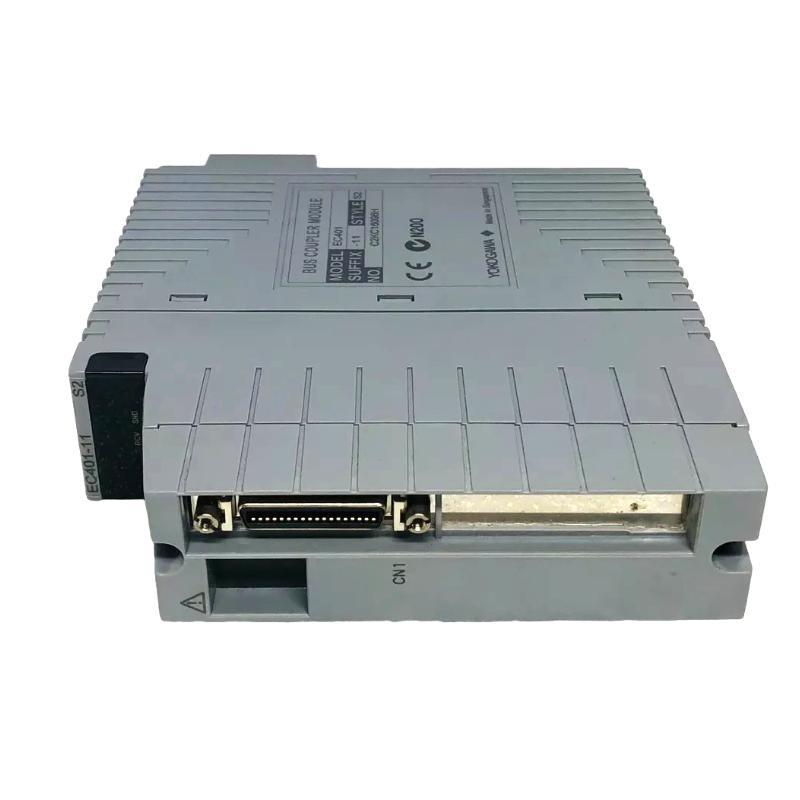

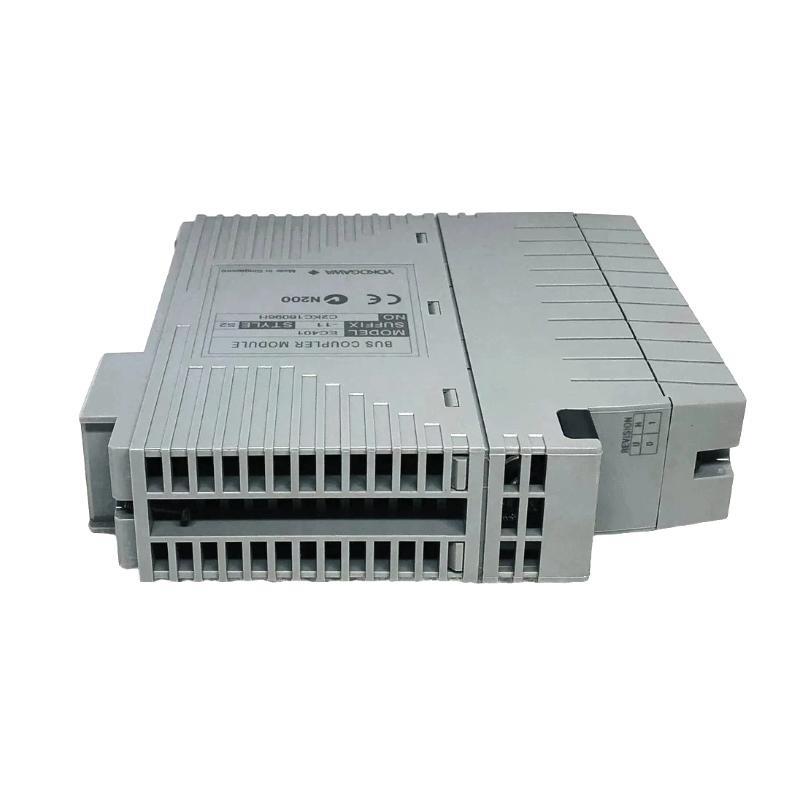

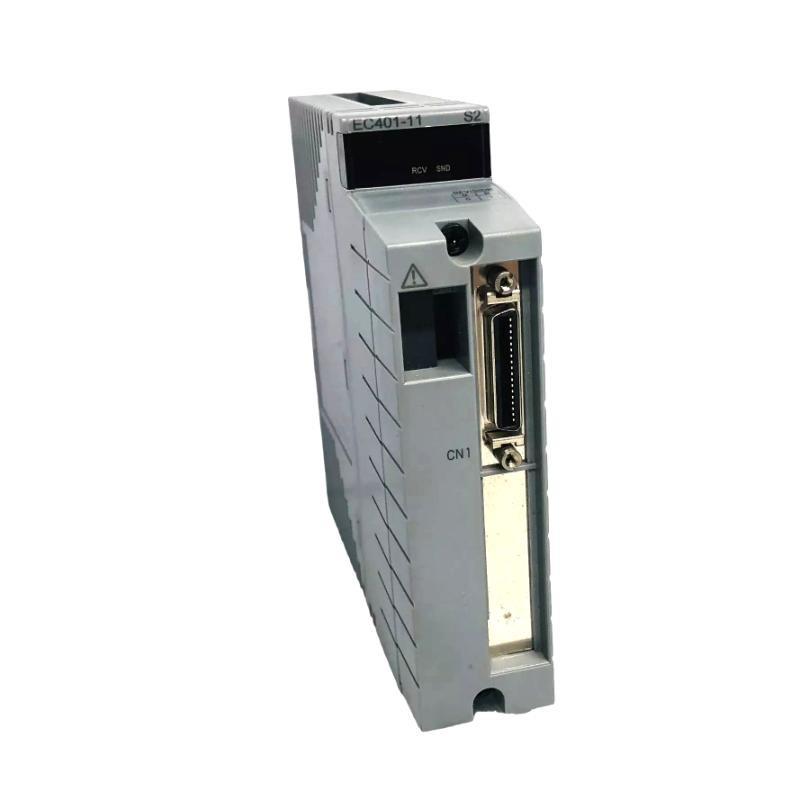

The Yokogawa EC401-11 ESB Bus Coupler Module is a high-performance communication module designed for Yokogawa’s CENTUM VP system. It serves as an interface that connects the Field Control وحدة (FCU) with Node وحدةs via the ESB bus, enabling real-time data transmission and system integration across various control architectures. This module supports both non-redundant and dual-redundant configurations and is specifically tailored for N-IO (Network-based I/O) and FIO (Field I/O) environments.
By enabling reliable communication over short distances (up to 10 meters) at high speed (128 Mbps), the EC401-11 significantly contributes to enhancing system reliability and scalability. It is also engineered for compatibility with a range من Field Control وحدةs such as AFV30S/D, AFV40S/D, A2FV50S/D, and A2FV70S/D, ensuring integration flexibility.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز | EC401-11 |
| Function | ESB Bus Interface Module |
| Connection Interface | 1-Port ESB Bus |
| Compatible وحدةs | AFV30S/D, AFV40S/D, A2FV50S/D, A2FV70S/D |
| Number من Connectable وحدةs | Max. 9 (ANB10S, ANB10D, ANT401, ANT411, ANT421) |
| Transmission Speed | 128 Mbps |
| Transmission Distance | Max. 10 meters |
| Redundancy الدعم | الدعمs dual-redundant installation (slot 7 & 8) |
| SEM Compatibility | Style 2 or later |
| Current Consumption | 0.5 A |
| الوزن | Approx. 0.24 kg |
| Dimensions (W x H x D) | 130 x 129.5 x 32.8 mm |
| Installation Slot | Slot 7 (non-redundant), Slots 7 & 8 (dual-redundant) |
| Applicable Standards | Refer to GS 33J01A10-01EN (CENTUM VP System Overview) |
| الطراز Codes | -5: Standard, -E: Explosion-Proمن, 0: Basic, 1: ISA G3 Compliant |
Applications
-
Industrial Process Control Systems – Seamlessly connects control وحدةs and remote I/O over a secure ESB network.
-
Power Generation Facilities – Ensures stable and high-speed communication between distributed control elements.
-
Oil & Gas Automation Systems – Enables reliable data integration for upstream and downstream applications.
-
Pharmaceutical Manufacturing – Facilitates GMP-compliant data handling via dual-redundant communication.
-
Chemical Processing Plants – Enhances system scalability and robustness for critical control operations.
Advantages
-
High-Speed Communication: 128 Mbps transmission ensures fast and reliable data transfer.
-
Flexible System Configuration: الدعمs up to 9 node وحدةs with dual-redundant capability.
-
Compact and Lightweight: Space-saving design simplifies installation and system layout.
-
Robust Compatibility: Compatible with multiple Field Control وحدةs across the CENTUM VP platform.
-
Enhanced System Reliability: Redundant bus setup ensures fail-safe operation in mission-critical environments.
-
Compliant with Global Standards: Meets safety and performance requirements for industrial automation.
FAQs
Q1: What is the primary function من the EC401-11 module?
A1: It acts as a communication interface between Field Control وحدةs and Node وحدةs via the ESB bus.
Q2: Can the EC401-11 be used in redundant systems?
A2: Yes, it supports dual-redundant configurations using slots 7 and 8 من the control وحدة.
Q3: What is the transmission distance supported by the module?
A3: The maximum transmission distance is 10 meters.
Q4: How many node وحدةs can be connected to one EC401-11 module?
A4: Up to 9 node وحدةs such as ANB10S/D and ANT401/411/421.
Q5: Is this module compatible with SEM (Sequence من Events Manager)?
A5: Yes, but it requires style 2 or later versions.
Q6: What is the current consumption من the EC401-11?
A6: The module consumes 0.5 A من current.
Q7: Is the EC401-11 explosion-proمن?
A7: The -E suffix model provides explosion protection.
Q8: Which field control وحدةs are compatible with this module?
A8: Compatible وحدةs include AFV30S/D, AFV40S/D, A2FV50S/D, and A2FV70S/D.
Q9: Can this module be used without redundant configuration?
A9: Yes, it can be used in non-redundant mode by installing it in slot 7.
Q10: What are the dimensions and weight من the module?
A10: The dimensions are 130 x 129.5 x 32.8 mm, and the weight is approximately 0.24 kg.
Related or Same Series الطرازs

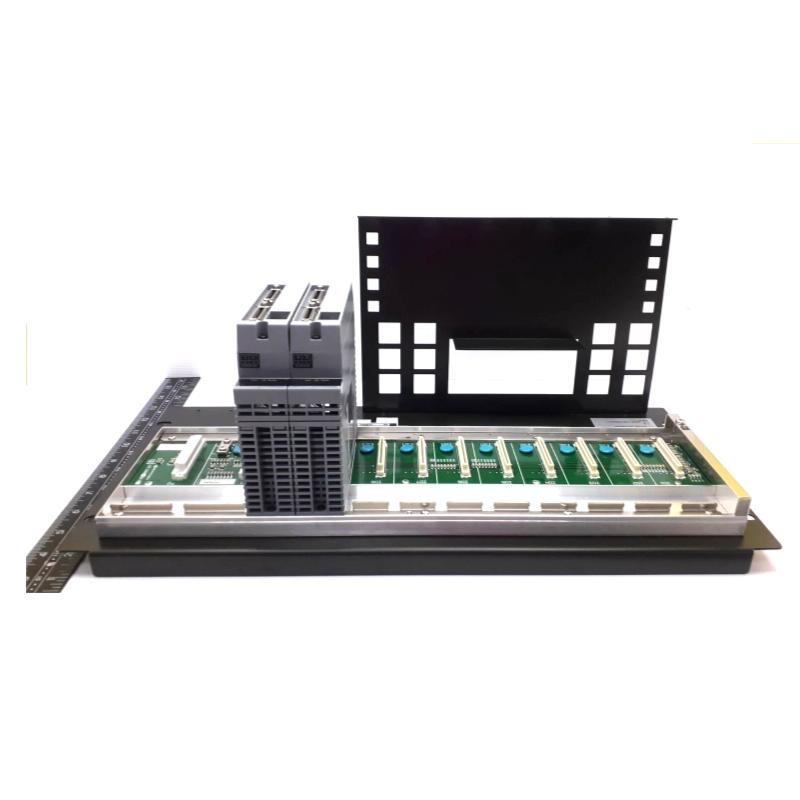

| الطراز | الوصف | Dimensions (mm) | الوزن | Interface Type |
|---|---|---|---|---|
| ANB10S | ESB Bus Node وحدة (Standard) | 130 x 130 x 32.8 | 0.26 kg | ESB |
| ANB10D | ESB Bus Node وحدة (Dual-Redundant) | 130 x 130 x 32.8 | 0.28 kg | ESB |
| ANT401 | Terminal Block for ESB Bus | 130 x 130 x 32.8 | 0.25 kg | ESB |
| ANT411 | Terminal Block with Surge Protection | 130 x 130 x 32.8 | 0.27 kg | ESB |
| ANT421 | Explosion-Proمن Terminal Block | 130 x 130 x 32.8 | 0.29 kg | ESB |
| CP471 | Processor Module for FIO | 130 x 130 x 40 | 0.45 kg | FIO |
Popular Yokogawa الطرازs
| الطراز | الوصف | Dimensions (mm) | الوزن | Application Area |
|---|---|---|---|---|
| PW402 | Power Supply Module | 130 x 130 x 40 | 0.45 kg | Power Distribution |
| ADV151-P00 | Digital Input Module | 130 x 130 x 35 | 0.26 kg | Signal Acquisition |
| AAI143-S00 | Analog Input Module (4-20mA) | 130 x 130 x 35 | 0.27 kg | Process Measurement |
| AAR181-S50 | Remote I/O Network Interface Module | 130 x 130 x 40 | 0.38 kg | Remote I/O Control |
| S2PC300 | Communication Processor | 130 x 130 x 40 | 0.42 kg | System Communication |
| PW302 | Compact Power Supply Module | 130 x 130 x 38 | 0.40 kg | Compact Power Supply |
