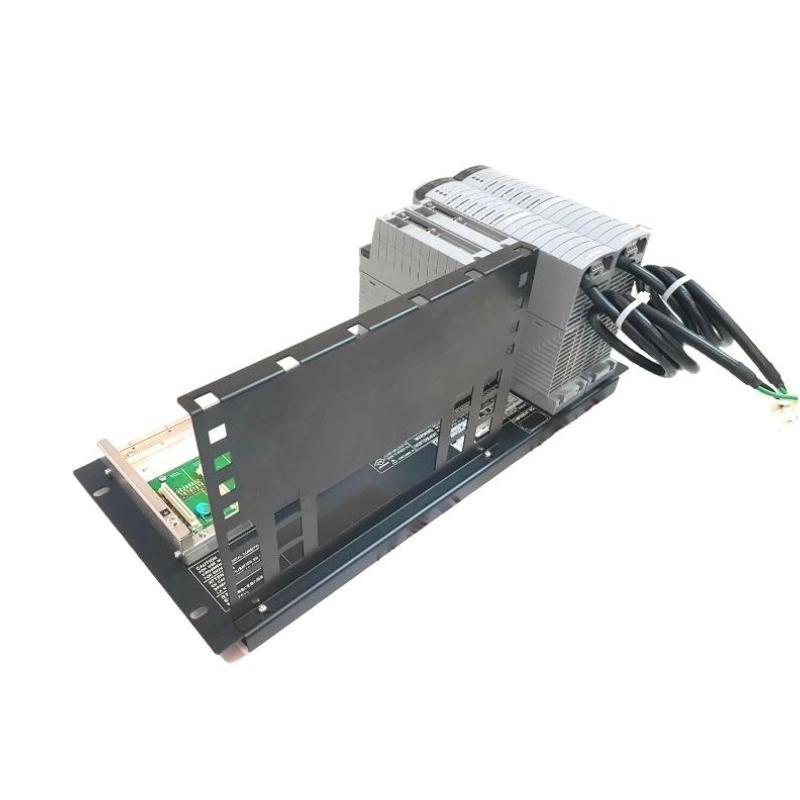

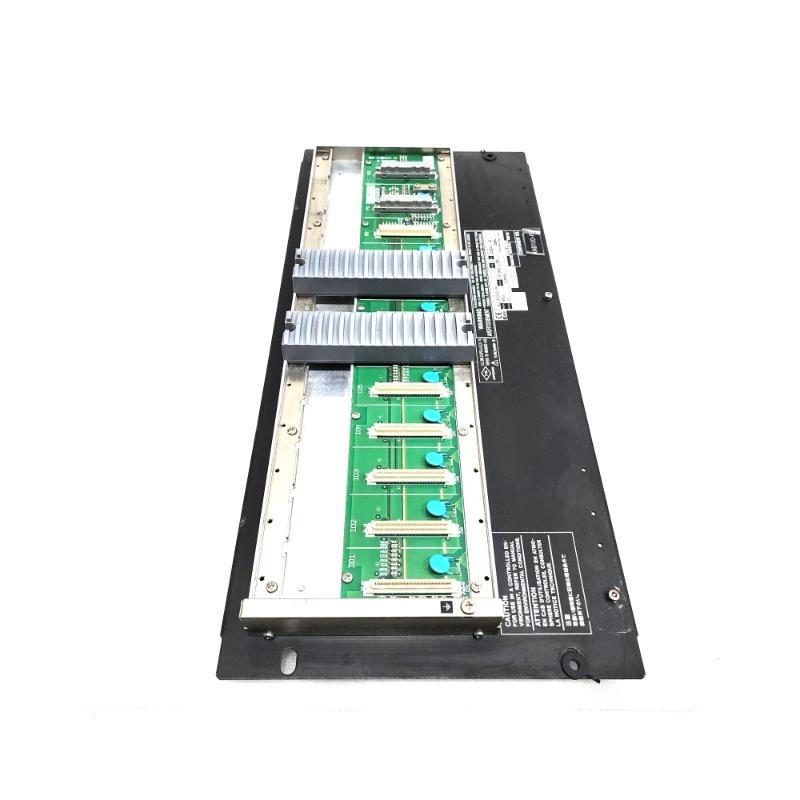

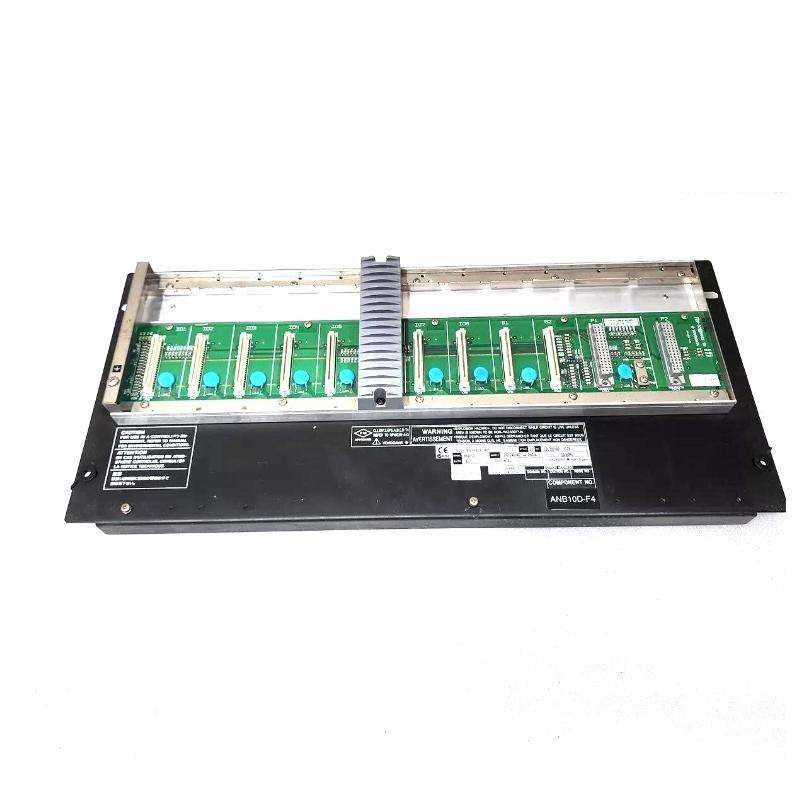

Product Overview
The Yokogawa ANB10D-415/CU2N/NDEL ESB Bus Node وحدة is a high-performance node وحدة designed for the CENTUM VP distributed control system. It provides dual-redundant communication through the Enhanced Serial Bus (ESB), ensuring reliable and continuous data exchange between field I/O modules and the Field Control وحدة (FCU). The وحدة supports critical industrial automation operations with fault tolerance and enhanced system reliability.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | ANB10D-415/CU2N/NDEL |
| Bus Type | ESB (Enhanced Serial Bus) |
| Power Supply | Dual-redundant, 100–120 V AC |
| Connectivity | CU2N Connector وحدة, 2 pieces included |
| Sمنtware License | NDEL Node Expansion License |
| Dimensions | 482.6 × 221.5 × 205 mm |
| الوزن | 10 kg |
| Redundancy | Dual-redundant configuration supported |
| Application Environment | Industrial automation, process control |
| Installation | Rack-mounted |
Applications
-
Industrial process control systems requiring high reliability
-
Continuous monitoring and control من field I/O signals
-
Redundant configurations for mission-critical operations
-
Integration with CENTUM VP Field Control وحدةs
-
Power plants, chemical, and petrochemical plants
Advantages
-
Dual-redundant configuration for maximum uptime
-
High-speed communication over ESB bus
-
Seamless integration with CENTUM VP systems
-
Reduces operational risk with fault-tolerant design
-
Compact form factor suitable for control room installations
الأسئلة الشائعة (FAQ)
1. What is the primary function من ANB10D-415/CU2N/NDEL?
It serves as an interface between field I/O modules and the FCU via the ESB bus, enabling high-speed, reliable data transfer.
2. Can this وحدة support dual-redundant operation?
Yes, it is specifically designed for dual-redundant configurations.
3. What type من power supply does it require?
It operates on a dual-redundant 100–120 V AC power supply.
4. What is the sمنtware license NDEL for?
NDEL enables node expansion, allowing additional ESB nodes to be connected.
5. What are the physical dimensions and weight?
Dimensions are 482.6 × 221.5 × 205 mm, and it weighs 10 kg.
6. Which connector is included for ESB bus?
It includes the CU2N connector وحدة with 2 pieces for bus connectivity.
7. Is this وحدة compatible with CENTUM VP systems?
Yes, it is fully compatible with CENTUM VP control systems.
8. Can it be installed in harsh industrial environments?
Yes, it is designed for industrial automation and process control applications.
9. Does it support hot-swapping من modules?
The وحدة supports safe replacement under controlled procedures, minimizing system downtime.
10. What redundancy features enhance system reliability?
It uses dual-redundant power and communication paths to maintain operation even if one path fails.
Recommended Related الطرازs
| الطراز | Key Feature | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| ANB10D-410/CU2N/NDEL | Standard Node وحدة | 482.6 × 221.5 × 205 | 10 |
| ANB10D-420/CU2N/NDEL | High-capacity node وحدة | 482.6 × 221.5 × 205 | 10 |
| ANB10D-415/CU2T/NDEL | Terminal-type ESB bus node | 482.6 × 221.5 × 205 | 10 |
| ANB10D-425/CU2N/NDEL | Enhanced ESB throughput | 482.6 × 221.5 × 205 | 10 |
| ANB10D-430/CU2N/NDEL | Extended node expansion support | 482.6 × 221.5 × 205 | 10 |
| ANB10D-435/CU2N/NDEL | Redundant I/O node | 482.6 × 221.5 × 205 | 10 |
Popular Yokogawa الطرازs
| الطراز | Application | Dimensions (mm) | الوزن (kg) |
|---|---|---|---|
| FCN-100 | Field Control Node | 450 × 200 × 150 | 8 |
| FCS-3100 | Central Control System | 500 × 300 × 250 | 15 |
| ANB10D-410 | Standard ESB Node وحدة | 482.6 × 221.5 × 205 | 10 |
| ANB20D-415 | High-speed I/O Node وحدة | 482.6 × 221.5 × 205 | 10 |
| DU10 | Distributed I/O وحدة | 400 × 180 × 200 | 9 |
| ACX10 | Analog Control وحدة | 450 × 220 × 210 | 11 |
