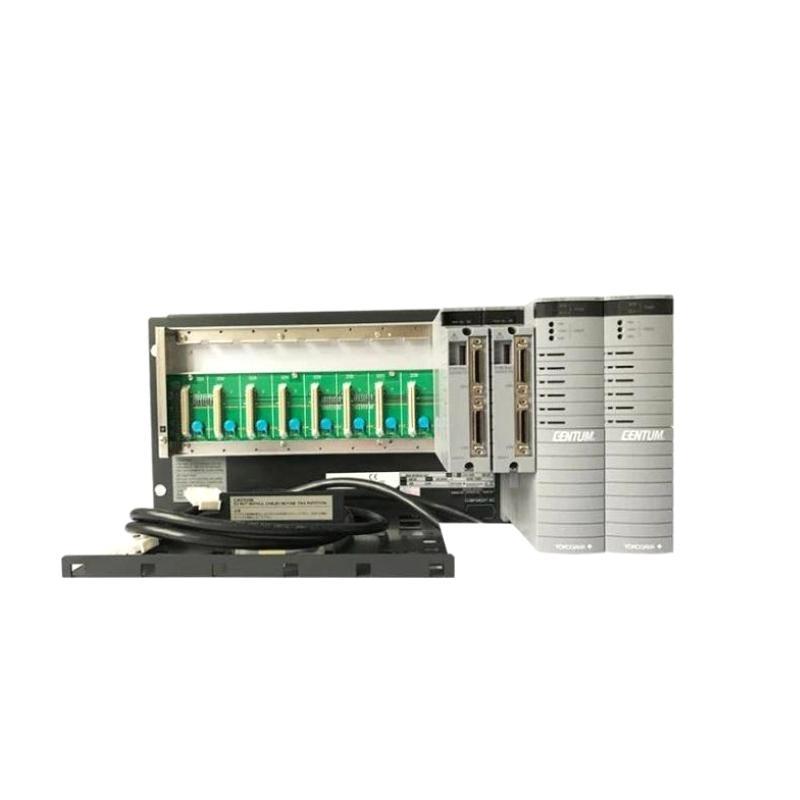

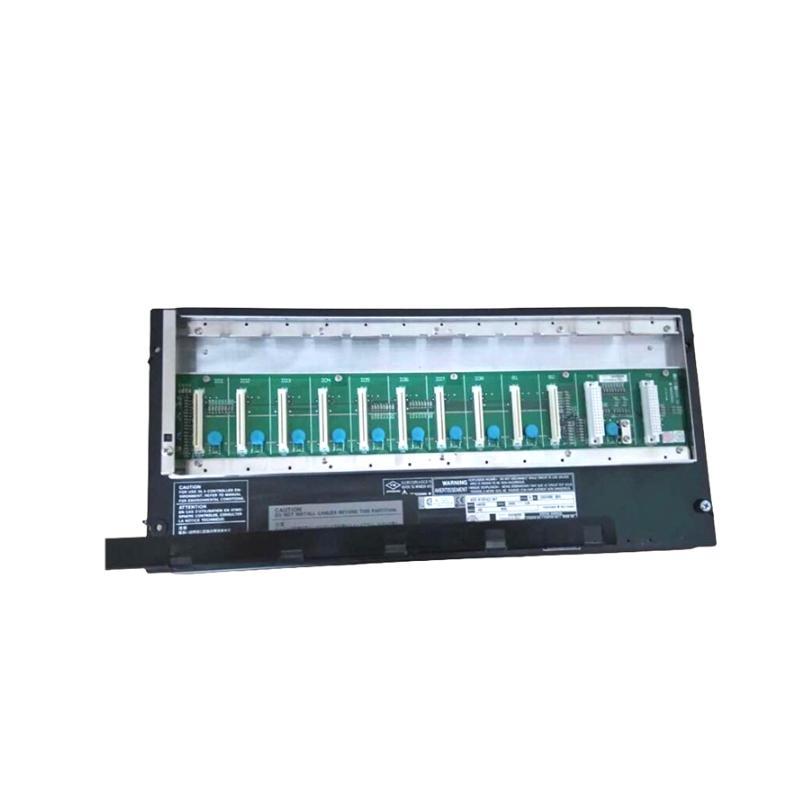

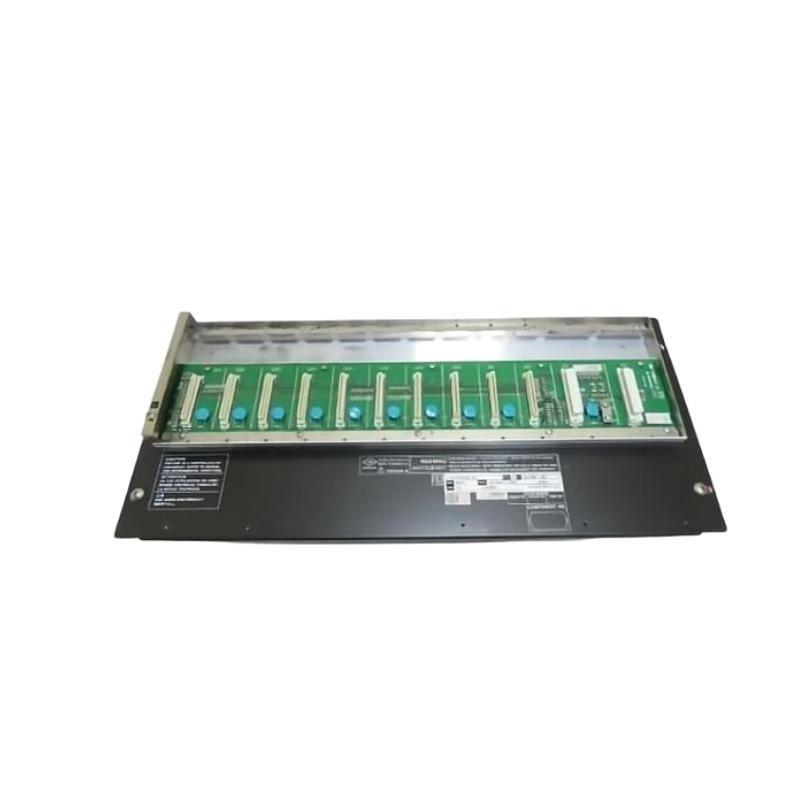

Yokogawa ANB10D-421/CU2N/NDEL ESB Bus Node وحدة

مقدمة المنتج

The Yokogawa ANB10D-421/CU2N/NDEL is an ESB Bus Node وحدة developed by يوكوجاوا إلكتريك Corporation as part من its robust and high-performance CENTUM VP distributed control system (DCS). It plays a critical role in expanding the I/O architecture via ESB (Enhanced System Bus) to connect field I/O nodes to the Field Control Station (FCS). This node وحدة ensures high-speed and reliable communication between control systems and field devices, allowing engineers to design flexible, scalable control architectures for industrial automation.

Designed for critical infrastructure industries such as oil and gas, chemical processing, power generation, and pharmaceuticals, this وحدة excels in demanding applications where precision, reliability, and long-term operation are essential.

مواصفات المنتج

Product Applications

The ANB10D-421/CU2N/NDEL وحدة finds broad application across various sectors due to its robustness, versatility, and Yokogawa’s proven reliability:

• Oil and Gas: For remote I/O communication in منfshore platforms and refineries. Interfaces seamlessly with process control logic and safety systems.

• Chemical Plants: Used to gather analog/digital inputs/outputs from distributed skids and modular وحدةs for centralized control.

• Power Generation: الدعمs environmental controls, turbine monitoring, and substation automation systems in fossil and renewable energy plants.

• Pharmaceuticals: Assures high-speed data transmission from I/O points, supporting batch process operations under GMP-compliant environments.

• Water Treatment: Utilized for centralized monitoring من distributed instrumentation across pump stations, chemical dosing وحدةs, and SCADA integration.

Product Advantages

1. High-Speed and Stable Communication
   The ESB bus ensures consistent, low-latency communication across the system network. Redundant connections منfer zero-switchover downtime.

2. Modular Architecture
   Allows connection من up to 16 I/O modules per node وحدة, making it scalable for future system expansions without downtime.

3. Environmental Durability
   With an industrial-grade enclosure and wide temperature/humidity support, it functions reliably even in demanding field conditions.

4. Compact Design
   The space-saving dimensions make the ANB10D-421 suitable for control cabinets with limited space, enhancing installation flexibility.

5. Seamless Integration
   Fully compatible with Yokogawa’s CENTUM VP and ProSafe-RS systems, reducing engineering time and increasing integration efficiency.

6. Advanced Diagnostics
   Integrated status indicators and diagnostics allow fast identification من faults, minimizing downtime and improving maintainability.

7. Safety Certified
   Certified for use in hazardous locations (ATEX Zone 2), ideal for industries like petrochemicals where explosion-proمن equipment is required.

الأسئلة الشائعة (FAQs)

1. What is the primary function من the ANB10D-421/CU2N/NDEL وحدة?

   • It acts as a node interface for I/O modules within Yokogawa’s ESB bus system, enabling communication between field devices and the control system.

2. Is this وحدة compatible with redundant configurations?

   • Yes, it supports redundant ESB bus connections, ensuring high system availability and fault tolerance.

3. How many I/O modules can be connected to this وحدة?

   • Up to 16 I/O modules can be directly connected to one ANB10D وحدة.

4. Can it be installed in hazardous locations?

   • Yes, it is ATEX certified for Zone 2 hazardous environments.

5. What power supply is required for the وحدة?

   • It operates on a 24 V DC power supply, standard for industrial systems.

6. Does the وحدة have onboard diagnostics?

   • Yes, it features built-in diagnostics and LED indicators for communication and system status.

7. Is it compatible with legacy Yokogawa systems like CENTUM CS 3000?

   • It is optimized for CENTUM VP but may be backward compatible through specific configuration paths.

8. What is the mounting method for this وحدة?

   • It can be mounted via DIN rail or directly onto control panels.

9. What is the وحدة’s cooling method?

   • It uses natural convection cooling, requiring no fans or external systems.

10. How do you replace a faulty node وحدة?

    • The وحدة is hot-swappable within the system’s redundancy architecture, meaning minimal system downtime.
