Product Overview

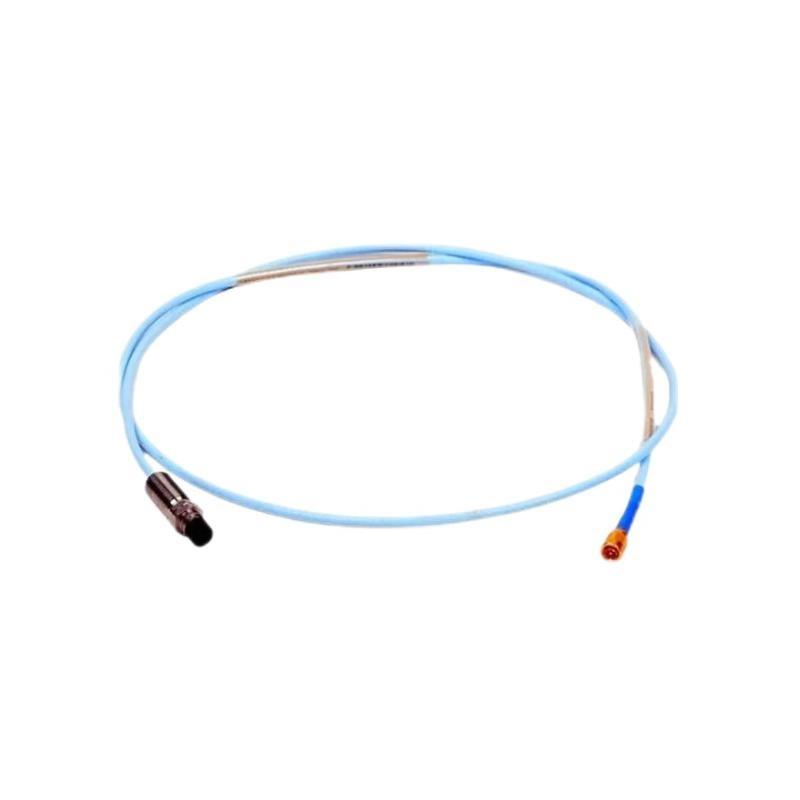

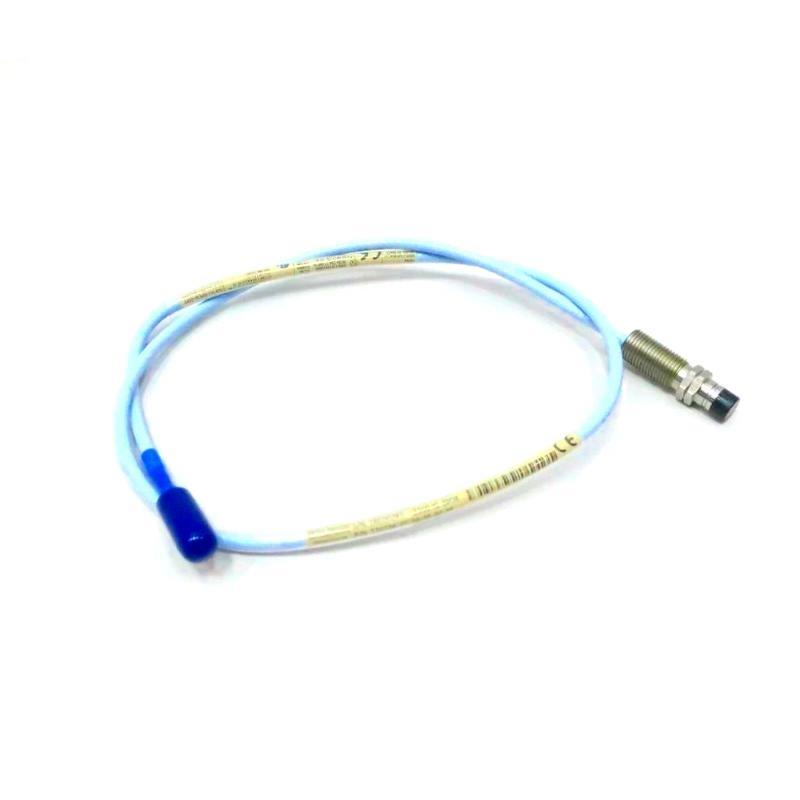

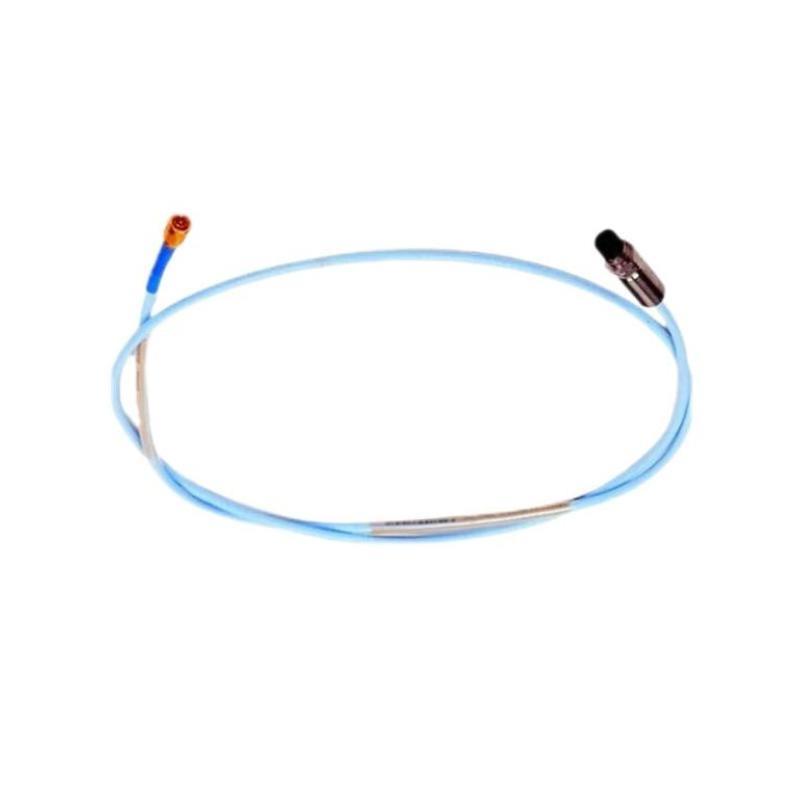

The Bently Nevada 330106-05-30-50-02-05 3300 XL 8 mm Reverse Mount Probe is a highly reliable eddy current proximity probe designed for machinery vibration and position monitoring. Specifically engineered for reverse mounting applications, it provides precise shaft displacement measurements in demanding environments.
Key Features
-
Reverse mount design for flexible installation
-
Accurate shaft vibration and position measurement
-
Compatible with Bently Nevada 3300 XL systems
-
Stable performance across wide temperature ranges
-
Resistant to oil, dust, and industrial contaminants
-
Long service life with rugged construction
-
Ensures reliable data for predictive maintenance
Technical Specifications
| Item | Specification |
|---|---|
| الشركة المصنعة | Bently Nevada |
| رقم القطعة | 330106-05-30-50-02-05 |
| Product Type | 3300 XL 8 mm Reverse Mount Probe |
| Dimensions | Total Length: 5.0 meters |
| الوزن | 1.62 kg |
| Linear Range | 2 mm (80 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Reverse mount installation |
| Applications | Shaft vibration, axial position, thrust, and condition monitoring |
Industry Applications
-
Steam and gas turbines
-
Compressors and expanders
-
Industrial pumps and fans
-
Electric motors and generators
-
Gearboxes and rotating machinery
-
Oil, gas, and petrochemical industries
الأسئلة الشائعة (FAQ)
Q1: What is the function من the 330106-05-30-50-02-05 probe?
It measures shaft vibration and position in reverse mount applications.
Q2: What monitoring systems is it compatible with?
It is fully compatible with Bently Nevada 3300 XL series systems.
Q3: What is the typical sensitivity من this probe?
7.87 V/mm (200 mV/mil).
Q4: Can this probe operate in high-temperature environments?
Yes, it supports operation up to +177 °C.
Q5: What industries commonly use this probe?
Turbines, compressors, pumps, motors, and other critical rotating machinery.
Q6: How long is the probe cable?
It comes with a standard 5-meter cable.
Q7: Is it resistant to industrial contaminants?
Yes, it is resistant to oil, dust, and moisture.
Q8: Can it be used for both vibration and position measurements?
Yes, it supports shaft vibration, thrust, and position monitoring.
