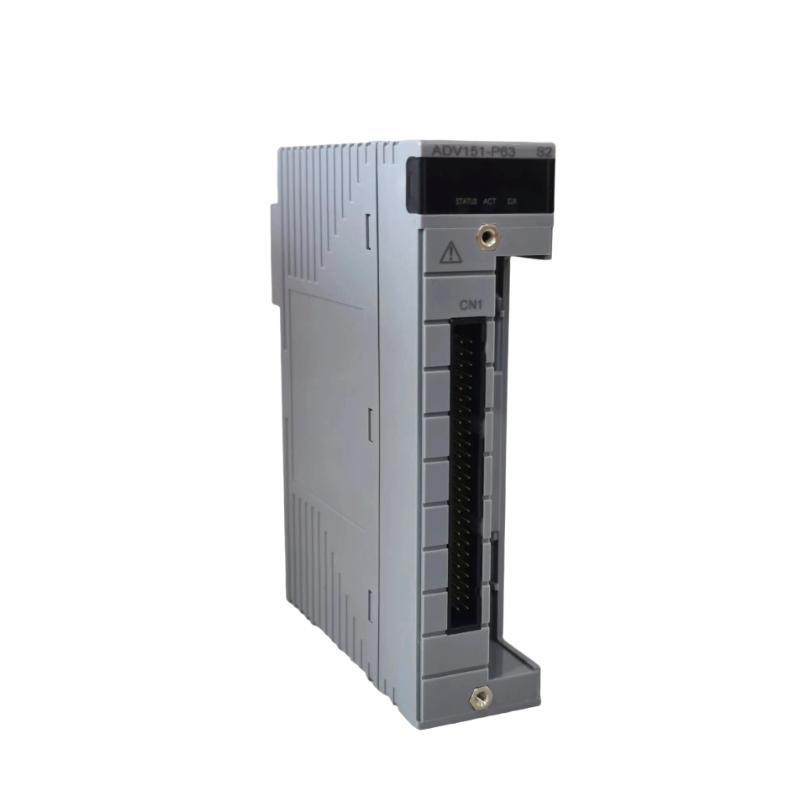

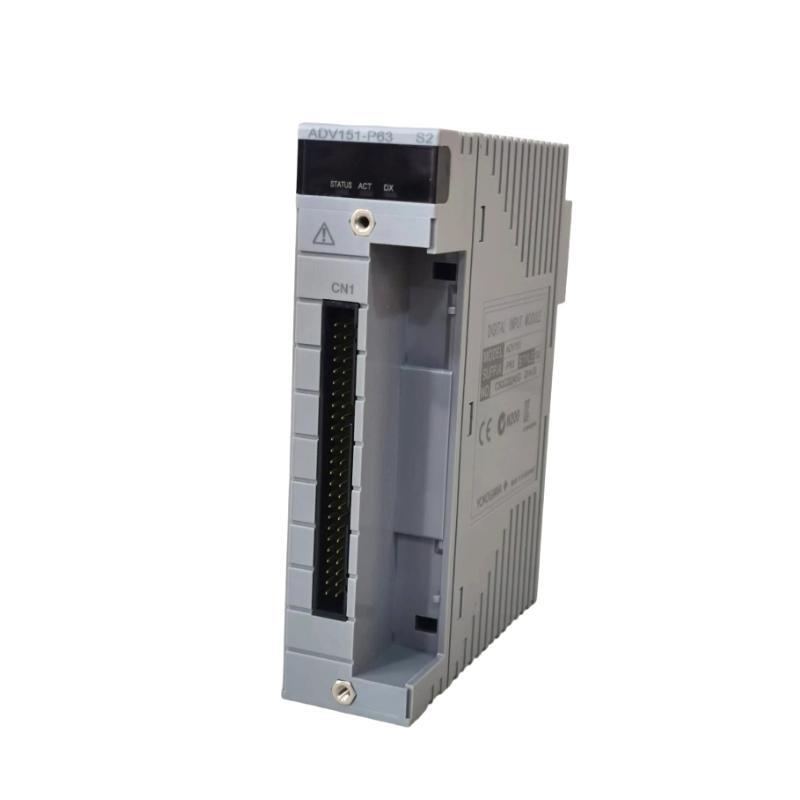

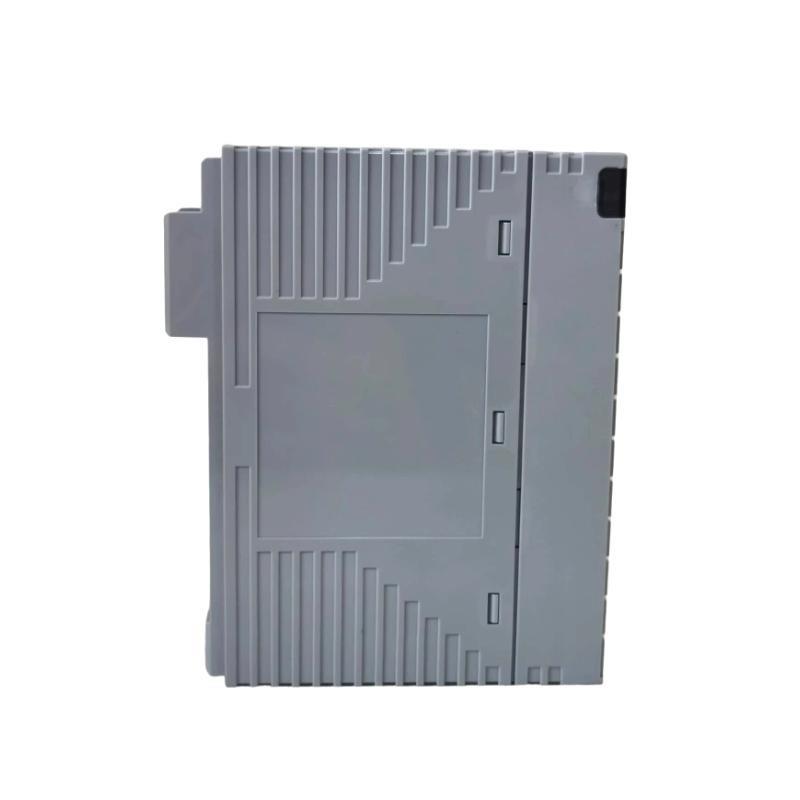

Yokogawa ADV151-P63/D5A00 Digital Input Module

مقدمة المنتج

The Yokogawa ADV151-P63/D5A00 Digital Input Module is a critical component من Yokogawa’s CENTUM series distributed control system (DCS). It provides reliable, high-speed digital input signal processing designed to interface with a wide range من field devices and switches. This module is engineered to capture discrete on/منf signals from field equipment and convert them into digital data for system processing, ensuring precise monitoring and control من plant operations.

The ADV151-P63/D5A00 is optimized for use in demanding industrial environments, منfering robust noise immوحدةy and stable performance. Its modular design facilitates easy installation and integration within Yokogawa’s larger control system architecture, supporting effective plant-wide data acquisition and automation.

Product Parameters

Product Applications

The ADV151-P63/D5A00 Digital Input Module is widely employed in various industrial automation and control scenarios, including:

• Process Control Systems: Capturing status signals from pumps, valves, motors, and switches.

• Alarm Monitoring: Detecting alarm conditions via discrete contact closures.

• Interlock Systems: Enabling safety interlock logic by monitoring discrete inputs.

• Batch Control Operations: Reading start/stop commands and status inputs for batch sequencing.

• Utility and Plant Equipment Monitoring: Monitoring equipment status such as compressors and boilers.

• Integration with DCS: Seamless incorporation into Yokogawa CENTUM systems for plant-wide data acquisition.

Product Advantages

• High Channel Density: الدعمs up to 32 digital inputs per module, maximizing rack utilization.

• Fast Response Time: Ensures timely capture and processing من discrete signals with ≤10 ms response.

• Robust Isolation: Provides electrical isolation to prevent interference between channels and system faults.

• Wide Input Voltage Range: Compatible with common industrial DC voltages, increasing field flexibility.

• Modular Design: Enables easy installation and maintenance within the CENTUM rack system.

• Reliable Operation: Built to operate in harsh industrial conditions with wide temperature and humidity tolerances.

• Seamless Integration: Communicates efficiently with CENTUM control systems via dedicated communication buses.

FAQ

1. What types من signals does the ADV151-P63/D5A00 module accept?
   The module accepts discrete digital ON/OFF signals typically from switches, contacts, or relay outputs.

2. How many input channels are available on the module?
   The module provides 32 discrete input channels.

3. What is the nominal input voltage range supported?
   The module supports 24 V DC nominal input voltage but can operate within 12 to 30 V DC.

4. Is the module isolated from other components?
   Yes, each channel is isolated from others and from the system to prevent noise and fault propagation.

5. What is the typical response time for input signals?
   The response time is less than or equal to 10 milliseconds.

6. Can the module operate in high-humidity or harsh environments?
   Yes, it is designed for 5% to 95% relative humidity, non-condensing, and operates in temperatures from 0°C to 55°C.

7. How does the module communicate with the CENTUM system?
   It interfaces via Yokogawa’s dedicated communication bus protocol for seamless data transmission.

8. What kind من maintenance is required for the module?
   The modular design requires minimal maintenance, primarily periodic inspection and cleaning.

9. Is the module compatible with other Yokogawa DCS products?
   Yes, it is fully compatible with the CENTUM series and integrates into the system seamlessly.

10. What happens if an input channel fails or malfunctions?
    The module supports diagnostic functions to detect channel failures and reports status to the DCS for timely intervention.
