Product Overview

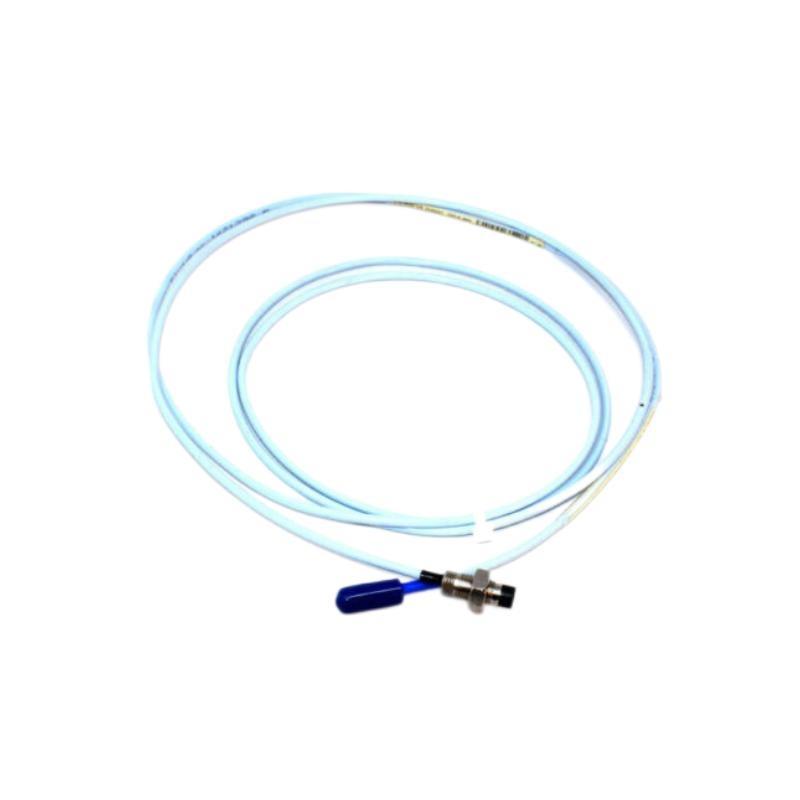

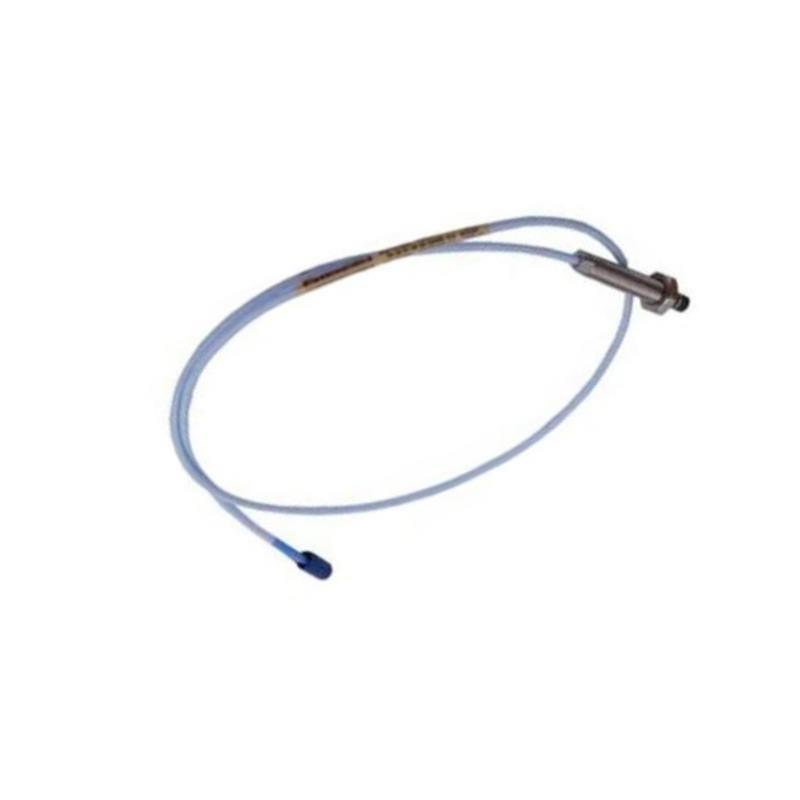

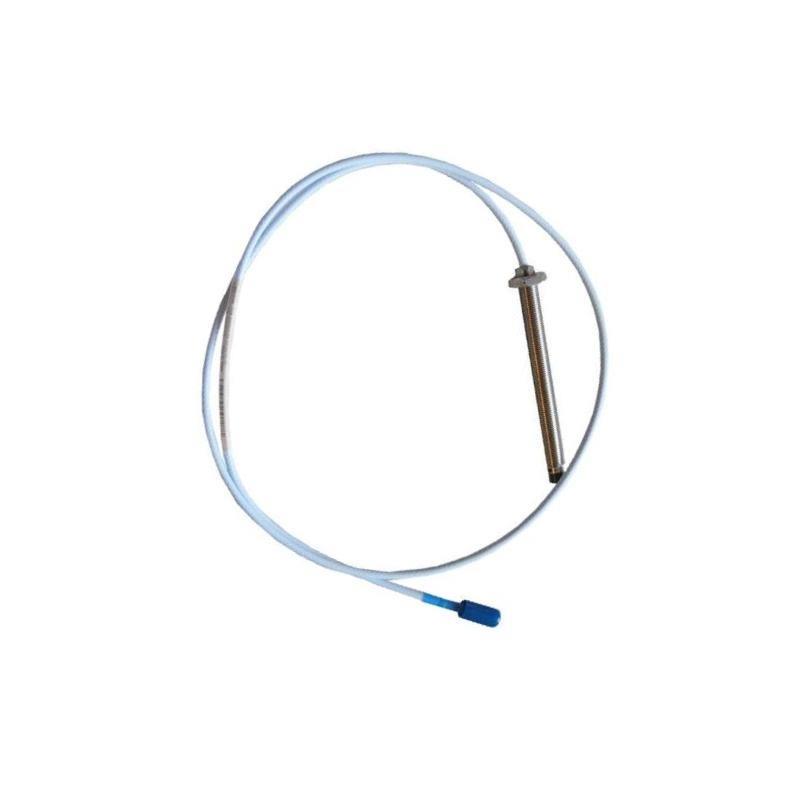

The Bently Nevada 330103-00-10-10-01-05 is an 8 mm non-contact proximity probe from the rugged 3300 XL series, engineered to provide precise shaft vibration and displacement monitoring. This model stands out for its 10 meter integral low‑noise cable and a straight connector, making it ideal for installations requiring extended cable runs with a direct connection. Built in stainless steel and sealed to IP68 standards, it is designed to withstand harsh industrial conditions.
Key Features
-
8 mm probe tip for accurate, repeatable measurements
-
10 m integrated triaxial, shielded cable
-
Straight connector for direct installations
-
5/8‑18 UNF threaded body for secure mounting
-
Stainless steel housing resists corrosion and wear
-
IP68 rating protects against moisture, dust, and oil
-
Withstands high shock (5,000 g) and vibration (50 g)
-
Factory calibration, plug-and-play compatibility with 3300 XL systems
-
Suitable for extreme temperature environments
-
Compliant with API 670 and CE standards
Technical Specifications
| Specification | Details |
|---|---|
| الطراز Number | 330103-00-10-10-01-05 |
| Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Mounting Thread | 5/8‑18 UNF‑2A |
| Sensing Range | 2 mm (80 mils) |
| Linear Range | 0.25–2.0 mm (10–80 mils) |
| Connector Orientation | Straight |
| Cable Length | 10 meters (integral) |
| Cable Type | Triaxial coaxial low-noise |
| Probe Material | AISI 304 stainless steel |
| Operating Temp | –35 °C to +177 °C (–31 °F to +351 °F) |
| Storage Temp | –51 °C to +177 °C (–60 °F to +351 °F) |
| Environmental Rating | IP68 (properly installed) |
| Vibration Rating | 50 g peak, 10–2,000 Hz |
| Shock Rating | 5,000 g, 1 ms half-sine pulse |
| Insulation Resistance | >10⁹ Ω at 500 VDC |
| Accuracy | ±0.07 mm (±2.8 mils) typical |
| Dimensions | Total Length : 1.0 meter |
| الوزن | 0.323 kg |
| Compliance | API 670, CE |
Industry Applications
Widely used across industries where remote or hard-to-access installations demand long cable lengths:
-
Power generation (steam/gas turbine monitoring)
-
Oil & gas flow compressors and high-speed pumps
-
Petrochemical mixers and agitators
-
Mining crushers and drive shafts
-
Marine propulsion systems
-
HVAC fans and blower shafts
-
Pulp & paper rollers
-
Water pumping systems
Product Advantages
-
10 m cable منfers installation flexibility and reach
-
Durable stainless steel body resists harsh environments
-
IP68 rating ensures operation in wet or oily conditions
-
Non-contact sensing eliminates wear and maintenance
-
Straight connector simplifies vertical or direct cable routing
-
Factory calibration ensures accurate readings from day one
-
High shock/vibration tolerance suits extreme-duty equipment
-
Compatible with full ecosystem من 3300 XL modules
-
Meets stringent API 670 safety and performance standards
-
Offers reliable data transmission over long cable runs
الأسئلة الشائعة (FAQ)
-
What is the cable length من this probe?
It comes with a 10 meter integrated cable. -
What is the mounting thread size?
5/8‑18 UNF‑2A thread. -
Is the connector straight or angled?
It uses a straight connector. -
Can this probe handle outdoor and wet environments?
Yes, it’s IP68 rated when properly installed. -
What industries commonly use this probe?
Power generation, petrochemical, mining, marine, and more. -
Does the probe require field calibration?
No, it comes factory calibrated. -
What is the operating temperature range?
–35 °C to +177 °C (–31 °F to +351 °F). -
What is the maximum vibration rating?
Up to 50 g at 10–2,000 Hz. -
Is the probe compatible with extension cables?
No; it already includes an integrated 10 m cable, negating the need for extensions. -
What accuracy does this model منfer?
±0.07 mm (±2.8 mils) typical.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330103-00-05-10-01-05 | 5 m cable, straight connector |
| 330103-00-06-10-01-05 | 6 m cable, straight connector |
| 330103-00-08-10-01-05 | 8 m cable, straight connector |
| 330103-00-10-10-12-05 | 10 m cable with 90° angled connector |
| 330104-00-10-10-02 | 10 m XL extension cable (for modular probe systems) |
| 330180-91-05 | 8 mm Proximitor sensor module (probe-ready hardware) |
