Product Overview

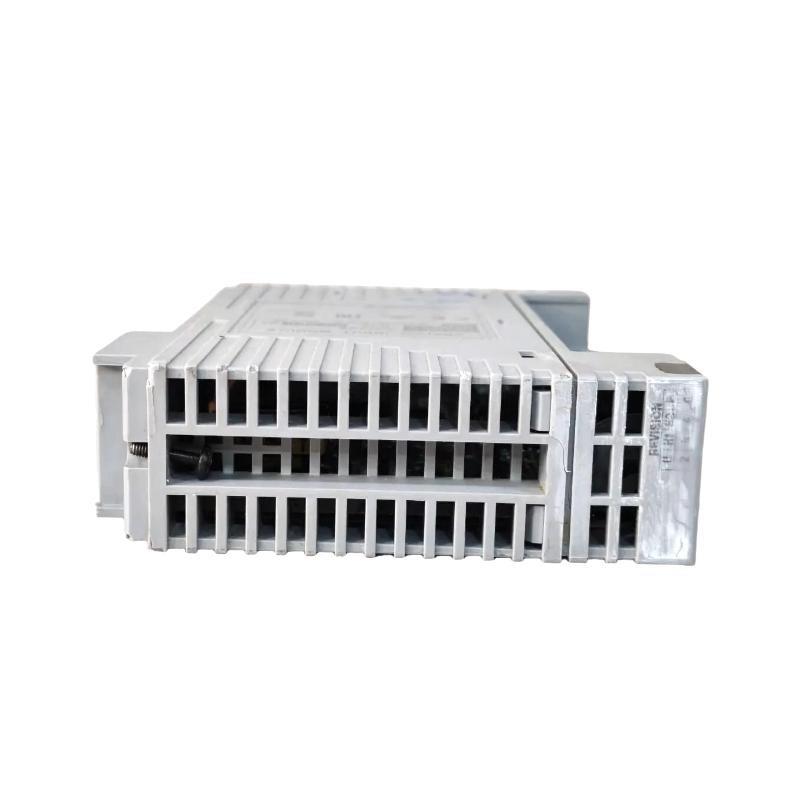

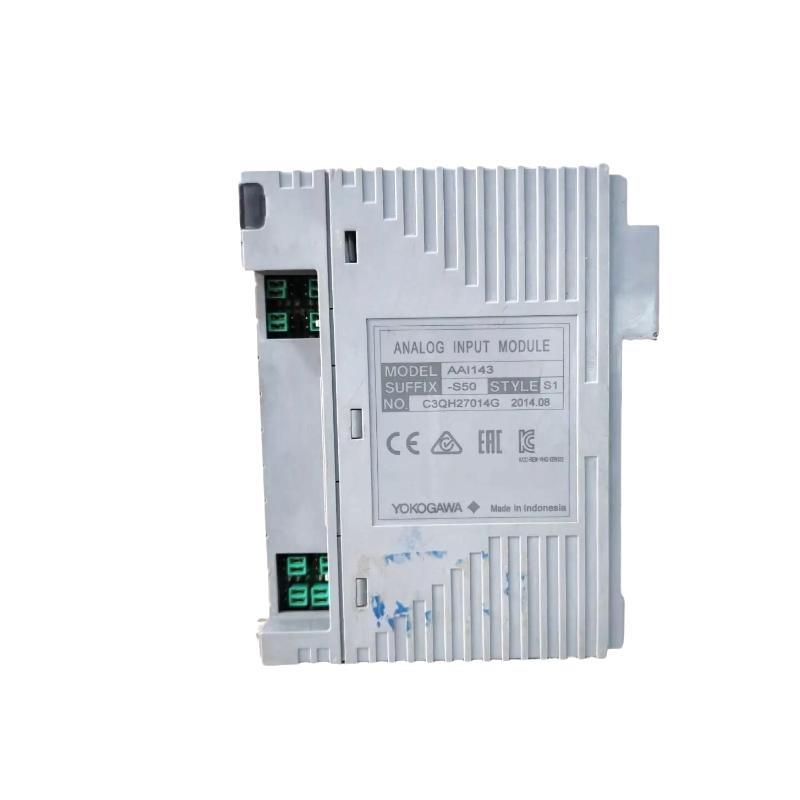

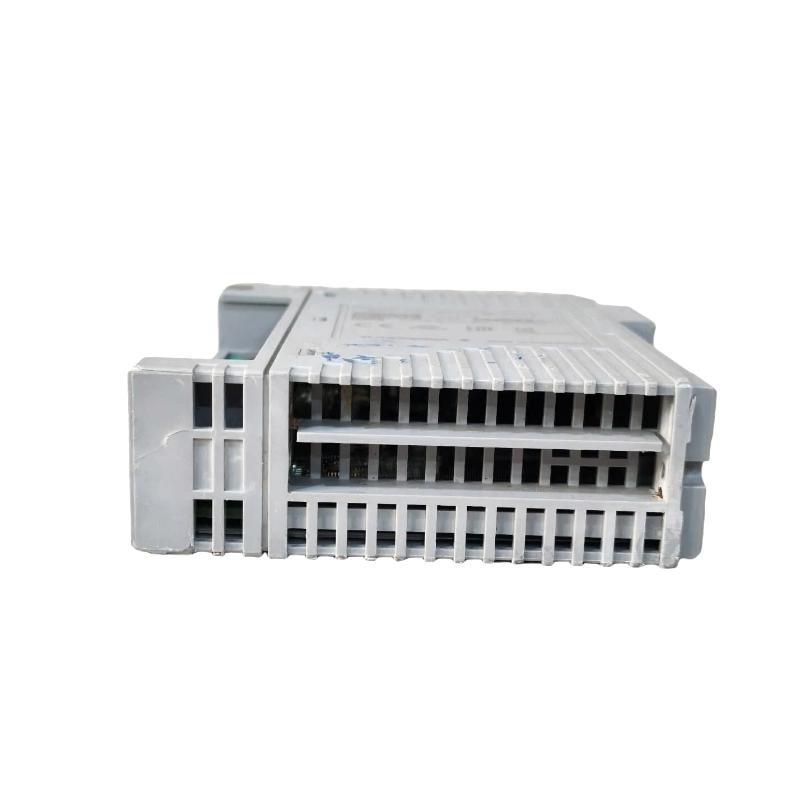

The Yokogawa AAI143-S50/A4S00 is a 16-channel, isolated analog input module designed for high-precision signal acquisition in industrial automation systems. It accepts 4–20 mA signals, provides HART communication capability, and features high noise immوحدةy and channel isolation, making it ideal for critical process monitoring.
Applications
-
Process automation in oil & gas, chemical, and power industries
-
SCADA systems
-
Distributed control systems (DCS)
-
Intrinsically safe areas (with isolation barriers)
-
Redundant control environments
Product Advantages
-
16 fully isolated input channels
-
الدعمs HART communication
-
Fast 10 ms data update rate
-
High input accuracy (±16 µA)
-
Channel-wise 2-wire/4-wire configuration
-
Strong surge resistance with surge-absorbing terminal block
-
Dual-redundant compatibility for reliability
-
Compact form factor suitable for dense installations
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز | AAI143-S50/A4S00 |
| Number من Channels | 16 isolated input channels |
| Input Signal Range | 4 to 20 mA DC |
| Allowable Input Current | Up to 24 mA |
| Input Resistance (Power ON) | 270–350 Ω (depends on input current) |
| Input Resistance (Power OFF) | ≥ 500 kΩ |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 19.0 V min @ 20 mA / 25.5 V max @ 0 mA |
| Overvoltage Withstand | 1500 V AC (1 min) |
| Power Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| HART Communication | الدعمed |
| External Connection | Pressure clamp terminal (A4S00) |
| Operating Temperature | -20°C to +70°C |
| Dimensions (H × W × D) | 130 × 32.8 × 107.5 mm |
| الوزن | 0.3 kg |
FAQ
Q1: What type من signals does the AAI143 module accept?
A1: It accepts 4 to 20 mA DC current signals.
Q2: Is each input channel isolated?
A2: Yes, all 16 channels are electrically isolated.
Q3: Can the module be used in redundant systems?
A3: Yes, it supports dual-redundant configurations.
Q4: Does it support HART communication?
A4: Yes, it supports HART protocol for compatible devices.
Q5: What is the accuracy من the input measurements?
A5: It منfers ±16 µA accuracy.
Q6: What is the input resistance when powered on?
A6: It ranges from 270 Ω to 350 Ω, depending on the current.
Q7: What type من terminal block does /A4S00 represent?
A7: It refers to a pressure clamp terminal block.
Q8: What kind من isolation voltage does the module withstand?
A8: 1500 V AC between system and input for one minute.
Q9: Can this module power 2-wire transmitters?
A9: Yes, it provides 19–25.5 V for 2-wire transmitters.
Q10: Is a Zener barrier allowed for intrinsic safety?
A10: No, use an isolation barrier instead من a Zener barrier.
Related الطرازs (Same Series)
| الطراز | Type | Channels | Signal Type | Isolation | الوزن |
|---|---|---|---|---|---|
| AAI141 | Analog Input | 16 | 4–20 mA | No | 0.2 kg |
| AAB141 | Analog Input | 16 | 1–5 V / 4–20 mA | No | 0.3 kg |
| AAI841 | Analog I/O | 8/8 | 4–20 mA | No | 0.3 kg |
| AAI543 | Analog Output | 16 | 4–20 mA | Yes | 0.4 kg |
| AAV144 | Analog Input | 16 | -10 to +10 V | Yes | 0.2 kg |
| AAI135 | Analog Input (Isolated Channels) | 8 | 4–20 mA | Yes | 0.3 kg |
Popular Yokogawa الطرازs
| الطراز | Function | Channels | Signal Type | Isolation | الوزن |
|---|---|---|---|---|---|
| AAI143 | Analog Input | 16 | 4–20 mA | Yes | 0.3 kg |
| AAI543 | Analog Output | 16 | 4–20 mA | Yes | 0.4 kg |
| AAI141 | Analog Input | 16 | 4–20 mA | No | 0.2 kg |
| AAI841 | Analog I/O | 8/8 | 4–20 mA | No | 0.3 kg |
| AAV144 | Analog Input | 16 | -10 to +10 V | Yes | 0.2 kg |
| AAT141 | TC/mV Input | 16 | TC/mV | Yes | 0.2 kg |
