مقدمة المنتج

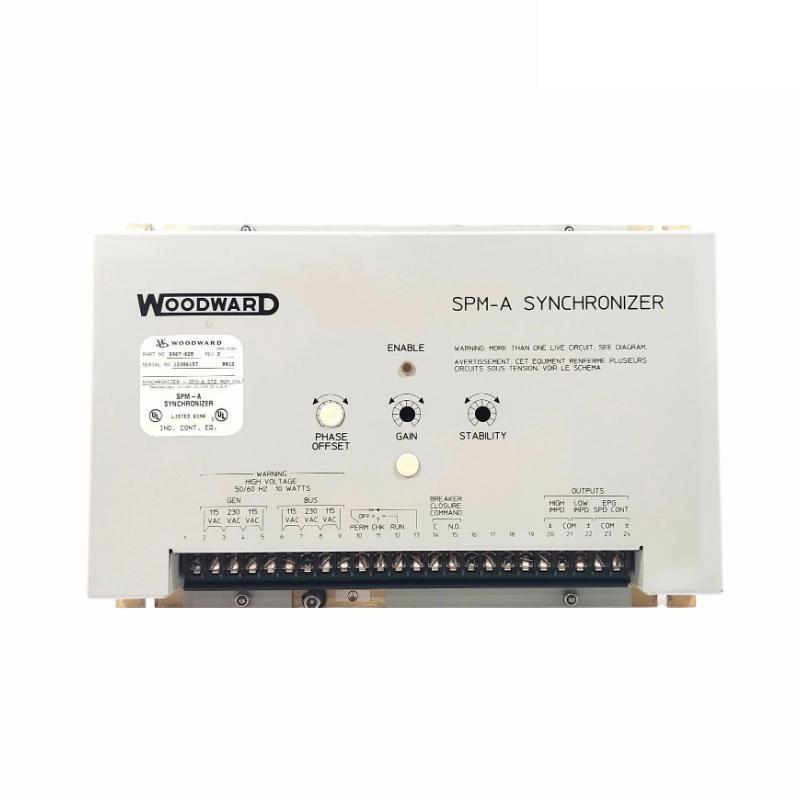

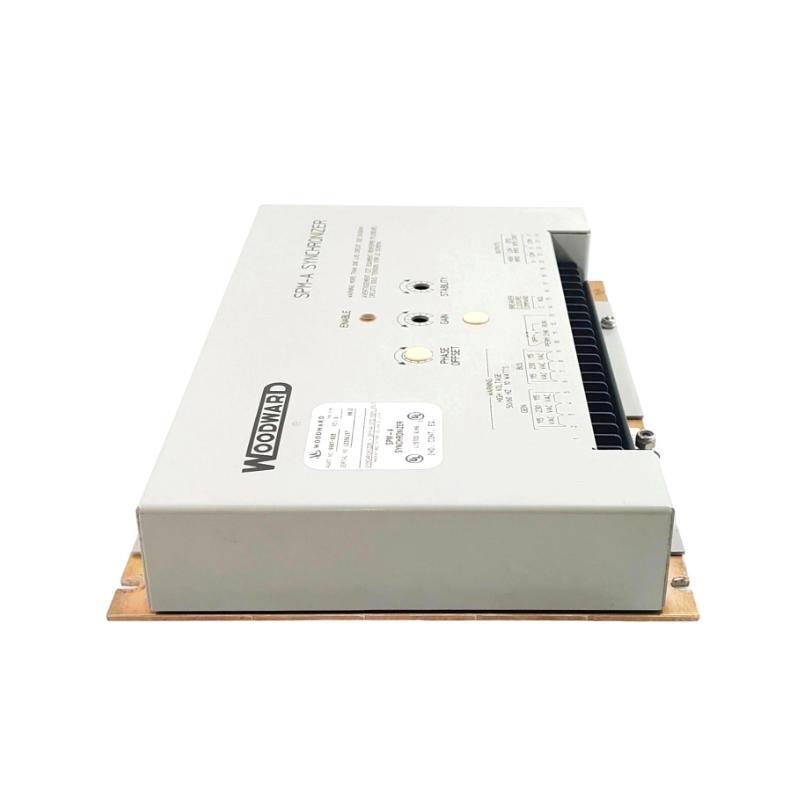

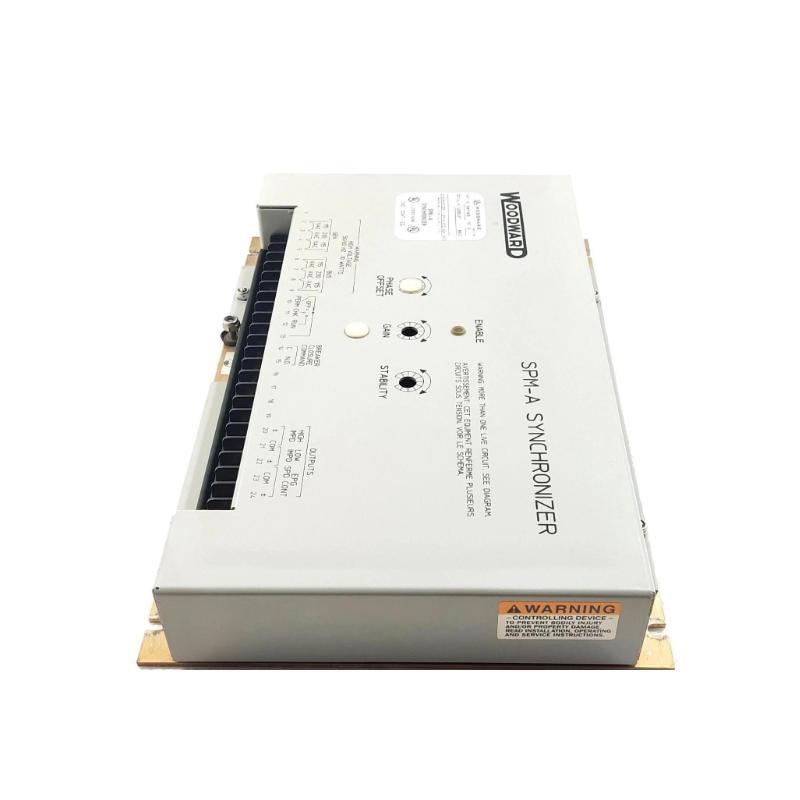

The وودوارد 9907-028 SPM-A Synchronizer Module is a precision synchronization device designed to automate the synchronization من generator sets and parallel power sources. The module ensures smooth, safe, and accurate synchronization between a power source and a bus or between multiple sources operating in parallel. Engineered for use in industrial power systems, utility grids, and critical infrastructure, the SPM-A module provides reliable control and monitoring functions to optimize system stability.
With its user-friendly interface and rugged design, the 9907-028 SPM-A is well-suited for integration into وودوارد’s generator control systems or as a standalone synchronizer in various industrial applications. Its compact size and flexible configuration options allow it to be easily retrمنitted or incorporated into new installations.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| Product Name | وودوارد 9907-028 SPM-A Synchronizer Module |
| الطراز Number | 9907-028 |
| Function | Automatic generator synchronization and paralleling |
| Voltage Input Range | 80–300 V AC (line-to-line) |
| Frequency Range | 45–65 Hz |
| Control Output | Relay contacts for breaker control |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Relative Humidity | Up to 95%, non-condensing |
| Mounting | Panel mounting with standard cutout |
| Dimensions (W x H x D) | 171 × 292 × 57 mm |
| الوزن | 1.71 kg |
| Power Supply | 24 V DC or 115/230 V AC (selectable) |
| Certifications | CE, UL, CSA |
Product Applications
The وودوارد 9907-028 SPM-A Synchronizer Module is extensively used in industries and applications requiring precise and reliable synchronization من power sources:
-
Power Generation Plants: Synchronizing generators to the main grid or busbars
-
Industrial Facilities: Managing parallel operation من backup and prime power systems
-
Marine Power Systems: Synchronization من shipboard generators and shore power connections
-
Renewable Energy Systems: Synchronizing wind or hydro generators with the grid
-
Critical Infrastructure: Data centers and hospitals requiring seamless power transfer
-
Oil and Gas Platforms: Synchronizing multiple power sources for منfshore rigs
Product Advantages
-
Accurate and Fast Synchronization
Ensures smooth connection من power sources without damaging transients or voltage dips. -
Robust Industrial Design
Suitable for harsh environmental conditions with wide temperature and humidity tolerance. -
Flexible Power Supply Options
Compatible with both DC and AC control power sources for installation versatility. -
Simple Installation and Integration
Designed for standard panel cutouts with straightforward wiring and configuration. -
Reliable Relay Outputs
Provides dependable control من breaker operation during synchronization. -
Comprehensive Monitoring
Allows for voltage, frequency, and phase angle measurements to optimize synchronization timing.
الأسئلة الشائعة (FAQ)
-
What is the primary purpose من the وودوارد 9907-028 SPM-A?
It automates the synchronization process من generators and power sources to ensure smooth parallel operation. -
What voltage levels can the synchronizer handle?
It accepts line-to-line voltages ranging from 80 to 300 volts AC. -
Is the module suitable for both AC and DC power supply?
Yes, it can be powered by 24 V DC or selectable 115/230 V AC supplies. -
How does the SPM-A module control the breaker?
It uses relay contacts to operate breakers during synchronization. -
Can the synchronizer operate in extreme temperatures?
Yes, it operates reliably between -40°C and +70°C. -
Is the device compatible with standard panel mounting?
Yes, it fits into a standard panel cutout. -
Does the module provide protection against incorrect synchronization?
The module monitors voltage, frequency, and phase angle to ensure safe synchronization. -
Can the SPM-A be used on ships or منfshore platforms?
Yes, it is widely used in marine and منfshore power systems. -
What kind من maintenance does the module require?
Minimal maintenance is needed; periodic inspection and testing are recommended. -
Is the وودوارد 9907-028 certified for industrial use?
Yes, it meets CE, UL, and CSA certification standards.
Recommended Related الطرازs (Same Series or Functional Alternatives)
| الطراز | الطراز Number | الوصف |
|---|---|---|
| وودوارد 9907-026 | 9907-026 | SPM Synchronizer Module, earlier model |
| وودوارد 9907-027 | 9907-027 | SPM-B Synchronizer Module with enhanced features |
| وودوارد 9907-030 | 9907-030 | Digital Synchronizer Module |
| وودوارد 9907-025 | 9907-025 | Analog Synchronizer Module |
| وودوارد 9907-032 | 9907-032 | Advanced Paralleling Controller |
| وودوارد 9907-035 | 9907-035 | Generator Load Sharing Module |
Recommended Popular وودوارد الطرازs
| الطراز | الطراز Number | Application |
|---|---|---|
| وودوارد 2301 | 2301 | Digital Governor for engines and turbines |
| وودوارد 545 | 545 | Speed Control System |
| وودوارد EasyGen 3000 | EasyGen 3000 | Digital Generator Control System |
| وودوارد 9907-042 | 9907-042 | Power Meter Module |
| وودوارد 845 | 845 | Load Sharing Controller |
| وودوارد Flex 2000 | Flex 2000 | Flexible Digital Controller |
