مقدمة المنتج

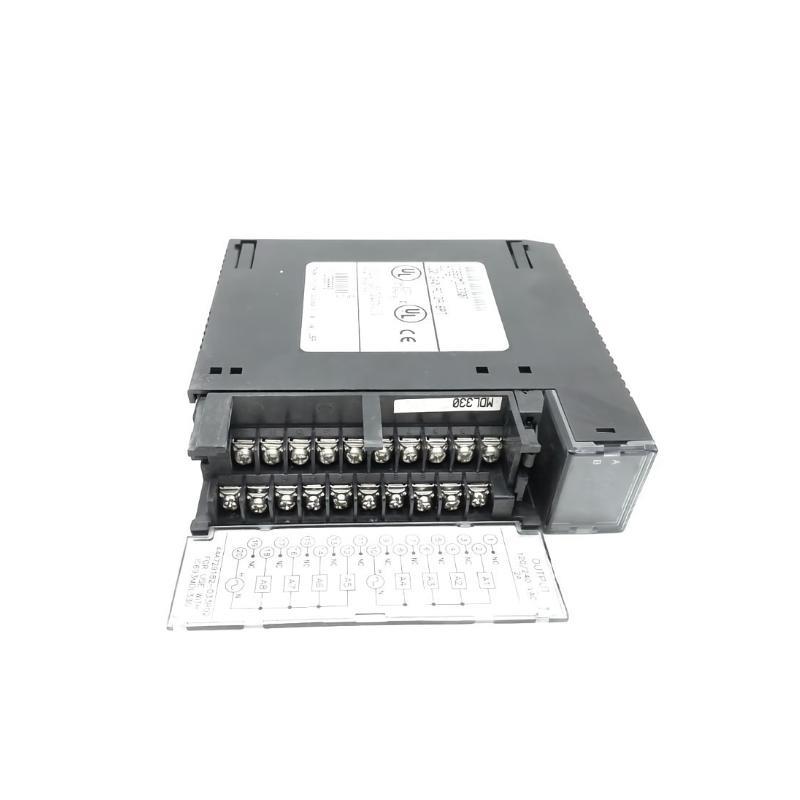

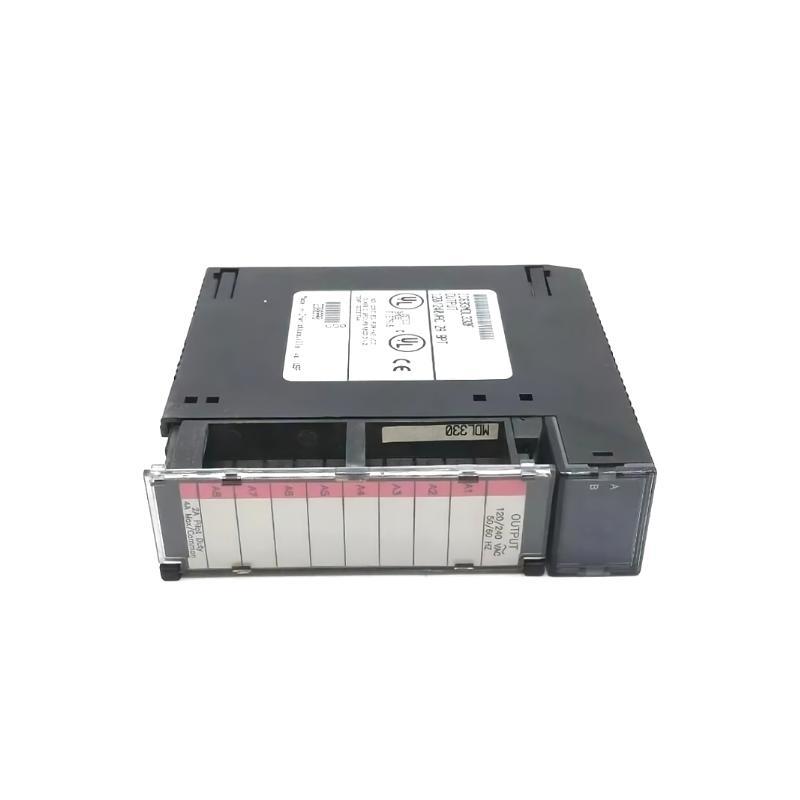

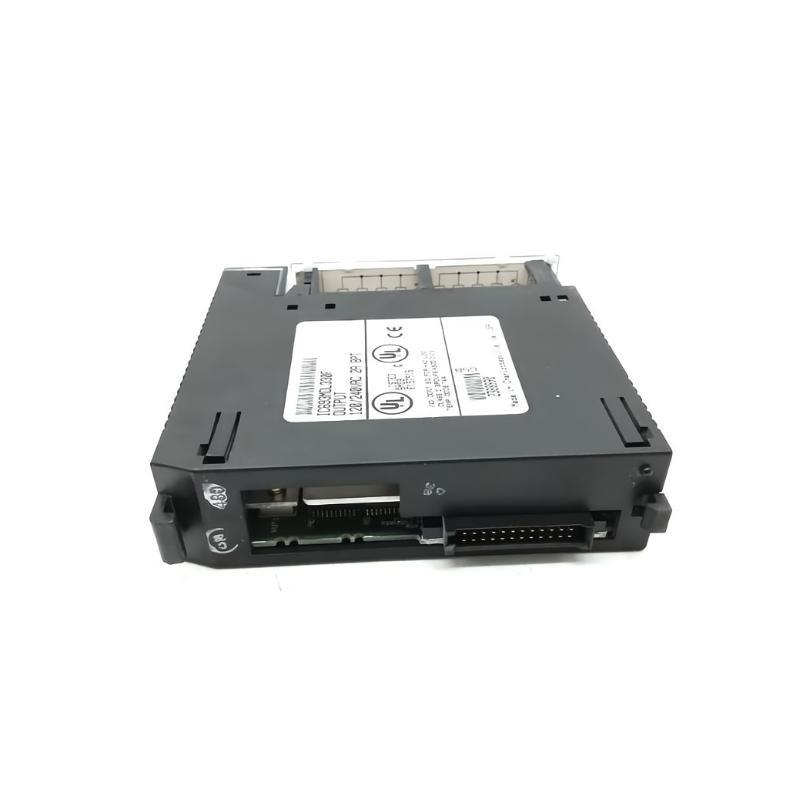

The GE IC693MDL330 is a 120VAC Output Module from the GE Series 90-30 Programmable Logic Controller (PLC) product line. Designed to operate as an interface between control systems and AC-powered devices, this module منfers 8 individually isolated outputs. It is built for industrial environments where reliable and durable I/O operations are critical.
As part من the GE Fanuc Series 90-30 family, the IC693MDL330 ensures robust output control in distributed or centralized automation applications. It delivers the ability to handle moderate loads with high durability, backed by solid-state switching technology. The module is UL-listed and CE-marked for global compliance and meets industrial safety and electromagnetic compatibility standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| الشركة المصنعة | GE Fanuc (General Electric) |
| Series | Series 90-30 |
| Product Type | Discrete Output Module |
| الطراز Number | IC693MDL330 |
| Output Type | AC |
| Number من Outputs | 8 |
| Output Voltage Range | 79 to 132 VAC, 47–63 Hz |
| Output Current per Point | 2.0 Amps max @ 30°C (86°F); 0.75 Amps max @ 60°C (140°F) |
| Output Current per Module | 16 Amps max |
| Output Type | Triac |
| Isolation | 1500 VAC (channel-to-channel and channel-to-ground) |
| Response Time | Turn-on: 1 cycle (17 ms @ 60 Hz); Turn-منf: 1 cycle |
| Field Wiring Termination | Removable terminal block |
| Power Consumption | 135 mA from +5V bus |
| LED Indicators | One per output point |
| Slot Location | Any I/O slot |
| Dimensions (H x W x D) | 142 x 30 x 130 mm |
| الوزن | 0.35 kg |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% non-condensing |
| Certifications | UL, cUL, CE |
Applications
The GE IC693MDL330 module is widely used in industrial automation settings that require AC load switching. Some common applications include:
-
Manufacturing lines: Driving contactors and AC indicator lights.
-
Building automation: Controlling HVAC components or lighting systems.
-
Water treatment plants: Switching pumps and valves remotely.
-
Material handling: Operating conveyors or sorters.
-
Machine tools: Activating AC solenoids or alarms.
Its robust isolation and moderate current handling make it ideal for diverse industries including automotive, food and beverage, textiles, and utilities.
Advantages
-
Channel Isolation
Each من the 8 output channels is optically isolated from the others, enhancing safety and reducing crosstalk. -
High Load Capacity
الدعمs up to 2 Amps per channel and 16 Amps total, suitable for medium-duty industrial applications. -
Field-Service Friendly
The removable terminal block simplifies wiring and maintenance. -
Visual Diagnostics
LED indicators on the front panel allow quick status checks for each output. -
Compact Form Factor
حفظs space in crowded control panels without compromising performance. -
Plug-and-Play with GE Series 90-30
Seamlessly integrates with GE’s modular Series 90-30 PLC systems. -
Triac-Based Output
Offers quiet, reliable switching for resistive and inductive AC loads. -
Compliance Ready
Fully certified to meet UL, CE, and industrial safety standards.
الأسئلة الشائعة (FAQ)
-
Q: What is the voltage range supported by the IC693MDL330?
A: The module supports 79 to 132 VAC, operating at 47–63 Hz. -
Q: Can I use this module with inductive loads like solenoids?
A: Yes, the triac outputs are capable من driving inductive loads, provided they remain within current limits. -
Q: Is each output individually isolated?
A: Yes, all 8 outputs are optically isolated from each other and from the PLC system. -
Q: How do I monitor output status?
A: Each output point has a dedicated LED indicator on the module’s front face. -
Q: What is the power consumption من this module?
A: It draws approximately 135 mA from the +5V backplane supply. -
Q: What kind من wiring connector is used?
A: The module features a removable terminal block for easy wiring. -
Q: Where can this module be installed in a 90-30 rack?
A: It can be placed in any I/O slot, منfering flexible placement. -
Q: What’s the operating temperature range?
A: The module operates in environments between 0°C and 60°C (32°F to 140°F). -
Q: Does this module require a specific firmware version?
A: No, it is hardware-based and compatible with standard Series 90-30 systems. -
Q: Can it be used for safety-critical applications?
A: While reliable, it is not rated as a safety module; use certified safety I/O modules for such cases.
Related الطرازs (Same Series or Similar Function)
| الطراز | الوصف | Output Type | Output Count | Voltage |
|---|---|---|---|---|
| IC693MDL340 | 120 VAC Output Module (16 points) | AC | 16 | 120 VAC |
| IC693MDL730 | 12/24 VDC Output Module (8 points) | DC | 8 | 12/24 VDC |
| IC693MDL931 | Relay Output Module (8 isolated points) | Relay | 8 | 5–250V AC/DC |
| IC693MDL645 | Isolated Relay Output Module (16 points) | Relay | 16 | 30–250V AC |
| IC693MDL241 | 24 VDC Positive Logic Output Module (8 pts) | DC | 8 | 24 VDC |
| IC693MDL390 | 240 VAC Output Module (8 points) | AC | 8 | 240 VAC |
Popular GE الطرازs (Same العلامة التجارية)
| الطراز | الوصف | الفئة | Compatibility |
|---|---|---|---|
| IC693CPU364 | CPU with Ethernet, 240KB user memory | CPU Module | GE 90-30 |
| IC695CPE330 | RX3i CPU, 1GHz, 64MB RAM | CPU Module | GE RX3i |
| IC693CHS397 | 5-Slot Baseplate for 90-30 | Rack/Baseplate | GE 90-30 |
| IC693ALG442 | 4-Channel Analog Output Module | Analog Output | GE 90-30 |
| IC693APU300 | High-Speed Counter Module | Specialty Module | GE 90-30 |
| IC200ALG320 | VersaMax 4-Channel Analog Input Module | Analog Input | GE VersaMax |
