مقدمة المنتج:

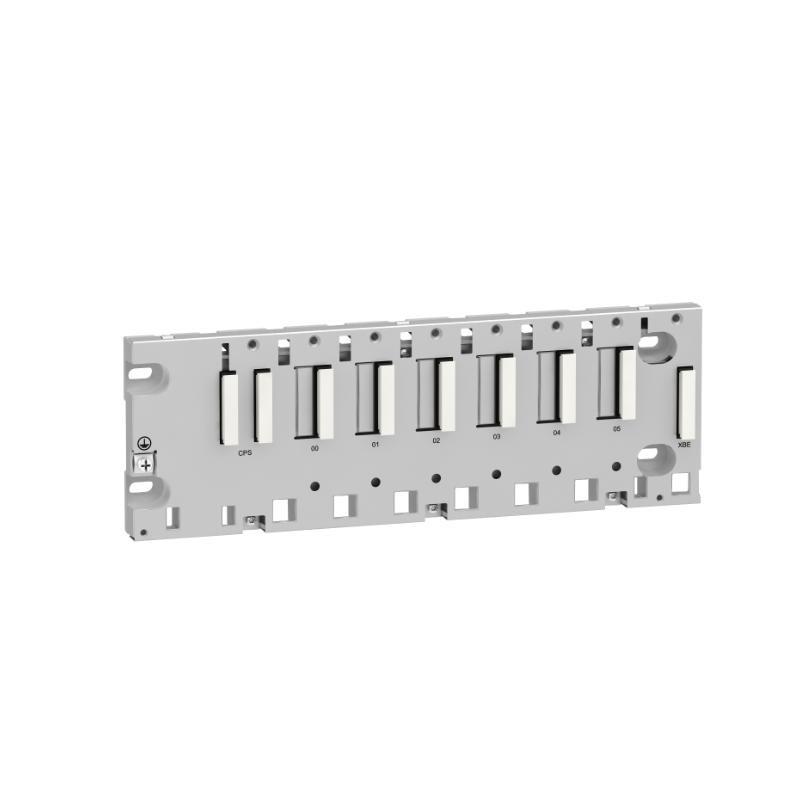

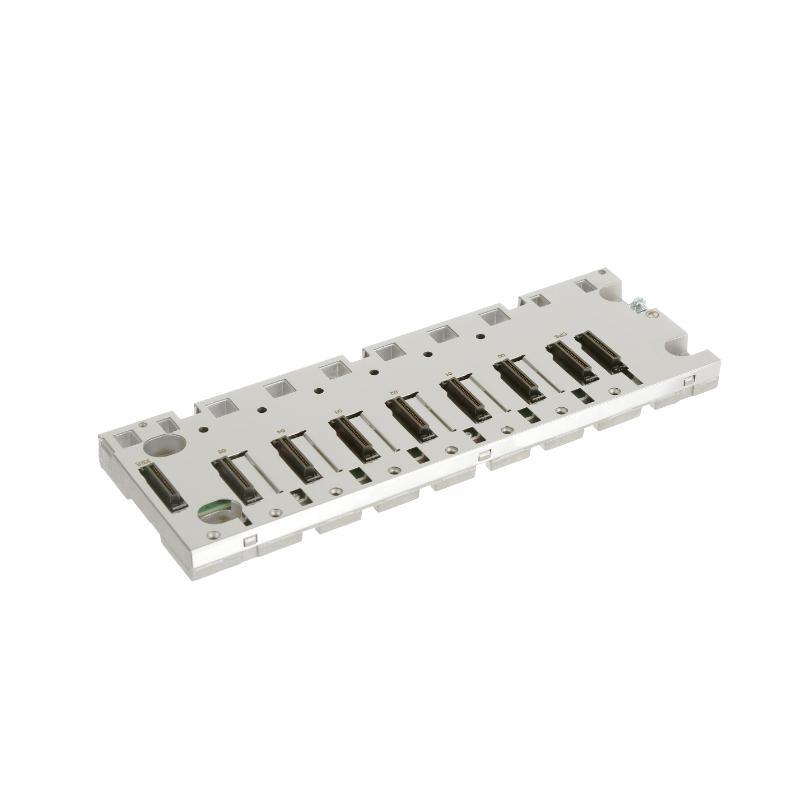

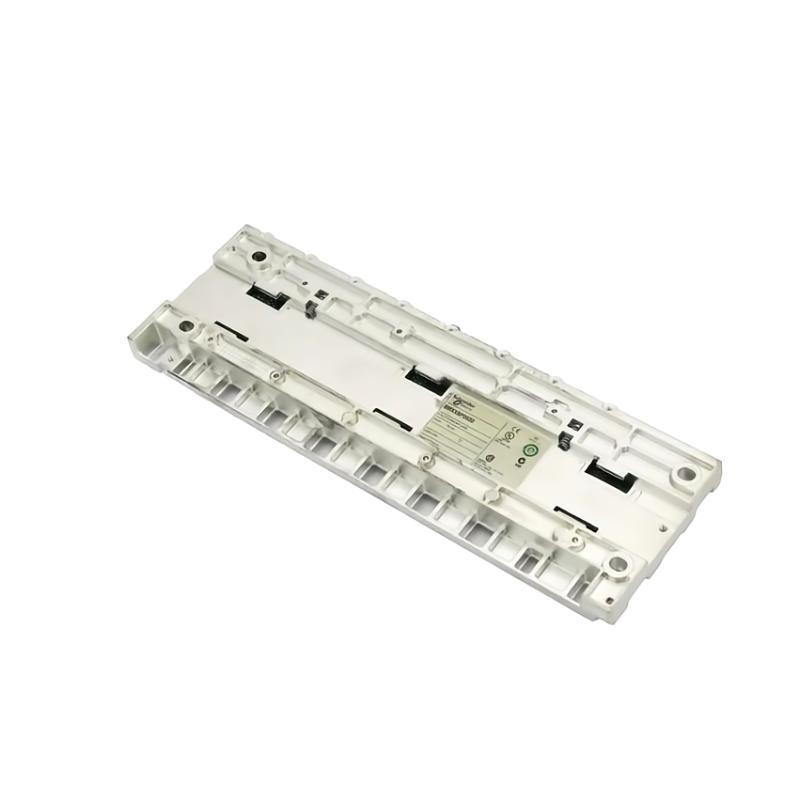

The Schneider Electric BMXXBP0600 is a 6-slot backplane designed for the Modicon M340 automation platform. This backplane serves as the foundational structure for assembling a modular Programmable Logic Controller (PLC) system, allowing the integration من various modules such as processors, power supplies, I/O modules, and communication interfaces. Its design ensures reliable electrical connections and mechanical stability, facilitating efficient system configuration and maintenance.
Technical Specifications:
| Parameter | الوصف |
|---|---|
| Product Name | BMXXBP0600 |
| Product Type | Backplane / Rack |
| Series | Modicon M340 Automation Platform |
| Number من Slots | 6 X-Bus slots |
| Compatible Modules | BMXP34 processor, BMXCPS power supply, I/O modules, specific application modules |
| Power Consumption | 1.5 W |
| Electrical Connection | 1 connector (XBE) expansion module |
| Mounting Options | DIN rail (35 mm symmetrical), panel mounting (4 screws, diameter 4.32–6.35 mm), plate mounting (4 M6 screws) |
| Dimensions (W x H x D) | 103.7 x 307.6 x 19 mm |
| Net الوزن | 0.79 kg |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 10% to 95% (non-condensing) |
| Certifications | CE, UL, CSA, RCM, EAC, Merchant Navy, ATEX Zone 2/22, IECEx Zone 2/22 |
| Standards Compliance | EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, EN/IEC 61000-6-5, EN/IEC 61850-3, IACS E10 |
| Environmental Resistance | Gas: Class Gx (ISA S71.04), Dust: Class 3S4 (IEC 60721-3-3), Salt: Level 2 (IEC 68252), Mold: Class 3B2 (IEC 60721-3-3) |
| الضمان | 12 months |
Product Applications:
The BMXXBP0600 backplane is utilized in various industrial and infrastructure automation scenarios, including:
-
Manufacturing Plants: Integration من control systems for assembly lines and machinery.
-
Water and Wastewater Treatment: Management من pumps, valves, and monitoring systems.
-
Energy Sector: Control systems for substations and renewable energy installations.
-
Transportation: Automation systems for railways, airports, and traffic management.
-
Building Management: HVAC control, lighting systems, and access control.
-
Food and Beverage Industry: Automation من processing, packaging, and distribution systems.
Product Advantages:
-
Modular Design: الدعمs up to six modules, allowing flexible system configuration.
-
Robust Construction: Designed to withstand industrial environments with resistance to dust, gas, and moisture.
-
Versatile Mounting: Compatible with DIN rail, panel, and plate mounting, facilitating easy installation.
-
High Compatibility: Works seamlessly with a range من Schneider Electric modules, ensuring system scalability.
-
Efficient Power Distribution: Provides reliable power and data communication across all connected modules.
-
Compact Size: Space-saving design suitable for installations with limited space.
-
Compliance and Certification: Meets international standards and certifications, ensuring safety and reliability.
الأسئلة الشائعة (FAQ):
-
What modules are compatible with the BMXXBP0600 backplane?
It is compatible with BMXP34 processors, BMXCPS power supplies, I/O modules, and specific application modules within the Modicon M340 series. -
Can the backplane be mounted on different surfaces?
Yes, it supports DIN rail, panel, and plate mounting options. -
What is the maximum operating temperature?
The backplane operates effectively within a temperature range من 0°C to +60°C. -
Is the backplane suitable for harsh environments?
Yes, it has environmental resistance ratings for gas, dust, salt, and mold, making it suitable for industrial applications. -
Does the BMXXBP0600 support hot-swapping من modules?
While some modules may support hot-swapping, it is recommended to refer to individual module specifications for confirmation. -
What is the power consumption من the backplane?
The backplane consumes 1.5 W من power. -
Is the backplane certified for international use?
Yes, it holds certifications such as CE, UL, CSA, and others, complying with international standards. -
What is the protection rating من the backplane?
It has an IP20 protection rating, indicating protection against solid objects greater than 12.5 mm and no protection against liquids. -
Can the backplane be used in hazardous locations?
Yes, it is certified for use in ATEX Zone 2/22 and IECEx Zone 2/22 hazardous environments. -
What is the warranty period for the BMXXBP0600?
The backplane comes with an 12-month warranty from the date من purchase.
Related الطرازs from the Same Series:
| الطراز Number | الوصف | Application | Slot Count |
|---|---|---|---|
| BMXXBP0400 | 4-slot X-Bus backplane for Modicon M340 | Compact systems with fewer modules | 4 slots |
| BMXXBP0800 | 8-slot X-Bus backplane for Modicon M340 | Larger systems requiring more modules | 8 slots |
| BMXXBE1000 | Backplane expander module | Extending backplane connectivity | N/A |
| BMXP342020 | Modicon M340 processor module | Central processing وحدة for automation | 1 slot |
| BMXCPS2010 | Power supply module for Modicon M340 | Provides power to the system | 1 slot |
| BMXNOE0110 | Ethernet communication module | Network connectivity for automation | 1 slot |
