Product الوصف

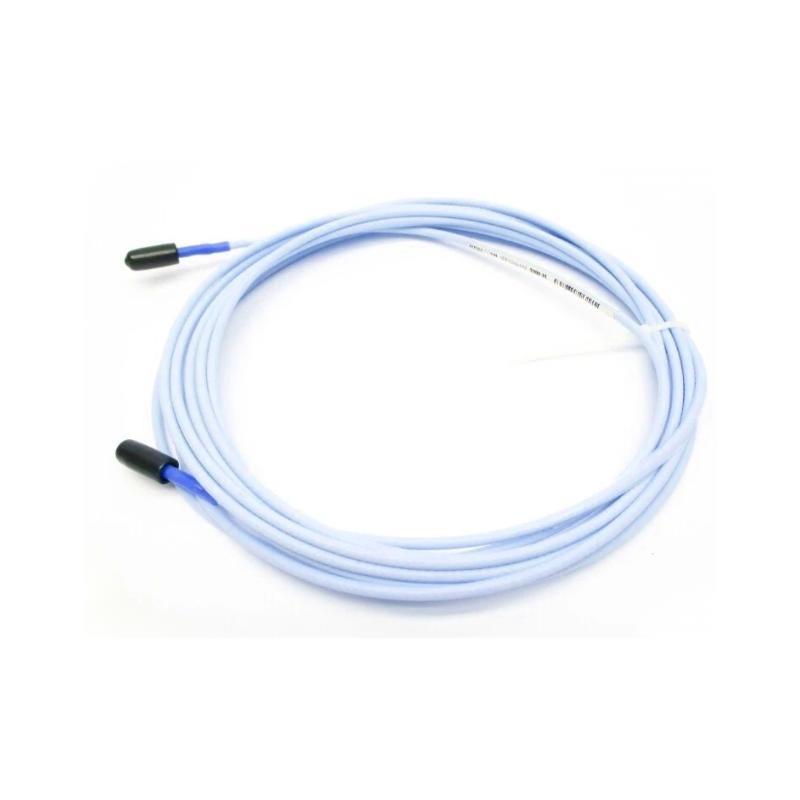

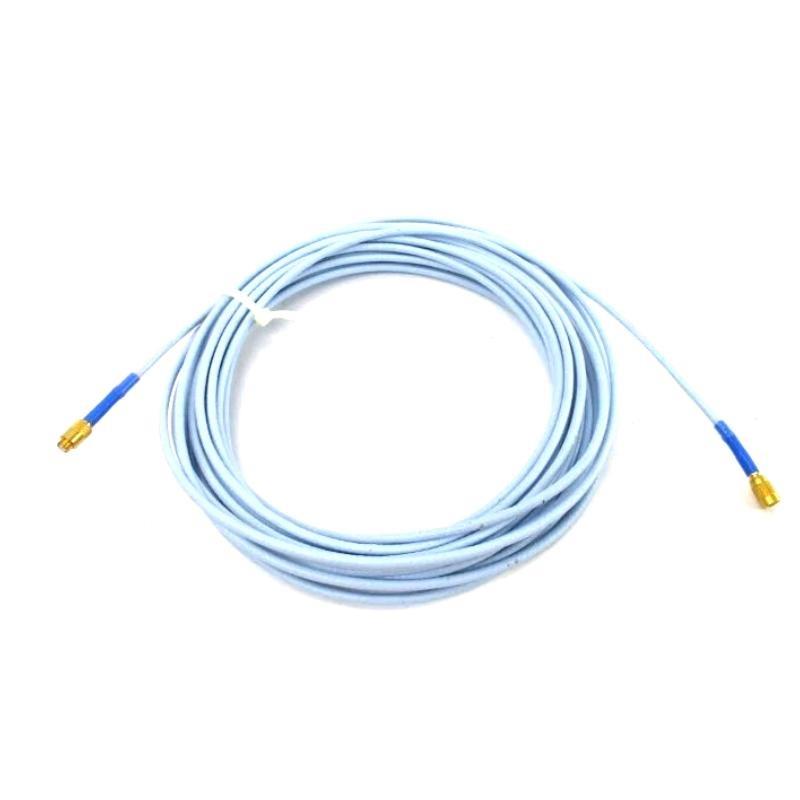

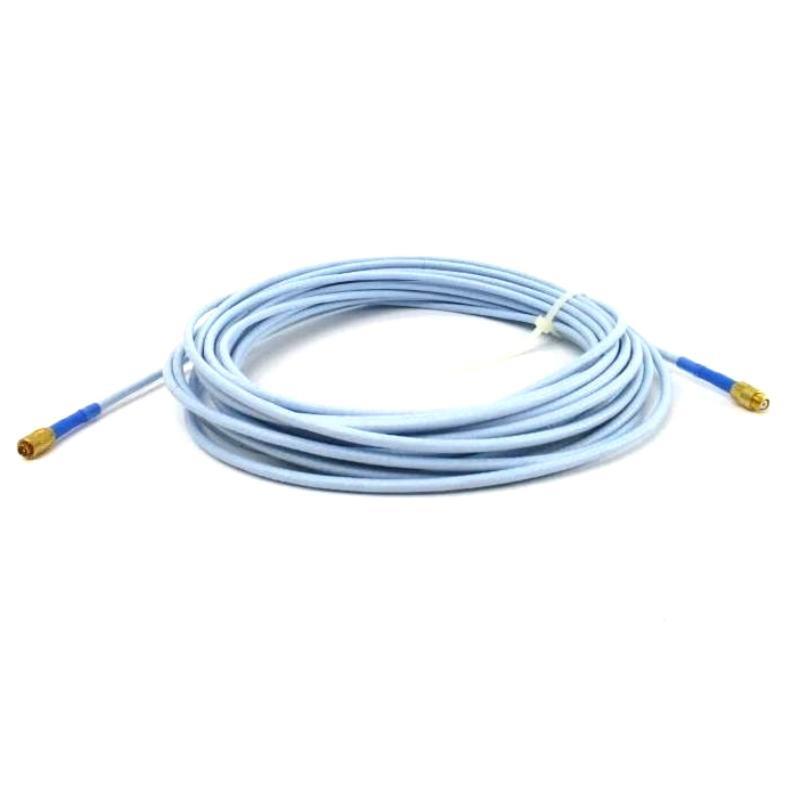

The Bently Nevada 330130-060-00-00 is a 3300 XL 8 mm Standard Extension Cable used in conjunction with 3300 XL Proximity Probes and Proximitor Sensors. This 6.0-meter cable transmits the signal between the probe and the sensor, enabling precise vibration and position monitoring من rotating equipment. It features a robust FEP-insulated triaxial cable, with optional configurations for environmental resistance and high temperature applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 330130-060-00-00 |
| Cable Type | Triaxial, 75 Ω, FEP insulation |
| Length | 6.0 meters (19.7 feet) |
| Capacitance | 69.9 pF/m (21.3 pF/ft) |
| DC Resistance (Center Conductor) | 1.32 ± 0.21 Ω |
| DC Resistance (Outer Conductor) | 0.39 ± 0.08 Ω |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | Gold-plated ClickLoc coaxial |
| الوزن | 0.204 kg |
| Operating Temperature Range | -52°C to +177°C (Standard) |
| Armor (Optional) | Stainless steel with FEP jacket |
| FluidLoc Option | متاح for leak prevention |
Applications
-
Used with Bently Nevada 3300 XL Proximity Transducer Systems
-
Suitable for vibration and position monitoring on rotating machines
-
Works in fluid-film bearing environments
-
Keyphasor and speed reference signal systems
-
Installed in steam turbines, compressors, and electric motors
Product Advantages
-
High EMI/RFI immوحدةy ensures reliable signal integrity
-
ClickLoc connectors allow secure, tool-free connection
-
Compatible with standard and extended temperature probes
-
Backward compatible with non-XL systems
-
Optional FluidLoc version resists oil ingress
-
High tensile strength reduces risk من disconnection
-
Modular and interchangeable design simplifies spares management
FAQ
Q1: What is the function من the 330130-060-00-00 cable?
A1: It connects the proximity probe to the Proximitor Sensor, transmitting the signal without loss.
Q2: What type من insulation does this cable have?
A2: It uses FEP (fluoroethylene propylene) insulation.
Q3: Can this cable be used in high-temperature environments?
A3: Yes, extended temperature range versions are available.
Q4: Is this cable armored?
A4: The standard version is not armored, but armored options are available.
Q5: Does the cable support FluidLoc technology?
A5: Yes, there is a FluidLoc version to prevent fluid leakage.
Q6: What type من connectors are used?
A6: It uses gold-plated ClickLoc connectors for secure connection.
Q7: What’s the minimum bend radius for this cable?
A7: 25.4 mm (1.0 inch).
Q8: Is the cable backward compatible with older Bently Nevada systems?
A8: Yes, it is electrically and physically compatible with 3300 non-XL series.
Q9: What is the weight من the 6.0-meter version?
A9: 0.204 kg.
Q10: Is the connector protector included?
A10: It is available as an option or accessory and recommended for environmental protection.
Related الطرازs (Same Series)
| الطراز Number | الوصف | Length | الوزن |
|---|---|---|---|
| 330130-030-00-00 | Extension Cable, Standard, 3.0 m | 3.0 m | 0.102 kg |
| 330130-040-00-00 | Extension Cable, Standard, 4.0 m | 4.0 m | 0.136 kg |
| 330130-070-00-00 | Extension Cable, Standard, 7.0 m | 7.0 m | 0.238 kg |
| 330130-085-00-00 | Extension Cable, Standard, 8.5 m | 8.5 m | 0.289 kg |
| 330190-060-00-00 | Extension Cable, ETR, 6.0 m | 6.0 m | ~0.215 kg |
| 330130-060-10-00 | Extension Cable, FluidLoc, 6.0 m | 6.0 m | 0.204 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Type | الوزن |
|---|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | Probe (M10 x 1) | ~0.3 kg |
| 330180-91-05 | 3300 XL Proximitor Sensor, 9 m, DIN Mount | Sensor | 246 g |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Monitoring Module | ~0.8 kg |
| 3500/22M | Transient Data Interface (TDI) | Monitoring Interface | ~1.2 kg |
| 330105-02-12-05-02-00 | 3300 XL Reverse Mount Probe (3/8-24 Thread) | Probe | ~0.3 kg |
| 3500/15 | Power Supply Module | Power Supply وحدة | ~1.1 kg |
