مقدمة المنتج

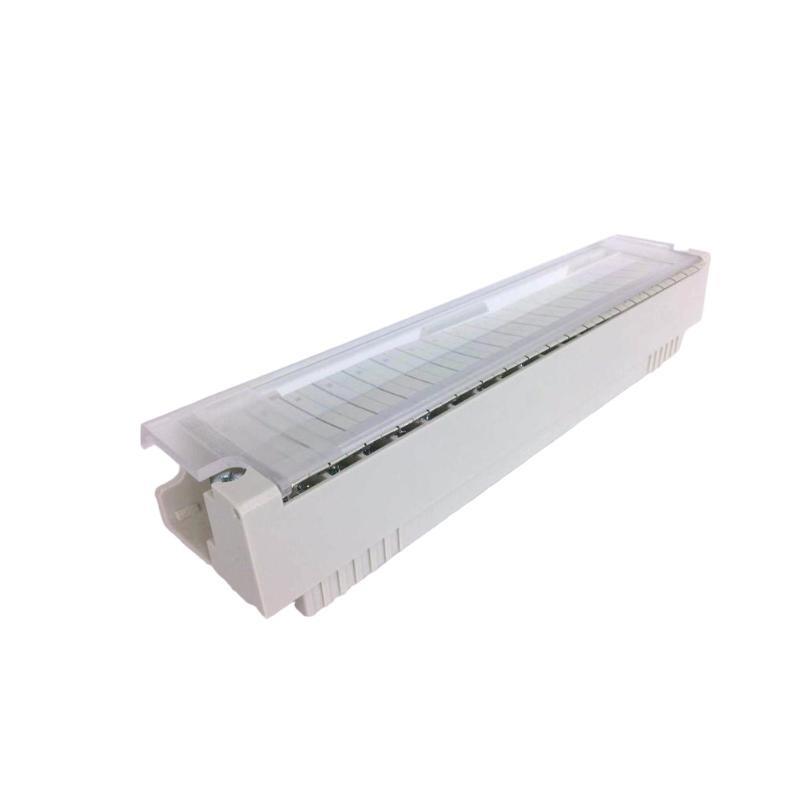

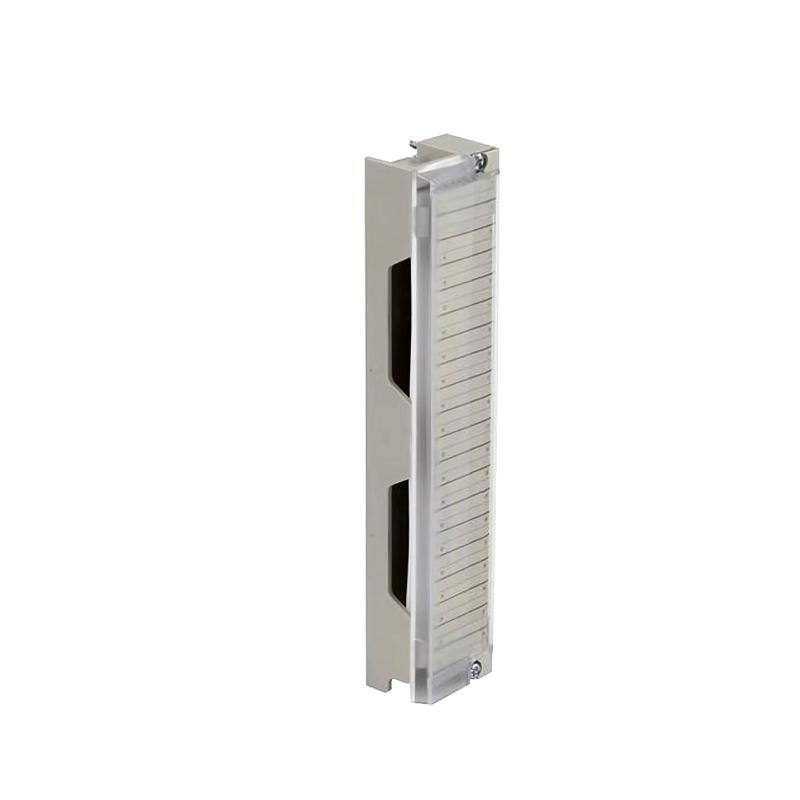

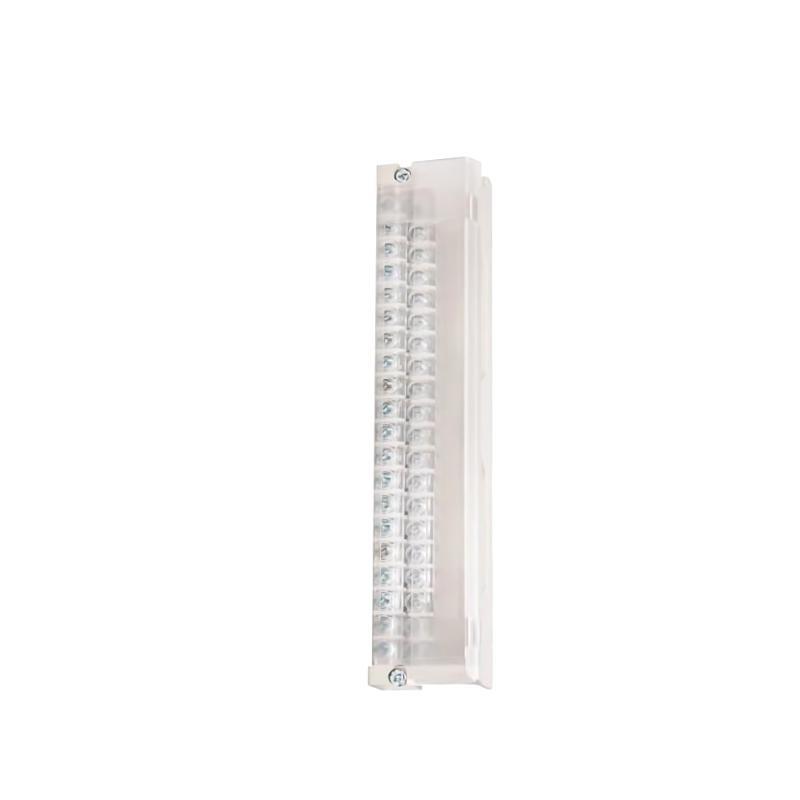

The Schneider 140XTS00100 Terminal Block is a robust and reliable component designed specifically for use within Schneider Electric’s Modicon Quantum automation platform. This terminal block plays a critical role in facilitating secure and organized electrical connections between I/O modules and field devices. Built with precision and industrial durability in mind, it ensures excellent contact reliability, ease من maintenance, and efficient wiring solutions in demanding automation environments.
As an integral part من the Quantum automation system, the 140XTS00100 is ideal for applications requiring high-density wiring, optimal signal clarity, and fast installation. This terminal block not only simplifies connections but also enhances the safety and clarity من the system layout by supporting consistent wire management and labeling practices.
مواصفات المنتج
| Parameter | Value |
|---|---|
| Product Name | Schneider 140XTS00100 Terminal Block |
| الشركة المصنعة | Schneider Electric |
| Product Series | Modicon Quantum |
| Type | Terminal Block |
| Compatible Modules | 140 series I/O modules |
| Material | Polyamide body, copper alloy contacts |
| Mounting Type | Rail Mount (DIN Rail) |
| Number من Terminals | 32 |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Insulation Resistance | ≥ 100 MΩ |
| Dielectric Strength | 2000 V AC |
| Connection Technology | Screw clamp terminals |
| Color | Grey |
| Dimensions (H x W x D) | 50 x 250 x 50 mm |
| الوزن | 0.159 kg |
| Certification | CE, UL, CSA |
| Environmental Protection | IP20 |
| RoHS Compliance | Yes |
Product Applications
The Schneider 140XTS00100 Terminal Block is widely used in various industrial automation applications, particularly within systems that utilize the Modicon Quantum PLC platform. Common applications include:
-
Manufacturing Automation: Ensures safe and efficient wiring in process automation systems.
-
Oil & Gas: Facilitates signal and power transmission in hazardous and high-vibration environments.
-
Energy & Utilities: Used in power plant and substation automation for reliable I/O connections.
-
Water Treatment: الدعمs signal integrity in SCADA-based plant operations.
-
Transportation: Enables organized terminal wiring in control cabinets for rail and metro automation systems.
-
Chemical Processing: Provides secure terminal connections in chemically volatile environments.
Product Advantages
-
Seamless Compatibility: Designed specifically for Modicon Quantum I/O modules, ensuring a perfect fit.
-
Durability: Constructed from industrial-grade materials for long-term performance under harsh conditions.
-
Easy Installation: Rail-mountable with intuitive terminal arrangement for efficient installation and maintenance.
-
High Safety Standards: Offers excellent dielectric strength and insulation resistance, meeting global safety regulations.
-
Optimized Wiring: الدعمs clean and organized cable management, reducing human error in wiring operations.
-
Reliability: Delivers stable electrical connections with minimal signal loss, even in high-vibration environments.
-
Space Efficiency: Compact form factor enables high-density wiring in control cabinets.
الأسئلة الشائعة (FAQ)
-
Q: What is the 140XTS00100 Terminal Block used for?
A: It is used to connect field I/O signals to the corresponding Quantum I/O modules safely and efficiently. -
Q: Is this terminal block compatible with all Modicon Quantum I/O modules?
A: Yes, it is designed to work seamlessly with the 140 series I/O modules within the Quantum platform. -
Q: How many terminals does the 140XTS00100 have?
A: It comes with 32 terminal points for input/output wiring. -
Q: What type من mounting is supported?
A: It supports DIN rail mounting, allowing for easy installation in control panels. -
Q: What is the operating temperature range من the terminal block?
A: The operating range is from -25°C to +70°C. -
Q: Is the terminal block RoHS compliant?
A: Yes, it is fully RoHS compliant, meeting environmental standards. -
Q: Can this be used in high-vibration environments like oil rigs?
A: Absolutely. It is built with durable components that perform reliably in such settings. -
Q: What kind من connection technology does it use?
A: It uses screw clamp terminal connections for secure wire fastening. -
Q: What is the IP rating من the 140XTS00100?
A: It has an IP20 rating, suitable for cabinet-enclosed installations. -
Q: Are there any specific certifications for this product?
A: Yes, it is certified under CE, UL, and CSA standards.
