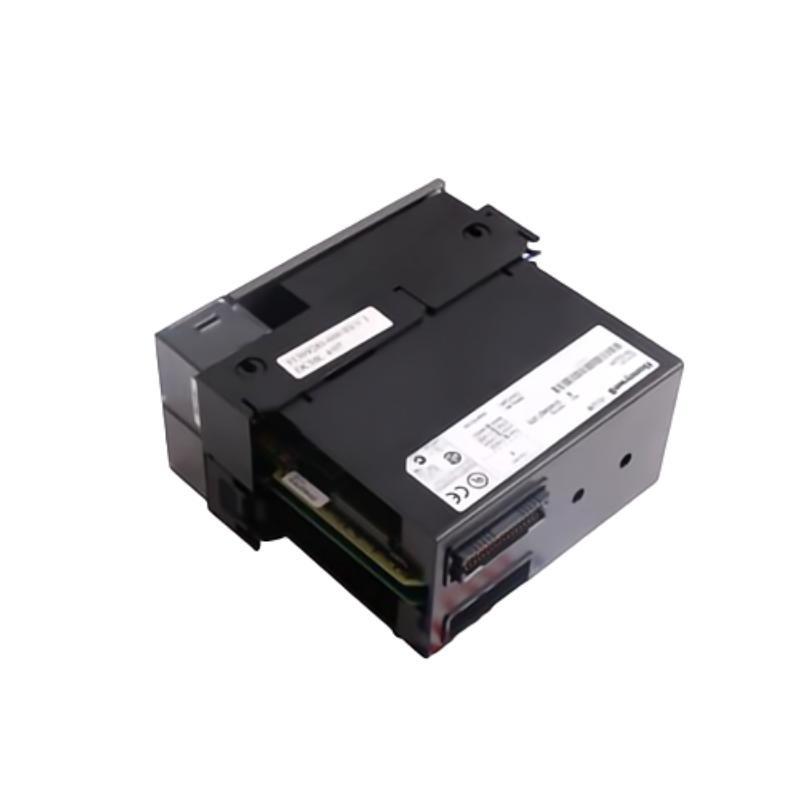

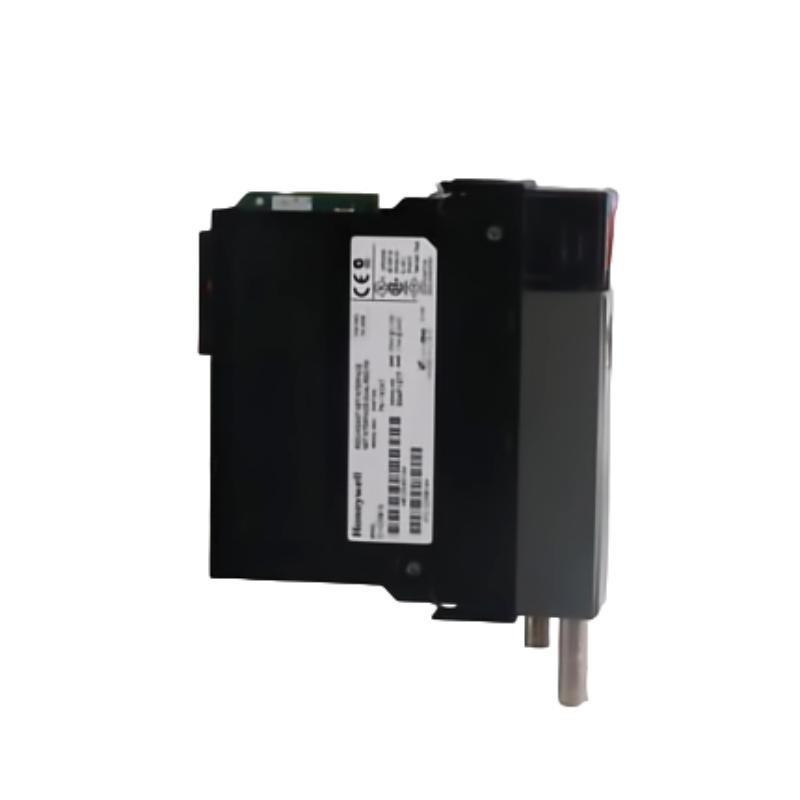

Honeywell TC-IDW161 AC Input Module

Product Overview

The Honeywell TC-IDW161 AC Input Module is a high-performance device designed to integrate AC signal inputs into industrial control and automation systems. This module is specifically engineered to handle 16 individual AC input channels, منfering excellent accuracy and reliability for monitoring AC-powered equipment such as motors, alarms, and sensors.

The TC-IDW161 is ideal for industries that require real-time data acquisition and system control. Whether you’re working in a manufacturing environment, building management systems, or energy management applications, this module ensures seamless integration with Honeywell’s advanced control systems, such as the Experion PKS and TPS systems.

Built to meet the highest standards من quality and durability, the TC-IDW161 is perfect for both standard and harsh industrial environments, ensuring safe and efficient operation even under challenging conditions.

مواصفات المنتج

Applications

The Honeywell TC-IDW161 AC Input Module is widely used in industries that require high-quality AC input signal monitoring and integration. Below are some common applications:

1. Power Monitoring Systems
   Used in power distribution networks to collect AC voltage signals from circuit breakers, transformers, or meters for real-time monitoring and control.

2. Building Management Systems (BMS)
   Integrates AC-powered devices like HVAC systems, lighting, and alarms into central control systems, منfering efficient management من building operations.

3. Industrial Automation
   Essential in manufacturing plants where AC-powered devices, such as motors and pumps, need to be monitored and controlled to ensure smooth operations.

4. Energy Management
   The TC-IDW161 module facilitates energy monitoring by collecting AC data from energy meters, providing insights into power consumption and system performance.

5. Safety Systems
   Enables integration من AC input signals from safety equipment like emergency lighting and alarms, helping to ensure timely responses in critical situations.

Advantages

1. High Accuracy and Reliability
   The TC-IDW161 ensures precise data acquisition from AC-powered devices, delivering highly reliable performance even in the most demanding environments.

2. Wide Input Range
   With an input voltage range من 110–240 VAC and support for both 50 Hz and 60 Hz frequencies, the module can be used in diverse industrial applications worldwide.

3. Built-in Surge Protection
   The module includes surge protection for each input, safeguarding it against electrical spikes and transient voltages that may occur in the industrial environment.

4. Seamless Integration
   Fully compatible with Honeywell’s Experion PKS and TPS systems, it integrates effortlessly into existing infrastructure, ensuring smooth system operation and data communication.

5. Compact Design
   Despite its robust functionality, the TC-IDW161 منfers a compact form factor, saving valuable space in control panels and enclosures.

6. Wide Temperature Range
   The module operates across a broad temperature range من -20°C to 60°C, making it suitable for both indoor and outdoor use in industrial settings.

7. Easy Troubleshooting
   The module features individual LED indicators for each input, simplifying troubleshooting by allowing operators to quickly identify faulty inputs without specialized equipment.

FAQ (الأسئلة الشائعة)

1. What type من inputs does the TC-IDW161 module support?
The module supports 16 individual AC inputs for integrating signals from various AC-powered devices such as motors, sensors, and alarms.

2. What is the input voltage range for the TC-IDW161?
The TC-IDW161 supports an input voltage range من 110–240 VAC ± 10%.

3. What is the frequency range supported by the module?
The module is compatible with both 50 Hz and 60 Hz frequency signals.

4. Can the TC-IDW161 be used outdoors?
Yes, the module can function in environments with temperatures ranging from -20°C to 60°C, making it suitable for both indoor and outdoor use.

5. Does the TC-IDW161 provide surge protection?
Yes, the module includes integrated surge protection for each input to protect against transient voltage spikes.

6. How many inputs are available on the TC-IDW161?
The TC-IDW161 provides 16 individual AC input channels.

7. Is the TC-IDW161 compatible with Honeywell’s Experion PKS system?
Yes, the TC-IDW161 is designed for full compatibility with Honeywell’s Experion PKS and TPS systems.

8. What is the weight من the TC-IDW161 module?
The TC-IDW161 weighs 0.2 kg.

9. What type من status indicators does the module have?
Each input is equipped with an individual LED indicator to show its status, making it easier to monitor and troubleshoot.

10. How does the TC-IDW161 integrate into industrial automation systems?
The TC-IDW161 integrates seamlessly into Honeywell’s control systems, allowing for the efficient collection من AC input signals for monitoring and control in industrial applications.
