Product Overview

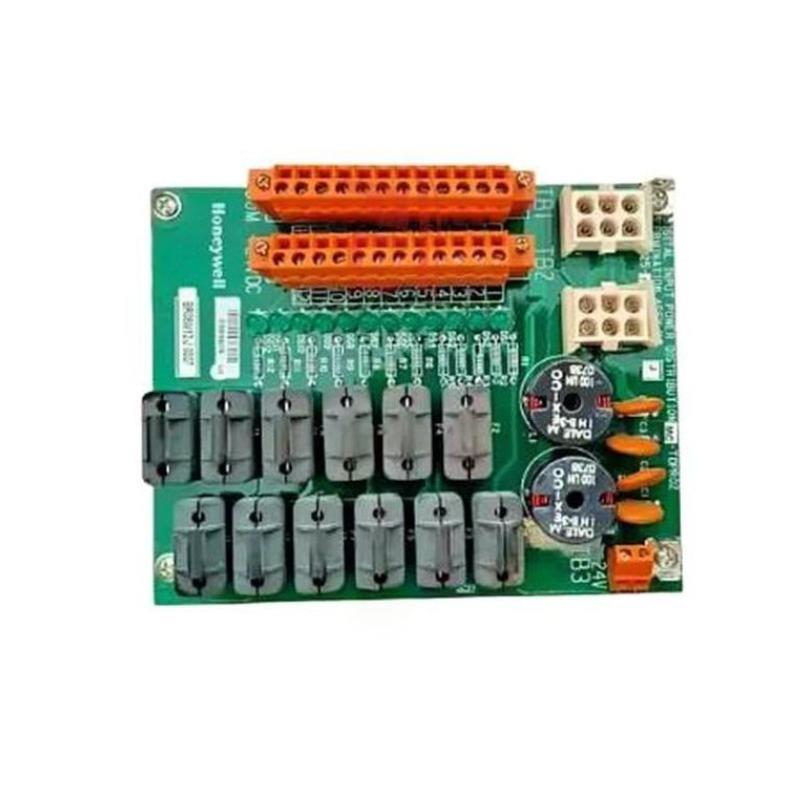

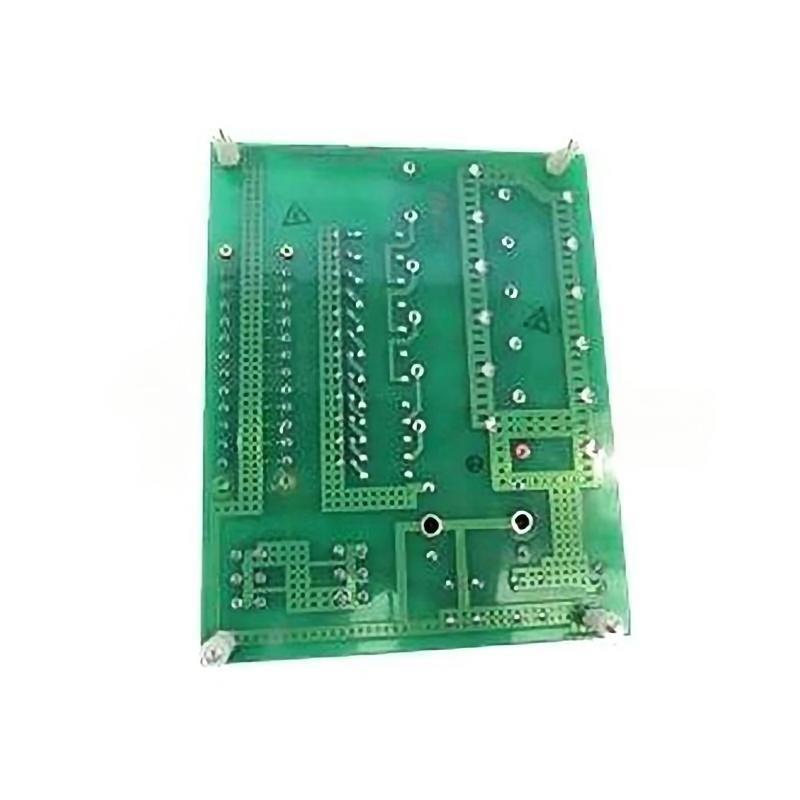

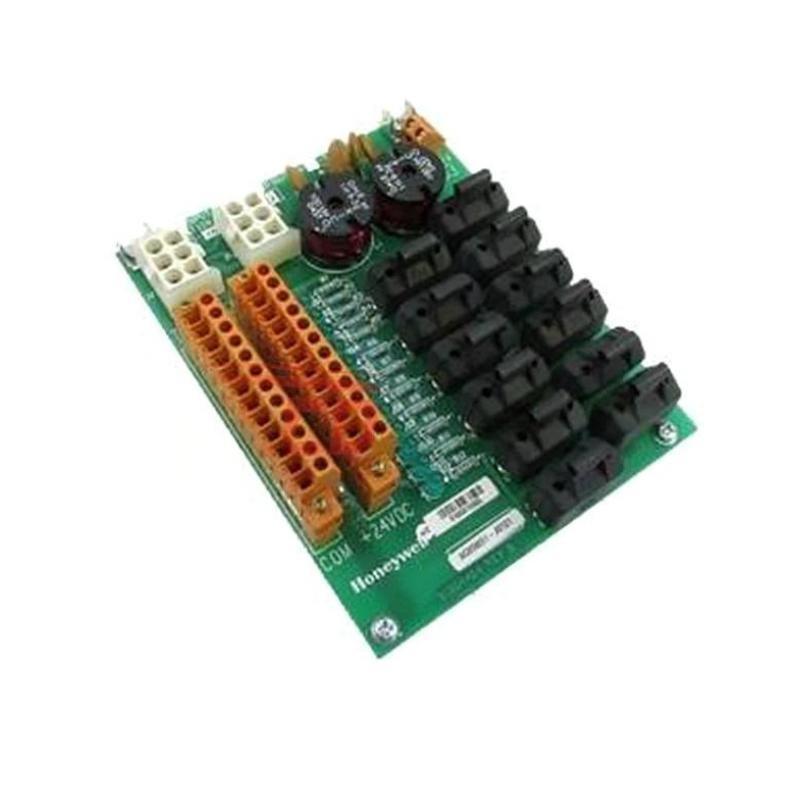

The Honeywell MC-TDPR02 51304425-175 Digital Input Power Distribution Assembly is engineered to provide reliable power distribution and protection for Honeywell digital input modules in industrial automation systems. It ensures stable power delivery, prevents overcurrent conditions, and facilitates organized wiring for digital input modules.
Key Features
-
Provides stable and protected power distribution for digital input modules
-
Compatible with Honeywell MC series digital input modules
-
Prevents overcurrent and short-circuit conditions
-
Simplifies wiring with organized terminal connections
-
LED indicators for power status monitoring
-
Compact, modular design suitable for industrial racks
-
الدعمs hot-swappable modules
-
High reliability for continuous industrial operation
Technical Specifications
| Item | Specification |
|---|---|
| الشركة المصنعة | Honeywell |
| رقم القطعة | 51304425-175 |
| Product Type | Digital Input Power Distribution Assembly |
| الدعمed Modules | Honeywell MC-TDIA, MC-TDID series digital input modules |
| Output Channels | الدعمs multiple digital input channels for power distribution |
| Protection | Overcurrent and short-circuit protection |
| Mounting Type | Rack-mounted or panel-mounted assembly |
| LED Indicators | Power and status indicators |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –20 °C to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Dimensions | 175 × 150 × 30 mm |
| الوزن | 0.85 kg |
| Applications | Power distribution and protection for digital input modules in industrial automation systems |
Industry Applications
-
Oil and gas process control
-
Petrochemical and chemical plants
-
Power generation and distribution
-
Water and wastewater treatment
-
Manufacturing automation systems
-
Distributed control systems (DCS) digital input module power management
الأسئلة الشائعة (FAQ)
Q1: What is the primary function من the MC-TDPR02?
It provides stable power distribution and protection for digital input modules.
Q2: Which Honeywell modules is it compatible with?
It supports MC-TDIA and MC-TDID series digital input modules.
Q3: Does it provide protection against overcurrent?
Yes, it includes overcurrent and short-circuit protection.
Q4: Can it be mounted in industrial racks?
Yes, it is designed for rack or panel mounting.
Q5: Are there status indicators on the assembly?
Yes, LED indicators show power and operational status.
Q6: Is it suitable for harsh industrial environments?
Yes, it operates reliably between 0 °C and +60 °C.
Q7: Can it support hot-swappable modules?
Yes, it is compatible with hot-swappable digital input modules.
Q8: What is the weight من the assembly?
Approximately 0.85 kg.
Related Honeywell Modules
| الطراز | الوصف |
|---|---|
| MC-TDIA72 51303930-150 | Isolated Digital Input Module |
| MC-TDID72 51303928-150 | Digital Input Module |
| MC-TDPR01 51304425-170 | Digital Input Power Distribution Assembly (Single-Channel) |
| MC-TDPR03 51304425-180 | Multi-Channel Digital Input Power Distribution Assembly |
| MC-TDO72 51303932-150 | Isolated Digital Output Module |
| MC-TDOY62 | Digital Output Field Termination Assembly |
Popular Honeywell Modules
| الطراز | الوصف |
|---|---|
| MC-TDPR02 51304425-175 | Digital Input Power Distribution Assembly |
| MC-TDIA72 51303930-150 | Isolated Digital Input Module |
| MC-TDID72 51303928-150 | Digital Input Module |
| MC-TDO72 51303932-150 | Isolated Digital Output Module |
| MC-TDOY62 | Digital Output Field Termination Assembly |
| MC-ADA72 51303931-150 | Isolated Analog Input Module |
