مقدمة المنتج

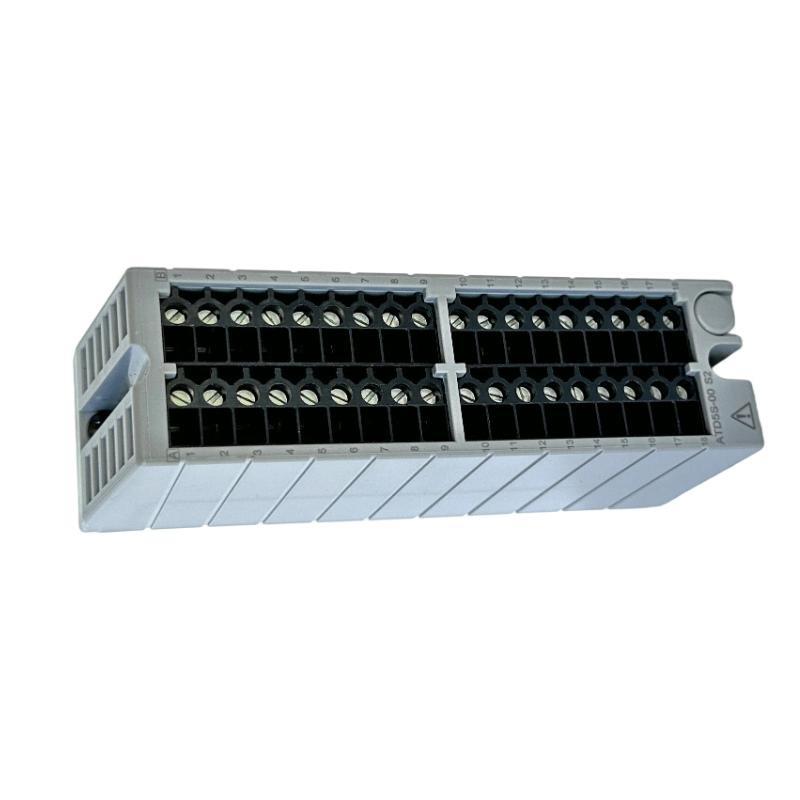

The Yokogawa NFTP5S-00 Pressure Clamp Terminal Block for Digital is a precision-engineered terminal interface module designed to ensure secure, stable, and noise-resistant electrical connections within digital instrumentation and control systems. It is part من Yokogawa’s field wiring and I/O interconnection line, serving as a robust interface between the digital I/O modules and external field wiring.
This terminal block uses a pressure clamp connection system, allowing wire fastening without the need for soldering or screw tightening. The clamping mechanism ensures consistent contact pressure over time, even in environments subject to vibration, temperature fluctuation, and electrical noise. The design eliminates connection loosening and minimizes maintenance frequency, supporting Yokogawa’s long-term operational philosophy for reliable industrial automation.
The NFTP5S-00 is built with high-grade insulating materials and precision metal contacts to maintain signal integrity for digital control signals such as ON/OFF status, pulse inputs, and logic outputs. Its compact, modular form makes it ideal for mounting in Field Control وحدةs (FCUs), control cabinets, and distributed I/O systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز | NFTP5S-00 |
| Product Type | Pressure Clamp Terminal Block for Digital Signals |
| Rated Voltage | 30 V DC / 250 V AC (max) |
| Rated Current | 2 A per channel (max) |
| Number من Terminals | 16 channels (8 inputs + 8 outputs) |
| Connection Method | Pressure clamp (spring contact type) |
| اتصل بنا Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 100 MΩ at 500 V DC |
| Dielectric Strength | 1000 V AC for 1 minute between contacts |
| Signal Type الدعمed | Digital input/output (TTL, 24 V logic) |
| Material (اتصل بنا) | Nickel-plated copper alloy |
| Material (Housing) | Flame-retardant polycarbonate (UL94-V0) |
| Mounting Method | DIN-rail or direct chassis mount |
| Temperature Range | -20 °C to +70 °C (operation) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (L × W × H) | 185 × 100 × 40 mm |
| الوزن | 0.5 kg |
| Shock Resistance | 10 g, 3 axes |
| Vibration Resistance | 5–55 Hz, 2 mm amplitude |
| Certification | CE, RoHS compliant |
| Maintenance | Tool-free wire release and replacement |
Applications
The NFTP5S-00 Pressure Clamp Terminal Block is primarily used in digital signal interconnection within automation, process control, and safety systems. It acts as the critical junction point between field wiring and the internal circuits من I/O modules, ensuring signal continuity, insulation, and mechanical security.
Common application fields include:
-
Digital I/O systems in distributed control systems (DCS) and programmable logic controllers (PLC).
-
Signal routing between control cabinets and field devices such as limit switches, sensors, and solenoid valves.
-
Automation control panels requiring modular, vibration-resistant wiring interfaces.
-
Instrumentation subsystems for on/منf status monitoring and digital output control.
-
Energy, power plant, and refinery networks where reliability and compact installation are essential.
-
Upgrade or maintenance projects where traditional screw-type terminals are replaced by pressure clamp models for enhanced durability.
The NFTP5S-00 is also compatible with Yokogawa’s digital I/O module families, allowing seamless integration and minimal wiring complexity.
Advantages
The Yokogawa NFTP5S-00 delivers several key advantages that enhance system reliability, wiring convenience, and operational performance:
-
Tool-Free Wiring: Pressure clamp design eliminates screw tightening, reducing installation time and maintenance effort.
-
High اتصل بنا Stability: Spring-type contacts maintain uniform pressure over long service life.
-
Vibration-Resistant: ممتاز mechanical retention under continuous vibration, ideal for industrial environments.
-
Signal Integrity: Low resistance and noise-resistant design ensure accurate transmission من digital signals.
-
Compact Modular Design: حفظs control cabinet space and supports dense installation layouts.
-
Improved Safety: Insulated housing prevents accidental contact and ensures operator protection.
-
Easy Replacement: Wires can be quickly released and reinserted without special tools.
-
High Environmental Endurance: Performs reliably under wide temperature and humidity ranges.
-
Standardized Interface: Compatible with Yokogawa I/O bases and control modules.
-
Reduced Maintenance Downtime: Long-term secure clamping reduces the need for retightening or inspection.
FAQ
-
What connection method is used in the NFTP5S-00?
It uses a spring-loaded pressure clamp mechanism that secures conductors through contact pressure rather than screws. -
Can this terminal block handle both input and output digital signals?
Yes, the NFTP5S-00 supports both digital input and output signal channels within the same module. -
What wire size range is supported by the clamp mechanism?
It typically supports solid or stranded conductors from 0.25 mm² to 1.5 mm² (AWG 24–16). -
Is it compatible with Yokogawa digital I/O modules?
Yes, it is designed to match the connector layout and electrical characteristics من Yokogawa’s digital I/O series. -
How is wire release performed during maintenance?
A small flat tool or push lever is used to open the clamp, allowing quick removal or reinsertion من conductors. -
Does the terminal block include isolation between channels?
Each terminal is individually insulated to prevent cross-channel interference or short circuits. -
Can it be mounted on a DIN rail?
Yes, it supports DIN-rail mounting as well as direct chassis installation. -
What is the maximum switching voltage for digital signals?
The NFTP5S-00 supports up to 30 V DC or 250 V AC, depending on the connected circuit. -
How does the design minimize noise and interference?
Low contact resistance, short internal paths, and shielded housing reduce electrical noise pickup. -
Is this terminal block suitable for high-vibration or mobile equipment?
Yes, its pressure clamp mechanism ensures stable contact even under vibration, making it ideal for mobile or rotating machinery control panels.
Related الطرازs (Same Series or Compatible)
| الطراز | الوصف |
|---|---|
| NFTP5S-00 | Pressure Clamp Terminal Block for Digital I/O |
| NFTP5A-00 | Screw-type Terminal Block for Analog I/O |
| NFTP5D-01 | Dual-layer Terminal Block for High-Density Wiring |
| NFTP5R-00 | Relay Terminal Block for Output Circuits |
| NFTP5L-00 | LED-Indication Terminal Block for Signal Monitoring |
| NFTP5C-00 | Common Bus Terminal Block for Control Signal Distribution |
Popular الطرازs (Same العلامة التجارية)
| الطراز | الوصف |
|---|---|
| NFSBT02 | SB Bus T-Joint with Built-in Terminator |
| F9342AL | Pressure Transmitter CPU Assembly (HART version) |
| F9340GF | PTFE Teflon Gasket (degreased) |
| F9341JP | O-Ring for Transmitter Cover |
| NFCP400 | CPU Module for Yokogawa Control Systems |
| EJA110E | Differential Pressure Transmitter with HART Communication |
