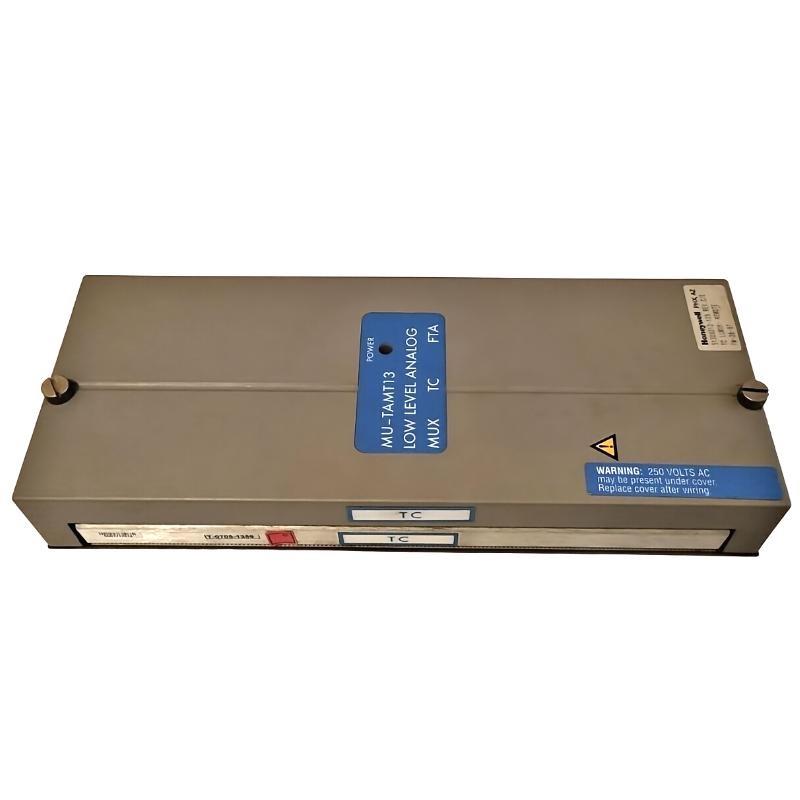

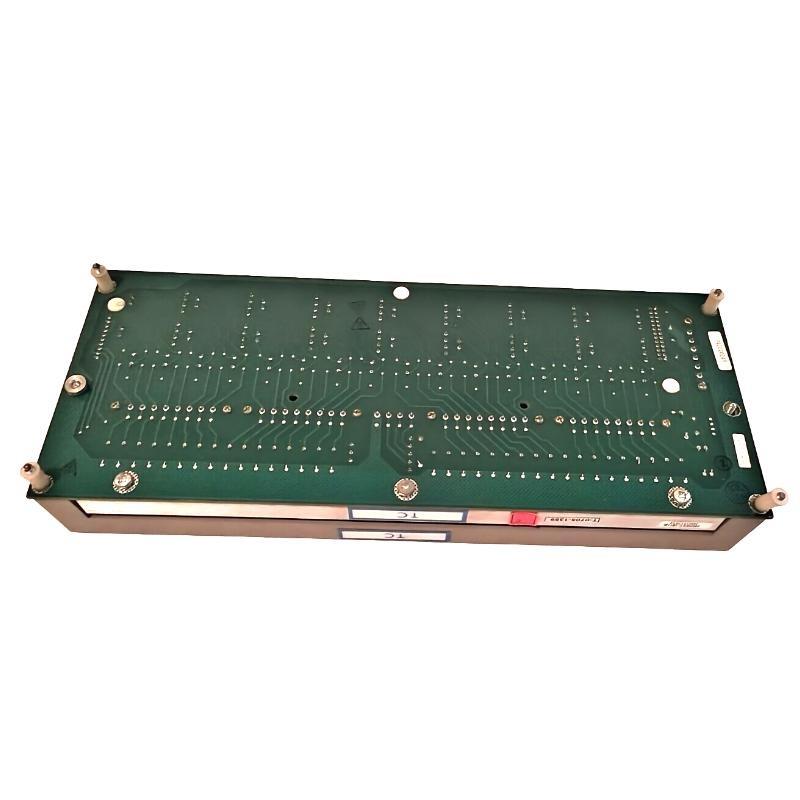

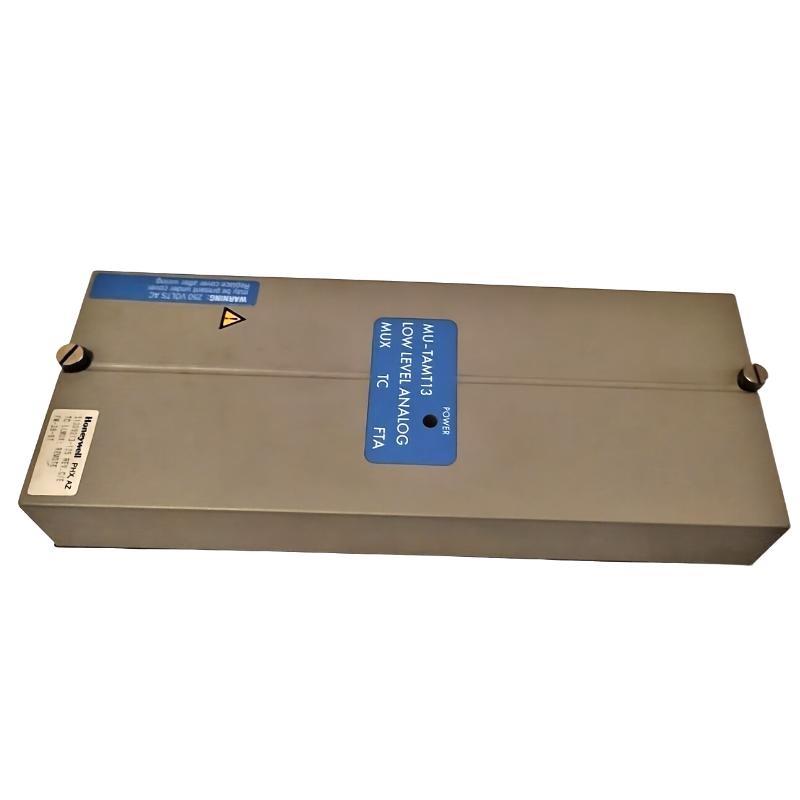

Honeywell MC-TAMT13 51309213-125 Low Level Analog Input Multiplexer Module

مقدمة المنتج

The Honeywell MC-TAMT13 51309213-125 Low Level Analog Input Multiplexer Module is a high-performance device designed to efficiently expand the analog input capacity من Honeywell control systems. This module sequentially routes multiple low-level analog signals to a single input channel on a distributed control system (DCS), reducing wiring complexity while maintaining signal integrity.

The MC-TAMT13 is particularly suitable for precise measurement and monitoring applications where low-level signals, such as millivolt-range sensors and thermocouples, need to be integrated into process automation systems. It is fully compatible with Honeywell Experion PKS, TDC 3000, and other DCS platforms, enabling smooth integration and enhanced system scalability. The module ensures minimal crosstalk, high accuracy, and reliable performance even in industrial environments with electrical noise or harsh conditions.

Technical Specifications

Applications

The MC-TAMT13 module is widely applied in industrial process automation and measurement scenarios:

• Multiplexing multiple low-level analog signals for integration into DCS هانيويل systems.

• Monitoring thermocouples and millivolt-range sensors in chemical, petrochemical, and pharmaceutical processes.

• Aggregating small current loop signals in oil and gas production systems.

• Facilitating advanced process control strategies by reducing the number من dedicated input channels.

• Integration into power generation systems for precise analog signal measurement.

• الدعمing industrial test benches and laboratories requiring accurate low-level analog acquisition.

Advantages

• High Accuracy: Maintains ±0.1% full-scale accuracy for precise signal acquisition.

• Minimal Crosstalk: Crosstalk between channels is below 0.05%, ensuring clean signal transmission.

• Versatile Input الدعم: Handles ±50 mV, ±100 mV, 0–20 mA, and 4–20 mA signals.

• Robust Diagnostics: Built-in channel health monitoring and open/short detection facilitate preventive maintenance.

• Flexible Mounting: Can be mounted on DIN rails or racks to fit various panel layouts.

• Reliable System Integration: Compatible with Experion PKS, TDC 3000, and other DCS هانيويل platforms.

• Space and Cost Efficient: Reduces wiring and input channel requirements, saving panel space and reducing hardware costs.

FAQ

1. How many channels does the MC-TAMT13 support?
   It supports 16 independent low-level analog input channels, allowing multiple signals to be routed to a single DCS input.

2. Which input signal types can the module handle?
   The module accepts ±50 mV, ±100 mV, 0–20 mA, and 4–20 mA signals, covering common voltage and small current loop sensors.

3. What is the module’s typical accuracy?
   It provides ±0.1% full-scale accuracy, ensuring precise measurement for low-level analog signals.

4. What is the crosstalk between channels?
   Crosstalk is less than 0.05%, keeping each channel’s signal independent and reliable.

5. Is channel isolation provided?
   Yes, each channel is isolated up to 500 V RMS to prevent interference between signals.

6. What is the typical response time?
   The response time is around 100 ms per channel, enabling quick sequential signal measurement.

7. Does the module provide diagnostics?
   Yes, it includes channel health monitoring and open/short detection to support maintenance.

8. What mounting options are available?
   It can be mounted on a DIN rail or rack, منfering flexibility for panel installations.

9. What power supply does the module require?
   The module operates on 24 V DC with typical power consumption من 6 W.

10. Which Honeywell systems is it compatible with?
    It works with Experion PKS, TDC 3000, and other DCS I/O backplane systems for smooth integration.
