مقدمة المنتج

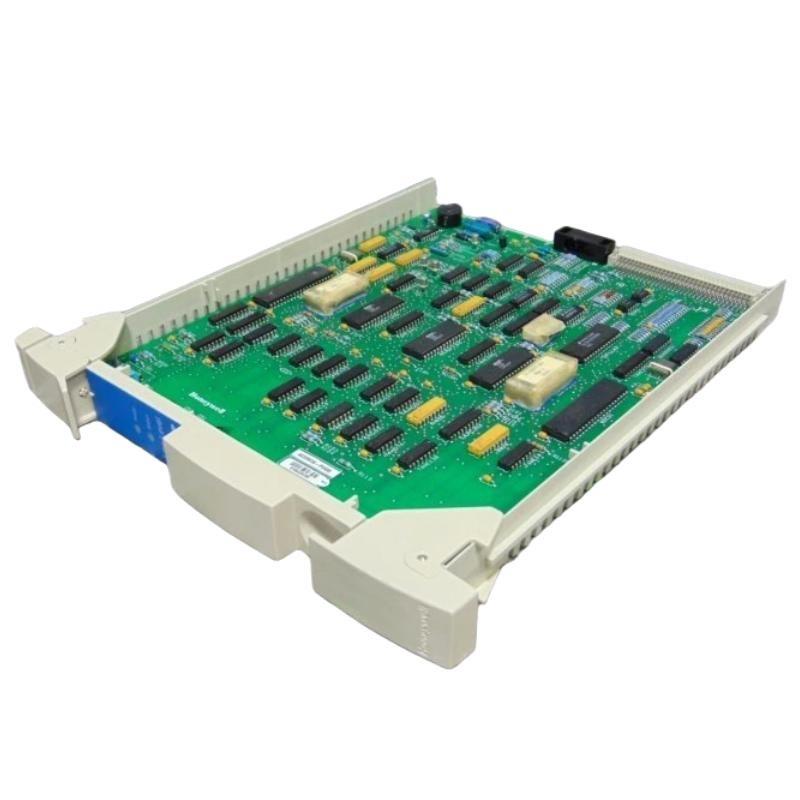

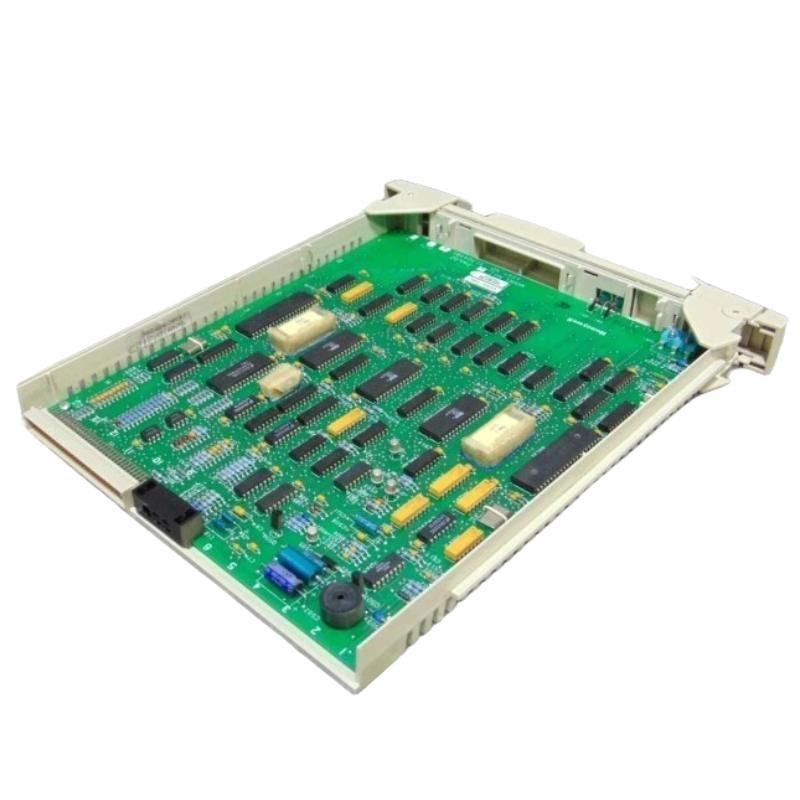

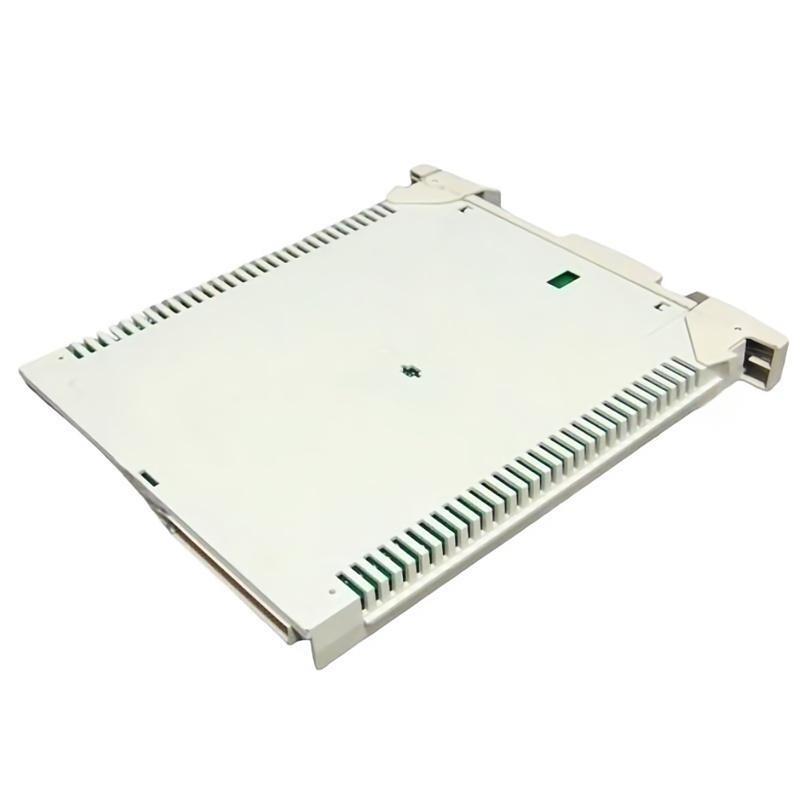

The Honeywell MC-PAIL02 51304481-150 Low Level Analog Input Module is a key component من Honeywell’s Experion and TDC3000 control systems, designed to handle low-level analog signals with exceptional precision. It serves as a vital interface between field instrumentation and the process control system, enabling accurate measurement من critical process parameters such as pressure, temperature, flow, and level. Built for high reliability and stability, the MC-PAIL02 ensures smooth data acquisition even in demanding industrial environments such as oil & gas, petrochemical, power generation, and pharmaceutical production.
Technical Specifications
| Parameter | Details |
|---|---|
| الطراز Number | MC-PAIL02 |
| رقم القطعة | 51304481-150 |
| Type | Low Level Analog Input Module |
| Signal Range | 0–20 mA, 4–20 mA, ±10 V (configurable) |
| Resolution | 16-bit high-resolution A/D conversion |
| Accuracy | ±0.1% من span |
| Input Channels | 8 isolated analog input channels |
| Input Impedance | 250 Ω for current input / 1 MΩ for voltage input |
| Sampling Rate | Up to 100 samples per second |
| Operating Temperature | 0 °C to 55 °C |
| Storage Temperature | –40 °C to 85 °C |
| Relative Humidity | 5% to 95% non-condensing |
| Power Supply Voltage | 24 V DC nominal |
| Power Consumption | Approx. 7 W |
| Dimensions (W × H × D) | 127 × 203 × 152 mm |
| الوزن | 1.1 kg |
| Communication Interface | Redundant I/O bus compatible with Experion/TDC3000 |
| Certifications | CE, UL, CSA, and ATEX compliant |
| Mounting | Standard rack mounting |
Applications
The MC-PAIL02 module is widely used across industries that demand high accuracy in measuring low-level analog signals:
-
Oil & Gas: Monitoring pressure and flow rates in pipelines and refineries.
-
Power Generation: Precise temperature and steam pressure measurement in turbines.
-
Petrochemical Plants: Continuous monitoring من chemical process variables.
-
Pharmaceutical Manufacturing: Ensuring accurate environmental control and batch consistency.
-
Water Treatment Plants: Tracking pH, flow, and chemical dosing with high precision.
Advantages
-
High Accuracy and Stability: 16-bit resolution provides precise measurement, minimizing process variability.
-
Robust Isolation: Channel-to-channel isolation protects against electrical noise and interference.
-
Flexible Configuration: الدعمs multiple signal ranges for versatile application.
-
Enhanced Reliability: Redundant communication paths ensure uninterrupted data transfer.
-
Easy Integration: Fully compatible with Honeywell Experion and TDC3000 systems for seamless operation.
-
Industrial-Grade Build: Designed to operate reliably in harsh environments with wide temperature tolerance.
FAQ
1. What is the primary function من the MC-PAIL02 module?
It acquires low-level analog signals and converts them into digital data for process control systems.
2. How many analog input channels does the module provide?
It provides 8 isolated analog input channels.
3. What is the resolution من its A/D conversion?
It منfers a high-resolution 16-bit analog-to-digital conversion.
4. Which signal ranges are supported by the MC-PAIL02?
It supports 0–20 mA, 4–20 mA, and ±10 V signal ranges.
5. Is the module compatible with Honeywell Experion PKS systems?
Yes, it is fully compatible with Honeywell Experion PKS and TDC3000 systems.
6. What type من isolation is provided between channels?
Each channel is galvanically isolated to prevent signal interference and ground loops.
7. How does the module ensure data accuracy in noisy environments?
Built-in isolation and advanced filtering minimize noise impact on signal integrity.
8. What is the maximum sampling rate supported?
The module supports up to 100 samples per second per channel.
9. What is the typical power consumption من the MC-PAIL02?
Approximately 7 watts under normal operating conditions.
10. Can it be mounted in a standard Honeywell I/O rack?
Yes, it is designed for standard Honeywell rack mounting.
Related Honeywell الطرازs (Same Series or Function)
| الطراز | الوصف |
|---|---|
| MC-PDOY22 | Analog Output Module for precise control |
| MC-PDIL02 | Digital Input Module for signal acquisition |
| MC-PAOY22 | High-accuracy Analog Output Module |
| MC-PD1X02 | Universal Digital Input/Output Module |
| MC-TAIH14 | High-density Analog Input Module |
| MC-TDIY22 | Digital Input Module with robust isolation |
Popular Honeywell الطرازs
| الطراز | الوصف |
|---|---|
| TC-IXA001 | Industrial Controller for process automation |
| CC-TDIL01 | High-speed Digital Input Module |
| FC-SDI-1624 | Safety Digital Input Module |
| CC-PAOH01 | Precision Analog Output Module |
| MU-TDID12 | Multi-channel Digital Input Module |
| CP-AI-1815 | Compact Analog Input Module for diverse signals |
