مقدمة المنتج

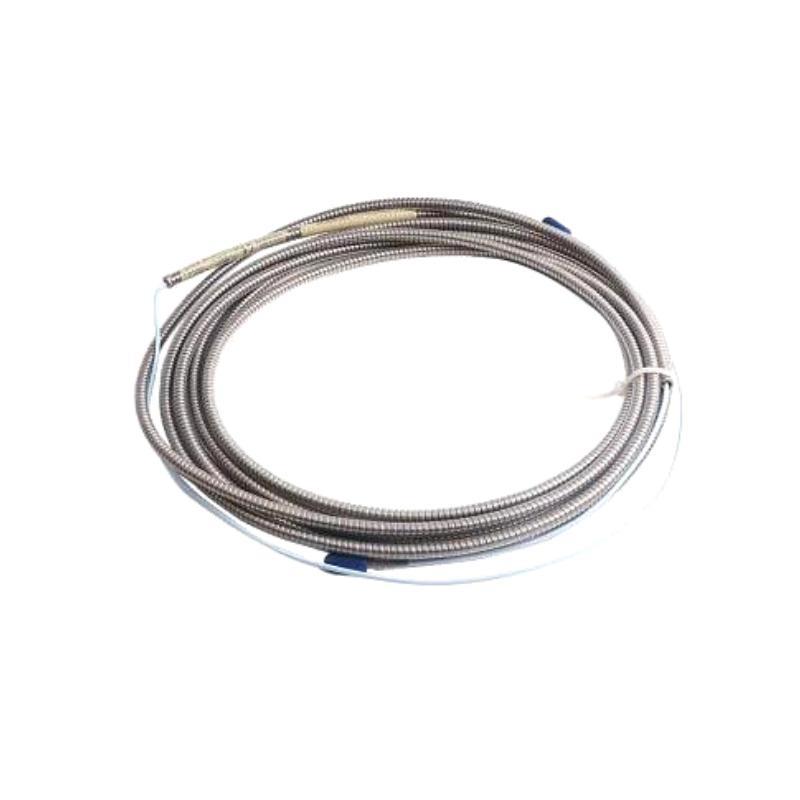

The Bently Nevada 330161-01-45-05-94-01-02 Single Triaxial HP Feedthrough is a high-performance feedthrough device designed for use with the 3300 monitoring system. It provides a secure electrical interface between the triaxial sensor cable inside the machine casing and the monitoring instrumentation outside. This model supports single triaxial connections, making it particularly useful in applications requiring multi-axis vibration measurement through a compact, reliable, and rugged feedthrough.
With its 4.5-meter length option, this feedthrough is engineered to deliver accurate signal transmission in demanding industrial environments. It supports high-pressure (HP) applications, ensuring integrity and durability even in challenging operational conditions such as turbines, compressors, and other critical rotating machinery.
The robust construction, advanced sealing technology, and precise electrical performance make the 330161-01-45-05-94-01-02 an essential accessory in ensuring the reliability من machinery protection and condition monitoring systems.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | 330161-01-45-05-94-01-02 |
| Product Type | Single Triaxial HP Feedthrough |
| System Compatibility | Bently Nevada 3300 monitoring systems |
| Connection Type | Triaxial signal transmission |
| Cable Length Option | 4.5 meters |
| Pressure Rating | High-Pressure (HP) compliant |
| Electrical Shielding | Triaxial shielding for noise immوحدةy |
| Temperature Range | -35°C to +120°C (-31°F to +248°F) |
| Material | Stainless steel housing with advanced sealing |
| Insulation | High-dielectric strength insulation |
| Sealing Technology | Environmental and pressure-resistant sealing |
| Compliance | CE, UL, CSA certified |
| الشحن الوزن | 3.0 kg |
Applications
The 330161-01-45-05-94-01-02 Single Triaxial HP Feedthrough is widely applied in machinery monitoring systems requiring reliable transmission من triaxial vibration signals:
-
Gas and Steam Turbines: Provides accurate triaxial vibration monitoring under high-pressure conditions.
-
Compressors: Maintains secure signal transfer in environments subject to pressure fluctuations and vibration.
-
Large Industrial Pumps: Ensures monitoring accuracy in fluid-handling equipment.
-
Generators and Motors: الدعمs condition monitoring with robust feedthrough connectivity.
-
Petrochemical Facilities: Provides long-term reliability in hazardous and corrosive environments.
-
Aerospace and Power Plants: Suitable for mission-critical rotating equipment requiring precise vibration data.
Advantages
-
Triaxial Signal Capability: الدعمs simultaneous monitoring من three vibration axes, increasing diagnostic accuracy.
-
High-Pressure Design: Withstands pressurized environments without loss من sealing or performance.
-
Durable Materials: Stainless steel construction ensures long-term resistance to corrosion and wear.
-
Noise Immوحدةy: Triaxial shielding reduces electrical interference for precise signal integrity.
-
Sealed Protection: Prevents leakage, dust ingress, and environmental damage.
-
System Compatibility: Designed specifically for the 3300 system to guarantee seamless integration.
-
Maintenance-Friendly: Simplifies installation and field service with standardized connectors.
-
Operational Reliability: Engineered for continuous use in mission-critical industrial monitoring.
FAQ
-
What type من monitoring system is this feedthrough compatible with?
It is fully compatible with Bently Nevada 3300 system modules. -
Why is triaxial capability important?
Triaxial connections allow simultaneous measurement من X, Y, and Z vibration axes, improving fault detection accuracy. -
What kind من pressure environments can it handle?
The HP design is intended for high-pressure machine housings such as turbines and compressors. -
How does the shielding benefit signal transmission?
Triaxial shielding reduces electromagnetic interference (EMI) and ensures clean signal output. -
Is this feedthrough suitable for hazardous locations?
Yes, with proper installation, it is compliant with industrial safety standards for harsh environments. -
What material is used for the housing?
Stainless steel is used to resist corrosion and mechanical wear. -
Does this feedthrough impact sensor calibration?
No, it is designed to maintain signal accuracy without altering calibration values. -
What installation considerations should be observed?
Proper sealing and torque tightening are required to ensure pressure integrity. -
Can it be used with both proximity and accelerometer probes?
Yes, provided they are configured for triaxial connections supported by the 3300 system. -
What certifications does the product meet?
It meets CE, UL, and CSA certifications for industrial monitoring equipment.
Related الطرازs in the Same Series
| الطراز | الوصف |
|---|---|
| 330161-01-40-05-94-01-02 | Single Triaxial HP Feedthrough, 4.0 m length option |
| 330161-01-50-05-94-01-02 | Single Triaxial HP Feedthrough, 5.0 m length option |
| 330161-02-45-05-94-01-02 | Dual Triaxial HP Feedthrough for extended applications |
| 330162-01-45-05-94-01-02 | Standard HP Feedthrough for 3300 XL probes |
| 330130-070-00 | 3300 XL Standard Extension Cord, 7.0 m length |
| 330153-01 | 3300 XL Connector Kit for probes and cables |
Popular Bently Nevada الطرازs
| الطراز | الوصف |
|---|---|
| 3500/42M | Machinery protection vibration monitoring module |
| 3500/22M | Transient Data Interface for diagnostics |
| 3500/32M | Relay module for alarm and trip functionality |
| 330108-91-05 | Vibration sensor module for 3300 XL systems |
| 330500-01 | Velocity transducer for industrial vibration measurement |
| 3300/53 88199-01 | Overspeed protection system |
