Product Overview

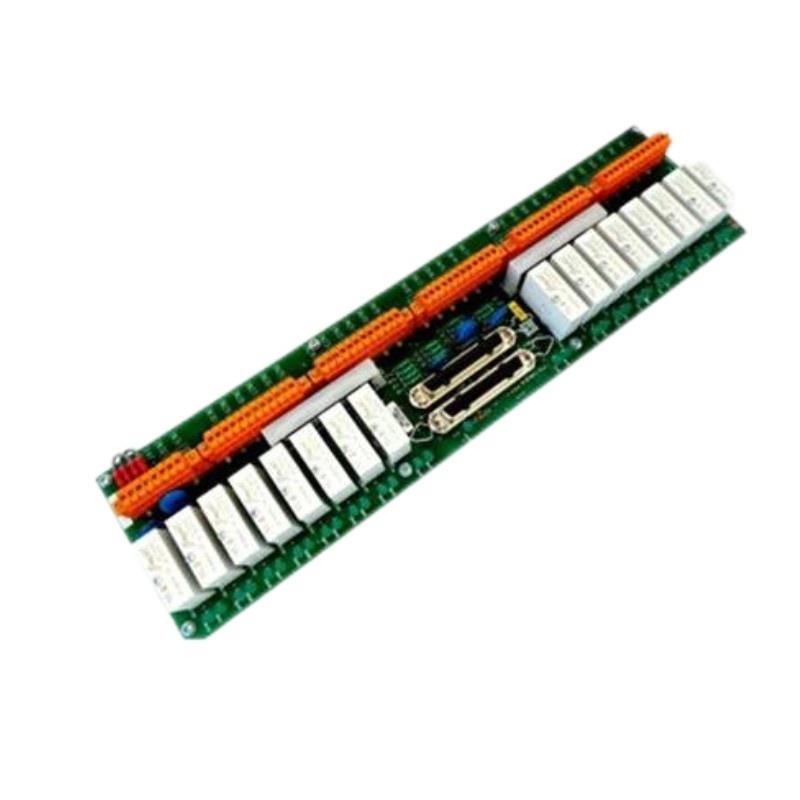

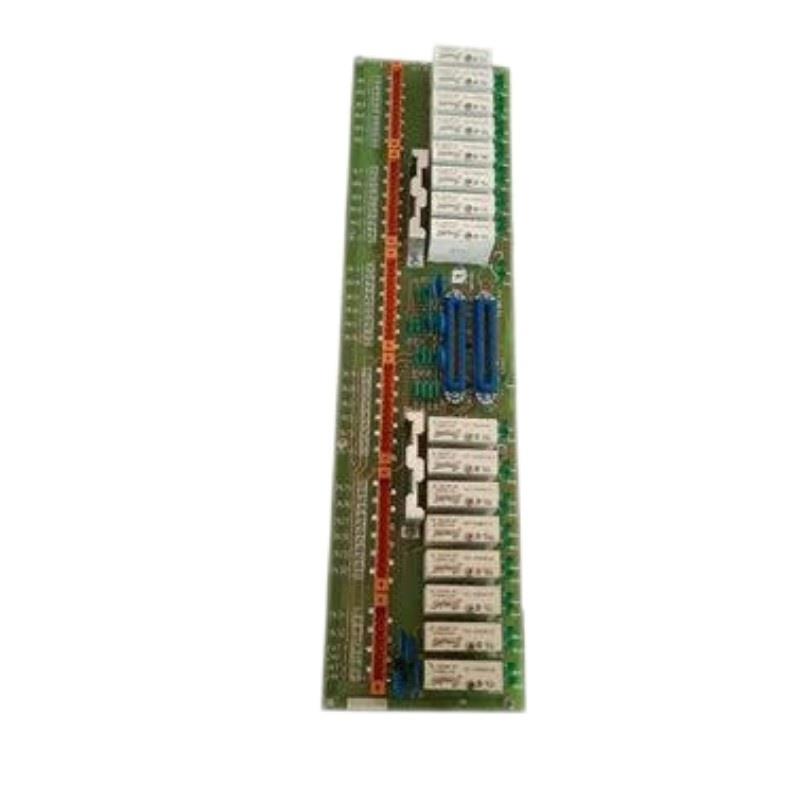

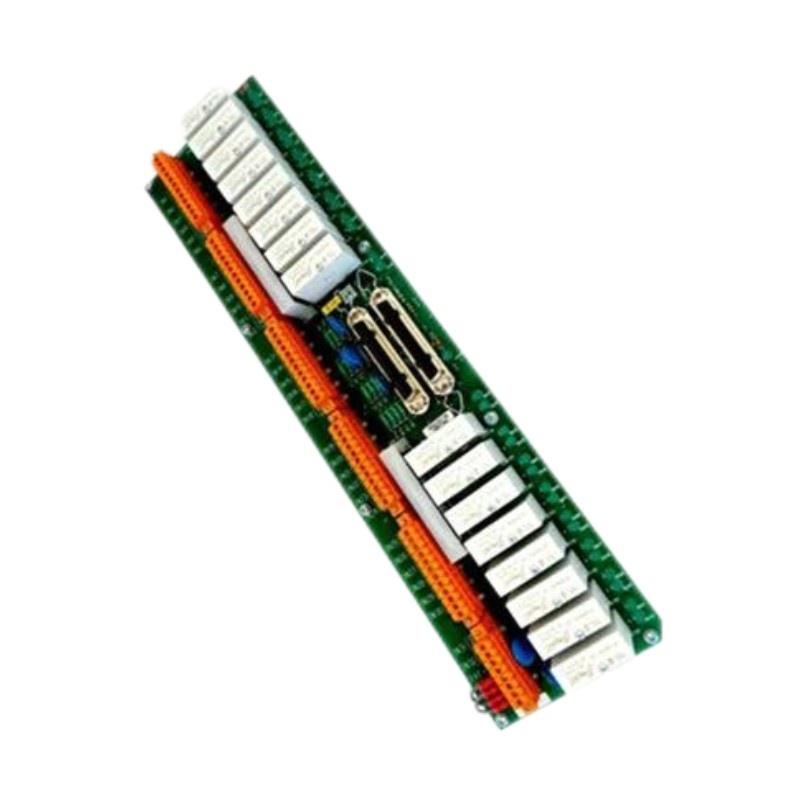

The Honeywell FS-TSGAS-1624 Safety Fire Detector Input FTA is a field termination assembly (FTA) specifically designed for use in fire detection and safety instrumented systems (SIS). It acts as the interface between fire detectors and the Honeywell Safety Manager (SM) or Fail Safe Controller (FSC). The FS-TSGAS-1624 provides secure, reliable communication for fire detection signals, enabling quick and accurate responses to fire events.
With its SIL 3 certification, this module is suitable for critical safety applications where fire detection systems are integrated into broader process safety management. The FS-TSGAS-1624 is designed to handle inputs from multiple types من fire detectors, including ionization, photoelectric, and smoke detectors, and ensures accurate transmission من alarm signals to the central safety system.
Key Features
-
SIL 3 Certified: Meets IEC 61508 safety integrity level for use in safety systems
-
Multiple Fire Detector Compatibility: الدعمs a wide range من fire detectors (ionization, photoelectric, smoke)
-
Redundant and Reliable: Ideal for use in redundant configurations for enhanced fault tolerance
-
Direct Interface with Honeywell Safety Systems: Fully integrates with Honeywell Safety Manager and FSC systems
-
Field-Terminated: Simplifies wiring and installation with field termination capabilities
-
Compact and Modular: Space-efficient design for integration into control panels and safety cabinets
-
LED Indicators: Provides clear status indicators for operational and fault states
-
Low Power Consumption: Designed to minimize power use while maintaining high performance
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | FS-TSGAS-1624 |
| Product Type | Fire Detector Input Field Termination Assembly (FTA) |
| Input Type | Compatible with ionization, photoelectric, and smoke detectors |
| SIL Certification | SIL 3 (IEC 61508) |
| Operating Voltage | 24 VDC (typically) |
| Communication Protocol | Honeywell proprietary communication with Safety Manager and FSC |
| Temperature Range | -20°C to +60°C (-4°F to +140°F) |
| Humidity Range | 5% to 95% RH, non-condensing |
| Mounting Type | DIN rail mountable (35 mm) |
| Field Termination | Yes |
| Protection Features | Short-circuit, overvoltage, and reverse polarity protection |
| Status Indicators | LED indicators for power, operation, and fault states |
| Dimensions | 225 x 70 x 60 mm |
| الوزن | 0.75 kg |
| Compliance | CE, RoHS, UL, IEC 61508, IEC 61010 |
Industry Applications
-
Oil & Gas Industry: Fire detection for process equipment, pipelines, and refining operations
-
Power Generation: Ensuring fire safety in critical power plant components, turbines, and transformers
-
Pharmaceutical: Safety fire detection in sterile environments and process control systems
-
Chemical & Petrochemical: Monitoring and controlling fire hazards in chemical plants and refineries
-
Water & Wastewater Treatment: Fire safety in treatment plants and storage facilities
-
Mining & Metals: Ensuring fire safety in high-risk environments such as furnaces and conveyors
Product Advantages
-
Safety-Certified: Fully SIL 3 compliant for high-integrity fire safety applications
-
Wide Compatibility: Works with a variety من fire detectors, making it adaptable to different safety needs
-
Efficient Field Termination: Simplifies installation and maintenance with direct connection to fire detectors
-
Enhanced Reliability: Built for use in critical applications where system uptime is crucial
-
Compact Form Factor: Easy to integrate into control cabinets with limited space
-
Clear Diagnostic Indicators: LEDs منfer real-time feedback on module health and performance
-
Reduced Power Consumption: Power-efficient design, minimizing energy costs in continuous operation
الأسئلة الشائعة (FAQ)
-
Q: What types من fire detectors are supported?
A: It supports ionization, photoelectric, and smoke detectors for fire detection. -
Q: Is the FS-TSGAS-1624 SIL 3 certified?
A: Yes, it is certified to SIL 3 according to IEC 61508 standards. -
Q: How does the FS-TSGAS-1624 communicate with the Safety Manager or FSC?
A: It communicates via Honeywell proprietary communication protocols with Safety Manager and FSC systems. -
Q: What is the power supply requirement for this module?
A: It operates on 24 VDC, typically supplied from a central power وحدة or safety power supply. -
Q: Can this module be used in redundant configurations?
A: Yes, it is designed for redundant systems, ensuring fault tolerance and high availability. -
Q: What is the mounting method for this module?
A: It is DIN rail mountable, which is a standard installation method for industrial control systems. -
Q: What is the temperature range for operation?
A: The module operates in temperatures from -20°C to +60°C (-4°F to +140°F). -
Q: Does it include status LEDs for diagnostics?
A: Yes, it has LED indicators to display power status, operational state, and fault conditions. -
Q: Is it easy to install and wire?
A: Yes, it has field termination capabilities, simplifying installation and reducing wiring complexity. -
Q: In which industries is the FS-TSGAS-1624 typically used?
A: It is commonly used in oil & gas, power generation, pharmaceutical, chemical, and water treatment industries.
