مقدمة المنتج

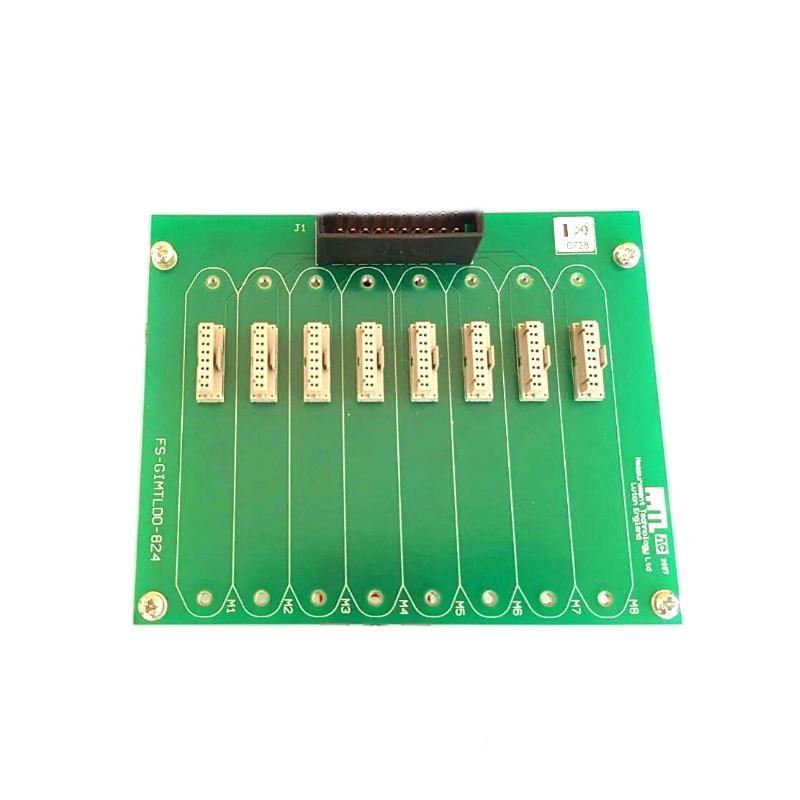

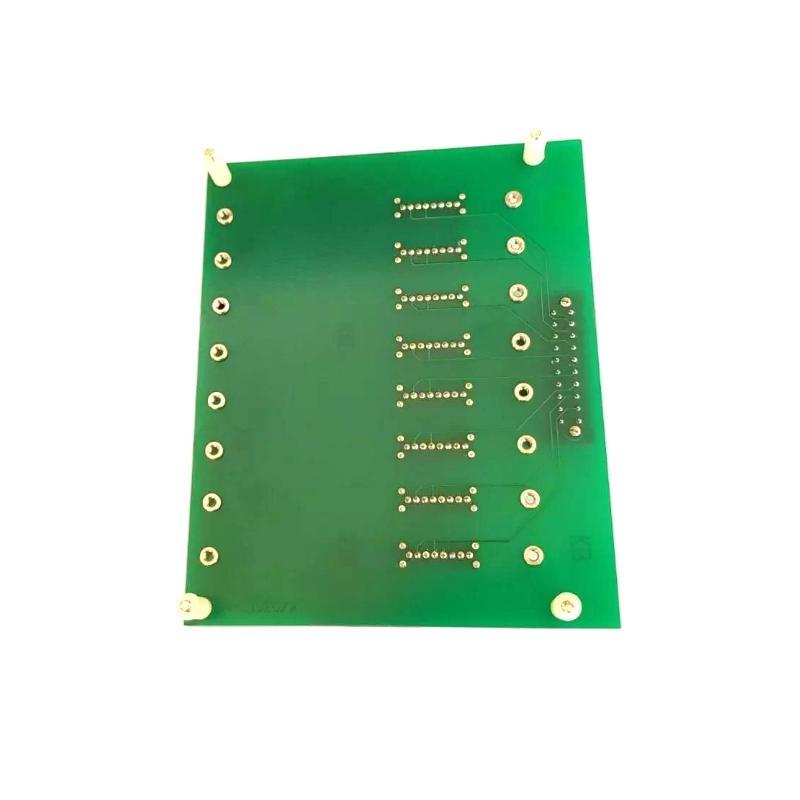

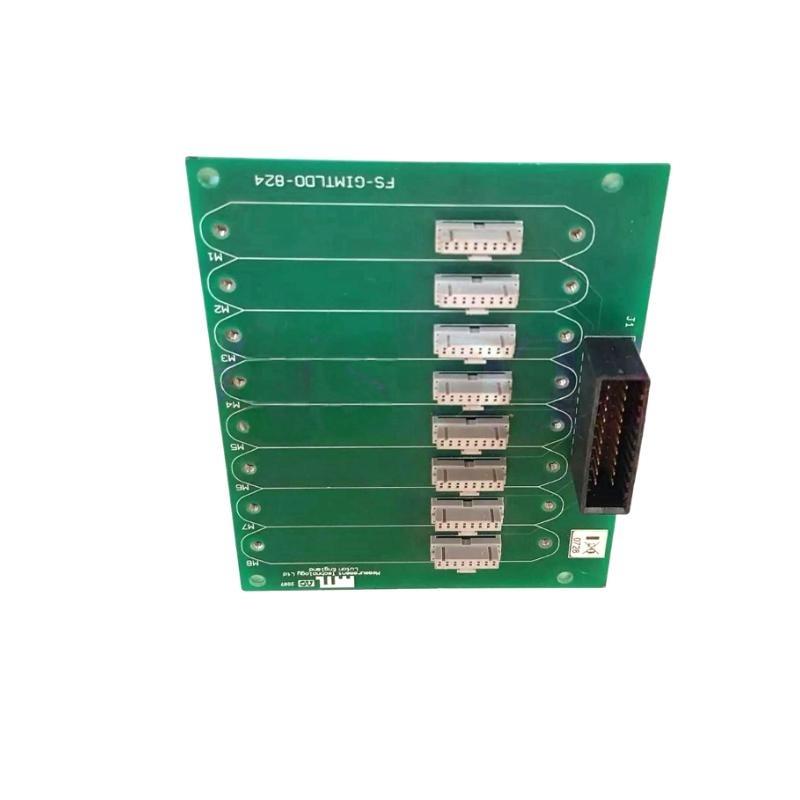

The Honeywell FS-GIMTLDO-824 is a high-performance Printed Circuit Board (PCB) designed to integrate seamlessly with Honeywell’s industrial automation systems. It is a vital component in the data transmission and signal routing within Honeywell’s process control systems, ensuring that various devices, such as controllers, sensors, and actuators, work in harmony. The FS-GIMTLDO-824 serves as the heart من system interconnections, providing reliable signal management and enabling smooth communication between the field devices and the central controller.
Manufactured using top-quality materials and advanced technology, the FS-GIMTLDO-824 is highly reliable, with robust design features that ensure its ability to operate in the harshest industrial environments. Whether used in manufacturing plants, energy management systems, or building automation, this PCB provides the necessary foundation to enable continuous, uninterrupted performance, even in extreme conditions.
Technical Parameters
| Parameter | Specification |
|---|---|
| الطراز | FS-GIMTLDO-824 |
| Dimensions | 114 x 120 x 20 mm |
| الوزن | 0.5 kg |
| Material | FR4 (Flame Retardant Epoxy) |
| Voltage Rating | 12-24 V DC |
| Current Rating | 1-2 A |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +125°C |
| Humidity | 95% Non-Condensing |
| Mounting Type | Surface Mount |
| Compatibility | Honeywell Process Control Systems |
Applications
The Honeywell FS-GIMTLDO-824 PCB is engineered to provide reliable and continuous service in a wide range من applications within industrial automation and process control. Its versatile functionality and robust construction make it ideal for the following uses:
1. Process Control Systems
The FS-GIMTLDO-824 is commonly used in process control systems, where it acts as a central node for signal distribution between controllers and field devices like temperature sensors, pressure transmitters, and flow meters. This makes it crucial in industries like chemical manufacturing, oil refining, and pharmaceutical production, where real-time monitoring and control are essential to ensure operational efficiency and safety.
2. Industrial Automation
In industrial automation, this PCB serves as the backbone for communication between programmable logic controllers (PLCs), motor drives, and other automation equipment. By ensuring reliable data transmission, the FS-GIMTLDO-824 helps in enhancing the overall productivity من manufacturing lines, reducing operational downtime, and improving system performance.
3. Energy Management Systems
For energy management systems, the FS-GIMTLDO-824 PCB is used in the management من smart meters, load controllers, and energy monitoring devices. Its ability to handle high-frequency signals and ensure stable communication allows companies to optimize their energy usage and reduce wastage, contributing to sustainability and cost savings.
4. Building Automation Systems (BMS)
The FS-GIMTLDO-824 is frequently used in Building Management Systems (BMS), where it helps connect and control various subsystems such as HVAC (Heating, Ventilation, and Air الحالةing), lighting systems, and security alarms. The reliable data flow ensures that these systems operate efficiently, reducing energy consumption and improving occupant comfort.
5. Safety Instrumented Systems (SIS)
In safety instrumented systems (SIS), the FS-GIMTLDO-824 ensures that critical safety functions, such as emergency shutdown systems, fire alarms, and gas detection systems, receive real-time data. This is vital in environments like chemical plants, oil rigs, and refineries, where ensuring safety and reducing the risk من accidents is من paramount importance.
Advantages
-
High Durability and Reliability: The FS-GIMTLDO-824 PCB is built to withstand harsh industrial environments. It operates reliably within a wide temperature range من -40°C to +85°C and can endure exposure to high humidity and electromagnetic interference (EMI), ensuring continuous performance in challenging conditions.
-
Compact and Lightweight: With dimensions من 114 x 120 x 20 mm and a weight من 0.5 kg, this PCB is compact and lightweight, making it easy to integrate into existing systems without taking up significant space.
-
Versatile Voltage and Current Rating: The PCB can handle 12-24 V DC and 1-2 A current ratings, making it compatible with a wide range من industrial automation systems. Its flexibility in power handling ensures that it can be used in various control systems without compromising safety or performance.
-
Easy Integration: Designed for surface-mount installation, the FS-GIMTLDO-824 PCB is easy to integrate into Honeywell’s process control systems. Its design makes installation faster and more efficient, reducing downtime during system setup.
-
High Material Quality: Manufactured with FR4 (Flame Retardant Epoxy) material, the PCB provides excellent fire resistance and ensures that it can endure in high-temperature environments while maintaining its structural integrity.
-
Long Lifespan: The FS-GIMTLDO-824 is engineered for long-term use, منfering a robust and reliable solution for automation systems that require durability over extended periods, reducing the need for frequent replacements.
-
Cost-Effective: Given its long lifespan and high reliability, the FS-GIMTLDO-824 provides an excellent return on investment, making it a cost-effective solution for businesses in need من durable automation components.
FAQ
Q1: What are the dimensions من the FS-GIMTLDO-824 PCB?
A1: The dimensions من the FS-GIMTLDO-824 PCB are 114 x 120 x 20 mm, making it compact enough for easy installation in most industrial systems.
Q2: What is the weight من the FS-GIMTLDO-824 PCB?
A2: The PCB weighs approximately 0.5 kg, which contributes to its easy handling and installation.
Q3: What is the voltage rating من the FS-GIMTLDO-824?
A3: The FS-GIMTLDO-824 has a voltage rating من 12-24 V DC, which is compatible with most industrial automation systems.
Q4: What is the temperature range for the FS-GIMTLDO-824?
A4: The PCB can operate within a temperature range من -40°C to +85°C, making it suitable for a wide range من industrial environments.
Q5: What materials is the FS-GIMTLDO-824 made from?
A5: The FS-GIMTLDO-824 is made from FR4 (Flame Retardant Epoxy), providing fire resistance and excellent durability in harsh environments.
Q6: What is the current rating من the FS-GIMTLDO-824?
A6: The FS-GIMTLDO-824 PCB has a current rating من 1-2 A, which is suitable for many control and automation systems.
Q7: Is the FS-GIMTLDO-824 easy to integrate into existing systems?
A7: Yes, the FS-GIMTLDO-824 features surface-mount installation, which simplifies integration into Honeywell’s process control systems.
Q8: Can the FS-GIMTLDO-824 be used in high-humidity environments?
A8: Yes, the PCB can handle 95% non-condensing humidity, making it suitable for use in humid environments.
Q9: What industries benefit from using the FS-GIMTLDO-824 PCB?
A9: The FS-GIMTLDO-824 is ideal for process control systems, industrial automation, energy management, building automation, and safety instrumented systems (SIS).
Q10: How does the FS-GIMTLDO-824 help improve system performance?
A10: The FS-GIMTLDO-824 PCB ensures reliable and stable signal transmission between devices, improving communication within the automation system, enhancing control accuracy, and reducing downtime.
Recommended الطرازs (Same Series or Related)
| الطراز | Specification |
|---|---|
| FS-GIMTLDO-820 | PCB for Process Control Systems |
| FS-GIMTLDO-830 | Industrial Automation PCB |
| FS-GIMTLDO-825 | Control System Interface PCB |
| FS-GIMTLDO-821 | Energy Management PCB |
| FS-GIMTLDO-822 | Safety System PCB |
| FS-GIMTLDO-823 | Building Automation PCB |
Recommended الطرازs (Same العلامة التجارية)
| الطراز | Specification |
|---|---|
| FC-SCDO-0824 | Digital Output Module, 24 VDC |
| FC-SCDO-0825 | Digital Output Module, 24 VDC |
| FC-SCDO-0826 | Digital Output Module, 24 VDC |
| FC-PDB-IO05 | I/O Module, 24 VDC |
| FC-PDB-IO06 | I/O Module, 24 VDC |
| FC-PDB-IO07 | I/O Module, 24 VDC |
