مقدمة المنتج

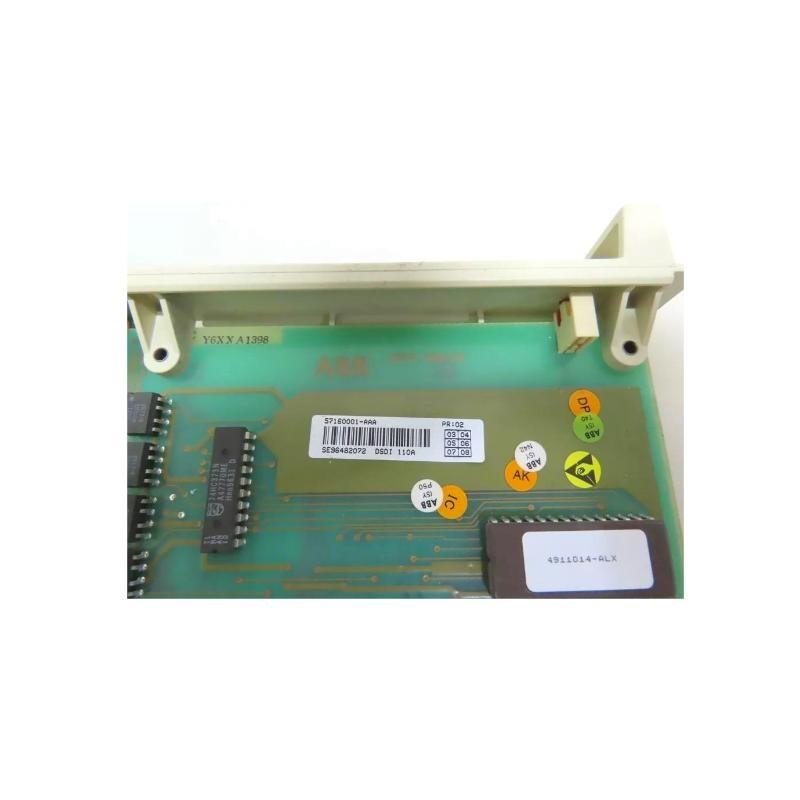

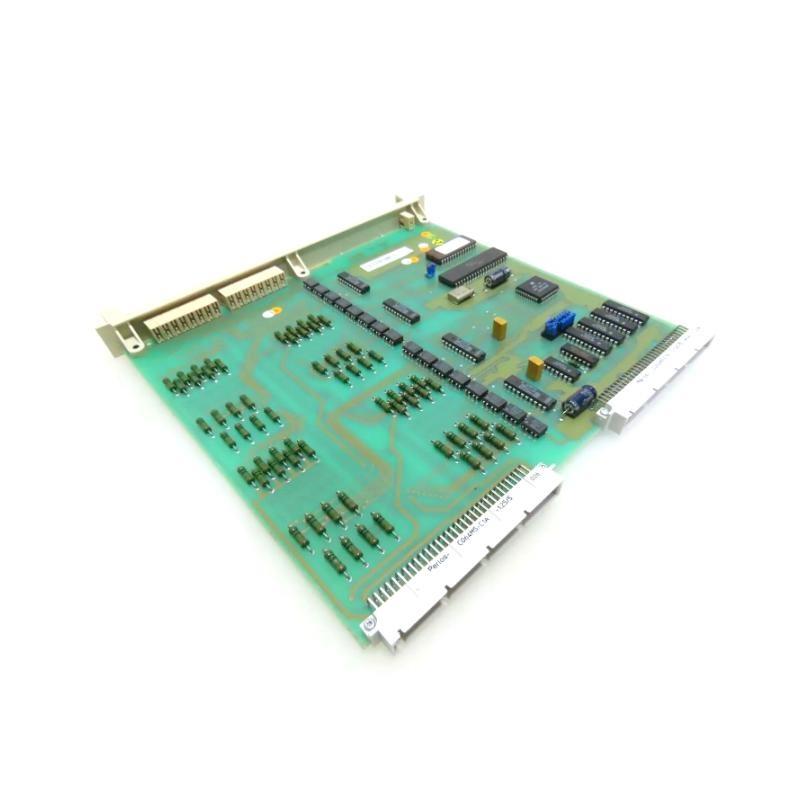

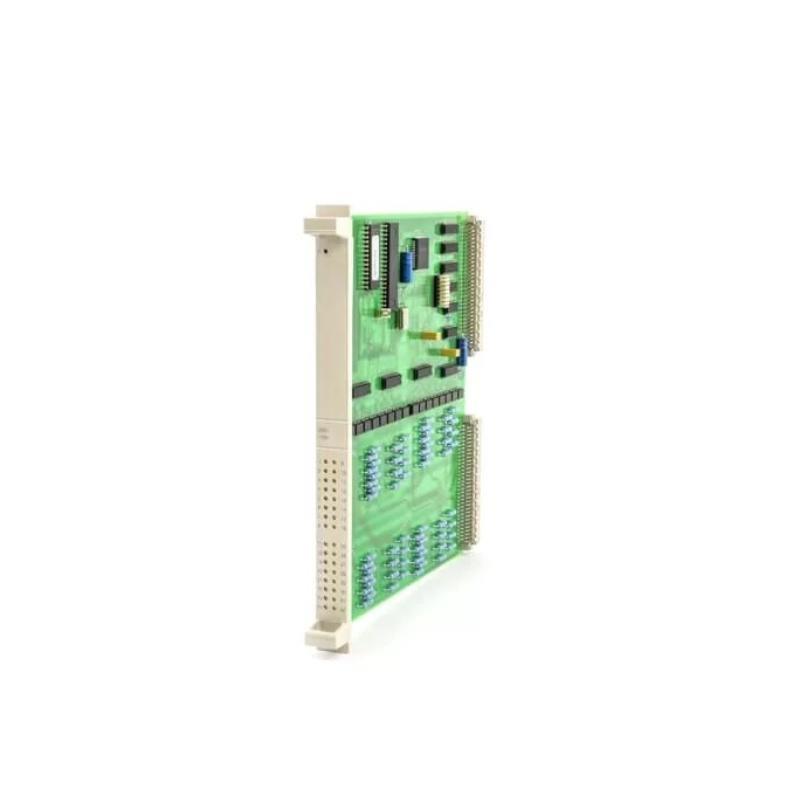

The ABB DSDI 110A 57160001-AAA is a digital input module designed for use in ABB’s Symphony and Symphony Plus Distributed Control Systems (DCS). It provides high-speed, reliable signal acquisition from a variety من field devices such as switches, sensors, and relays. This module is part من the Harmony Rack I/O family and منfers cost-effective, scalable, and dependable digital input handling within industrial automation processes. It is engineered to meet the demanding requirements من critical industries like power generation, oil & gas, and chemical processing.
This module is hot-swappable and supports status monitoring, diagnostics, and LED indication for easy maintenance and status verification. Its rugged construction and compliance with ABB’s stringent quality standards make it ideal for continuous operation in harsh industrial environments.
Product Advantages
-
High Channel Density: الدعمs up to 16 discrete input channels in a compact footprint.
-
Robust Diagnostics: Provides per-channel status indication and diagnostic capabilities.
-
Hot Swappable: Enables module replacement without interrupting system operation.
-
Reliable Signal Handling: Designed to operate with TTL and dry contact inputs, improving flexibility in field signal management.
-
Wide Compatibility: Seamlessly integrates with Symphony and Symphony Plus controllers and I/O systems.
-
Durability: Engineered for long-term use in high-temperature and high-vibration environments.
-
Easy Maintenance: Equipped with onboard status LEDs and clear labeling for ease من identification and troubleshooting.
Technical Specifications
| Parameter | Value |
|---|---|
| Product الطراز | DSDI 110A 57160001-AAA |
| Product Type | Digital Input Module |
| Number من Input Channels | 16 |
| Input Type | Discrete (Dry contact, TTL level) |
| Input Voltage Range | 18–30 VDC |
| Input Current (typical) | < 10 mA per channel |
| Response Time | < 1 ms |
| Diagnostics | Channel-wise, status LEDs |
| Hot Swappable | Yes |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions | 216 x 18 x 225mm |
| الوزن | 0.34 kg |
| Mounting | Plug-in to I/O rack |
| System Compatibility | Symphony, Symphony Plus |
| Certifications | CE, UL, CSA, RoHS |
Product Applications
-
Power Generation Plants: For monitoring status من circuit breakers, contactors, limit switches.
-
Oil and Gas Facilities: Interface with safety systems, pressure switches, and digital alarms.
-
Chemical Processing وحدةs: Tracks status من agitators, pumps, valves, and alarms.
-
Water Treatment Plants: Monitors pump status, float switches, and pressure inputs.
-
Steel Manufacturing: Integration into PLC systems for limit switch and gate control feedback.
-
Marine and Offshore Systems: Input interface for navigation and control panel signals.
Compatible الطرازs
The DSDI 110A module is typically used in combination with the following ABB I/O and control modules:
-
SDCS-IOB-1 Input/Output Module
-
SDCS-CON-2A Controller Module
-
DSAI 130 Analog Input Module
-
DSAO 120 Analog Output Module
-
DSDO 115A Digital Output Module
-
NPM22/21 Network Processing Modules
Installation Instructions
-
Power Off the System: Ensure the rack power is منf unless using hot-swap capability.
-
Align Module: Insert the DSDI 110A into the correct I/O rack slot.
-
Secure the Module: Use the retaining screws or levers to lock it into place.
-
Connect I/O Wiring: Carefully connect the field wiring to the terminal base according to the ABB wiring diagram.
-
Power On and Test: Restore power and observe module LEDs for proper operation.
-
System Configuration: Load the corresponding I/O configuration from the control system sمنtware.
Related الطرازs from Same Series or Function
-
DSDO 115A Digital Output Module
-
DSAI 130 Analog Input Module
-
DSAO 120 Analog Output Module
-
DI810 Digital Input Module
-
AI810 Analog Input Module
-
DO810 Digital Output Module
Popular الطرازs from ABB with Specifications
| الطراز Number | الوصف | Input/Output Type | Dimensions (mm) | الوزن | Voltage |
|---|---|---|---|---|---|
| DSDO 115A | Digital Output Module | 16 DO | 30×130×210 | 310 g | 24 VDC |
| DSAI 130 | Analog Input Module | 8 AI | 30×130×210 | 325 g | 0–10 V / 4–20mA |
| DSAO 120 | Analog Output Module | 8 AO | 30×130×210 | 315 g | 4–20mA |
| AI810 | Analog Input Module | 8 AI | 45×170×110 | 280 g | 0–10 V |
| DO810 | Digital Output Module | 16 DO | 45×170×110 | 270 g | 24 VDC |
| DI810 | Digital Input Module | 16 DI | 45×170×110 | 275 g | 24 VDC |
| PM861AK02 | CPU Controller | — | 130×230×50 | 650 g | 24 VDC |
| CI854AK01 | Communication Interface Module | — | 45×170×110 | 300 g | — |
الأسئلة الشائعة (FAQ)
Q1: What does DSDI stand for in ABB DSDI 110A?
A1: DSDI stands for “Digital Signal Digital Input,” indicating this is a discrete input module designed for receiving binary signals.
Q2: Can the DSDI 110A handle TTL level signals?
A2: Yes, it is capable من accepting TTL signals, as well as dry contact inputs, making it suitable for various field devices.
Q3: Is the DSDI 110A hot-swappable?
A3: Yes, this module supports hot swapping, allowing it to be replaced without shutting down the system.
Q4: What diagnostic features are available on the module?
A4: Each channel has status LEDs for real-time diagnostics and signal presence detection.
Q5: What systems is it compatible with?
A5: It is fully compatible with ABB Symphony and Symphony Plus systems.
Q6: What is the typical input current per channel?
A6: Each input channel draws less than 10 mA, ensuring energy-efficient operation.
Q7: How is the module mounted?
A7: The module is mounted via a plug-in connection to a compatible ABB I/O rack.
Q8: Can this module be used in high-humidity environments?
A8: Yes, it is rated for 5–95% non-condensing humidity, making it suitable for harsh environments.
Q9: Does ABB provide sمنtware support for configuring this module?
A9: Yes, it can be configured using ABB’s control sمنtware, such as Composer or Control Builder.
Q10: Is the DSDI 110A certified for use in industrial applications?
A10: Absolutely. It carries CE, UL, CSA, and RoHS certifications to ensure global compliance and safety.
