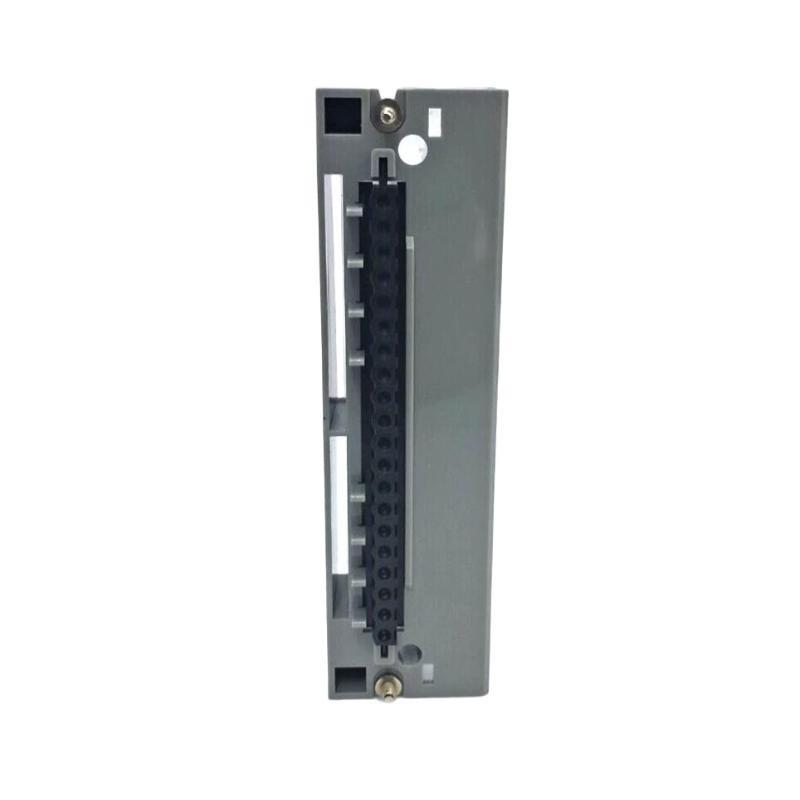

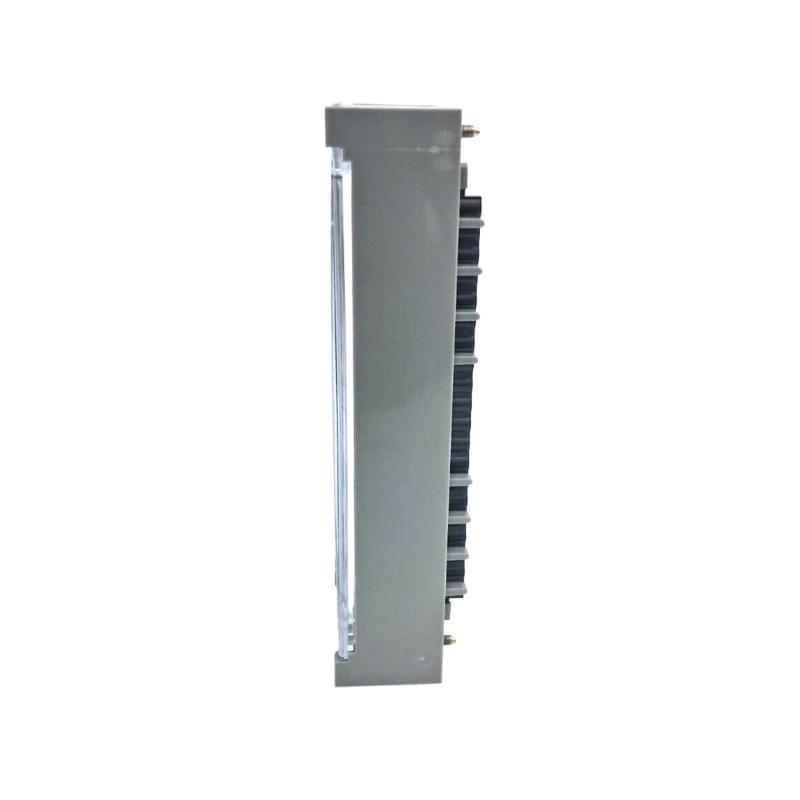

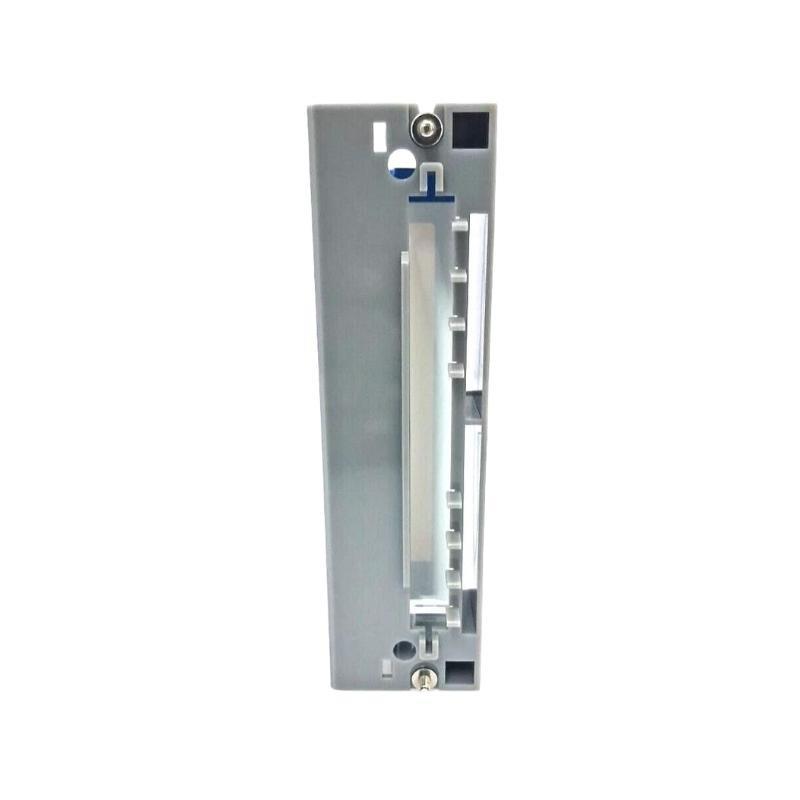

Product Overview
The Honeywell 900TEK-0101 HC900 Terminal Blocks are designed to provide secure and organized connections for field wiring to the HC900 series من control modules. These terminal blocks ensure reliable signal integrity, ease من maintenance, and flexibility in connecting I/O devices to the control system. Ideal for industrial automation, the 900TEK-0101 blocks منfer a durable solution for wire terminations in process control applications.
Key Features
-
Secure connections for reliable field wiring من digital and analog signals
-
Clear labeling for easy identification من input/output connections
-
Easy-to-use design for efficient installation and wiring management
-
Durable construction for long-term reliability in harsh environments
-
Compatible with HC900 I/O modules and other DCS هانيويل components
-
Compact modular design for space-saving and organized panel layout
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Terminal Block |
| الطراز Number | 900TEK-0101 |
| Number من Terminals | 16 |
| الدعمed Modules | HC900 I/O modules |
| Voltage Rating | 250 VAC/DC |
| Current Rating | 10 A per terminal |
| Wire Size | 12–22 AWG |
| Mounting | DIN rail mounting |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 85°C |
| Humidity | 5% to 95%, non-condensing |
| Dimensions | 210 × 70 × 45 mm |
| الوزن | 0.35 kg |
Industry Applications
-
Process control systems in chemical, petrochemical, and manufacturing industries
-
Wiring and signal termination for I/O devices in Honeywell HC900 systems
-
Field wiring for sensors, actuators, and relays connected to DCS
-
Industrial environments requiring secure and reliable wiring connections
-
Automation panel setups with space-saving design and easy maintenance
الأسئلة الشائعة (FAQ)
Q1: How many terminals does the 900TEK-0101 terminal block have?
It has 16 terminals for connecting I/O devices.
Q2: What is the current rating per terminal?
Each terminal supports up to 10 A من current.
Q3: Can it be used for both AC and DC signals?
Yes, it supports both 250 VAC and 250 VDC.
Q4: What wire sizes are compatible with this terminal block?
It supports 12–22 AWG wire sizes.
Q5: How is it mounted?
It mounts on a DIN rail for easy installation.
Q6: What is the operating temperature range?
-20°C to 60°C.
Q7: What is the storage temperature range?
-30°C to 85°C.
Q8: Can it operate in humid environments?
Yes, it can operate in environments with humidity levels from 5% to 95%, non-condensing.
Q9: What is the weight من the terminal block?
It weighs approximately 0.35 kg.
Q10: Is it compatible with Honeywell HC900 systems?
Yes, it is designed for use with HC900 I/O modules and other DCS هانيويل components.
Related الطرازs
| الطراز | الوصف |
|---|---|
| 900TEK-0102 | HC900 Terminal Block (8 terminals) |
| 900TEK-0103 | HC900 Terminal Block (32 terminals) |
| 900TEK-0104 | HC900 Terminal Block (with screwless connection) |
| 900TEK-0105 | HC900 Terminal Block (for high current applications) |
| 900TEK-0106 | HC900 Terminal Block (with integrated fuse protection) |
| 900TEK-0107 | HC900 Terminal Block (with LED indicators) |
