مقدمة المنتج

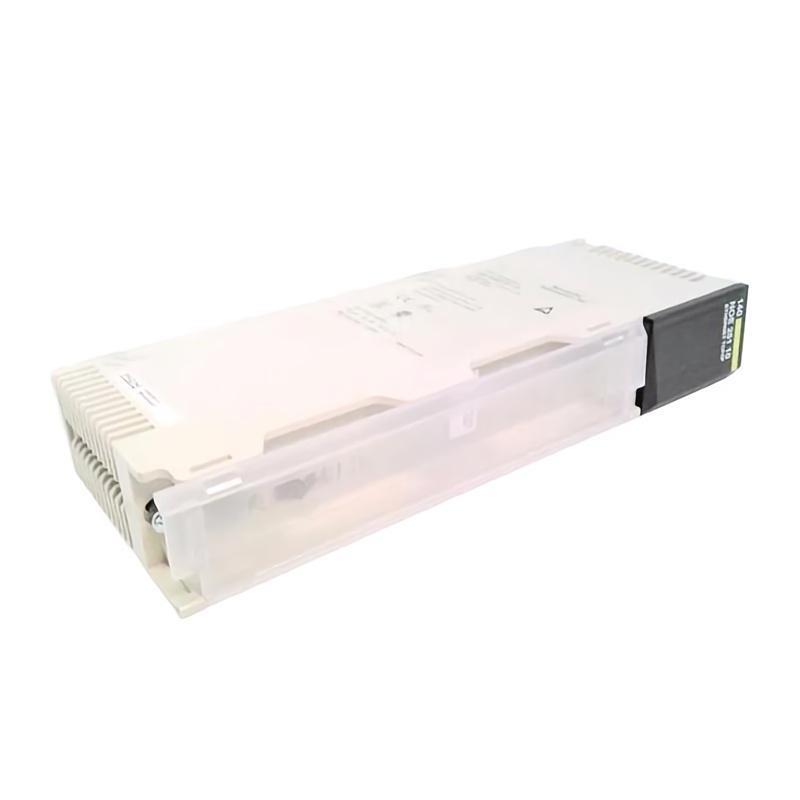

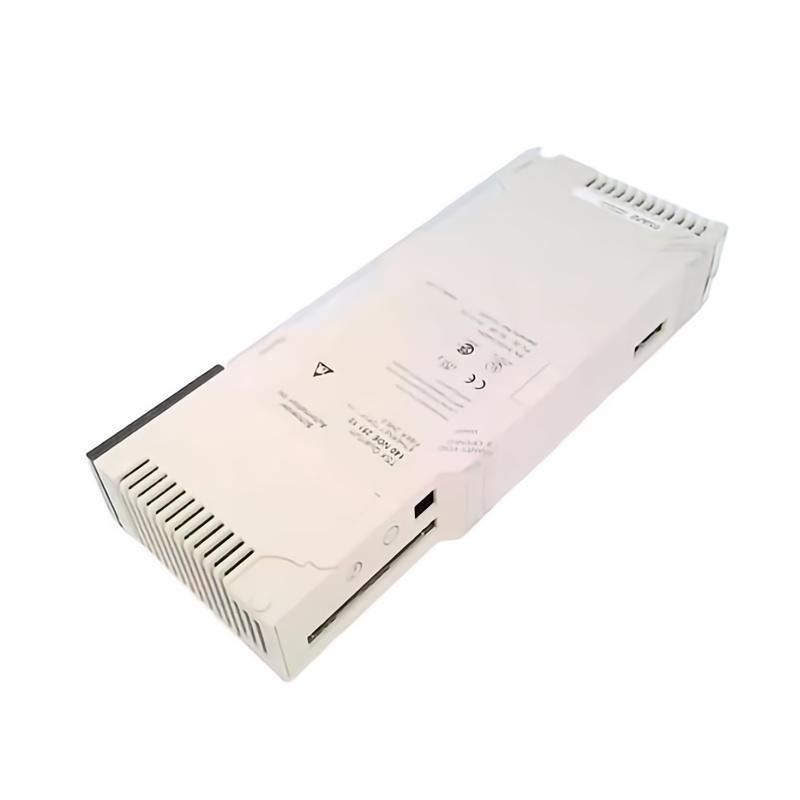

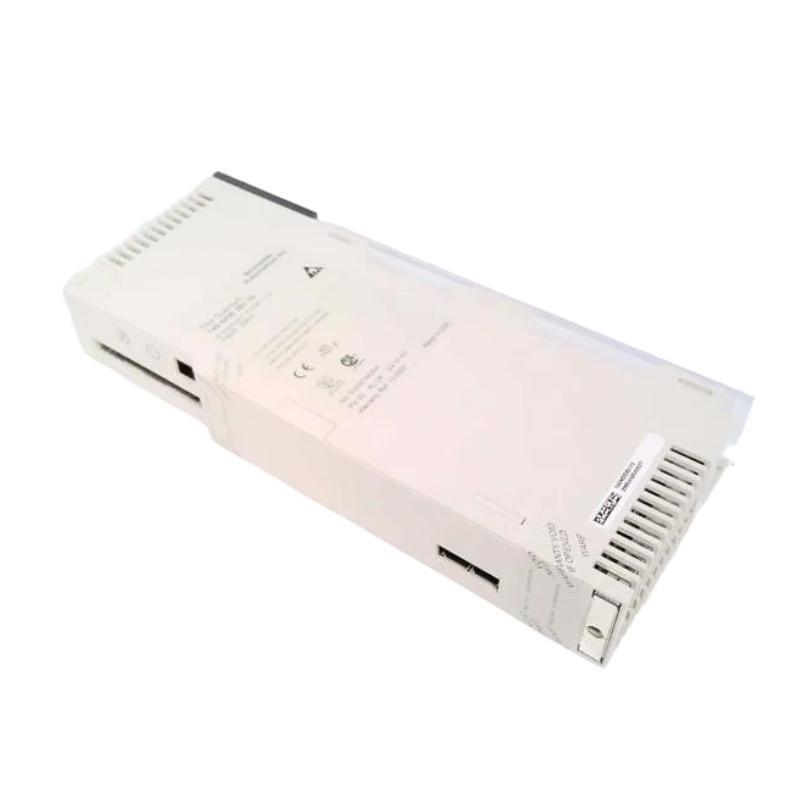

The Schneider 140NOE25110C Ethernet TCP/IP Module is a specialized communication interface designed for Modicon Quantum PLCs. This module functions as an embedded web server and enables TCP/IP Ethernet connectivity, providing seamless integration for data exchange, monitoring, and control in industrial automation systems. Although discontinued by the manufacturer, the module remains relevant for legacy systems requiring Ethernet connectivity with web-based access. It supports up to 8 channels, allowing multiple simultaneous connections, and provides high-speed, reliable communication for SCADA systems, HMIs, and other networked devices. With a fiber optic connector for transmit and receive, the 140NOE25110C ensures secure and interference-resistant communication in industrial environments. Its 5-watt power consumption and 1-amp current rating make it suitable for efficient operation without overloading the control system.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز | 140NOE25110C |
| Module Type | Ethernet TCP/IP Web Embedded Server Module |
| Status | Discontinued by manufacturer |
| Channels | 8 simultaneous communication channels |
| Network Protocol | TCP/IP, Modbus TCP/IP |
| Interface | Fiber optic transmit and receive connector |
| Power Consumption | 5 W |
| Current Rating | 1 A |
| الدعمed Devices | Modicon Quantum PLCs, SCADA, HMI, Ethernet-enabled devices |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | −40 °C to +85 °C |
| Humidity | 5% – 95% non-condensing |
| Diagnostics | LED indicators for power, link, activity, and errors |
| Mounting | DIN rail or panel mount |
| Dimensions (L × W × H) | 103.9 × 40.3 × 250 mm |
| الوزن | 0.336 kg |
| Compliance | CE, UL, RoHS |
Applications
The 140NOE25110C module is suitable for legacy and existing industrial automation networks requiring reliable Ethernet connectivity:
-
Quantum PLC Network Integration: Provides web-based monitoring and control من Modicon Quantum PLCs.
-
SCADA Systems: Enables high-speed Ethernet communication for centralized process control.
-
HMI Connectivity: الدعمs multiple simultaneous connections to operator interfaces.
-
Industrial Data Logging: Secure data transmission over fiber optic connections for process recording.
-
Remote Access: Web server capabilities allow monitoring and control from remote locations.
-
Legacy System Upgrades: Ideal for maintaining Ethernet functionality in discontinued system architectures.
Advantages
-
Embedded Web Server: Enables direct monitoring and control من PLCs via web interfaces.
-
Multiple Channels: الدعمs up to 8 simultaneous communication channels for efficient data exchange.
-
Fiber Optic Connectivity: Provides interference-resistant and secure communication over long distances.
-
High-Speed Ethernet: TCP/IP protocol ensures rapid and reliable network communication.
-
Low Power Consumption: Operates at 5 W with 1 A current, minimizing impact on control system power budgets.
-
Flexible Mounting: DIN rail or panel installation for easy integration in control cabinets.
-
Diagnostic LEDs: Simple visual feedback for power, link status, activity, and error conditions.
-
Legacy Compatibility: الدعمs older Modicon Quantum systems for continued network functionality.
FAQ
-
What network protocols are supported by the 140NOE25110C?
The module supports TCP/IP and Modbus TCP/IP, enabling Ethernet-based communication with multiple industrial devices. -
How many communication channels are available?
It supports up to 8 simultaneous channels, allowing multiple devices to connect concurrently. -
What type من connection does the module use?
The module uses a fiber optic transmit and receive connector for secure and interference-resistant communication. -
What is the power consumption من the module?
The module consumes 5 W من power and operates at a current من 1 A. -
Can the module function as a web server?
Yes, it provides embedded web server capabilities, allowing monitoring and control via web interfaces. -
Which PLCs is the module compatible with?
It is designed for use with Schneider Modicon Quantum PLCs. -
Is it suitable for remote monitoring applications?
Yes, the embedded web server and TCP/IP connectivity allow remote access to the PLC system. -
What diagnostics features are available?
LED indicators show power, link status, data activity, and error conditions for easy troubleshooting. -
Can it be mounted on a DIN rail?
Yes, the module supports both DIN rail and panel mounting. -
Is the module suitable for industrial environments?
Yes, it operates from 0 °C to +60 °C with 5%–95% non-condensing humidity, suitable for standard industrial conditions.
