مقدمة المنتج

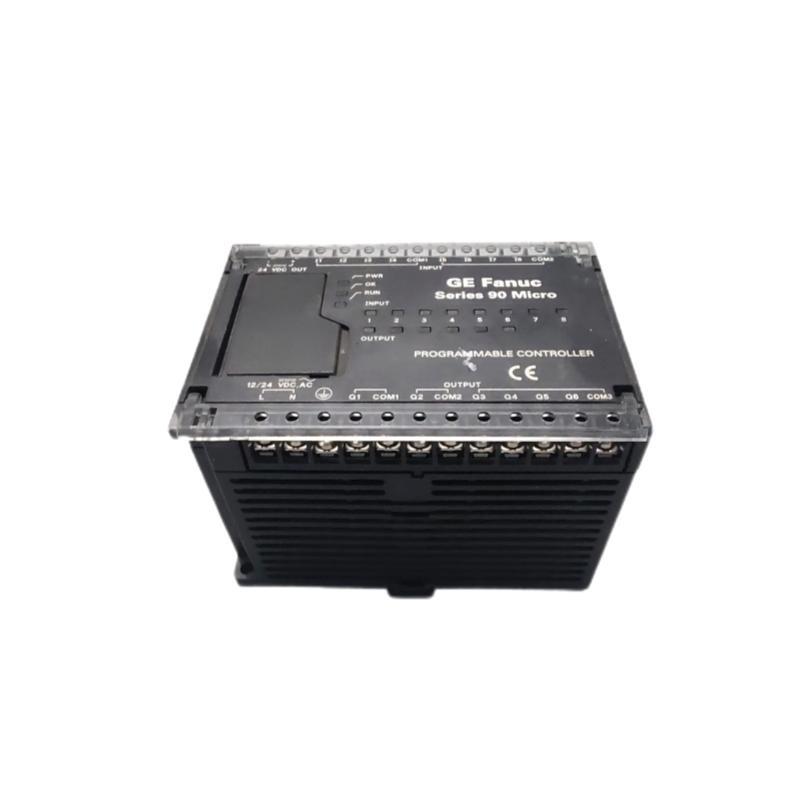

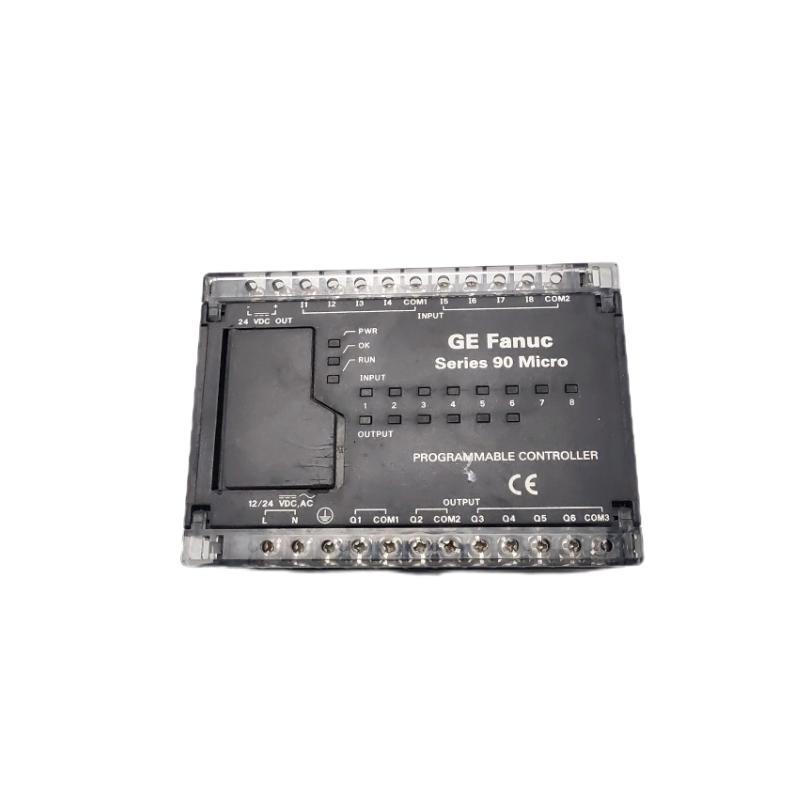

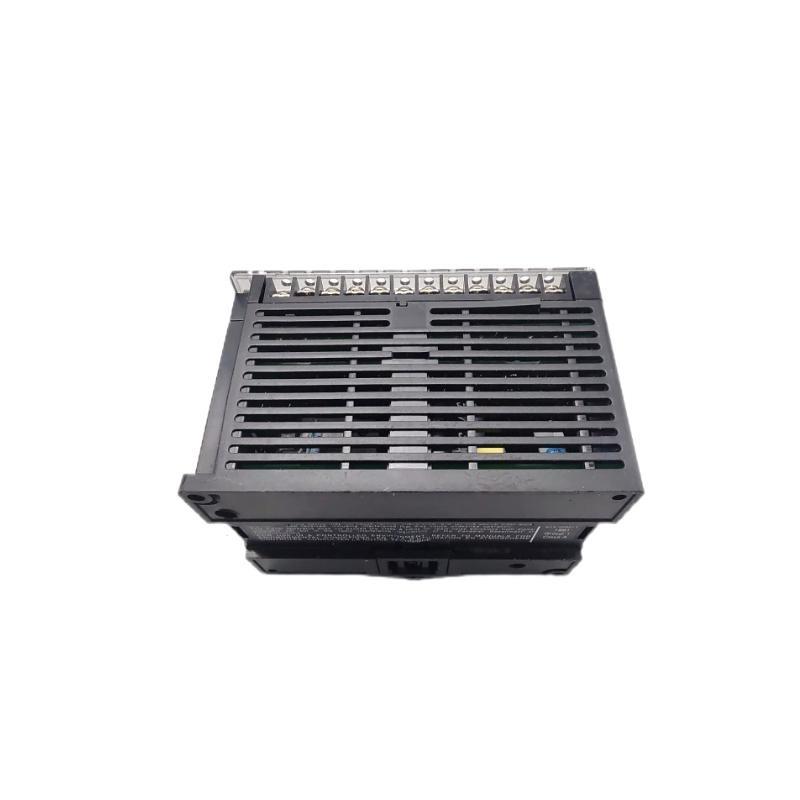

The GE IC693UDR002 is a compact Programmable Logic Controller (PLC) from the GE Fanuc Series 90-30 Micro line. Designed for small to mid-sized automation tasks, this وحدة integrates the CPU, power supply, discrete I/O, and communication capabilities into a single, highly compact package. The IC693UDR002 is an all-in-one controller module, eliminating the need for multiple external components, making it highly space-efficient and ideal for distributed or stand-alone applications.
Its key functionalities include digital I/O control, serial communication, data processing, and system diagnostics. This controller supports both ladder logic and function block programming, and it can be configured and programmed using GE Fanuc’s Prمنicy Machine Edition sمنtware.
Engineered for reliability in harsh environments and long-term deployment, the IC693UDR002 منfers industrial-grade performance for OEMs, machine builders, and process integrators.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز Number | IC693UDR002 |
| الشركة المصنعة | GE Fanuc (General Electric) |
| Series | Series 90-30 Micro |
| Controller Type | Micro PLC with integrated CPU, I/O, and power supply |
| Processor Type | Embedded CPU with standard logic processing |
| Programming اللغة | Ladder Diagram (LD), Function Block Diagram (FBD) |
| Programming Sمنtware | Prمنicy Machine Edition (Logic Developer – PLC) |
| Input Power Supply | 120/240 VAC |
| Digital Inputs | 14 points (24 VDC sink/source) |
| Digital Outputs | 10 points (relay) |
| Communication Ports | 1 RS-232 serial port |
| Memory | 2 KB user program memory |
| Status Indicators | LED indicators for RUN, OK, I/O, and serial communication |
| Mounting | Panel Mount or DIN Rail Mount |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Relative Humidity | 5%–95% non-condensing |
| Certifications | UL, CE, CSA |
| Dimensions (W × H × D) | 130 × 125 × 60 mm |
| الوزن | 0.381 kg |
Product Applications
-
Industrial Machine Automation: Controls for packaging, labeling, and assembly equipment.
-
Process Control Systems: Applied in batch control, mixing, temperature control, and material handling.
-
OEM Machinery Integration: Ideal for compact machines requiring local I/O and control.
-
Building Automation: الدعمs HVAC, lighting, and access control systems.
-
Water/Wastewater Treatment: Manages pumps, valves, and flow sensors with discrete I/O logic.
-
Energy Monitoring: Acts as a remote logic وحدة in distributed substation automation systems.
Product Advantages
-
All-in-One Design: Integrates CPU, I/O, and power supply into a single, compact وحدة.
-
Cost-Effective: Reduces hardware and wiring costs by minimizing the number من modules.
-
User-Friendly Configuration: Easily programmed using GE’s Prمنicy Machine Edition platform.
-
Compact Footprint: حفظs space in crowded control panels and tight enclosures.
-
Versatile Mounting Options: الدعمs both DIN rail and panel mounting.
-
Reliable Performance: Built to function reliably in industrial operating conditions.
-
Diagnostic LEDs: Provides real-time visual feedback for system diagnostics and status.
-
Easy Integration: Compatible with a wide range من GE Fanuc Series 90-30 modules.
-
Long-Term Availability: Backed by GE’s long-term support for industrial automation products.
-
Flexible Communication: Includes a serial port for HMI or SCADA connectivity.
الأسئلة الشائعة (FAQ)
-
What is the IC693UDR002 used for?
It is used as a compact programmable controller for managing discrete automation tasks in industrial environments. -
How many I/O points does the controller have?
It has 14 digital inputs and 10 relay outputs, suitable for basic control applications. -
Does the controller have an integrated power supply?
Yes, it includes an internal power supply that operates on 120/240 VAC. -
Which programming sمنtware is compatible with this وحدة?
It is programmed using GE Prمنicy Machine Edition (Logic Developer – PLC). -
Can this PLC be used for analog signal control?
No, it only supports discrete I/O. For analog control, you would need additional modules or a different model. -
Is the IC693UDR002 suitable for DIN rail mounting?
Yes, it supports both DIN rail and panel mounting. -
Can I expand this PLC with additional modules?
No, the Micro PLC is a fixed configuration and does not support expansion modules. -
What kind من communication interfaces are provided?
The module features a single RS-232 serial communication port. -
What is the operating temperature range?
It can operate reliably from 0°C to 60°C. -
Is this model still supported by GE?
Yes, while approaching the mature stage.
Related الطرازs (Same Series or Functionality)
| الطراز Number | الوصف |
|---|---|
| IC693UDR005 | Micro PLC with 28 I/O points (16 IN / 12 OUT), 120/240VAC |
| IC693UEX011 | Expansion base for 90-30 Micro PLC |
| IC693CHS391 | 10-slot baseplate for Series 90-30 |
| IC693CPU311 | Basic CPU for Series 90-30 PLCs |
| IC693MDL645 | 32-point digital input module (24 VDC) |
| IC693MDL734 | 8-point relay output module |
Popular GE Fanuc الطرازs (Same العلامة التجارية)
| الطراز Number | الوصف |
|---|---|
| IC695CPU310 | RX3i Controller with 1MB user memory |
| IC200CPUE05 | VersaMax CPU with Ethernet support |
| IC694MDL740 | 16-point 120VAC input module |
| IC695PSA140 | RX3i 120/240 VAC power supply |
| IC200ALG260 | 8-channel analog input module for VersaMax |
| IC200MDL650 | 32-point discrete input module for VersaMax |
