مقدمة المنتج

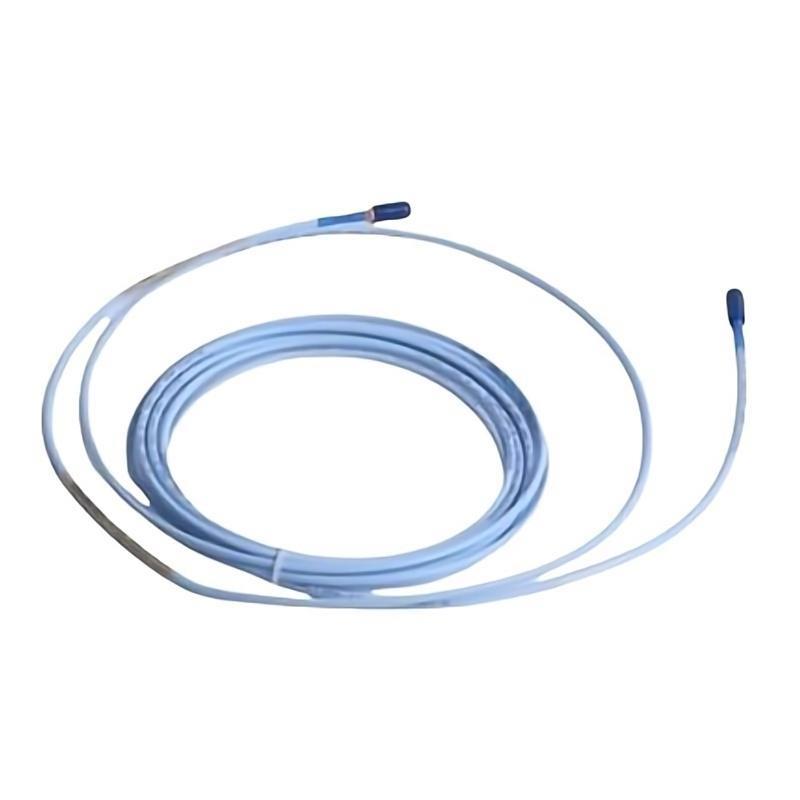

The Bently Nevada 164517-090-05-01-05 3300 XL Ceramic Capped Proximity Probe is part من the renowned 3300 XL series, engineered for highly reliable machinery condition monitoring. This probe is designed to measure the relative vibration and position من rotating shafts, enabling operators to protect and optimize critical machinery such as turbines, compressors, pumps, and motors.
The ceramic cap provides additional protection against mechanical wear, thermal effects, and chemical corrosion, making it suitable for challenging industrial environments. With superior linearity, stability, and noise immوحدةy, the probe ensures accurate vibration and displacement measurements under continuous operation.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز Number | 164517-090-05-01-05 |
| Product Type | 3300 XL Ceramic Capped Proximity Probe |
| Measurement Principle | Eddy Current (Non-contact displacement sensing) |
| Total Length | 0.5 meter |
| Tip Material | Ceramic capped, corrosion-resistant |
| Frequency Range | DC to 10 kHz |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Linear Range | 80 mils (2 mm) |
| Gap Range | 0.25 mm to 2.0 mm |
| Probe Diameter | 8 mm |
| Insulation | High-grade protective sleeve |
| Temperature Range (Operating) | -35°C to +180°C |
| Temperature Range (Storage) | -40°C to +200°C |
| Humidity Tolerance | 0–95% non-condensing |
| Housing Material | Stainless steel with ceramic tip |
| Electrical Connector | Compatible with 3300 XL extension cables and proximitor |
| Vibration Limit | 200 g, 10 kHz |
| الشحن الوزن | 3 kg |
Applications
The 3300 XL Ceramic Capped Proximity Probe is widely used in machinery protection and diagnostics, with applications including:
-
Turbomachinery monitoring in power plants and refineries.
-
Compressor condition tracking for oil & gas facilities.
-
Pump vibration monitoring to reduce cavitation risks.
-
Motor shaft alignment checks in industrial operations.
-
Gearbox diagnostics in heavy-duty machinery.
-
Aerospace and defense equipment testing for precision motion measurement.
-
Chemical and petrochemical processing plants where harsh conditions exist.
Advantages
-
Ceramic Capped Durability: Enhanced resistance to wear, high temperatures, and chemical corrosion.
-
High Measurement Accuracy: Provides stable sensitivity من 200 mV/mil with wide linear range.
-
Extended Environmental Capability: Operates reliably in extreme temperature and vibration conditions.
-
System Integration: Fully compatible with Bently Nevada 3300 XL proximitor and extension cables.
-
Reduced Signal Noise: Designed with excellent EMI/RFI shielding for clean data.
-
Long-Term Reliability: Proven performance in continuous 24/7 machinery monitoring.
-
Global Standard: Trusted by industries worldwide for safety and predictive maintenance.
الأسئلة الشائعة (FAQ)
-
What is the sensitivity من the 164517-090-05-01-05 probe?
The probe has a sensitivity من 200 mV/mil (7.87 mV/µm), ensuring accurate displacement measurements. -
What is the probe’s linear measurement range?
It can measure accurately within an 80 mil (2 mm) linear range. -
Is the probe tip resistant to chemical environments?
Yes, the ceramic cap provides strong resistance to corrosive agents. -
What is the compatible proximitor for this probe?
It integrates seamlessly with the Bently Nevada 3300 XL proximitor modules. -
How does the probe handle high vibration environments?
It is designed to withstand vibration levels up to 200 g at 10 kHz. -
What is the operating temperature range?
The probe operates reliably between -35°C and +180°C. -
Does the probe require specific cabling?
Yes, it requires 3300 XL series extension cables for proper function and calibration. -
What type من measurement does it provide?
It measures non-contact shaft displacement and vibration using the eddy current principle. -
Can the probe be used in hazardous areas?
Yes, with the proper proximitor and installation, it can be applied in hazardous zones. -
What is the electrical output من the probe?
It delivers a voltage output proportional to shaft displacement, calibrated at 200 mV/mil.
Related الطرازs (Same Series or Similar)
| الطراز Number | الوصف |
|---|---|
| 164517-090-05-01-00 | Standard 3300 XL proximity probe with ceramic cap |
| 164517-090-05-01-10 | Extended temperature range version |
| 164517-090-05-01-15 | Proximity probe with enhanced EMI shielding |
| 3300 XL 8 mm | General-purpose proximity probe |
| 3300 XL 11 mm | Larger diameter probe for extended measurement range |
| 3300 NSv | Narrow side-view probe for small machinery applications |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف |
|---|---|
| 330130-040-00 | Standard proximity probe cable assembly |
| 330180-50-00 | Extension cable for proximity probes |
| 330850-90-05 | Dual-channel extension cable assembly |
| 3500/22M | Transient Data Interface (TDI) for 3500 system |
| 3500/42M | Proximitor/Seismic Monitor module |
| 3500/32M | Relay module for alarm and trip functions |
