Product Overview

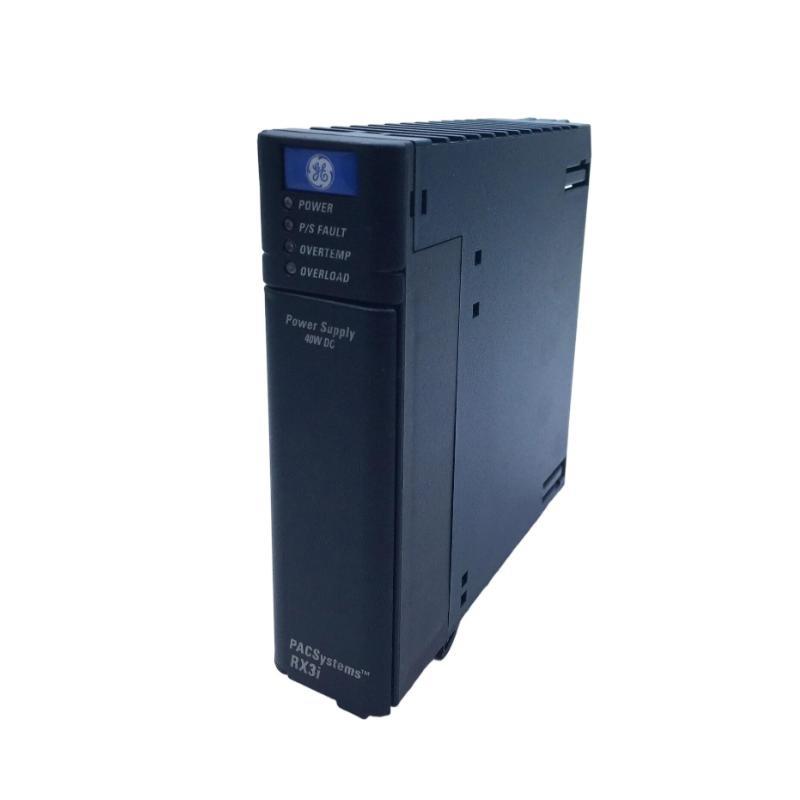

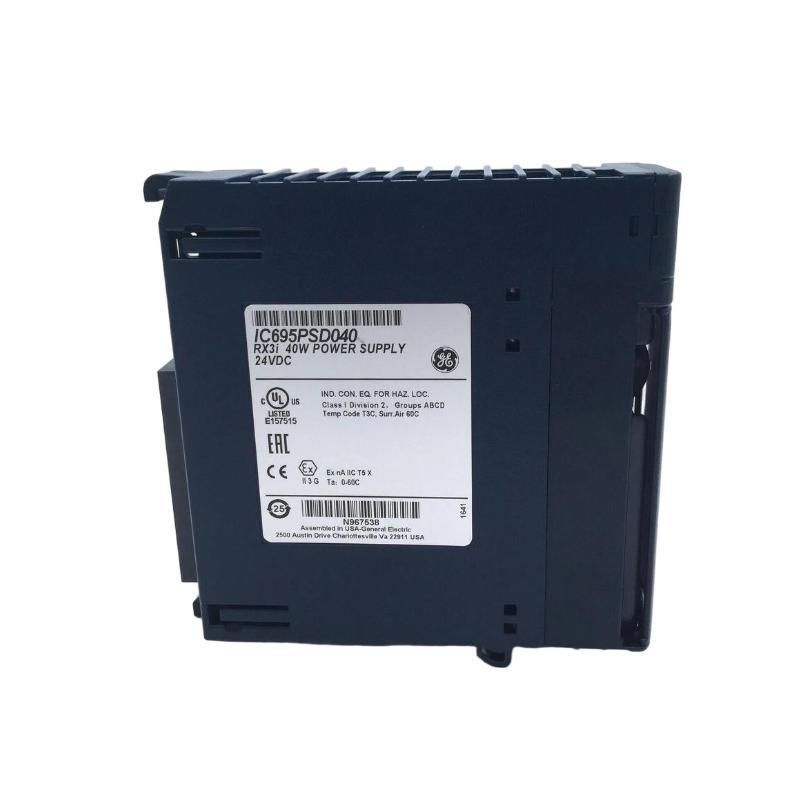

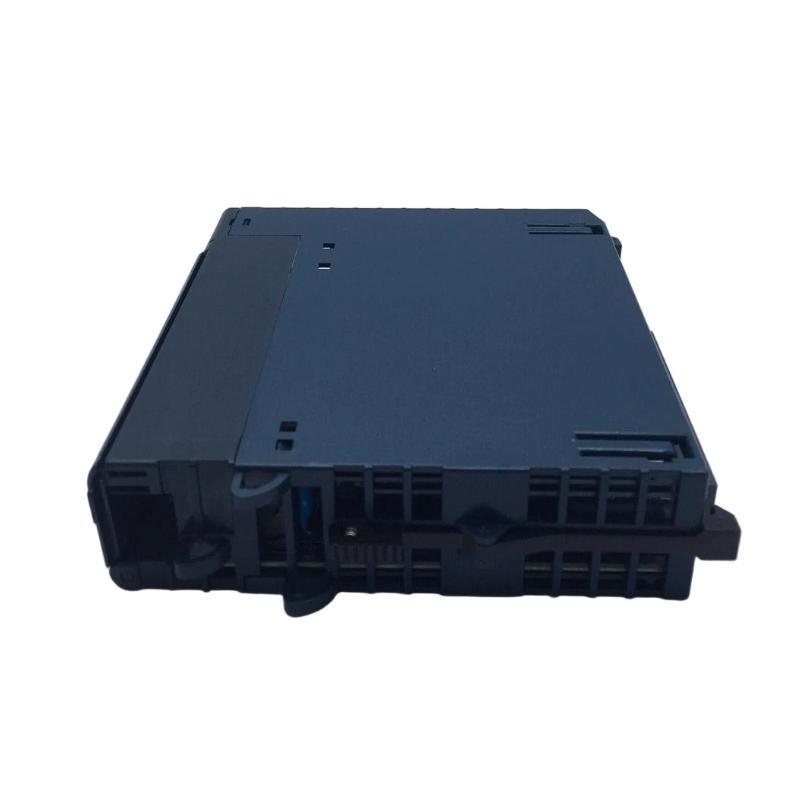

The GE Fanuc IC695PSD040 RX3i Universal Backplane Power Supply is a reliable and efficient power module designed for the RX3i PACSystems. It provides stable DC power for system backplanes and connected modules, ensuring dependable performance in industrial automation applications. With its compact design and robust protection features, the IC695PSD040 delivers consistent power under varying load conditions, making it ideal for use in mission-critical control systems.
Key Features
-
Provides 40 W من regulated DC power for RX3i backplanes and modules
-
Automatic overvoltage, overcurrent, and thermal protection
-
Universal AC/DC input for flexible installation
-
Compact and durable design for harsh industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| الشركة المصنعة | GE Fanuc |
| رقم القطعة | IC695PSD040 |
| Product Type | RX3i Universal Backplane Power Supply |
| Series | PACSystems RX3i |
| Input Voltage Range | 85–264 VAC or 100–300 VDC |
| Output Power | 40 W |
| Output Voltage | +5 VDC, +24 VDC (logic and relay loads) |
| Input Frequency | 47–63 Hz |
| Efficiency | ≥ 85% |
| Protection Features | Overvoltage, overcurrent, and thermal shutdown |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5–95% RH (non-condensing) |
| Dimensions | 34 x 145 x 140 mm |
| الوزن | 1.129 kg |
| Applications | Provides power to RX3i racks, CPUs, and I/O modules |
Industry Applications
-
Industrial control and automation systems
-
Manufacturing and process control lines
-
Power generation and distribution plants
-
Oil and gas monitoring systems
-
Transportation and infrastructure control systems
-
Water and wastewater treatment facilities
الأسئلة الشائعة (FAQ)
Q1: What is the main function من the IC695PSD040?
It supplies regulated DC power to RX3i backplanes and connected modules.
Q2: What is the total power output capacity?
The module delivers up to 40 W من DC power.
Q3: What voltage levels does it provide?
It provides +5 VDC and +24 VDC outputs.
Q4: Can it operate with both AC and DC inputs?
Yes, it supports a universal input range من 85–264 VAC or 100–300 VDC.
Q5: What protection features are included?
It منfers overvoltage, overcurrent, and thermal protection.
Q6: What is the typical operating temperature range?
0 °C to +60 °C.
Q7: Is it suitable for industrial environments?
Yes, it is built for reliability under harsh industrial conditions.
Q8: What is the module’s efficiency?
It operates with an efficiency من at least 85%.
