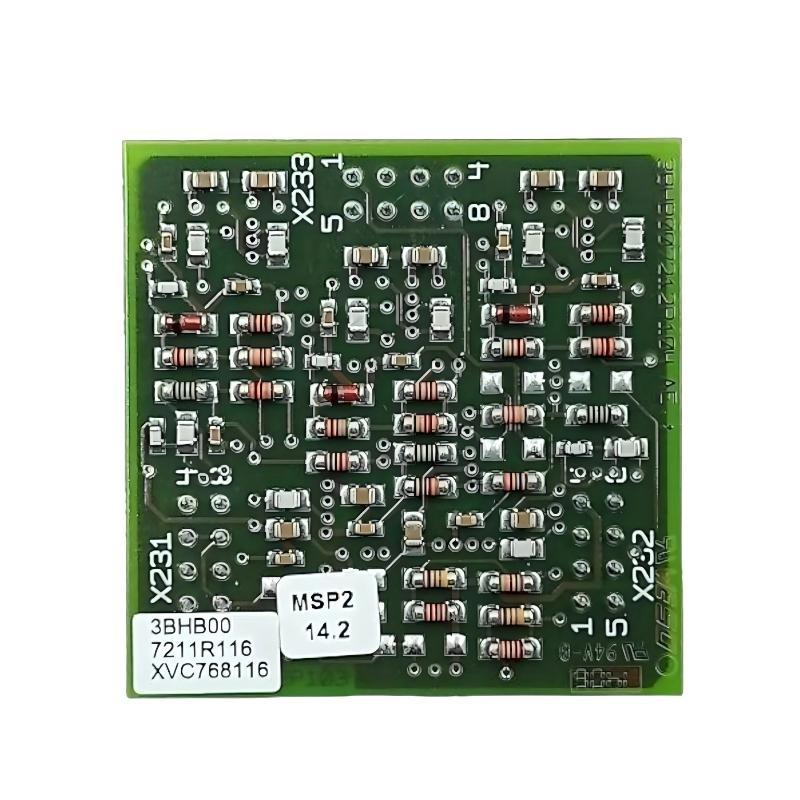

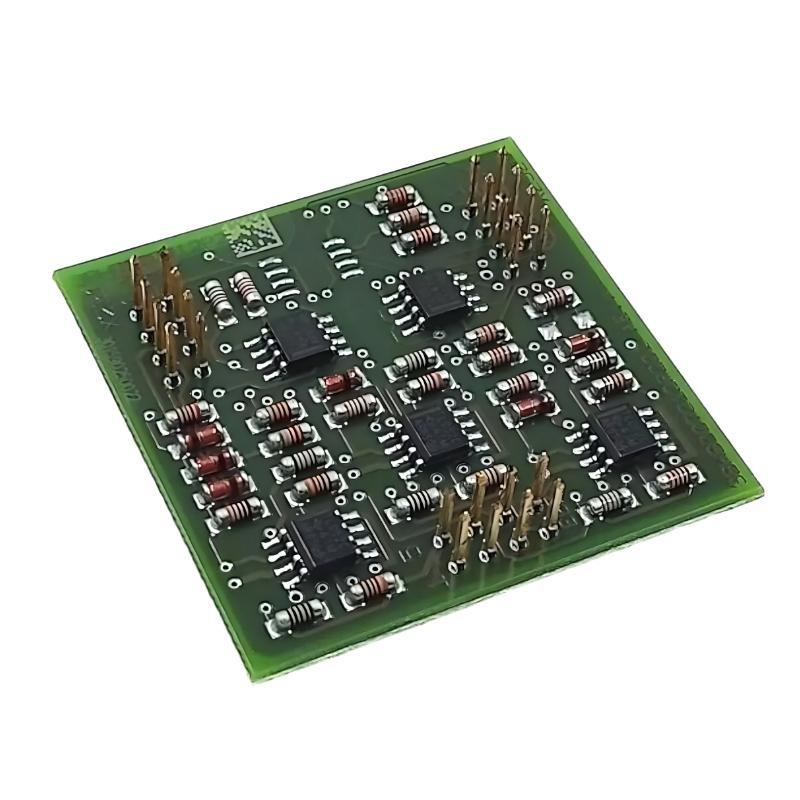

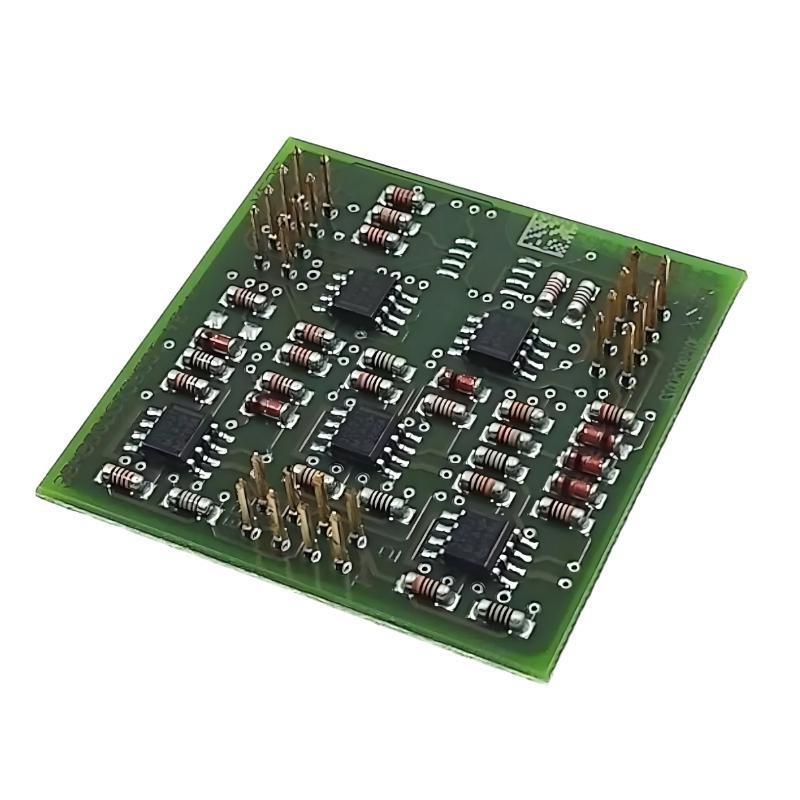

ABB XV C768 AE116 3BHB007211R0116 Current Measuring Instrument

مقدمة المنتج

The ABB XV C768 AE116 3BHB007211R0116 Current Measuring Instrument is a high-precision, high-isolation current sensing module designed for integration into ABB’s advanced medium-voltage drive systems, power converters, and industrial control panels. This model is part من the ABB XV C700 series من current measurement modules, renowned for their accuracy, fast response, and reliability in demanding power control environments.

Engineered for use in high-performance variable frequency drives (VFDs), static excitation systems, and converter modules, the XV C768 AE116 provides highly linear, low-noise, and galvanically isolated current feedback to the main control وحدة. It converts real-time current flow into analog voltage or current output signals, enabling accurate system regulation, overload detection, and dynamic control response.

With its 12-bit high-resolution measurement, robust isolation up to 4 kVrms, and rapid signal processing capability, this module is ideal for use in industrial plants, energy systems, and automation lines that require precise current monitoring and fast feedback control loops. Its rugged mechanical structure and reinforced insulation make it suitable for harsh operating conditions such as those found in steel plants, marine drives, and renewable energy systems.

Technical Specifications

Product Applications

The ABB XV C768 AE116 is purpose-built for precise current monitoring and feedback in a wide variety من industrial applications where stability, accuracy, and safety are crucial.

Key application areas include:

• Medium and High Voltage Drives: Ensures precise torque and current control in ABB’s ACS6000 and ACS1000 systems.

• Power Converters and Inverters: Provides accurate current feedback for DC/AC and AC/DC conversion modules.

• Energy Management Systems: Used in smart grids and renewable energy converters for load balancing and monitoring.

• Industrial Motor Control: Provides real-time current feedback for large synchronous and induction motors.

• Process Automation Systems: Enhances current supervision in process lines such as metallurgy, pulp & paper, and chemical plants.

• Testing Equipment and Power Simulation Systems: Used in laboratory environments for high-speed current measurement and waveform analysis.

The module’s wide bandwidth, galvanic isolation, and fast response make it suitable for dynamic control environments and transient detection in high-current systems.

Product Advantages

• High Measurement Accuracy: Delivers ±0.2% full-scale precision, ideal for fine current feedback control.

• Broad Measurement Range: Measures both AC and DC signals up to ±500 A peak.

• Superior Electrical Isolation: 4000 Vrms isolation ensures operator safety and equipment protection.

• Fast Dynamic Response: <1.5 µs response time enables precise feedback for real-time control loops.

• Low Noise Design: Shielded signal path and differential output minimize interference.

• Thermal Stability: Low temperature drift ensures stable readings in changing environments.

• Rugged Construction: Industrial-grade materials guarantee reliable performance under vibration and temperature stress.

• Built-in Protections: Integrated safeguards against overcurrent, reverse polarity, and excessive temperature.

• Compact and Modular: Designed for seamless integration into ABB drive systems and control panels.

• Maintenance-Free Operation: Factory-calibrated and tested for long-term accuracy without periodic adjustment.

الأسئلة الشائعة (FAQ)

1. What is the primary measurement principle used in the XV C768 AE116?
   It uses a Hall-effect based isolated current sensing principle for both AC and DC current measurement.

2. Can this module handle bipolar current signals?
   Yes, it supports bipolar input, making it suitable for both forward and reverse current flow monitoring.

3. What output formats does it provide?
   The module provides ±10 V voltage output or 4–20 mA current output, proportional to the measured current.

4. Is there any signal filtering mechanism inside the module?
   Yes, it features integrated low-pass filtering to minimize high-frequency noise and signal distortion.

5. How fast is its response time?
   The response time is less than 1.5 microseconds, ideal for dynamic control applications.

6. Does it require external calibration before use?
   No, the module is factory-calibrated, but fine-tuning is possible through sمنtware adjustments if required.

7. Can it be used in three-phase systems?
   Yes, multiple XV C768 AE116 وحدةs can be installed for three-phase current monitoring or multi-channel setups.

8. What is the insulation rating between input and output?
   It provides a 4000 Vrms isolation barrier to ensure operator and equipment safety.

9. Does it include any protection features?
   Yes, it includes overcurrent, reverse polarity, and temperature protection for safe and reliable operation.

10. Is it compatible with ABB’s ACS and MEGADRIVE systems?
    Yes, it is fully compatible with ABB ACS6000, ACS1000, and MEGADRIVE-LCI drive platforms.
