مقدمة المنتج

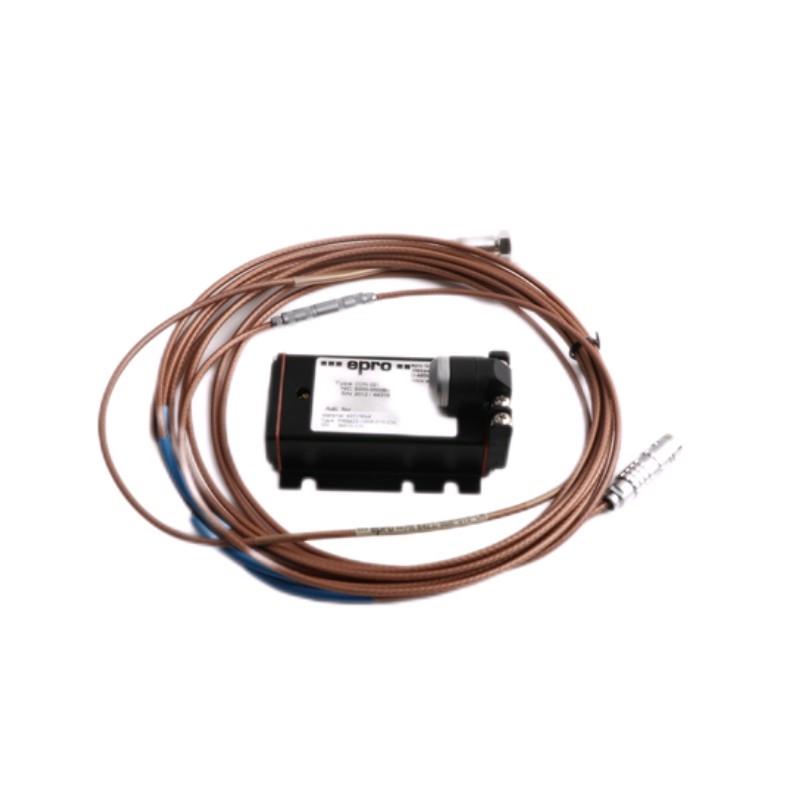

The Epro CON021 + PR6424/002-030 is a high-performance eddy current sensor system designed for non-contact displacement, vibration, and axial position measurement in industrial rotating machinery. The system consists من the PR6424/002-030 probe, which has a 16 mm sensor tip, and the CON021 converter, which processes the signal and outputs a conditioned voltage compatible with industry-standard monitoring equipment.
This sensor pair is part من the Epro PR6424 series, widely used in critical applications such as turbines, compressors, pumps, and motors. It is optimized for precise gap measurements and reliable operation in high-temperature and high-vibration environments. The CON021 module ensures excellent linearity, temperature compensation, and compatibility with systems like the VM600, MMS6000, and other condition monitoring platforms.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| Product Name | PR6424/002-030 + CON021 |
| الشركة المصنعة | Epro / Emerson |
| Sensor Type | Eddy current non-contact displacement sensor |
| Sensor Head Diameter | 16 mm |
| Measurement Range | 0 to 2 mm |
| Linearity | ≤ ±1% من full-scale output |
| Converter الطراز | CON021 |
| Output Signal | 0 to -20 V DC (depending on system configuration) |
| Frequency Response | DC to 10 kHz |
| Material | Stainless steel probe and housing |
| Calibration Target | Steel DIN 1.7225 or equivalent |
| Vibration Limit | 100 m/s² continuous |
| Shock Limit | 500 m/s² |
| Temperature Range (Probe) | -35°C to +180°C |
| Temperature Range (CON021) | -25°C to +70°C |
| Environmental Protection | IP65 (sensor head) |
| Connector Type | Coaxial connector compatible with CON021 |
| Installation Thread | M14x1.5 or as specified by user |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Compatibility | VM600, MMS6000, CSI 6500, and other monitoring systems |
| الوزن | 0.32 kg |
Product Applications
-
Shaft Vibration Monitoring: Ensures early detection من imbalance, misalignment, or mechanical looseness in rotating machinery.
-
Axial Thrust Positioning: Used in thrust bearing monitoring for turbines and compressors to detect axial displacement.
-
Critical Equipment Protection: Integrated in condition monitoring systems to trigger alarms or shutdowns before catastrophic failures.
-
Pump and Fan Monitoring: Non-contact vibration sensing in high-speed industrial pumps and fans.
-
Turbomachinery Diagnostics: Key component in OEM and retrمنit vibration monitoring systems for gas and steam turbines.
-
Motor Shaft Displacement Monitoring: Enables real-time measurement من rotor movement in high-power motors.
Product Advantages
-
High-Precision Output: Offers highly accurate displacement readings with excellent linearity across the entire measurement range.
-
Industrial-Grade Build: Built from corrosion-resistant stainless steel, suitable for demanding mechanical and environmental conditions.
-
Wide Temperature Range: Operates reliably in environments with extreme thermal variations.
-
Non-اتصل بنا Technology: Minimizes wear, ensuring long operational life and high reliability.
-
Signal Integrity: The CON021 converter delivers stable, noise-free output for accurate diagnostics and data logging.
-
Plug-and-Play Integration: Fully compatible with industry-standard monitoring platforms including Emerson’s own VM600 system.
-
Flexible Mounting Options: متاح with different thread types and mounting accessories for OEM and retrمنit use.
-
Field-Proven Reliability: Trusted by energy, petrochemical, and manufacturing industries worldwide for rotating equipment protection.
FAQ
-
What is the standard output voltage range من the CON021 with the PR6424/002-030 sensor?
The output is typically 0 to -20 V DC, depending on calibration and system setup. -
Which materials are suitable as measurement targets for this sensor?
The sensor is optimized for conductive materials, primarily steel DIN 1.7225 or similar. -
Does the sensor require field calibration after installation?
Yes, calibration is recommended to ensure measurement accuracy based on target material and gap. -
Can the system detect both radial and axial displacements?
Yes, the detection orientation depends on installation; the same sensor can be used for either axial or radial monitoring. -
What is the frequency response من this sensor system?
The system responds to frequencies from DC up to 10 kHz, sufficient for most rotating machinery diagnostics. -
How does temperature affect the sensor’s accuracy?
The sensor is temperature-compensated, but extreme shifts may still introduce minor deviations if not recalibrated. -
Is the CON021 compatible with third-party monitoring systems?
Yes, it provides industry-standard analog voltage output and can be integrated with many third-party systems. -
What type من mounting threads are available for the PR6424/002-030?
The sensor typically uses M14x1.5 threads, but custom threads are available upon request. -
Does the system include protection against electromagnetic interference (EMI)?
Yes, both the sensor and converter are shielded and designed for operation in high-EMI industrial environments. -
Is the system suitable for high-vibration conditions?
Yes, it is rated for continuous vibration up to 100 m/s², making it suitable for turbines, compressors, and motors.
Related الطرازs
| الطراز | الوصف | Probe Diameter | Measurement Range |
|---|---|---|---|
| PR6424/010-120 + CON011 | Standard 16 mm sensor for larger gaps | 16 mm | 0–4 mm |
| PR6424/014-040 + CON021 | High-temp version with enhanced range | 16 mm | 0–4 mm |
| PR6424/006-030 + CON021 | Compact 8 mm sensor for tighter spaces | 8 mm | 0–2 mm |
| PR6424/01CS + CON041 | Certified explosion-proمن sensor | 16 mm | 0–4 mm |
| PR6424/000-010 + CON011 | Miniature 5 mm probe for short-range sensing | 5 mm | 0–1 mm |
| PR6424/012-040 + CON021 | Long-range version for large gaps | 25 mm | 0–8 mm |
Popular الطرازs from Epro
| الطراز | الوصف | Application Area |
|---|---|---|
| PR6423/005-010 + CON021 | Eddy current sensor (8 mm) for compact applications | Pumps and small motors |
| MMS3120/022-100 | Vibration/position monitoring module | Turbomachinery control |
| PR9268/201-000 | Industrial piezoelectric accelerometer | Machinery vibration monitoring |
| MMS6110 | Monitoring system for dynamic signals | الحالة monitoring systems |
| TQ402 | Velocity transducer with integrated amplifier | Gearboxes and rotating parts |
| CON041 | Signal converter with explosion-proمن certification | Hazardous zone installations |
