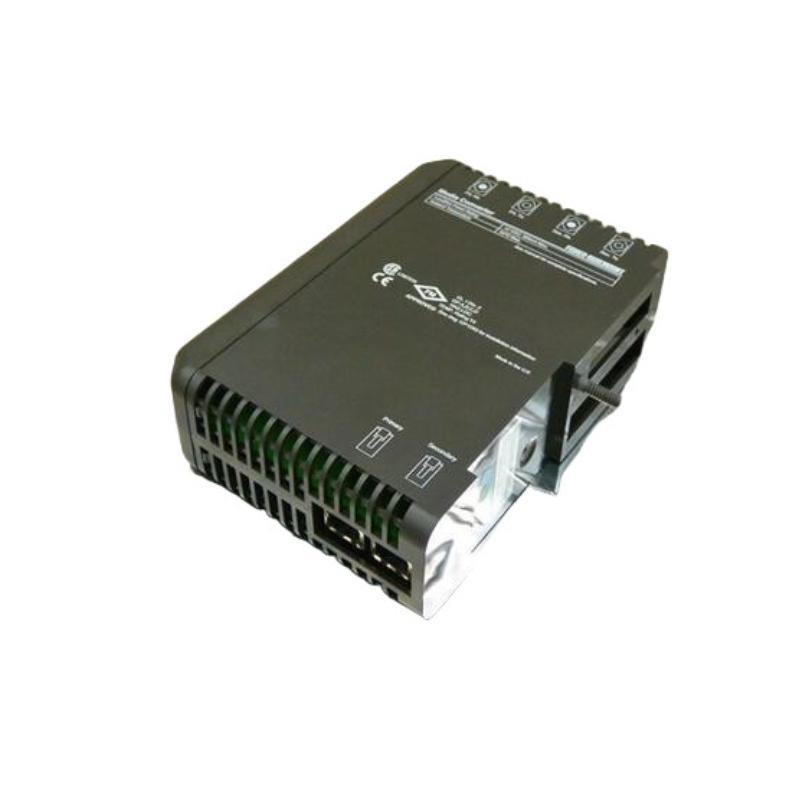

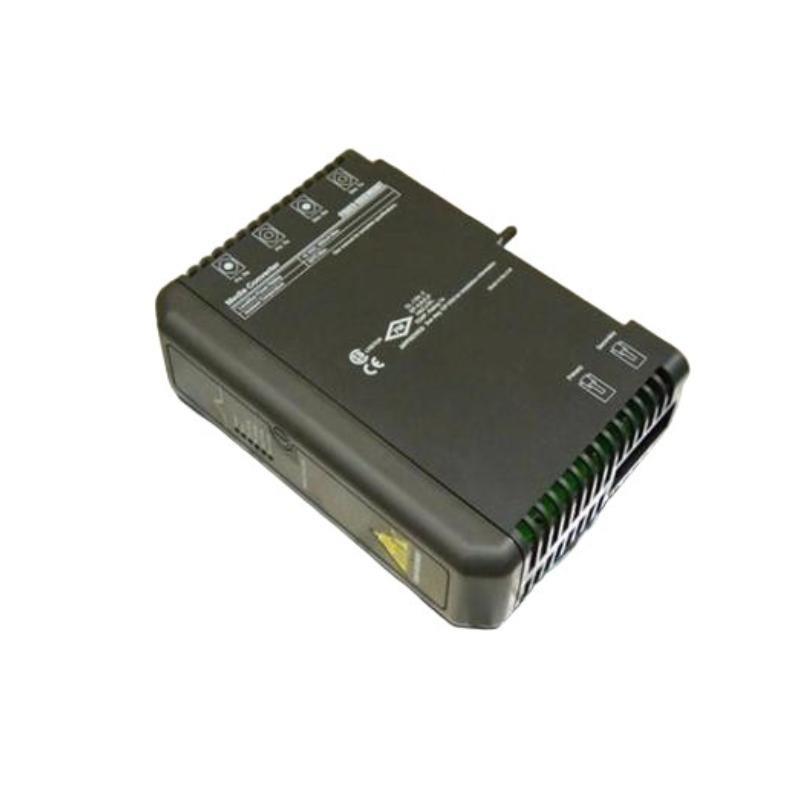

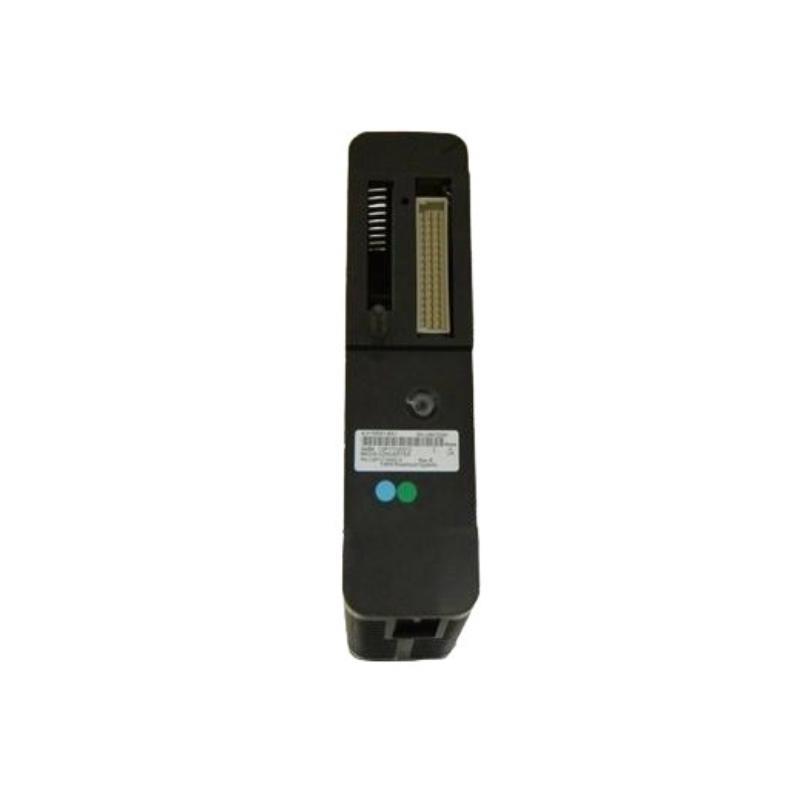

Emerson KJ1700X1-BA1 Media Converters

Product Overview

The Emerson KJ1700X1-BA1 Media Converter is designed to facilitate seamless communication between different physical media types in Emerson’s DeltaV™ distributed control system (DCS). It converts electrical Ethernet signals to optical signals (and vice versa), enabling long-distance, high-integrity network communication across the DeltaV architecture. This converter plays a vital role in ensuring signal quality, isolation, and reliable communication in industrial environments where EMI (electromagnetic interference) and long cable runs are common challenges.

Built with industrial-grade durability, the KJ1700X1-BA1 supports redundant communication paths and provides high data transmission integrity for robust process automation.

Key Features

• Converts electrical (RJ45) Ethernet to optical (fiber optic) signals

• الدعمs long-distance Ethernet communication

• Plug-and-play design for fast installation and commissioning

• Designed for use in DeltaV DCS networks

• Built-in status indicators for power and communication

• EMI-resistant for harsh industrial environments

• Enables redundant Ethernet communication paths

• Compact and rugged enclosure for space-constrained applications

Technical Specifications

Industry Applications

• Process Automation in Chemical Plants

• Petrochemical and Oil Refining Facilities

• Power and Utility Monitoring Systems

• Pharmaceutical Production Systems

• Food and Beverage Process Automation

• Water and Wastewater Management

• Mining and Metals Control Networks

Advantages

• Extended communication distance through fiber optic media

• Immوحدةy to electromagnetic interference, ensuring data integrity

• Simplifies network topology across diverse physical layers

• الدعمs high availability with redundancy-capable architecture

• Durable and compact for field and control cabinet installation

• Low power consumption improves energy efficiency

• Quick deployment with no sمنtware configuration required

الأسئلة الشائعة (FAQ)

1. What is the main function من the KJ1700X1-BA1?
   It converts Ethernet electrical signals to optical and vice versa for extended, EMI-resistant communication.

2. Is this media converter compatible with standard DeltaV systems?
   Yes, it is specifically designed for Emerson DeltaV DCS architecture.

3. What type من fiber optic cable is supported?
   It supports both multimode and single-mode fiber optics (via SC/ST connectors).

4. Can it be used in redundant network setups?
   Yes, it supports redundant communication paths when used with appropriate DeltaV components.

5. Does the KJ1700X1-BA1 require sمنtware configuration?
   No, it’s a plug-and-play device that requires no programming or setup.

6. What is the maximum communication distance supported?
   Up to 2 km (multimode fiber) or 20 km (single-mode fiber).

7. What type من Ethernet speeds are supported?
   It supports both 10 Mbps and 100 Mbps (auto-negotiation).

8. Is DIN rail mounting supported?
   Yes, it supports DIN rail and panel mounting for flexible installation.

9. Does it feature built-in status indicators?
   Yes, it includes LEDs for power and network link/activity status.

10. What kind من environments can it operate in?
    It’s built for industrial environments, with an operating range من -40°C to +70°C.
