Product Overview

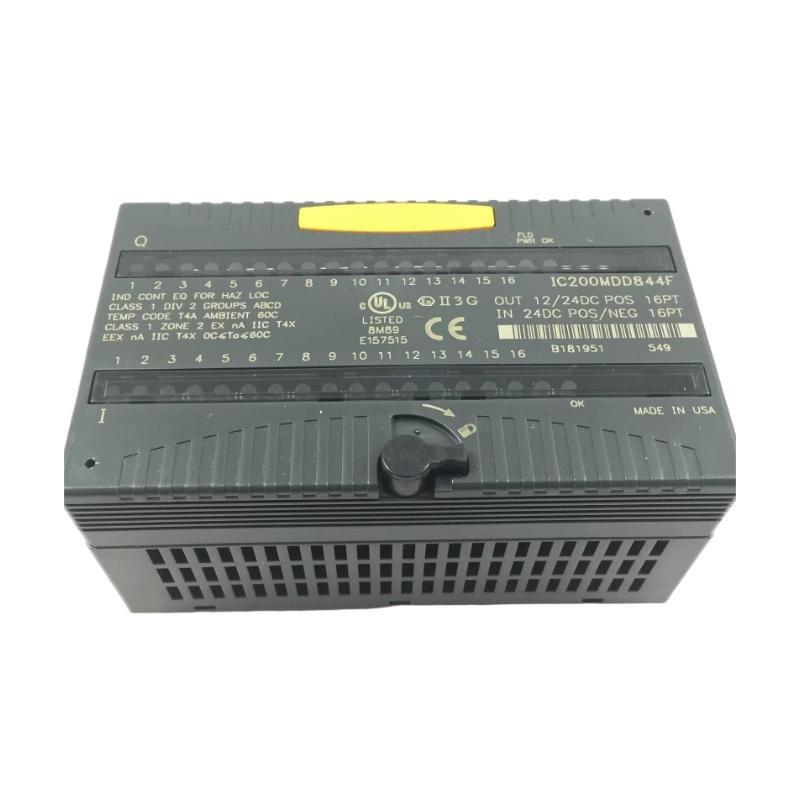

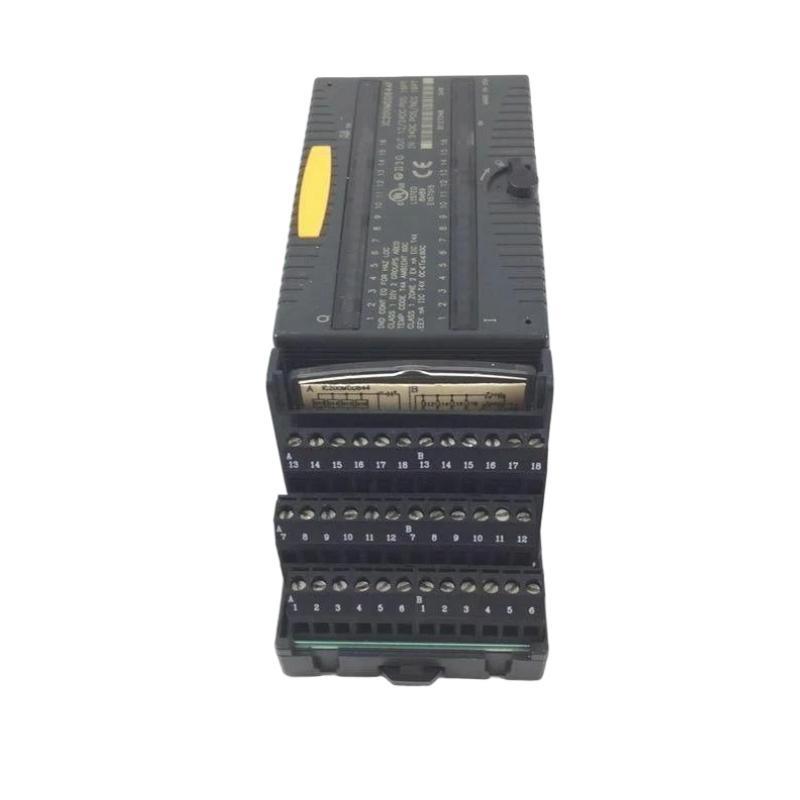

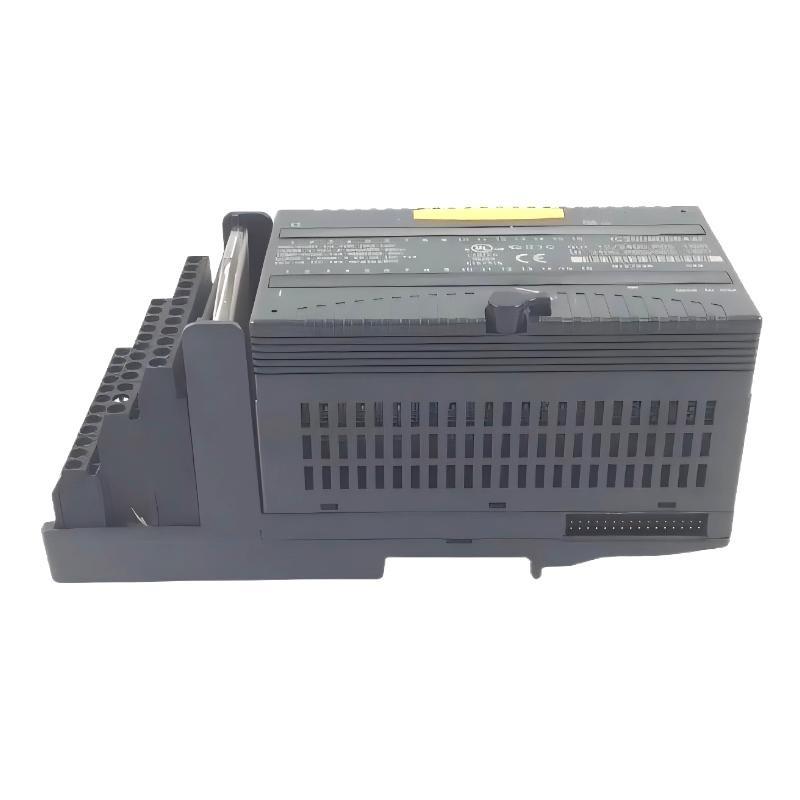

The GE IC200MDD844 is a highly versatile VersaMax Discrete Mixed I/O Module designed for use in industrial control systems where both input and output are needed in a compact form factor. This module integrates 8 digital input and 8 digital output channels into a single وحدة, منfering a flexible and cost-effective solution for various applications. By reducing the need for multiple separate modules, the IC200MDD844 streamlines wiring, saves space, and enhances system reliability. It is ideal for use in VersaMax Micro PLC environments, and it supports Modbus/TCP for seamless communication with other industrial systems.
The IC200MDD844 module provides high-speed digital I/O functionality, enabling real-time monitoring and control in critical industrial processes. It is widely used in applications like automation, process control, and remote monitoring where multiple I/O points are required but space and installation time need to be minimized.
مواصفات المنتج:
| Specification | Details |
|---|---|
| الطراز | IC200MDD844 |
| Type | Discrete Mixed I/O Module |
| Compatibility | VersaMax Micro PLC |
| Input Points | 8 Digital Inputs |
| Output Points | 8 Digital Outputs |
| Dimensions (W x H x D) | 133.4 x 85.9 x 69.1 mm |
| الوزن | 0.159 kg |
| Power Supply | 5V DC |
| Operating Temperature | 0°C to 60°C |
| Communication Protocol | Modbus/TCP |
| Current Rating | 2 A per Output |
| Mounting Type | DIN Rail |
| Protection | Overcurrent and Overvoltage Protection |
| LED Indicators | Power, Input, Output Status |
Product Applications:
The GE IC200MDD844 Discrete Mixed I/O Module is suitable for a wide variety من industrial applications that require both digital inputs and outputs in a single compact وحدة. Some من the most common use cases include:
-
Industrial Automation: It connects sensors, switches, and actuators to VersaMax PLCs for controlling manufacturing processes, assembly lines, and other automated systems.
-
Remote Control and Monitoring: The module supports remote operation, enabling operators to monitor real-time data and control industrial devices from a distance.
-
Data Acquisition: Collecting real-time data from devices like sensors or switches and sending control signals to devices like relays or actuators.
-
Process Control: Control من machinery or equipment in environments such as chemical processing, food and beverage production, or packaging systems.
-
Building Management Systems: Used for monitoring and controlling systems like HVAC, lighting, and security in commercial buildings.
Product Advantages:
-
Space-Efficient Design: The IC200MDD844 integrates 8 digital inputs and 8 digital outputs into a single module, helping to reduce the overall footprint in control panels and automation systems.
-
Cost-Effective: By combining inputs and outputs into one module, it reduces the need for additional hardware, cutting down on both upfront costs and long-term maintenance.
-
Real-Time Communication: With Modbus/TCP communication, the module ensures fast and reliable data exchange between field devices and the PLC, which is essential for real-time control.
-
High Current Handling: Each output point can handle up to 2 A, enabling it to drive a variety من industrial devices such as solenoids, relays, or actuators.
-
Easy Installation: Designed to be mounted on a DIN rail, the IC200MDD844 is easy to install and integrate into existing control systems, making it ideal for retrمنit and new installations.
-
Protection Features: Equipped with overcurrent and overvoltage protection, the module ensures that both the وحدة and connected devices are safeguarded from electrical faults.
FAQ:
1. How does the IC200MDD844 communicate with the PLC?
The IC200MDD844 uses the Modbus/TCP communication protocol to exchange data with the VersaMax Micro PLC, ensuring reliable and fast data transfer.
2. What types من devices can be connected to the input and output channels?
You can connect various digital input devices such as switches, sensors, and proximity detectors, as well as digital output devices like relays, actuators, and solenoids.
3. What is the maximum current rating for the output channels?
Each من the 8 output points can handle up to 2 A من current, which allows it to control devices with moderate power requirements.
4. Is the IC200MDD844 compatible with other GE automation products?
Yes, the IC200MDD844 is designed specifically for use with the VersaMax Micro PLC, but it can also integrate with other GE automation products that support the Modbus/TCP protocol.
5. Can this module be used in outdoor environments?
The IC200MDD844 is designed for indoor use only. It should be protected from environmental elements like moisture, extreme temperatures, or dust for optimal performance.
6. How is the IC200MDD844 mounted?
The module mounts easily on a DIN rail, which is the standard mounting method for industrial automation devices. This makes installation quick and straightforward.
7. How does the IC200MDD844 handle overcurrent situations?
The IC200MDD844 includes overcurrent protection for the output channels. If an output device draws more than the rated current, the module will protect itself and the connected device by cutting power to the affected channel.
8. How do the LED indicators assist with troubleshooting?
The IC200MDD844 features LED indicators for both input and output status, as well as power. These LEDs provide immediate visual feedback on the health من the system and help identify problems like wiring faults or device failures.
9. Can the IC200MDD844 be used in high-speed control applications?
Yes, the IC200MDD844 supports real-time data exchange with Modbus/TCP, making it suitable for high-speed control applications in automation and process control.
10. What is the power supply requirement for the IC200MDD844?
The IC200MDD844 requires a 5V DC power supply, which is standard for VersaMax series modules and many other industrial control devices.
