مقدمة المنتج

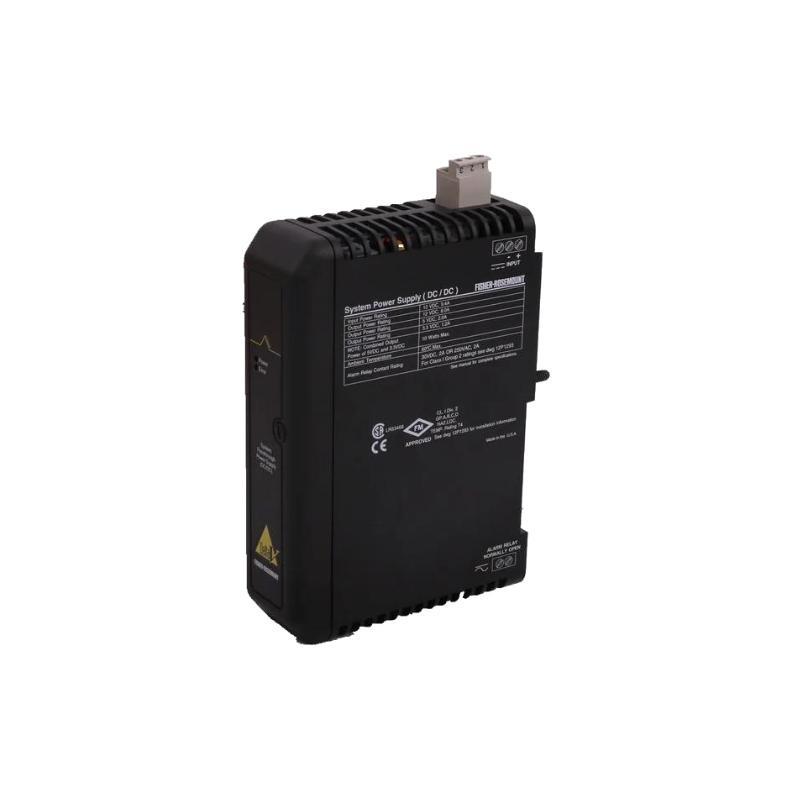

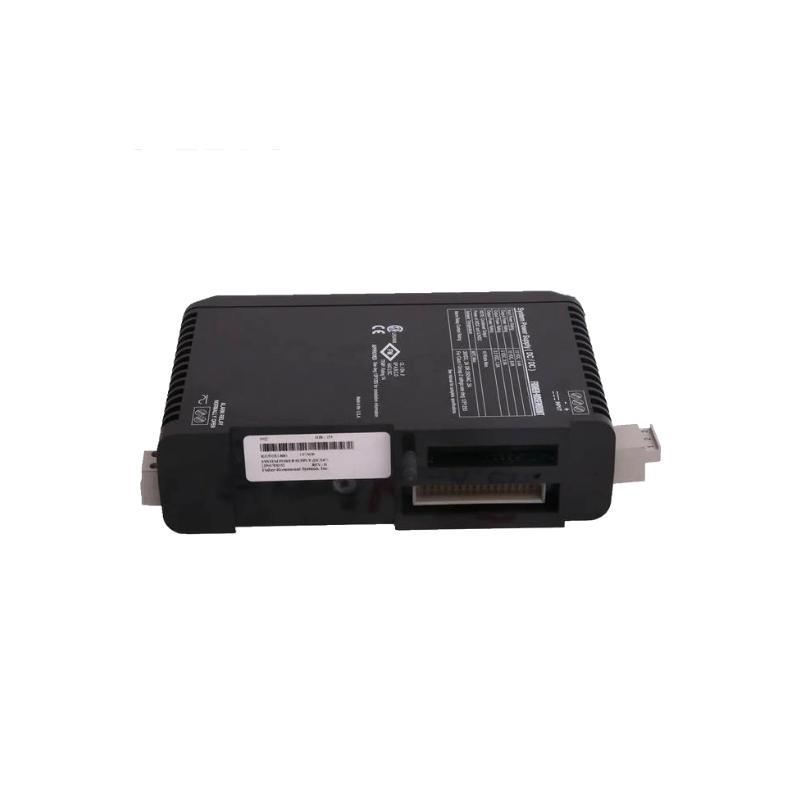

The Emerson KJ1501X1-BB1 is a dedicated power supply module designed specifically for the KJ1500 Series من programmable automation controllers (PACs). It plays a critical role in ensuring stable and reliable power delivery to the control system components, maintaining consistent operation even under challenging industrial conditions. This module is engineered to support the high performance and safety requirements typical من Emerson’s PAC solutions.
The KJ1501X1-BB1 منfers robust power management with built-in protections against overloads and short circuits, thus safeguarding the control hardware and connected devices. Its compatibility with the KJ1500 platform simplifies system design and maintenance, making it a favored choice in many process automation installations.
The module is appreciated for its efficiency, durability, and ability to deliver clean power to complex control systems, which is vital in minimizing downtime and extending system lifespan.
Technical Specifications
| Parameter | Details |
|---|---|
| الطراز Number | KJ1501X1-BB1 |
| Module Type | Power Supply Module |
| Input Voltage Range | 100 – 240 VAC (Single Phase) |
| Output Voltage | 24 VDC |
| Output Current | 5 A |
| Power Output | 120 W |
| Efficiency | >85% |
| Protection Features | Overcurrent, Overvoltage, Short Circuit Protection |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95%, non-condensing |
| Cooling | Convection Cooling |
| Mounting | DIN Rail Mounting |
| Communication Interface | None (Power supply only) |
| Dimensions (W x H x D) | 89 × 140 × 38 mm |
| الوزن | 0.44 kg |
| Certifications | UL, CE, CSA |
Applications
The KJ1501X1-BB1 Power Supply Module is widely used across various industrial sectors where Emerson’s KJ1500 PACs are deployed:
-
Process Automation: Providing power for controllers in chemical, oil & gas, and refining plants.
-
Manufacturing: Powering control systems on production lines in automotive, food and beverage, and packaging industries.
-
Energy Sector: Supplying stable power in power generation and distribution applications.
-
Water Treatment: الدعمing PLCs and controllers in water and wastewater plants.
-
Pharmaceutical Industry: Delivering clean and reliable power for automation in drug manufacturing.
-
Infrastructure Projects: Used in building management and transportation systems for dependable automation.
Advantages
-
High Reliability: Ensures continuous power supply with robust protection against electrical faults.
-
Wide Input Voltage Range: Compatible with global power standards for versatile deployment.
-
Compact Size: Small footprint for easy integration into control cabinets.
-
Efficient Cooling: Natural convection cooling reduces maintenance needs and improves lifespan.
-
Seamless Compatibility: Specifically designed for Emerson KJ1500 series controllers.
-
Safety Certified: Meets global safety standards ensuring reliable operation in industrial environments.
-
Easy Installation: DIN rail mounting facilitates quick setup and replacement.
-
Energy Efficient: Delivers high efficiency to reduce energy consumption and heat generation.
الأسئلة الشائعة (FAQ)
-
What is the output voltage من the KJ1501X1-BB1 power supply?
The output voltage is 24 VDC. -
What is the maximum output current?
The maximum output current is 5 amperes. -
Can this power supply module operate globally?
Yes, it accepts 100 to 240 VAC input, making it suitable for global use. -
Does it have any built-in protection features?
Yes, it includes overcurrent, overvoltage, and short circuit protections. -
How is the module cooled?
It uses convection cooling, requiring no fans. -
What are the dimensions من this power supply?
It measures 89 × 140 × 38 mm. -
Is this power supply compatible with other Emerson controllers?
It is specifically designed for the KJ1500 series. -
What mounting options are available?
The module is mounted on a standard DIN rail. -
What operating temperature range can it withstand?
It operates between 0°C and 55°C. -
Is this power supply certified for industrial safety standards?
Yes, it holds UL, CE, and CSA certifications.
Related الطرازs (Same Series or Function)
| الطراز Number | الوصف |
|---|---|
| KJ1501X1-BB2 | Power Supply Module with 24 VDC output, 10 A current |
| KJ1501X1-BA1 | Backup Power Supply for KJ1500 series |
| KJ1501X1-BB3 | Power Supply Module with 24 VDC, 3 A output |
| KJ1501X1-BB4 | Power Supply with extended temperature range |
| KJ1501X1-BB5 | Power Supply with integrated diagnostics |
| KJ1501X1-BB6 | Compact Power Supply Module for KJ1500 series |
Popular Emerson الطرازs (Same العلامة التجارية)
| الطراز Number | الوصف |
|---|---|
| KJ1500X1-BA1 | Main CPU module for KJ1500 programmable automation controller |
| KJ1501X1-BE1 | Digital Input Module for KJ1500 series |
| KJ1501X1-BF1 | Digital Output Module for KJ1500 series |
| KJ1501X1-BG1 | Analog Input Module for KJ1500 series |
| KJ1501X1-BH1 | Analog Output Module for KJ1500 series |
| KJ1501X1-BJ1 | Communication Module for KJ1500 with Ethernet and Serial ports |
