Product Overview

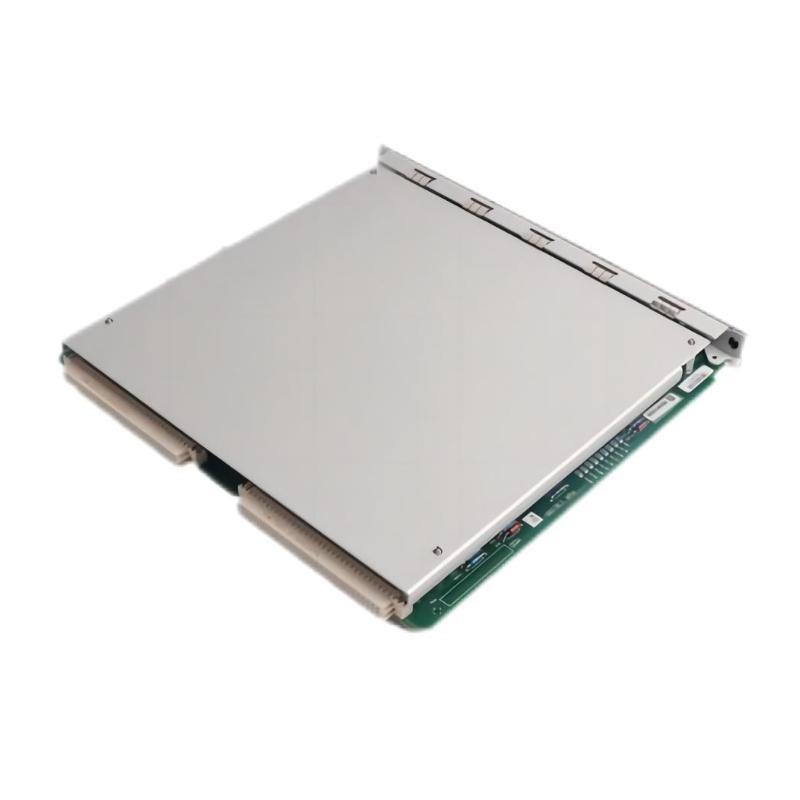

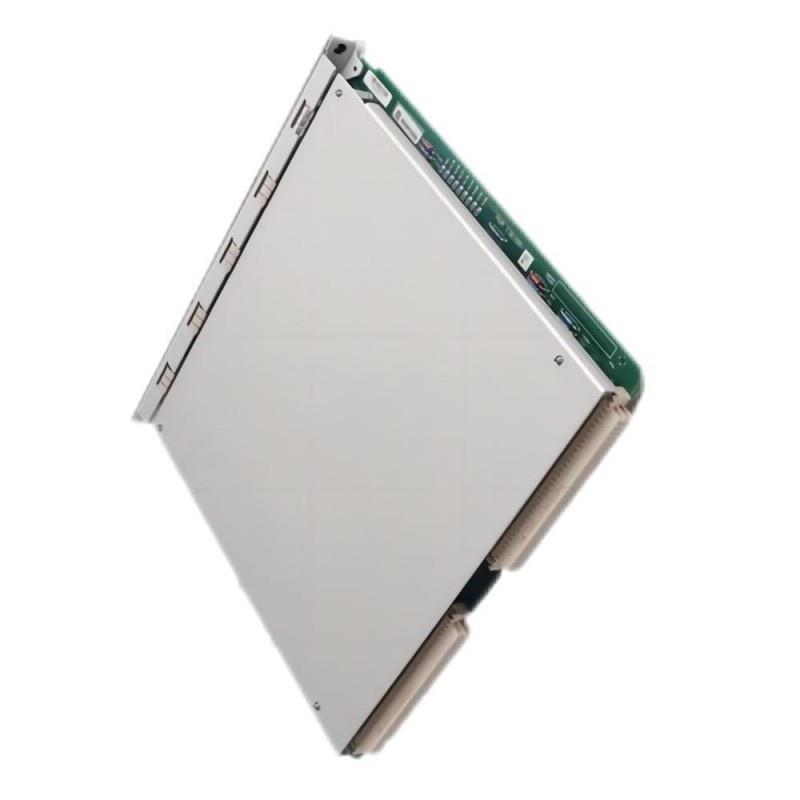

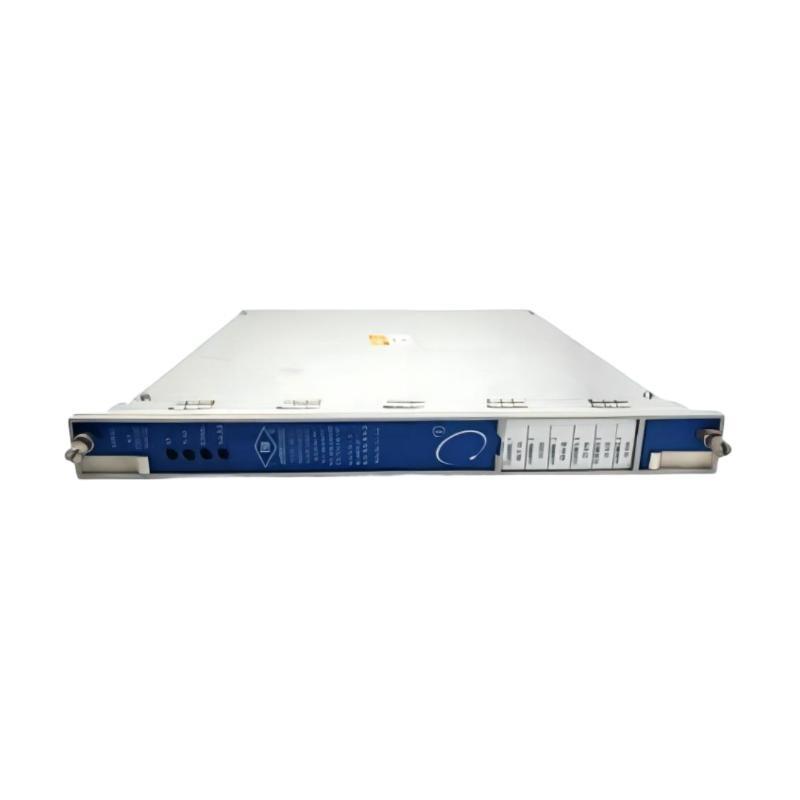

The Bently Nevada 3500/62-01-00 163179-03 is an advanced temperature monitoring module designed for use within the Bently Nevada 3500 Series Machinery Protection System. This module provides accurate, real-time temperature monitoring من critical machinery components, enabling early detection من thermal anomalies that could lead to equipment failures.
Built to withstand industrial environments, the 3500/62-01-00 163179-03 module supports multiple sensor types and channels, منfering comprehensive thermal data to optimize machinery health and reliability. Its enhanced diagnostics capabilities provide sensor status and fault detection, contributing to improved maintenance strategies and reduced downtime. The compact design ensures seamless integration within the 3500 system rack, making it ideal for various heavy industrial applications where temperature is a vital parameter.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز | 3500/62-01-00 163179-03 |
| Function | Temperature Monitoring Module |
| الدعمed Sensors | RTD (Pt100), Thermocouples |
| Input Channels | Multiple (exact number based on configuration) |
| Measurement Range | -200°C to +850°C (depending on sensor type) |
| Accuracy | ±0.1°C (typical) |
| Response Time | Fast response time for real-time monitoring |
| Dimensions (L x W x H) | 241.3 x 24.4 x 241.8 mm |
| الوزن | 0.82 kg |
| Mounting | 3500 Series rack mount |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Humidity | 0% to 95% non-condensing |
| Communication Interface | Integrated backplane interface |
| Diagnostics | Sensor health monitoring, fault detection |
| Certifications | CE, UL, CSA |
Applications
The 3500/62-01-00 163179-03 temperature monitor is employed across industries where precise temperature tracking is essential to machinery health and safety. Common applications include:
-
Power Plants – Monitoring bearing and winding temperatures on turbines and generators.
-
Oil & Gas – Temperature surveillance on pumps, compressors, and critical rotating equipment.
-
Petrochemical Industry – Thermal monitoring من reactors, mixers, and heat exchangers.
-
Mining and Minerals – Temperature monitoring on crushers, mills, and conveyor motors.
-
Marine Applications – Monitoring engine room equipment temperatures on vessels.
-
Water and Wastewater Treatment – Monitoring pumps and motors to avoid overheating.
Key Advantages
-
High Precision: الدعمs RTDs and thermocouples with excellent accuracy for effective temperature control.
-
Multi-Channel الدعم: Allows multiple sensor inputs, enabling comprehensive monitoring من complex machinery.
-
Real-Time Diagnostics: Advanced sensor health checks identify open or short circuits to alert operators promptly.
-
Compact and Durable Design: Industrial-grade construction designed to fit seamlessly into the 3500 system rack.
-
Wide Operating Range: Suitable for extreme industrial environments, operating from -40°C to +70°C.
-
Lightweight: Weighs only 0.82 kg, facilitating easy installation and handling.
-
Passive Cooling: No need for active cooling, reducing maintenance and increasing reliability.
-
Compliance and Certification: Meets CE, UL, and CSA standards for safety and industrial use.
الأسئلة الشائعة (FAQ)
-
What types من sensors does this temperature monitor support?
It supports RTD (Pt100) sensors and various thermocouples. -
What temperature range can it measure?
It can measure temperatures from -200°C up to +850°C depending on the sensor. -
How many sensor inputs does the module accommodate?
The exact number varies by configuration, typically supporting multiple channels. -
Can this module detect sensor faults?
Yes, it provides diagnostics for open and short circuits on sensor lines. -
Is this module compatible with other Bently Nevada 3500 series equipment?
Yes, it is designed for seamless integration into the 3500 rack system. -
What is the size من this temperature monitoring module?
The module measures 241.3 mm x 24.4 mm x 241.8 mm. -
How much does the module weigh?
It weighs approximately 0.82 kg. -
What is the operating temperature range?
The module operates between -40°C and +70°C. -
Does it require active cooling?
No, it is designed to operate with passive cooling. -
Is this module certified for industrial use?
Yes, it holds CE, UL, and CSA certifications.
Recommended Related or Series الطرازs
| الطراز | الوصف |
|---|---|
| 3500/62-01-00 136499-01 | Temperature monitoring module (earlier version) |
| 3500/62-02-00 | Extended temperature monitoring module |
| 3500/50 | Vibration and position monitoring module |
| 3500/22 | Proximitor sensor module for shaft vibration |
| 3500/33 | Speed and phase monitor |
| 3500/92 | Relay driver module |
Popular Bently Nevada الطرازs
| الطراز | الوصف |
|---|---|
| 3500/65-01-01 | 3500 Series temperature monitor, single channel |
| 3500/65-02-00 | 3500 Series temperature monitor, dual channel |
| 3500/70 | 3500 Series alarm module |
| 3500/65-03-00 | 3500 Series temperature monitor, three channel |
| 3500/70-01 | 3500 Series advanced alarm module |
| 3500/65-04-01 | 3500 Series temperature monitor, four channel |
