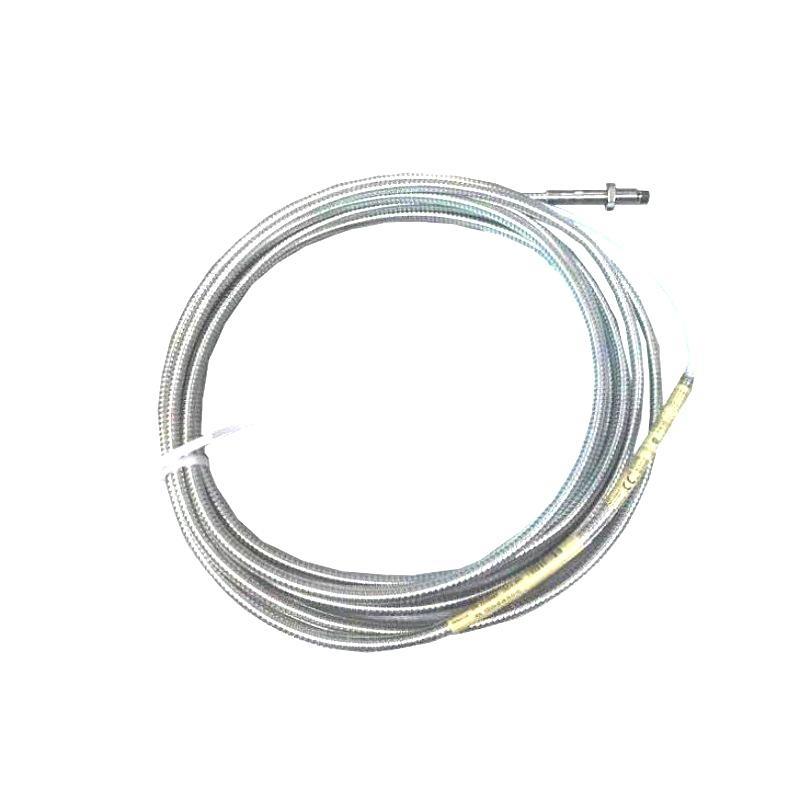

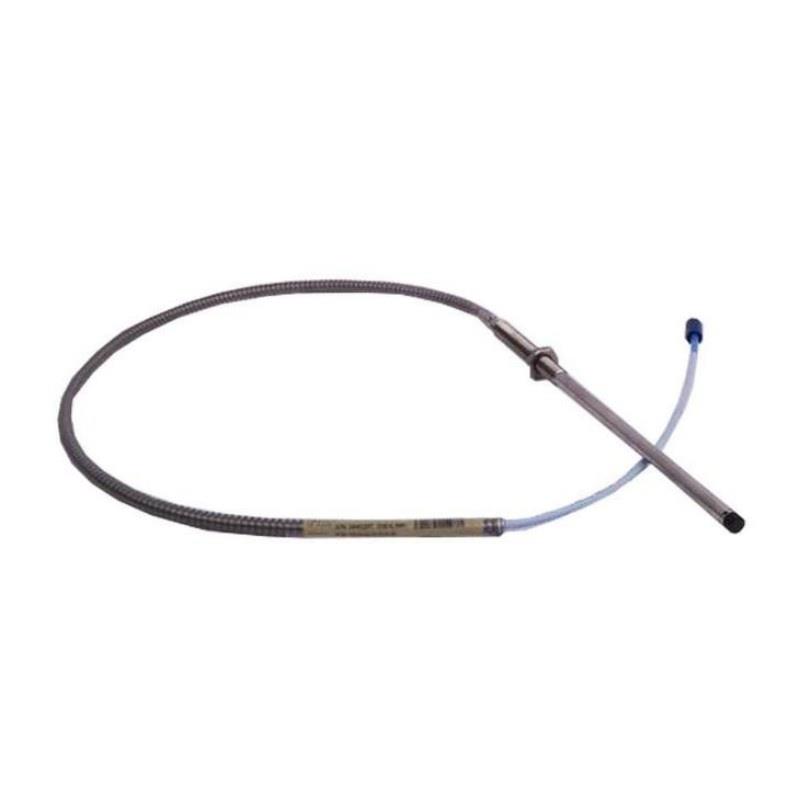

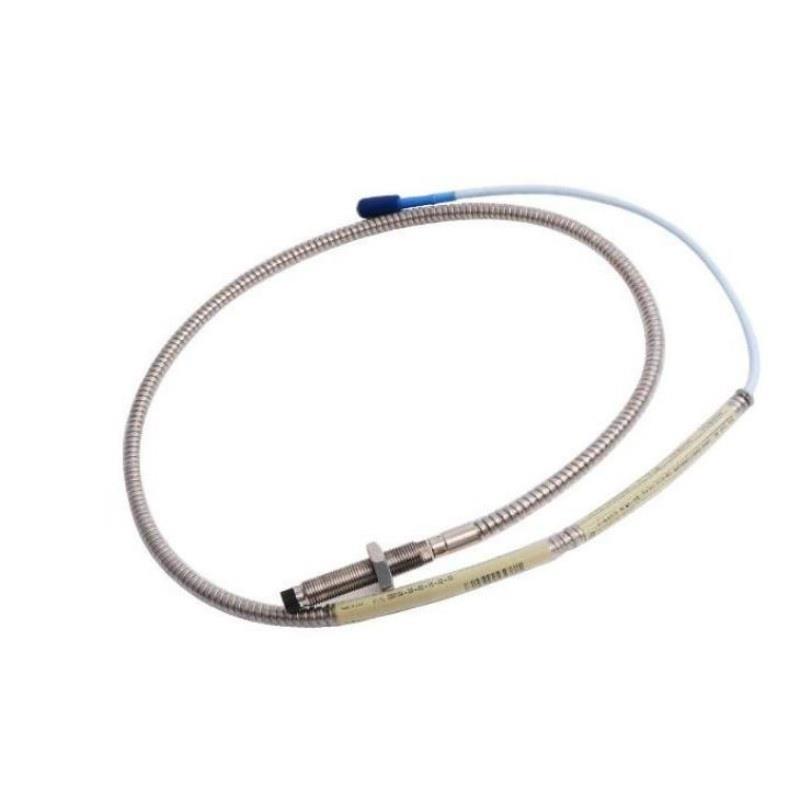

The Bently Nevada 330104-00-07-90-02-05 is a high-performance 3300 XL 8 mm Proximity Probe with a robust M10x1 thread and armored cable. It measures the distance between the probe tip and a conductive surface, providing accurate static (position) and dynamic (vibration) measurements. This probe is part من the 3300 XL 8 mm Proximity Transducer System, designed for fluid-film bearing machinery, keyphasor reference, and speed monitoring, منfering excellent linearity, reliability, and compliance with API 670 standards.
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | 3300 XL 8 mm, M10x1 threaded, armored |
| Total Length | 9.0 meters |
| الوزن | 2.907 kg |
| Linear Range | 2.0 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Frequency Response | 0 – 10 kHz (+0/-3 dB) |
| Operating Temperature | -52°C to +177°C (probe tip) |
| Extended Temperature Option | Up to +218°C (probe tip), +260°C (cable) |
| Probe Tip Material | PPS (Polyphenylene sulfide) |
| Probe Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | Armored 75Ω triaxial, FEP insulation |
Applications
-
Vibration and position monitoring on rotating equipment.
-
Keyphasor signal and speed measurement.
-
Use in harsh environments with high temperatures or oil ingress risk.
-
Suitable for installations requiring API 670 compliance.
Advantages
-
Full compliance with API 670 for linearity and accuracy.
-
Backward compatible with non-XL 3300 8 mm systems.
-
Highly resistant to RFI/EMI, ideal for fiberglass enclosures.
-
Patented TipLoc and CableLoc for enhanced durability.
-
Armor and FluidLoc options prevent oil leakage and mechanical damage.
-
SpringLoc terminals for quick and reliable wiring.
FAQ
Q1: What is the main function من the 330104 probe?
A1: It measures both position and vibration من rotating machinery with high precision.
Q2: Is this probe compatible with older Bently Nevada systems?
A2: Yes, it is backward compatible with non-XL 3300 8 mm systems.
Q3: What is the recommended gap setting?
A3: Approximately 1.27 mm (50 mils) at -9 VDC.
Q4: Does it comply with API 670 standards?
A4: Yes, it fully complies with API 670 mechanical and performance requirements.
Q5: What is the operating temperature range من the probe?
A5: Standard: -52°C to +177°C, Extended: up to +218°C for the probe tip.
Q6: What material is used for the probe tip?
A6: The probe tip is molded from PPS for durability.
Q7: Is the cable armored?
A7: Yes, this model includes an armored cable for additional mechanical protection.
Q8: How is the connection secured?
A8: With ClickLoc connectors that are finger-tight with a locking mechanism.
Q9: Does it support extended lengths?
A9: Yes, this model is a 9-meter probe designed for 9-meter Proximitor systems.
Q10: What is the weight من the complete probe?
A10: Approximately 2.907 kg.
Related الطرازs (Same Series or Similar)
| الطراز Number | الوصف | Length | الوزن |
|---|---|---|---|
| 330101-00-20-05-02-00 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, unarmored | 2.0 m | ~0.9 kg |
| 330102-00-20-05-02-00 | 3300 XL 8 mm Probe, 3/8-24 UNF thread, armored | 2.0 m | ~1.2 kg |
| 330103-00-20-05-02-00 | 3300 XL 8 mm Probe, M10x1 thread, unarmored | 2.0 m | ~0.9 kg |
| 330104-00-20-05-02-00 | 3300 XL 8 mm Probe, M10x1 thread, armored | 2.0 m | ~1.2 kg |
| 330105-02-12-05-02-00 | 3300 XL 8 mm Reverse Mount Probe, 3/8-24 thread | 2.0 m | ~1.1 kg |
| 330106-05-30-05-02-00 | 3300 XL 8 mm Reverse Mount Probe, M10x1 thread | 3.0 m | ~1.4 kg |
