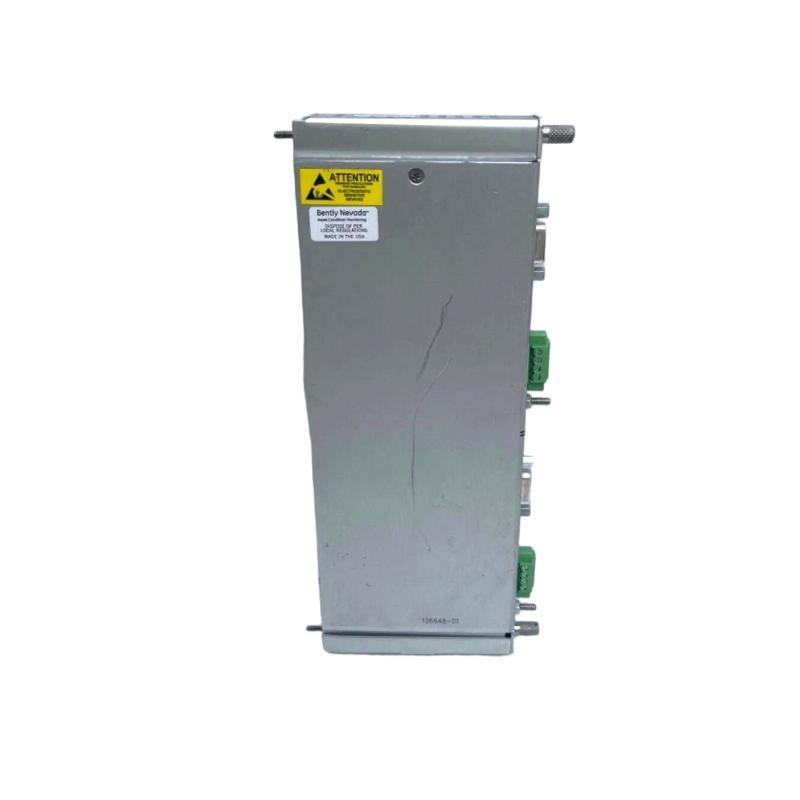

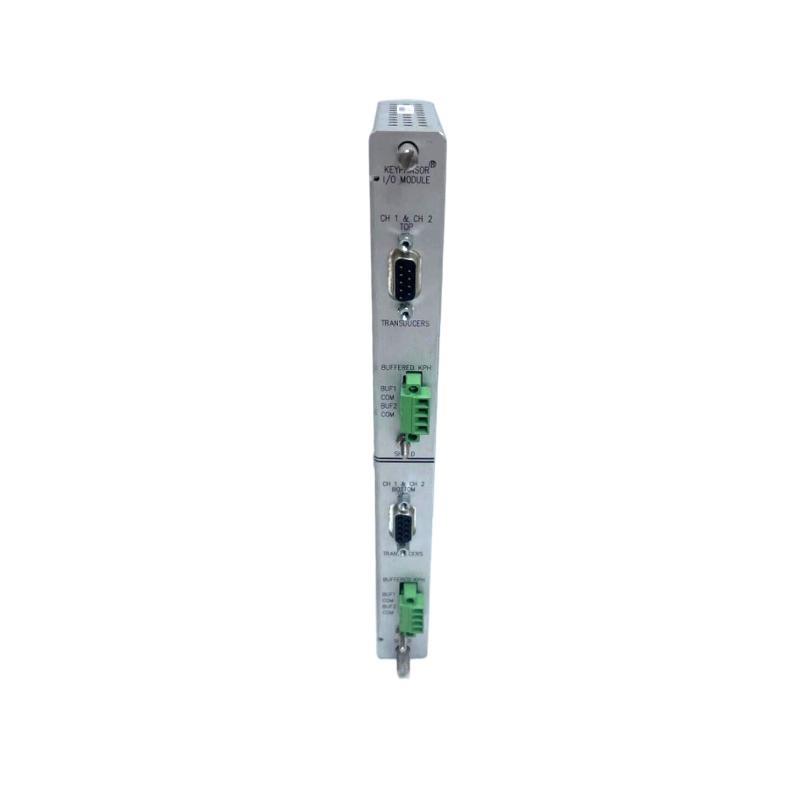

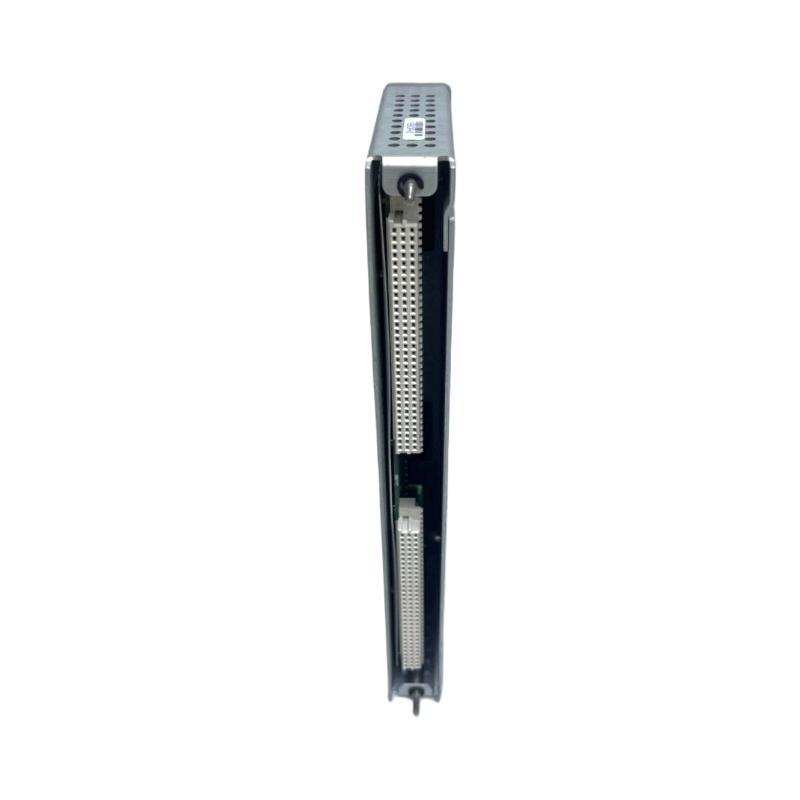

Bently Nevada 3500/25 126648-01 Keyphasor Input/Output Module (External Terminals)

مقدمة المنتج

The Bently Nevada 3500/25 126648-01 Keyphasor Input/Output Module is an essential component for systems requiring high-precision measurement and monitoring من rotating machinery in industrial applications. This module acts as an interface for keyphasor input and output signals, which are critical for the synchronization من machinery, such as turbines, compressors, pumps, and motors. By accurately measuring rotational speed and phase, this module plays a vital role in ensuring the operational efficiency, safety, and longevity من rotating equipment.

The 3500/25 126648-01 module integrates seamlessly with the 3500 Series machinery protection system, منfering real-time data processing capabilities. It captures keyphasor signals from machinery and processes these signals to produce useful output data for further analysis and decision-making. As part من the Bently Nevada suite من monitoring solutions, this module helps to optimize maintenance strategies, reduce unplanned downtime, and improve the reliability من critical equipment.

This module is particularly advantageous in industries such as power generation, oil and gas, mining, and manufacturing, where precise and continuous monitoring من rotational components is essential. The 3500/25 126648-01 module is also designed for easy integration into existing systems, منfering high durability and reliable performance even in harsh industrial environments.

مواصفات المنتج

Product Applications

The 3500/25 126648-01 Keyphasor Input/Output Module is widely used across various industries to monitor and synchronize rotating machinery. The module is ideal for applications where high-precision rotational data is crucial for ensuring the smooth operation and health من industrial equipment. Here are some key applications:

1. Power Generation
   In power plants, the 3500/25 module monitors critical machinery such as turbines, generators, and motors. By ensuring proper synchronization, it helps maintain stable operations, reduces the risk من damage due to misalignment, and minimizes costly downtime.

2. Oil and Gas
   The 3500/25 module is employed in the oil and gas industry to monitor pumps, compressors, and drilling equipment. Accurate rotational data is vital for detecting issues like imbalance or misalignment, which could result in equipment failure or operational inefficiency.

3. Mining and Heavy Industry
   In the mining industry, the module monitors machinery like crushers, conveyors, and mills. By collecting keyphasor signals, the module helps prevent breakdowns and ensures smooth production processes in heavy industrial operations.

4. Automotive Manufacturing
   Automotive manufacturers use the 3500/25 to monitor the synchronization من high-precision components on production lines. This ensures that production equipment operates efficiently, avoiding delays caused by mechanical issues.

5. Marine and Aerospace
   In the marine and aerospace industries, the 3500/25 module is used to monitor vital components like turbines and engines, providing early warnings من potential failures that could compromise safety and performance.

Product Advantages

1. High Precision Measurement
   The 3500/25 126648-01 module provides highly accurate measurement من rotational speed and phase, enabling precise synchronization من machinery. This helps identify mechanical issues before they escalate, reducing downtime and maintenance costs.

2. Wide Frequency Range
   The module supports a frequency range from 1 Hz to 50 kHz, making it versatile and capable من handling various machinery types and operational speeds in industrial settings.

3. Signal الحالةing
   The 3500/25 منfers differential signal conditioning, ensuring the accuracy and reliability من the data captured. This is essential for applications where high-quality signal processing is required for accurate machine health monitoring.

4. Compact and Lightweight
   With dimensions من 241.3 x 24.4 x 103.1 mm and a weight من only 0.46 kg, the module is both compact and lightweight, making it easy to integrate into existing systems without occupying excessive space.

5. Reliable Protection
   The 3500/25 module is rated IP20, providing protection against dust and environmental contaminants, ensuring consistent performance in industrial environments.

6. Seamless Integration
   Designed for easy DIN rail mounting, the module integrates easily into control systems, making installation simple and cost-effective for a wide range من industrial applications.

7. Versatile Applications
   This module is versatile and can be used in industries like power generation, oil and gas, manufacturing, and aerospace, منfering a reliable solution for machinery synchronization and performance monitoring.

8. الدعمs Predictive Maintenance
   By accurately monitoring keyphasor signals, the module supports predictive maintenance strategies, helping operators identify issues before they result in equipment failure, reducing maintenance costs, and improving equipment reliability.

FAQ

Q1: What is the primary function من the 3500/25 126648-01 module?
A1: The primary function من the 3500/25 module is to provide keyphasor input and output signals for machinery monitoring, allowing for precise measurement من rotational speed and phase in rotating equipment.

Q2: How many input and output channels does the module support?
A2: The module supports 1 differential input channel and 1 differential output channel for accurate data capture and output.

Q3: What is the frequency range من the 3500/25 module?
A3: The 3500/25 module operates within a frequency range من 1 Hz to 50 kHz, making it suitable for monitoring a wide range من machinery speeds.

Q4: How is the module mounted?
A4: The 3500/25 module is designed for DIN rail mounting, providing easy installation in control panels or industrial machinery systems.

Q5: Can the module be used in harsh environments?
A5: Yes, the 3500/25 module has an IP20 rating, providing protection against dust and other contaminants, ensuring reliable performance in harsh industrial environments.

Q6: What industries benefit from using the 3500/25 module?
A6: The 3500/25 module is used in industries such as power generation, oil and gas, mining, manufacturing, and aerospace for monitoring the synchronization من rotating machinery.

Q7: What is the temperature range for the 3500/25 module?
A7: The module operates within a temperature range من -40°C to +85°C, making it suitable for use in both cold and hot industrial environments.

Q8: Is the 3500/25 module compatible with other Bently Nevada products?
A8: Yes, the 3500/25 module is fully compatible with other Bently Nevada monitoring systems, منfering a comprehensive solution for machinery health monitoring.

Q9: What is the weight من the 3500/25 module?
A9: The module weighs 0.46 kg, making it lightweight and easy to handle during installation and maintenance.

Q10: Does the module provide real-time monitoring?
A10: Yes, the 3500/25 module provides real-time monitoring من keyphasor signals, allowing operators to make timely decisions based on up-to-date data.
