Product الوصف

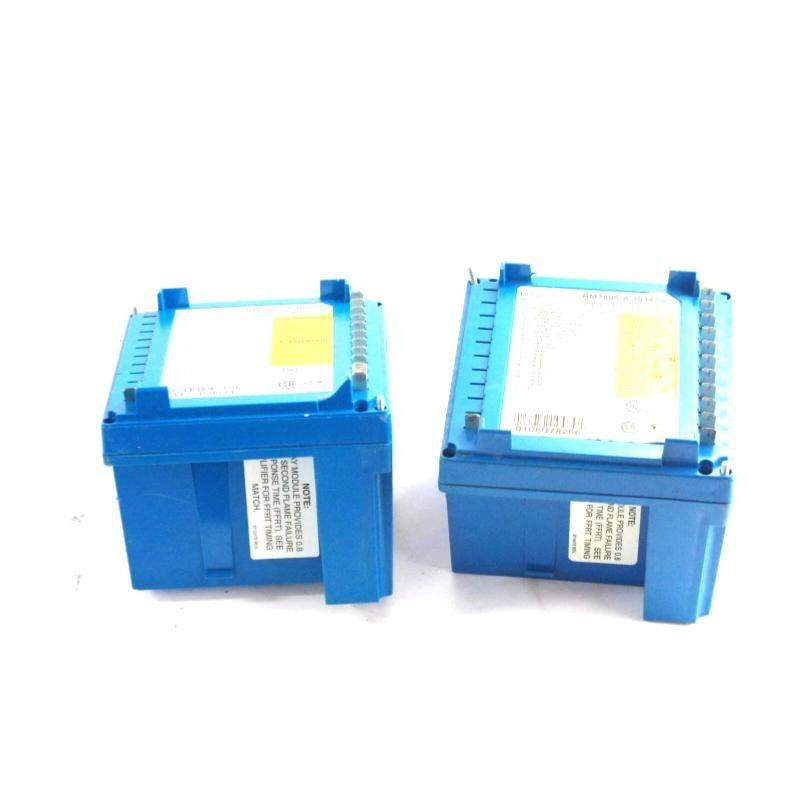

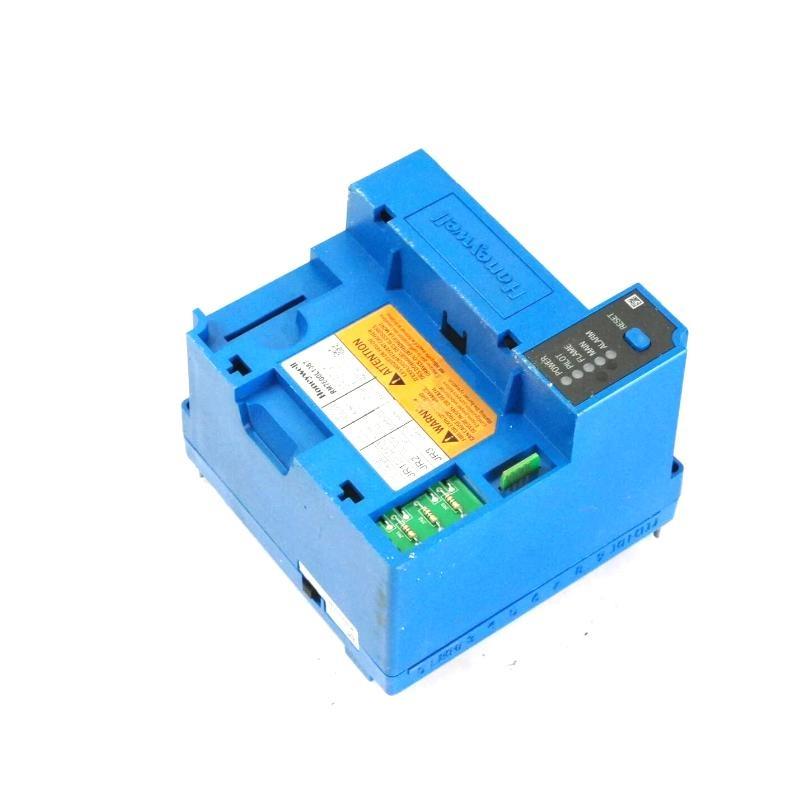

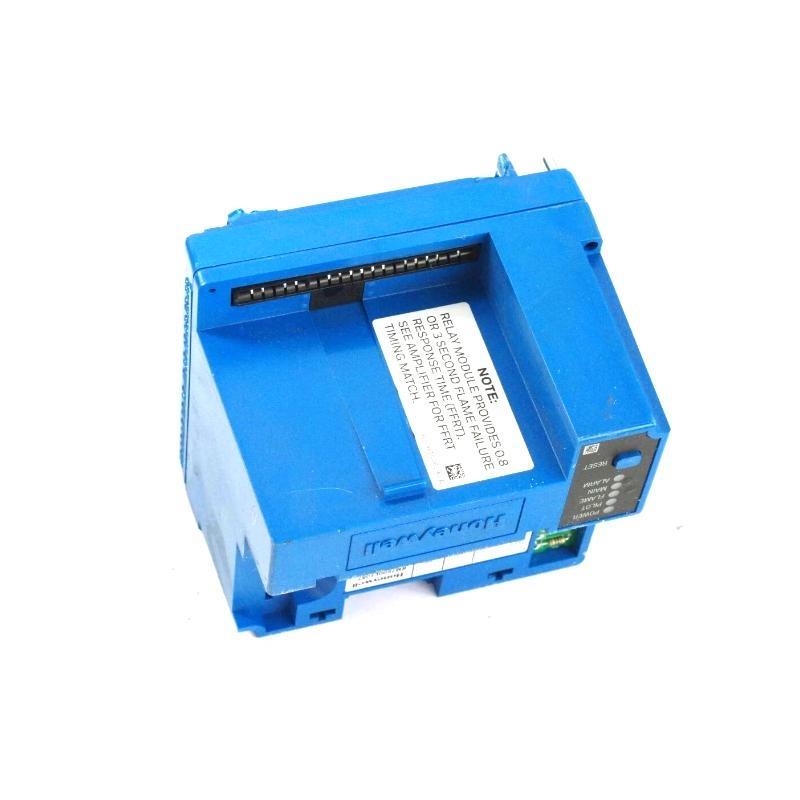

The Honeywell RM7800L1087 is a microprocessor-based burner control relay module designed for automatic sequencing, flame supervision, system status display, and diagnostics من single-burner gas, oil, or combination fuel applications. It delivers advanced safety and control functions, replacing conventional burner controls.
Product Applications
-
Industrial gas and oil-fired burners
-
Boilers, furnaces, ovens, and kilns
-
Applications requiring SIL3-capable safety instrumentation
-
Systems needing Modbus™ communication and extended diagnostics
-
Single burner systems in commercial and industrial environments
Product Advantages
-
SIL3 capable for high safety integrity
-
Advanced diagnostics and fault history logging
-
Flame failure response time as fast as 0.8 seconds
-
Flexible post purge settings up to 60 minutes
-
Robust safety checks and tamper-resistant logic
-
Modbus™ interface and local/remote annunciation options
-
Nonvolatile memory retains status and history after power loss
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 127 × 127 × 133 mm |
| الوزن | 0.83 kg |
| Operating Voltage | 120 VAC ±10%, 50/60 Hz |
| Power Dissipation | Max 10 W (Relay), Max 3 W (Display) |
| Ambient Temperature | -40°C to +60°C operating |
| Humidity | 85% RH non-condensing |
| Mounting Options | Panel, wall, or burner with subbase |
| Flame Failure Response Time | 0.8 to 3.0 seconds (depending on amplifier) |
| Communication | Optional Modbus™ interface |
| Safety Certification | SIL3 capable, UL, CSA, FM approvals |
FAQ
Q1: What fuel types does the RM7800L1087 support?
A1: It supports gas, oil, or combination fuel systems.
Q2: What is the flame failure response time?
A2: Depending on the amplifier, it ranges from 0.8 to 3.0 seconds.
Q3: Can this module communicate with building management systems?
A3: Yes, through the optional Modbus™ communication module.
Q4: What is the maximum adjustable post purge time?
A4: Up to 60 minutes, with 15 seconds as the default setting.
Q5: Is this product suitable for continuous burner operation?
A5: Yes, it is designed for burners with either intermittent or continuous operation.
Q6: Does it provide fault history logging?
A6: Yes, it records the six most recent faults with detailed data.
Q7: What safety certifications does it have?
A7: UL, CSA, FM, and SIL3 capable in proper configurations.
Q8: What is the maximum load it can handle?
A8: The total connected load is up to 2000 VA with 15A fast-blow fuse protection.
Q9: How is the RM7800L1087 mounted?
A9: Using the Q7800 subbase for panel, wall, or burner mounting.
Q10: Does it retain its settings after a power outage?
A10: Yes, it uses nonvolatile memory to retain history and sequence status.
