Product الوصف

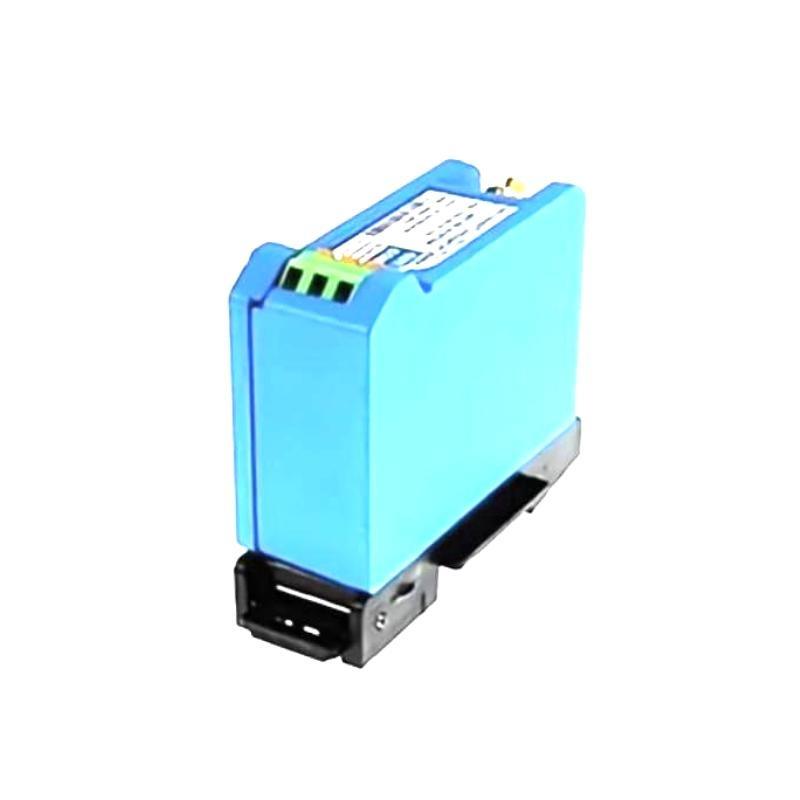

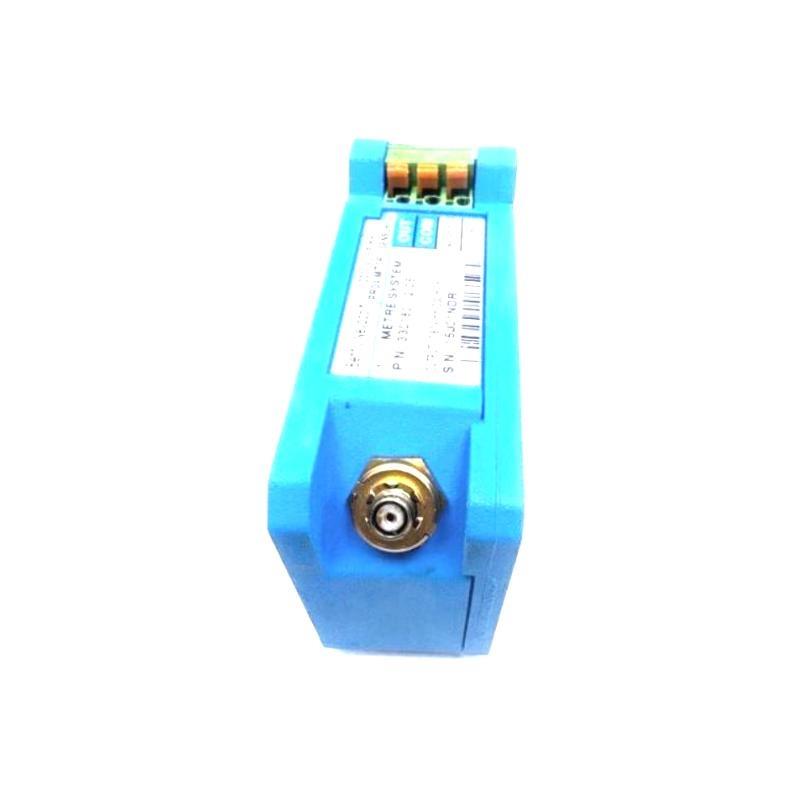

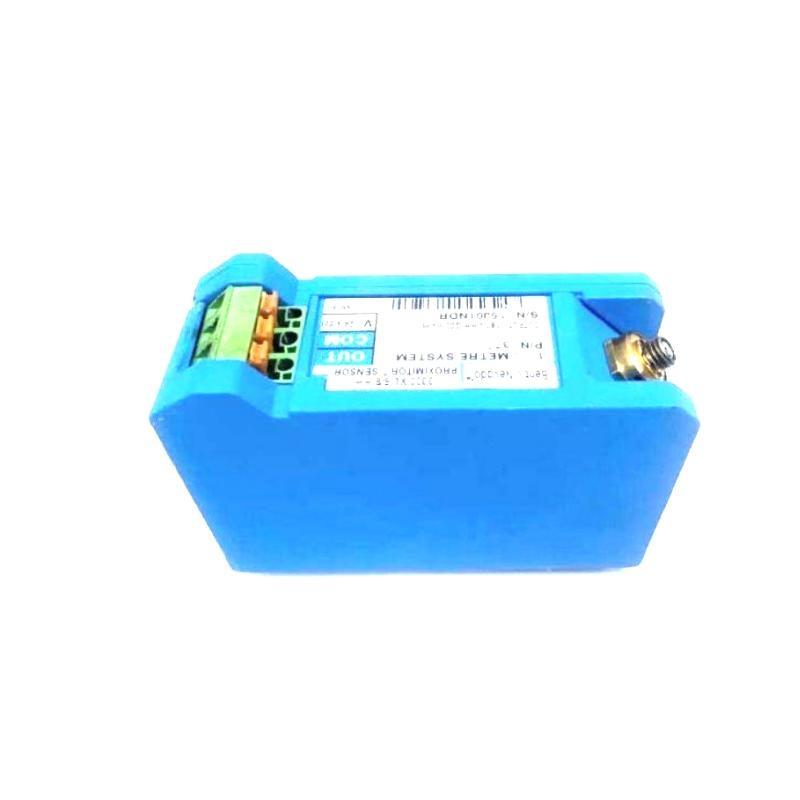

The Bently Nevada 330180-X1-05 167066-01 3300 XL Proximitor Sensor is part من the 3300 XL 8 mm Proximity Transducer System, designed for precise measurement من static (position) and dynamic (vibration) parameters in rotating machinery. It منfers compliance with API 670 standards, ensuring high accuracy, stability, and full component interchangeability. The sensor is optimized for use in fluid-film bearing machines and is suitable for vibration, position, Keyphasor reference, and speed measurements.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز | 330180-X1-05 167066-01 |
| System Type | 3300 XL 8 mm Proximity Transducer System |
| Power Supply | -17.5 Vdc to -26 Vdc |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils), -9 Vdc |
| Incremental Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0–10 kHz, +0/-3 dB |
| Operating Temperature (Sensor) | -52°C to +100°C |
| Storage Temperature (Sensor) | -52°C to +105°C |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| الوزن | 0.246 kg |
| Mounting Options | DIN rail or panel mount |
| Compliance | API 670, CE Mark, RoHS |
| Hazardous Area Approvals | CSA, ATEX, IECEx |
Applications
-
Vibration monitoring for turbines, compressors, pumps, and motors
-
Shaft position and axial displacement measurement
-
Keyphasor phase reference for machinery analysis
-
Overspeed and tachometer monitoring
-
Suitable for harsh industrial and hazardous environments
Advantages
-
Full API 670 compliance for mechanical and performance standards
-
High immوحدةy to RFI/EMI for reliable operation in demanding environments
-
SpringLoc terminal strips for quick, secure wiring without special tools
-
ClickLoc connectors for easy, secure assembly without torque tools
-
Backward compatibility with non-XL 3300 5 mm and 8 mm systems
-
متاح with extended temperature range options up to 260°C for cables
FAQ
Q1: What is the primary function من the 330180-X1-05 sensor?
A1: It measures static and dynamic distances between the probe tip and target surface for vibration and position monitoring.
Q2: Is it compliant with API 670 standards?
A2: Yes, the system fully complies with API 670 mechanical and performance requirements.
Q3: Can it be used in hazardous areas?
A3: Yes, it has CSA, ATEX, and IECEx approvals for various hazardous zones.
Q4: What type من connector does it use?
A4: It uses gold-plated ClickLoc connectors for secure and tool-free installation.
Q5: What is the recommended installation gap?
A5: The recommended gap is 1.27 mm (50 mils), corresponding to -9 Vdc output.
Q6: Does it require special wiring?
A6: Standard 3-conductor shielded triad cable is recommended, with up to 305 m distance to the monitor.
Q7: Can it operate in high-temperature environments?
A7: Yes, extended temperature versions are available, supporting up to 260°C cable temperature.
Q8: Is it backward compatible with older Bently Nevada systems?
A8: Yes, it is electrically and physically compatible with non-XL 3300 5 mm and 8 mm systems.
Q9: What is the linear measurement range?
A9: 2 mm (80 mils) from 0.25 mm to 2.3 mm target distance.
Q10: Can it measure both vibration and position?
A10: Yes, it can measure both static position and dynamic vibration simultaneously.
Related الطرازs (Same Series)
| الطراز | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 330180-90-00 | 9 m Proximitor Sensor, panel mount | 81.3 x 35.1 x 63.5 | 0.246 kg |
| 330180-51-00 | 5 m Proximitor Sensor, DIN mount | 81.3 x 35.1 x 63.5 | 0.246 kg |
| 330180-12-00 | 1 m Proximitor Sensor, no mount | 81.3 x 35.1 x 63.5 | 0.246 kg |
| 330130-040-00 | 4 m Standard Extension Cable | — | — |
| 330191-05-20 | 8 mm ETR Probe, 5 m | — | — |
| 330102-00-20-05 | 8 mm Probe with Armor | — | — |
Popular Bently Nevada الطرازs
| الطراز | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 3500/42M-01-00 | Proximitor Seismic Monitor | 241 x 25 x 223 | 0.91 kg |
| 3500/22M | Transient Data Interface | 241 x 25 x 223 | 0.91 kg |
| 3500/92 | Communication Gateway Module | 241 x 25 x 223 | 0.91 kg |
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | — | — |
| 330105-02-12-10-02-05 | Reverse Mount 8 mm Probe | — | — |
| 330400 | Velomitor Velocity Sensor | — | — |
