مقدمة المنتج

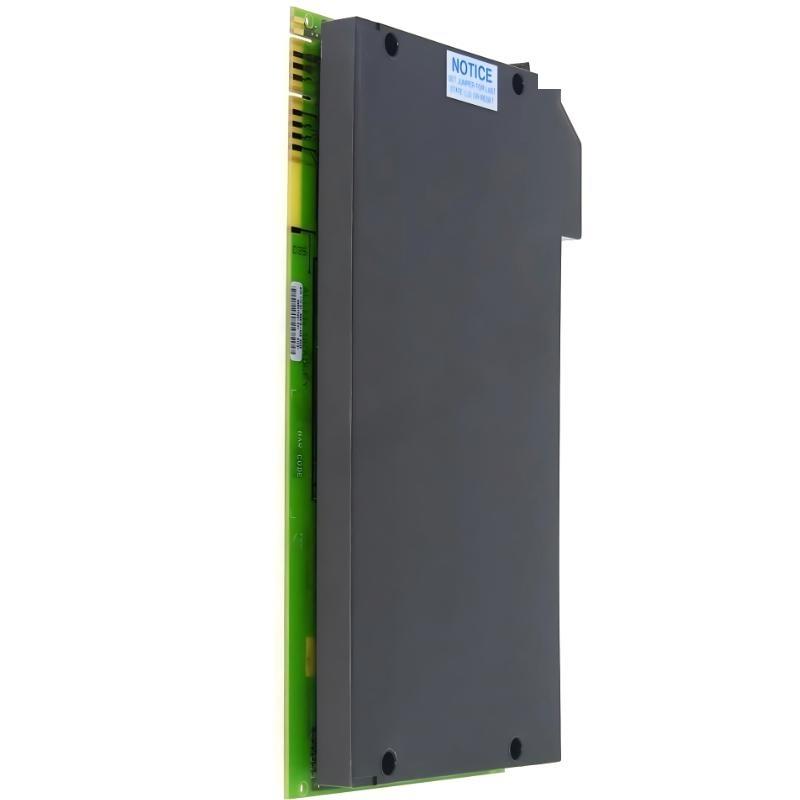

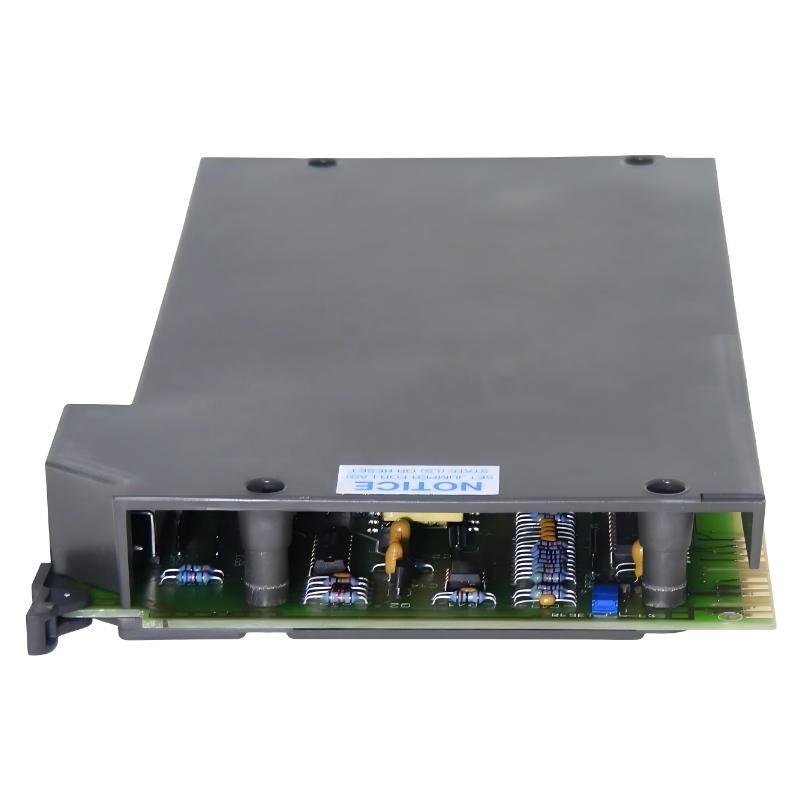

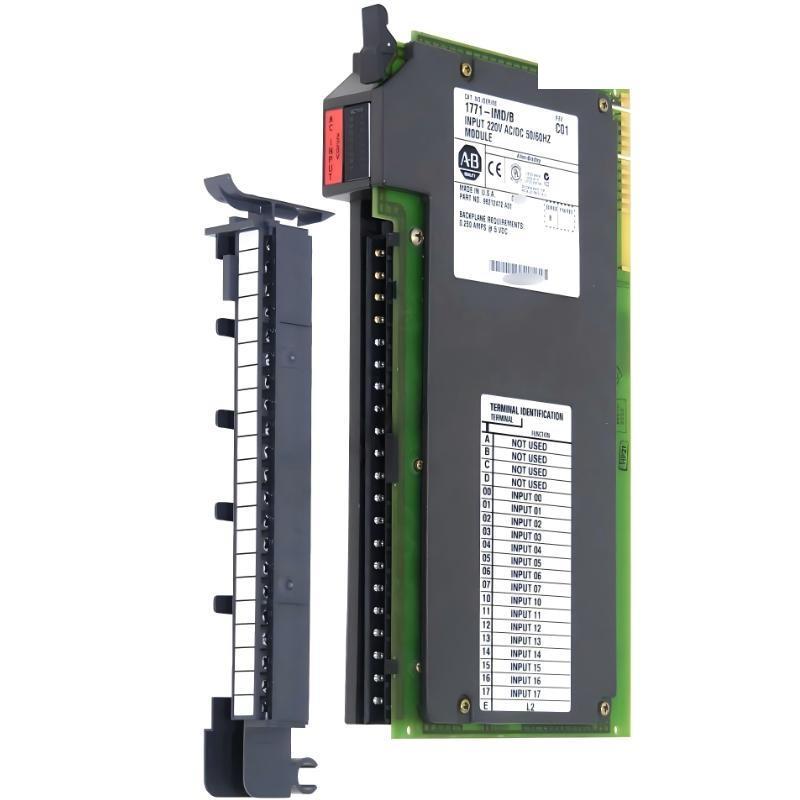

The Allen-Bradley 1771-IMD/B AC/DC Input Module is a discrete input module designed for the PLC-5 based 1771 I/O platform from Allen-Bradley. It is used to monitor high-voltage AC or DC input signals from field devices and transmit the signal status to the PLC processor for automated control and system monitoring.
The module provides 16 input points and is capable من handling 220 VAC or DC signals, making it suitable for industrial applications where higher voltage sensing is required. Once the signals are received, the module converts them into logic data that can be processed by the PLC-5 controller to trigger operations, alarms, or machine actions.
Installed in a standard 1771 I/O chassis, the 1771-IMD/B communicates with the control processor through the backplane. Its robust design allows reliable operation in industrial automation environments such as manufacturing lines, machine control panels, and process monitoring systems where dependable signal detection is essential.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| Product Name | Allen-Bradley 1771-IMD/B AC/DC Input Module |
| الشركة المصنعة | Allen-Bradley |
| Series | 1771 PLC-5 I/O System |
| Module Type | AC/DC digital input module |
| Input Channels | 16 points |
| Operating Voltage | 220 VAC/DC |
| Backplane Current | 0.25 A @ 5 VDC |
| Installation Location | 1771 I/O chassis |
| Dimensions | 165 × 51 × 89 mm |
| الوزن | 1.04 kg |
Applications
● Industrial PLC-5 Control Systems
Used to detect AC or DC signals from field equipment and transmit the status to the PLC for automated control.
● Manufacturing Production Lines
Monitors switches, relays, and other field devices to ensure equipment operates in the correct sequence.
● Machine Control Panels
Provides reliable signal acquisition from high-voltage devices used in industrial machinery.
● Process Monitoring Systems
Collects input signals from process equipment to support safe and stable system operation.
● Power and Utility Equipment
Suitable for applications where higher voltage input signals must be detected and monitored.
Advantages
● High-Voltage Input Capability
الدعمs 220 VAC/DC signals, making it suitable for industrial control circuits and power equipment.
● 16-Channel Input Capacity
Allows multiple field devices to be monitored within a single module, improving system efficiency.
● Reliable Signal Detection
Accurately converts field signals into logic data for PLC processing and control actions.
● Stable Backplane Communication
Ensures dependable data transfer between the module and the PLC-5 processor.
● Compact Modular Design
Fits easily into a standard 1771 chassis slot, simplifying installation and maintenance.
● Industrial-Grade Durability
Designed for consistent operation in demanding automation environments.
